Roland VRC-01 AeroCaster Audio Interface and Control Surface

Streaming doesn't have to be complicated! Mix up to four simultaneous video sources from wireless devices with the VRC-01 and the AeroCaster LIVE app.

Break free from the complicated setup and tangle of cables typically needed to connect cameras, computers, and switchers for multi-camera livestreaming. With just an iPad and a few mobile phones, the revolutionary Roland AeroCaster system will have you wirelessly switching and streaming on your favorite platform in minutes.

AeroCaster makes it easy and affordable for anyone to create a wireless multi-camera setup with pro-level production quality. Leveraging the A/V power of the mobile devices that everyone carries, Roland's breakthrough system opens up a new world of creative possibilities for any livestreaming application, from online talk shows and music performances to live commerce, remote education, and beyond.

The Swiftest, Simplest Switcher Setup

AeroCaster is a super-powerful A/V switching system that's incredibly versatile and easy to configure. In almost no time, you'll be streaming multiple cameras and high-quality audio to YouTube, Facebook, Twitch, and custom RTMP channels over a Wi-Fi or 4G/5G cellular network.

The AeroCaster system consists of the AeroCaster LIVE app for iPad, the AeroCaster VRC-01 hardware control surface and audio interface, and the AeroCaster Camera app for iOS and Android mobile devices. BYOD screen sharing from computers and mobile devices is also supported.

Capture Video from Five Sources

In addition to remote video capture from four mobile devices, you can access a fifth live video source using the camera on the iPad.

Connect with Your Favorite Streaming Platform

read more AeroCaster provides an easy wireless connection to the leading streaming platforms. And your purchase of the system gives you full access to all AeroCaster features, with no subscription fee required.

One-Touch Changes with Scenes

Create up to 30 scene presets with text overlays, graphics (including transparent PNG files), picture-in-picture windows, or split-screen views.

Pro Video Effects Made Easy

Use cuts, cross-dissolves, and wipes for smooth, real-time transitions.

Access iPad Media Content

Create titles and play video clips, photos, and graphics from your iPad's image library.

Features:

- Powerful wireless production solution with hardware control surface/audio interface and full-featured iPad app
- Switch up to four wireless devices simultaneously, plus the camera on the host iPad
- Supports wireless camera connections from up to four supported iOS and Android smartphones and tablets
- Wirelessly share screens from computers and mobile devices via the Google Chrome web browser
- Switch between cameras, media, and scenes with a variety of transition effects
- Save and recall 30 scenes with titles, graphics, and picture-in-picture windows
- Media pool for integrating video, audio, photos, and graphics stored on your iPad
- Stream directly to YouTube, Facebook Live, Twitch, and custom RTMP channels over Wi-Fi or 4G/5G cellular networks
- Intuitive hardware control surface and audio interface with two XLR inputs, 3.5 mm stereo input, and headphones and monitor outputs
read less

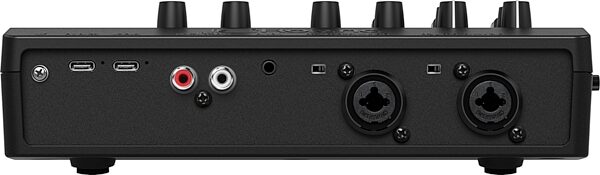

- Connectors:
MIC 1, 2 jacks: Combo type (XLR, 1/4-inch TRS phone), balanced, phantom power (DC 48 V, 4 mA Max)
LINE IN jack: Stereo miniature type
MONITOR OUT jack: RCA phono type

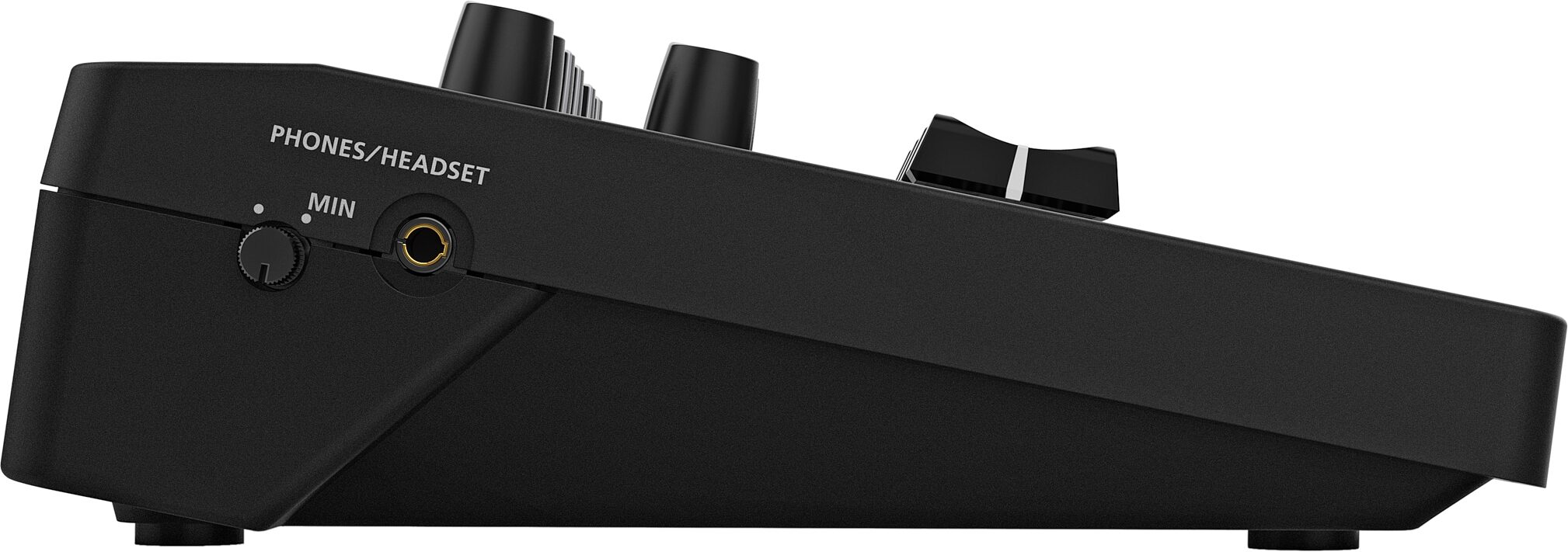

PHONES/HEADSET jack: Stereo miniature type
DC IN 5V port: USB Type-C (R)
DEVICE port: USB Type-C (R)

- Controller:
MIC 1 LEVEL fader
MIC 2 LEVEL fader
LINE IN LEVEL fader
MAIN LEVEL fader
MIC 1 COMP/LIMITER knob
MIC 2 COMP/LIMITER knob
MIC 1 GAIN knob
MIC 2 GAIN knob
LOOP BACK knob
HEADSET/ONBOARD MIC knob
REVERB knob
LIP SYNC DELAY knob
PHONES/HEADSET knob
MIC 1 +48V switch
MIC 2 +48V switch

- Indicator:
POWER
DEVICE
SIG/PEAK

- Nominal Input Level:
MIC 1, 2 jacks: -64 to +4 dBu (Maximum input level: +24 dBu)
LINE IN jacks: -10 dBu (Maximum input level: +10 dBu)

- Input Impedance:
MIC IN 1, 2 jacks: 10 k ohms (ANALOG GAIN < 24 dBu), 5 k ohms (ANALOG GAIN24 dBu)
LINE IN jacks: 15 k ohms

- Nominal Output Level:
MONITOR OUT jacks: -10 dBu (Maximum output level: +10 dBu)
PHONES/HEADSET jack: 15 mW + 15 mW (32 ohms load)

- Output Impedance:
MONITOR OUT jacks: 1 k ohms

- Audio Effects:
Delay, Reverb, HPF, Noise Gate, De-Esser, Compressor, Limiter

- Power Supply:
- USB AC adaptor (commercially available)
* Recommended to use an USB AC adaptor that can supply 5V, 1.0 A or more.
USB Bus power

- Current Draw:
700 mA (AC adaptor)
500 mA (USB bus power)

- Operation Temperature:
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit

- Dimensions:
220(W) x 166(D) x 60(H) mm
8-11/16(W) x 6-9/16(D) x 2-3/8(H) inches

- Weight (without cables):
600 g
1 lb 6 oz

- Accessories:
Leaflet "Read Me First"
USB Type-C to Lightning cable
USB Type-C to USB Type-A cable

- Compatible models:
Please check the latest information from the following URL.
http://roland.cm/vrc-01_om
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 2.25 lbs
Shipping Dimensions: 11 x 9 x 6 in
Manufacturer Part Number (MPN): VRC-01
