Roland SYSTEM-500 531 6-Channel Mixer Module

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

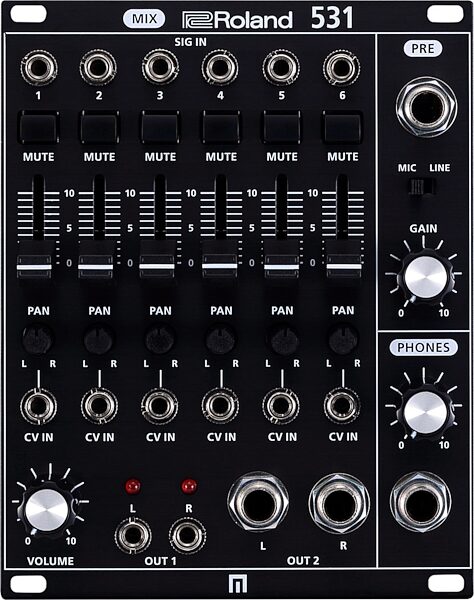

Roland SYSTEM-500 531 6-Channel Mixer Module, Main

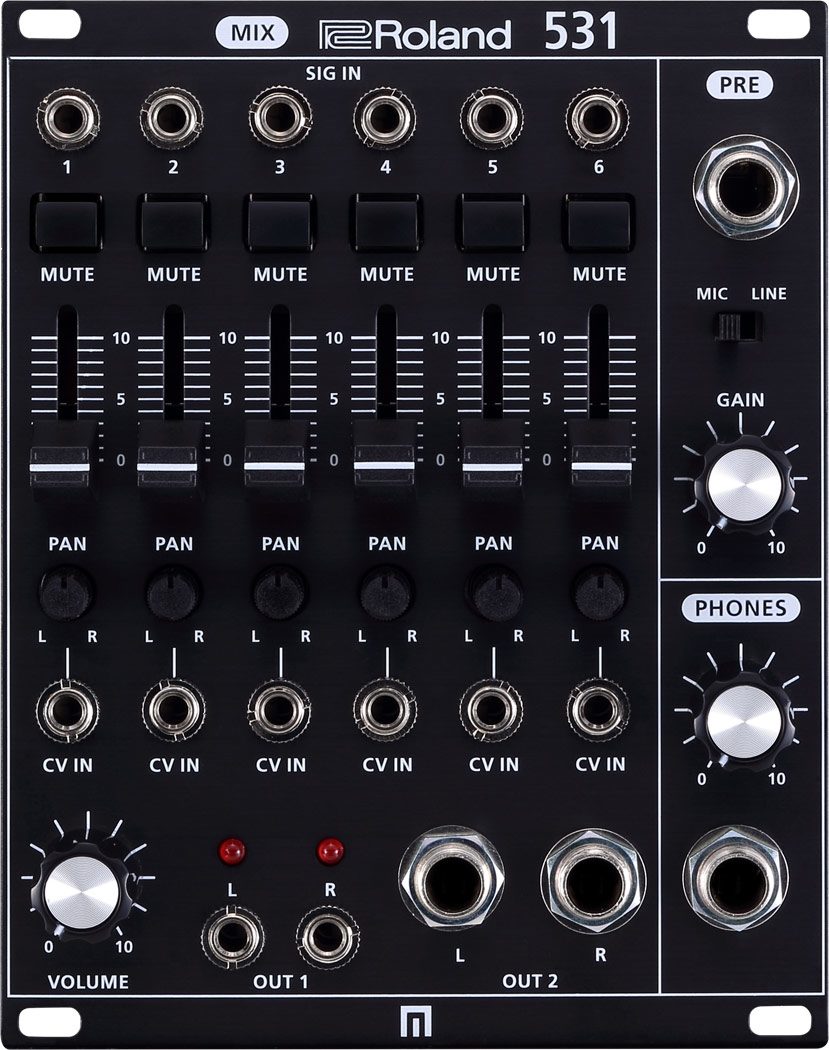

Roland SYSTEM-500 531 6-Channel Mixer Module, Main
zZounds Gear Experts Say...
Made for more than just stacking sounds, the Roland SYSTEM-500 531 6-channel mixer has CV-controlled pan pots for creating space and rhythmic stereo effects.

Inspired by the SYSTEM-100m's 131 output module, the SYSTEM-500 531 brings an updated approach with convenient and modern features. With six high-quality inputs, each with level slider, pan knob, and performance-friendly mute button, the SYS-531 is your central hub for mixing mono or stereo (PRE only) signals. It has high-fidelity sound with low noise, ensuring that your modular rig sounds its best. The six pan knobs are CV controlled so you can create space and dimension, and achieve interesting stereo effects. There's even a boutique-quality stereo preamp, so you can bring in mic or line level signals, and abusing this preamp's gain knob gives you pleasing overdriven tones. The headphone section has an easy-to-reach, dedicated volume knob as does the multi-format output section that lets you use both 1/4"and 1/8" cables. There's even an LED level indicator for visual feedback.

- Controllers:
- Mute switch (1-6)
- Signal in slider (1-6)
- Pan knob (1-6)
- Volume knob
- Mic line switch
- Gain knob
- PHONES knob
- Indicator:
- Overload L indicator
- Overload R indicator
- Connectors:
- SIGNAL IN jack (1-6): Miniature phone type
- CV IN jack (1-6): Miniature phone type
- OUT 1 jack (L,R): Miniature phone type
- OUT 2 jack (L,R): 1/4-inch phone type
- PRE IN jack: Stereo 1/4-inch phone type
- PHONES jack: Stereo 1/4-inch phone type
- Power Supply:
- Eurorack power
- Current draw195 mA (+12 V)
- 165 mA (-12 V)
- Accessories:
- Owner's Manual
- Leaflet "USING THE UNIT SAFELY"
- Eurorack installation screws (4 pcs)
- Eurorack power cable
- Size and Weight:
- Width: 101.3 mm
- Depth: 57.2 mm 2-1/4 inches
- Height: 128.5 mm 5-1/16 inches
- Weight: 274 g 10 oz

For support or warranty questions, please contact the manufacturer:
Phone: 323-890-3700
