Roland GO:MIXER STUDIO Streaming Mixer and Audio Interface

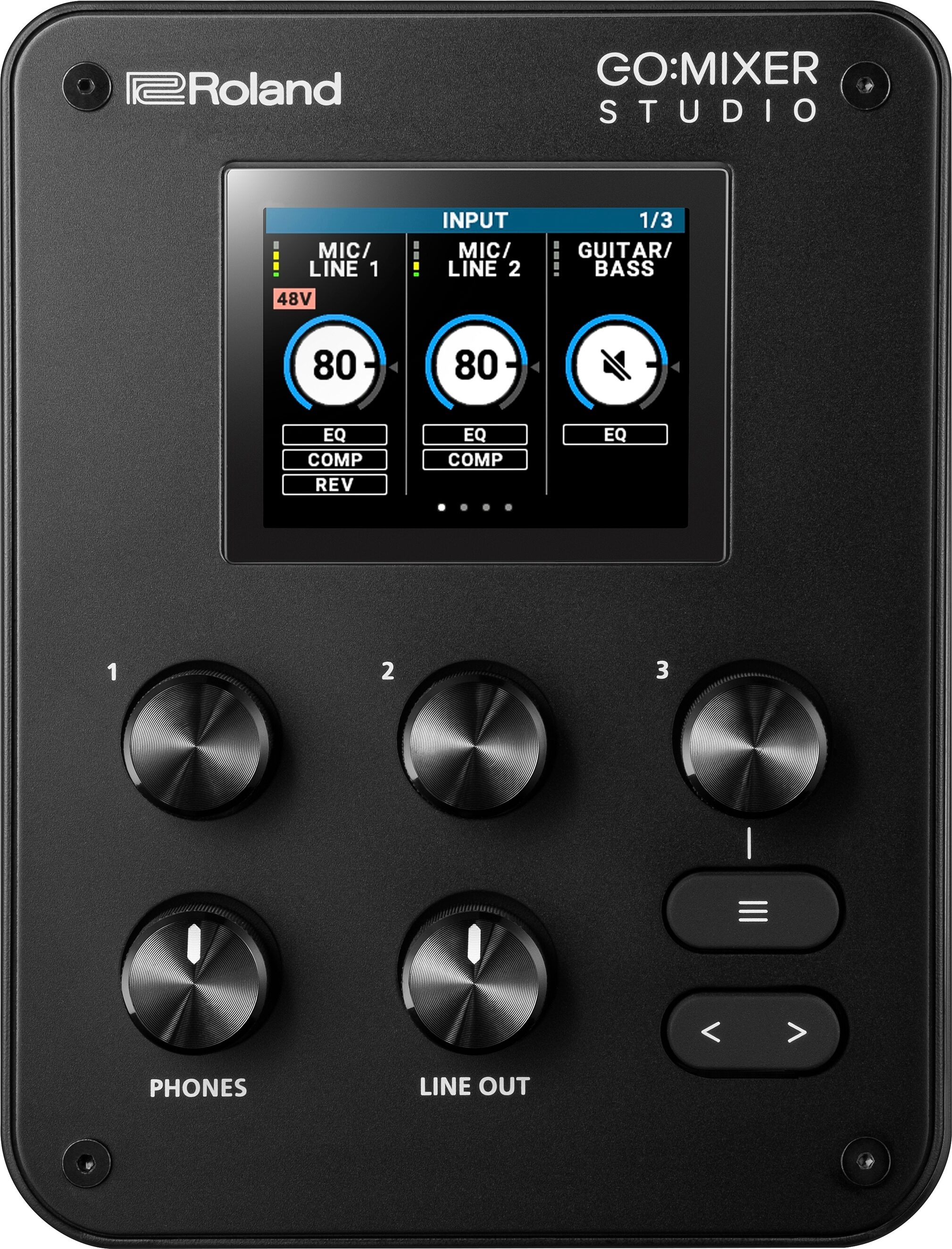

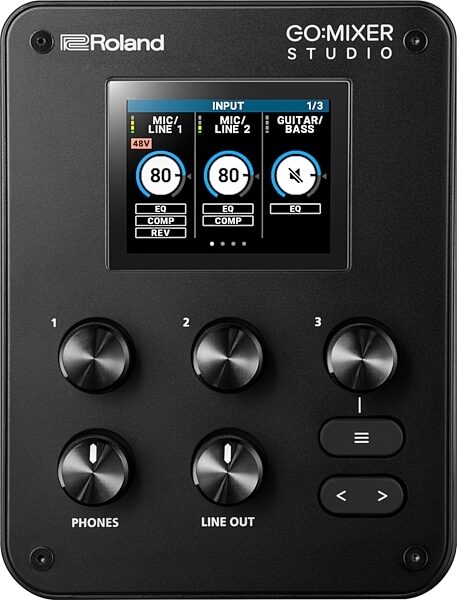

Roland GO:MIXER STUDIO Streaming Mixer and Audio Interface, Open Box (Very Good), Main

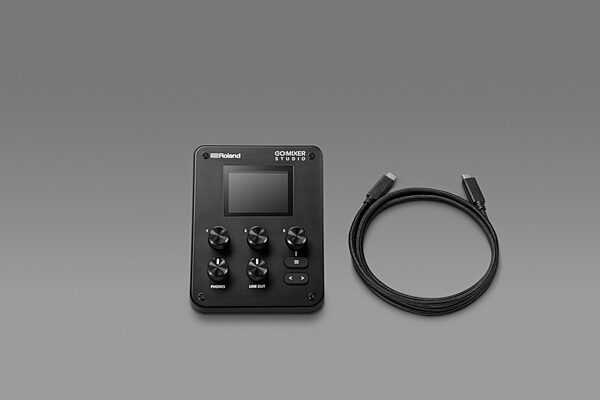

Roland GO:MIXER STUDIO Streaming Mixer and Audio Interface, Open Box (Very Good), Action Position Back

zZounds Gear Experts Say...

Shooting performance videos on a smartphone? This 12-in/6-out mixer/interface lets you capture a multi-channel mix with effects, with or without a computer.

Overview

The Roland GO:MIXER STUDIO is a highly portable studio quality audio mixer and recording interface designed for iPhone, iPad, and PC.

It allows creators to easily capture high quality audio from multiple input sources simultaneously at any location, in a simple to use and portable device. It minimizes the need for complicated setups, helping to streamline the creation process from beginning to the finished upload.

The Roland GO:MIXER STUDIO is for musicians and content creators of all types looking to improve the audio quality of their mobile video recordings to share on social media. It's also for home studio musicians & outdoor performers needing a high-quality portable audio interface for their DAW or to play sound clearly during live performances.

Capture every detail with professional studio clarity. Recording at up to 24-bit/192 kHz, this interface delivers pristine sound powered by two studio-grade mic preamps offering an expansive +75 dB gain range and switchable phantom power for both condenser and dynamic microphones. Monitor with confidence by applying compression, EQ, and lush reverb -- modeled after legendary studio gear -- directly to the analog outputs while keeping your USB recording completely dry for total mix flexibility.

With 12 inputs and 6 outputs available simultaneously, plus loopback audio for blending backing tracks from your PC and dedicated headphone routing for click tracks or cue mixes, it's a powerful all-in-one solution for modern recording,… read more streaming, and production.

GO:MIXER Cam App for iOS lets users record multi-track audio alongside video to their smartphone. This is not possible in native camera apps. Balance and mix audio tracks after recording to create the perfect mix.

Post direct to social media from smartphone (no PC required), cutting down the number of steps needed to create high quality content. Editor App for PC allows users to edit all aspects of GO:MIXER STUDIO from their PC.

Features:

- Capture studio quality audio anywhere using an iOS mobile device or PC/Mac.
- Use without mobile device or PC as a stand-alone audio mixer into speakers.

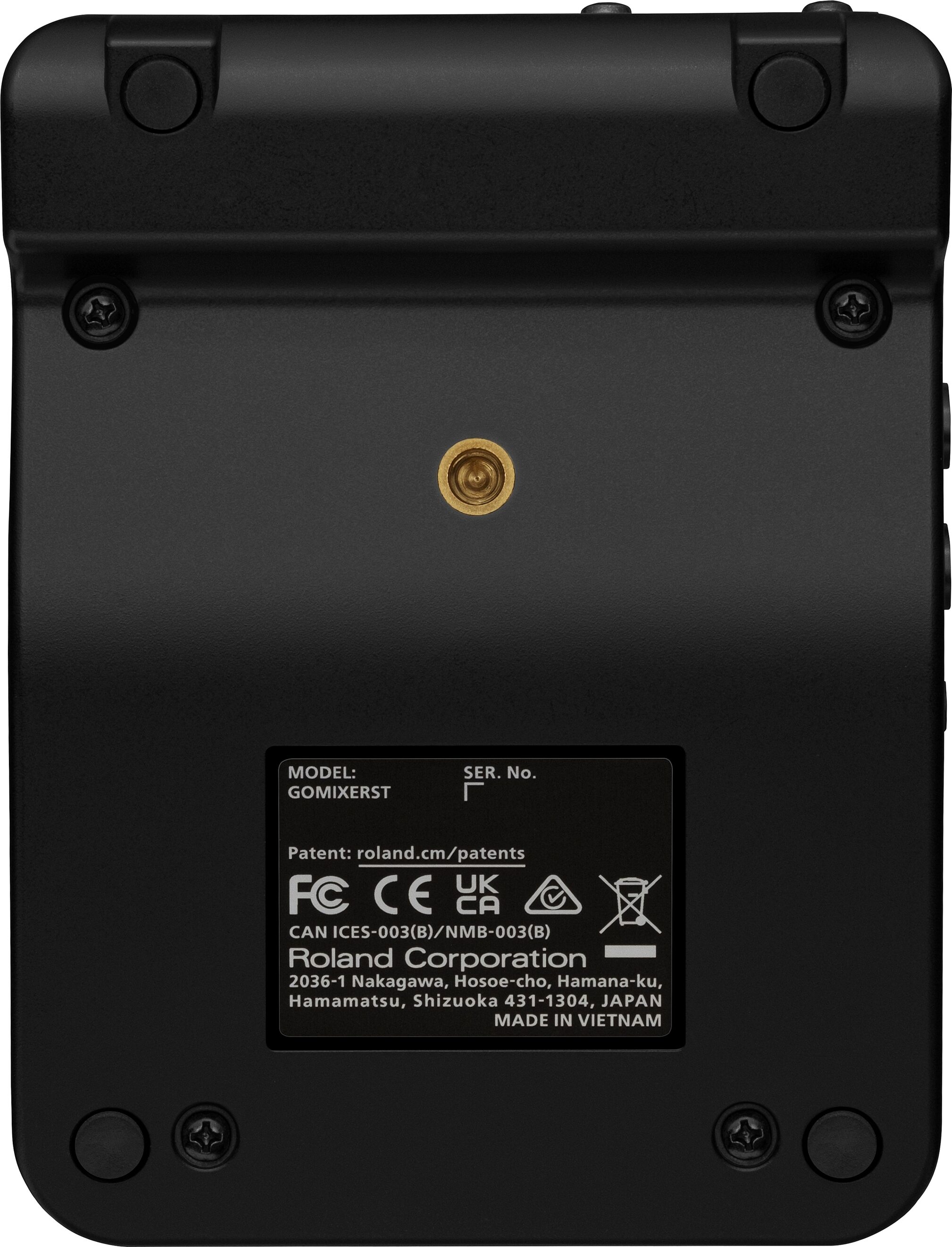

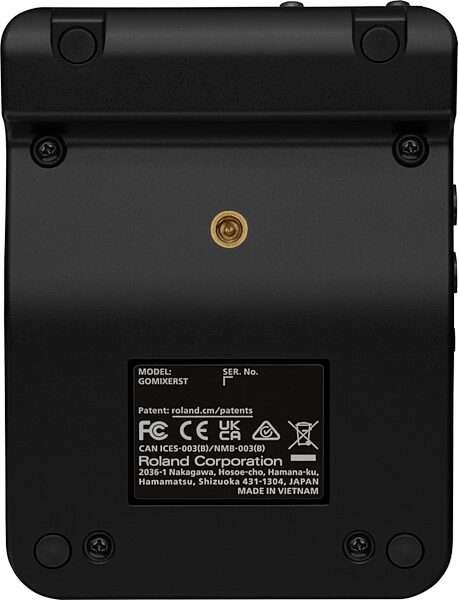

- Compact and portable design with underside mounting screw to easily setup at any location.
- Wide range of inputs including XLR microphone jacks and stereo line input, dedicated Guitar/Bass input, and TRS MIDI for connection to all instrument types. The AUX jack supports TRRS connections.
- Operates via a simple USB-C connection with bus power (no driver required), making it easy to record to mobile devices and Mac/PC. For Windows users, a dedicated ASIO-compatible driver is also available.

Specs

- Number of USB Audio Channels:
- Input: 12 channels
- Output: 6 channels
* At 192 kHz sample rate: 8 input channels, 4 output channels

- Sample Rate: AD/DA conversion: 44.1 kHz, 48 kHz, 96 kHz, 192 kHz

- Signal Processing:
- AD/DA conversion: 24 bits
- Internal Processing: 32-bit Floating point

- Connectors:

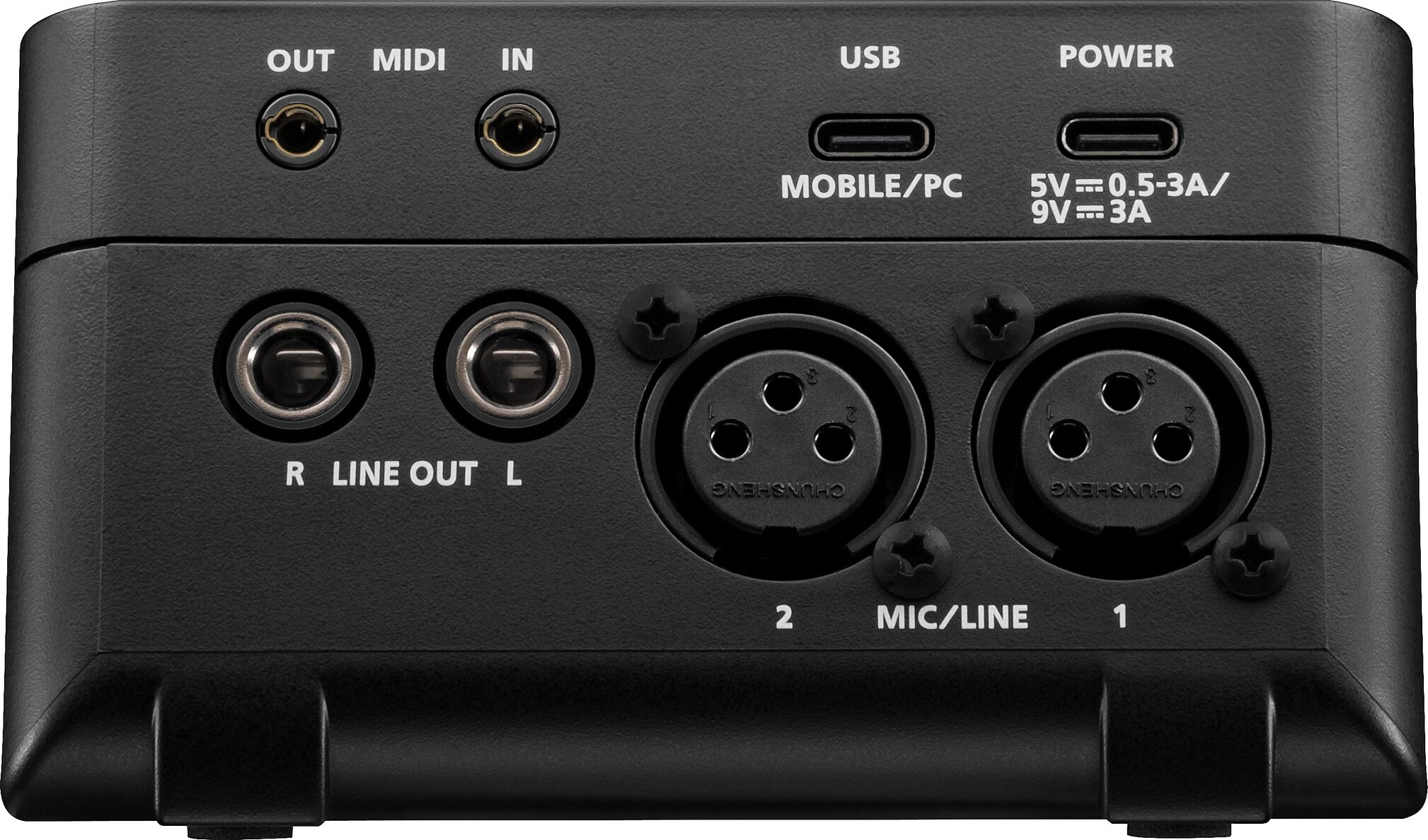

- MIC/LINE (1, 2) jacks: XLR type (Phantom power DC 48 V, 10 mA Max)

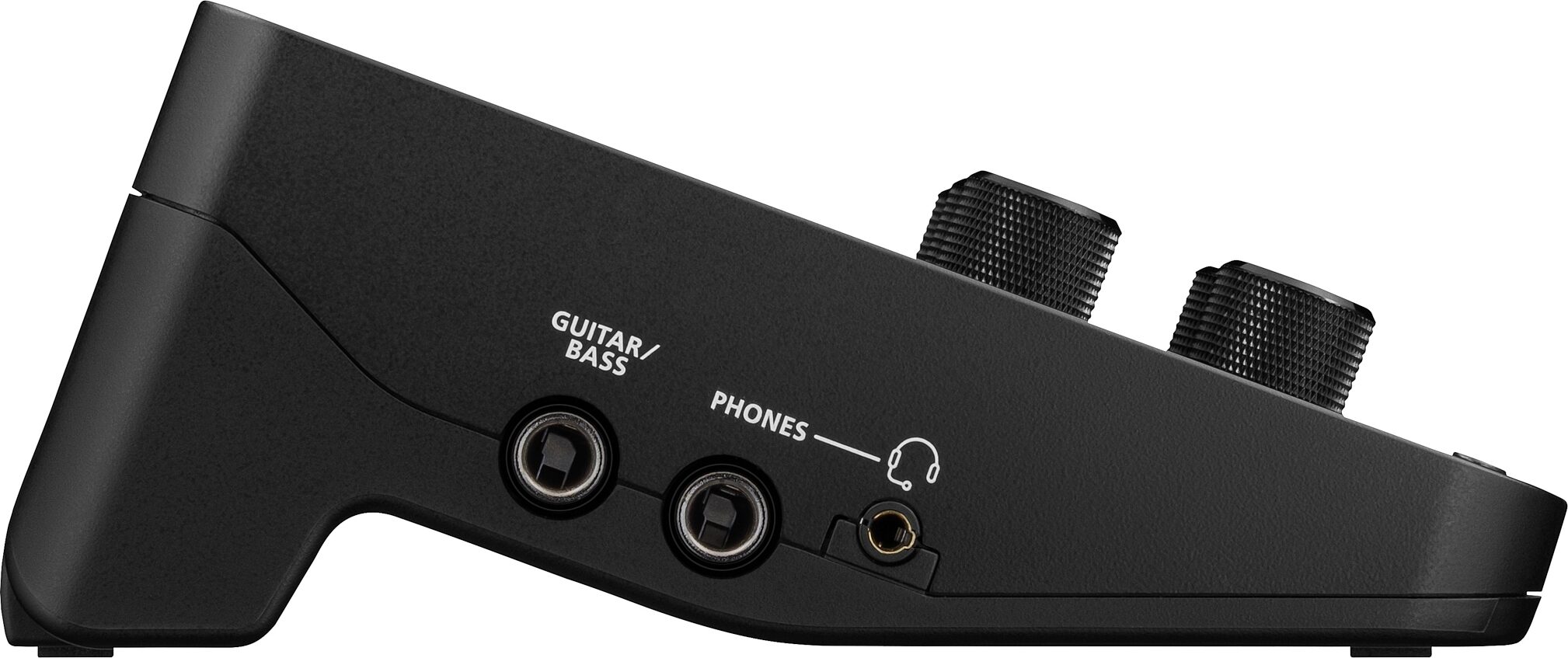

- GUITAR/BASS jack: 1/4-inch phone type (supports high impedance)

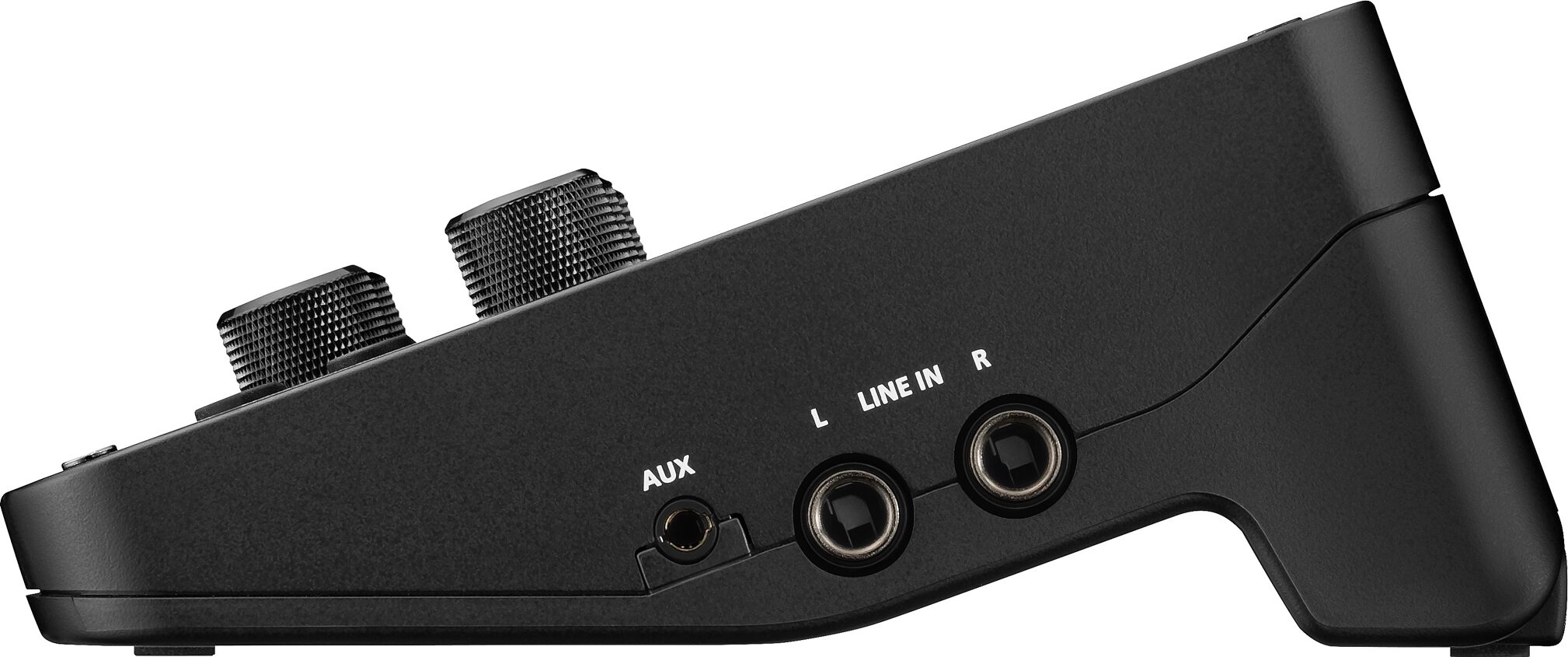

- LINE IN (L, R) jacks: 1/4-inch phone type
- AUX jack: Stereo miniature phone type (TRRS)
- PHONES jack: Stereo 1/4-inch phone type
- PHONES (MINI) jack: Stereo miniature phone type (CTIA, PLUG-IN power)
- LINE OUT (L, R) jacks: 1/4-inch phone type
- MIDI (IN, OUT) jacks: Stereo miniature phone type
- USB port: USB Type-C (R) (USB Audio Class 2.0/1.0, MIDI)
- POWER port: USB Type-C (R)

- Effects:
- MIC/LINE: Equalizer, Compressor (*2), Reverb (*2)
- GUITAR/BASS: Equalizer, Compressor (*1,2), Reverb (*2)
- LINE IN: Equalizer, Compressor (*1, *2)
- AUX: Equalizer, Compressor (*1, *2)
- HEADSET MIC: Equalizer, Compressor (*1, *2)
- PHONES: Equalizer
- LINE OUT: Equalizer
- (*1) Operation at 96 kHz sample rate is not supported.
- (*2) Operation at 192 kHz sample rate is not supported.

- Scene Memory: 16

- Input Level:
- MIC/LINE: -83.0-- -8 dBu (Maximum: +4 dBu)
- GUITAR/BASS: -44-- -4 dBu (Maximum: +17 dBu (PAD ON))
- LINE IN: -4 dBu (Maximum: +8 dBu)
- HEADSET MIC: -22.5 dBu (Maximum: -10.5 dBu)
- AUX: -10 dBu(Maximum: +2 dBu)

- Input Impedance:
- MIC/LINE: 5.6 k ohms (balanced)
- GUITAR/BASS: 1 M ohms
- LINE IN: 9.1 k ohms
- HEADSET MIC: 1.5 k ohms
- AUX: 9.1 k ohms

- Output Level:
- LINE OUT: -4 dBu (Maximum: +8 dBu)
- AUX: -32 dBu (Maximum: -20 dBu)
- PHONES: -4 dBu (Maximum: +8 dBu)
- PHONES: 69 mW + 69 mW (32 ohms)
- PHONES: 18 mW + 18 mW mW (250 ohms)

- Output Impedance:
- LINE OUT: 1.8 k ohm
- AUX: 940 ohms
- PHONES: 10 ohms

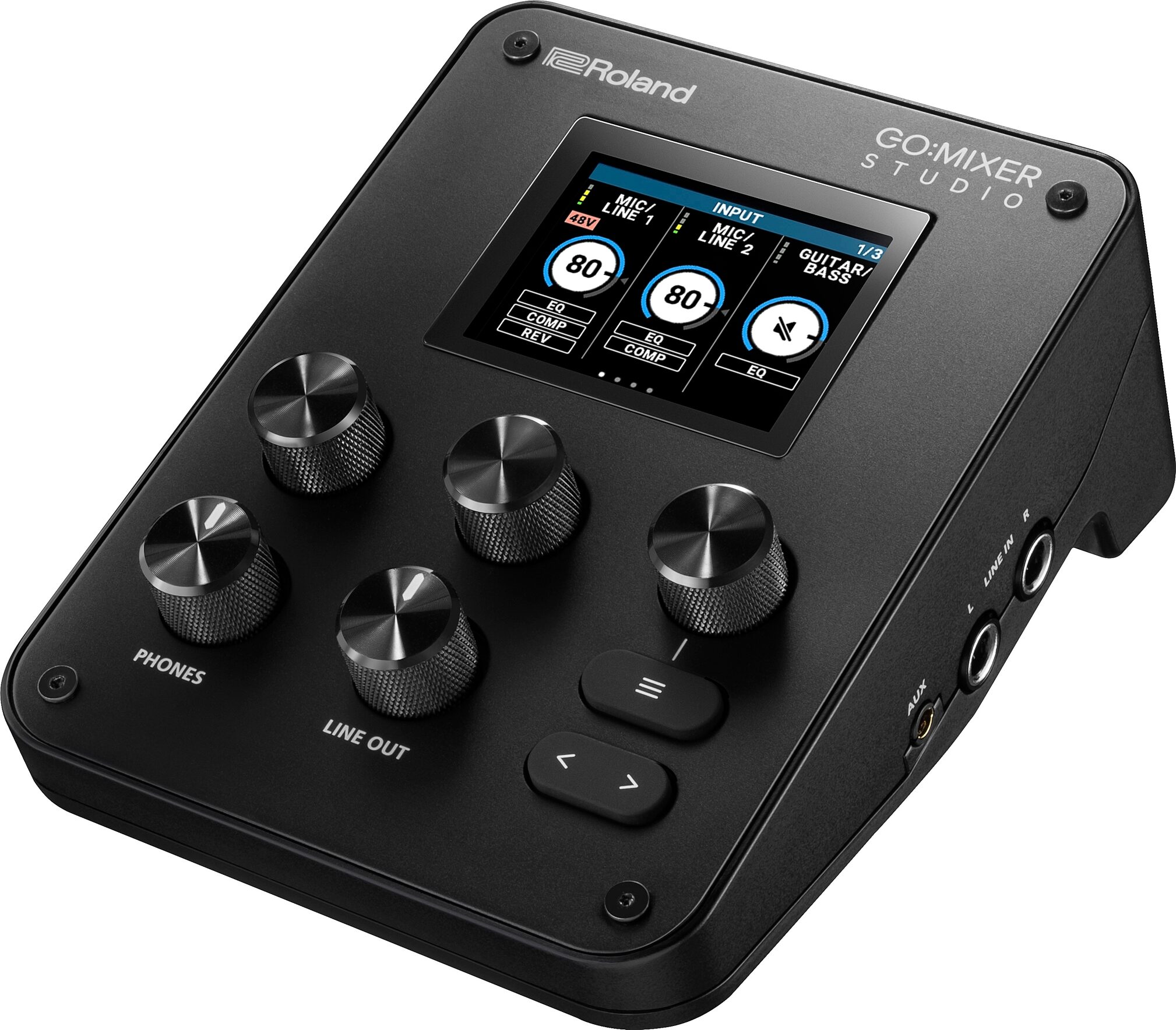

- Display: Graphic color LCD 320 x 240 dots

- Power:
- USB bus power
- USB PD compatible AC adapter (commercially available)

- Current Draw:
- 5 V DC, 0.5--3 A
- 9 V DC, 3 A

- Operating System:
- Microsoft Windows 11
- Apple macOS 15 or later
- Apple iOS/iPadOS 18 or later (USB-C Connector Equipped Model)
* Although Roland has tested numerous configurations, and has determined that on average, a computer system similar to that described above will permit normal operation of the GO:MIXER STUDIO, Roland cannot guarantee that a given computer can be used satisfactorily with the GO:MIXER STUDIO based solely on the fact that it meets the above requirements. This is because there are too many other variables that may influence the processing environment, including differences in motherboard design and the particular combination of other devices involved.

- Dimensions (W x D x H): 4.3 x 6.1 x 2.6" / 110 x 156 x 65 mm

- Weight: 440 g / 15.5 oz

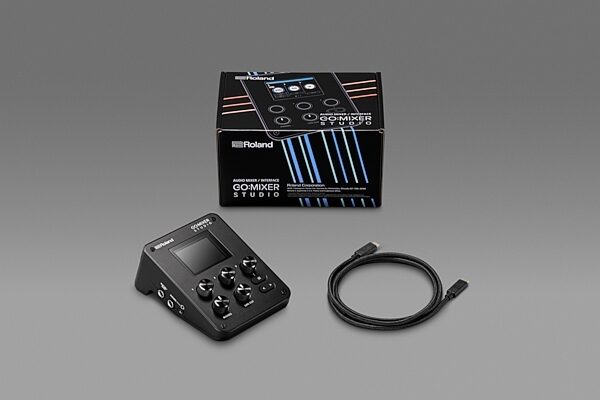

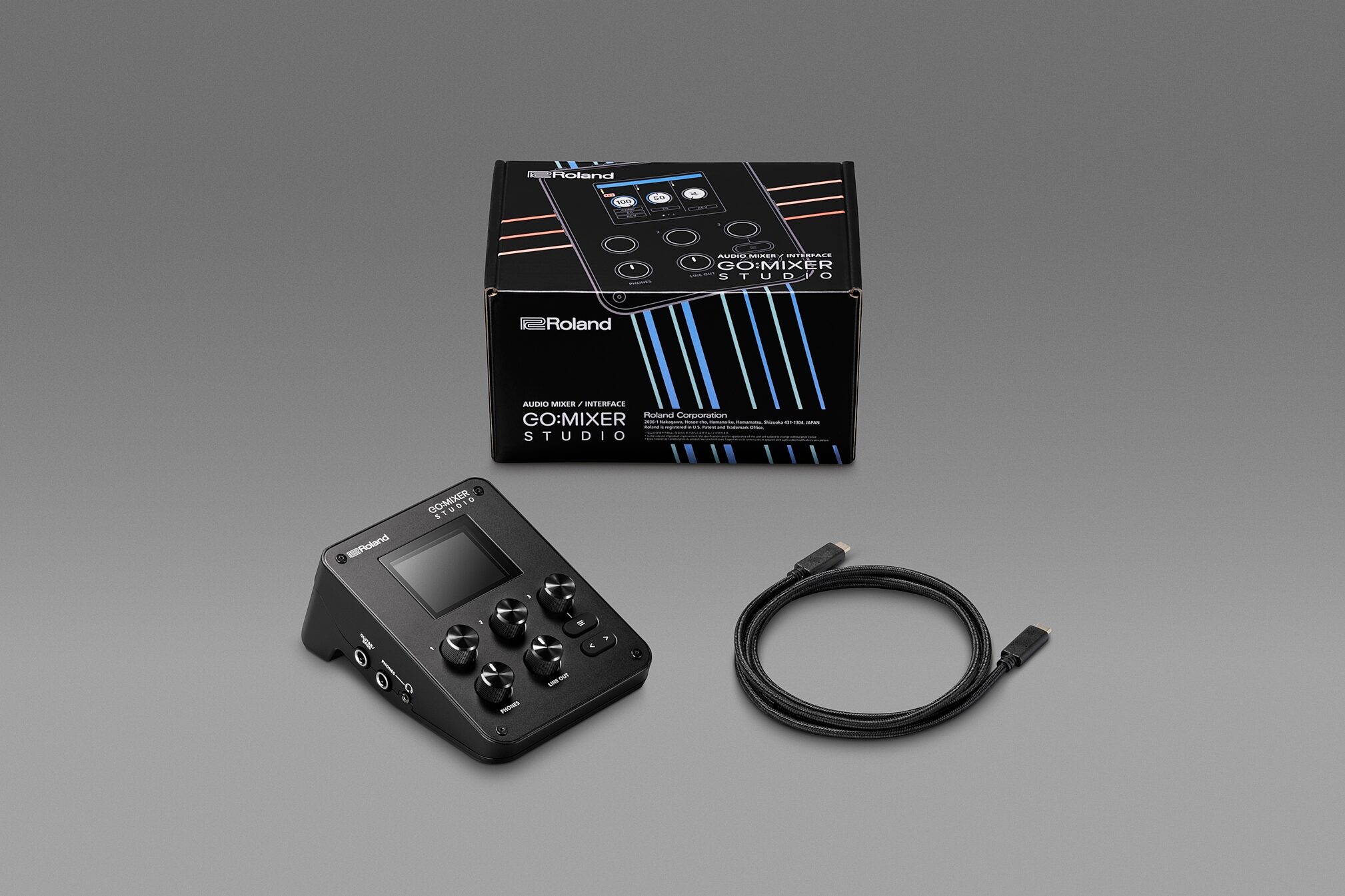

- Accessories:
- Leaflet "Read Me First"

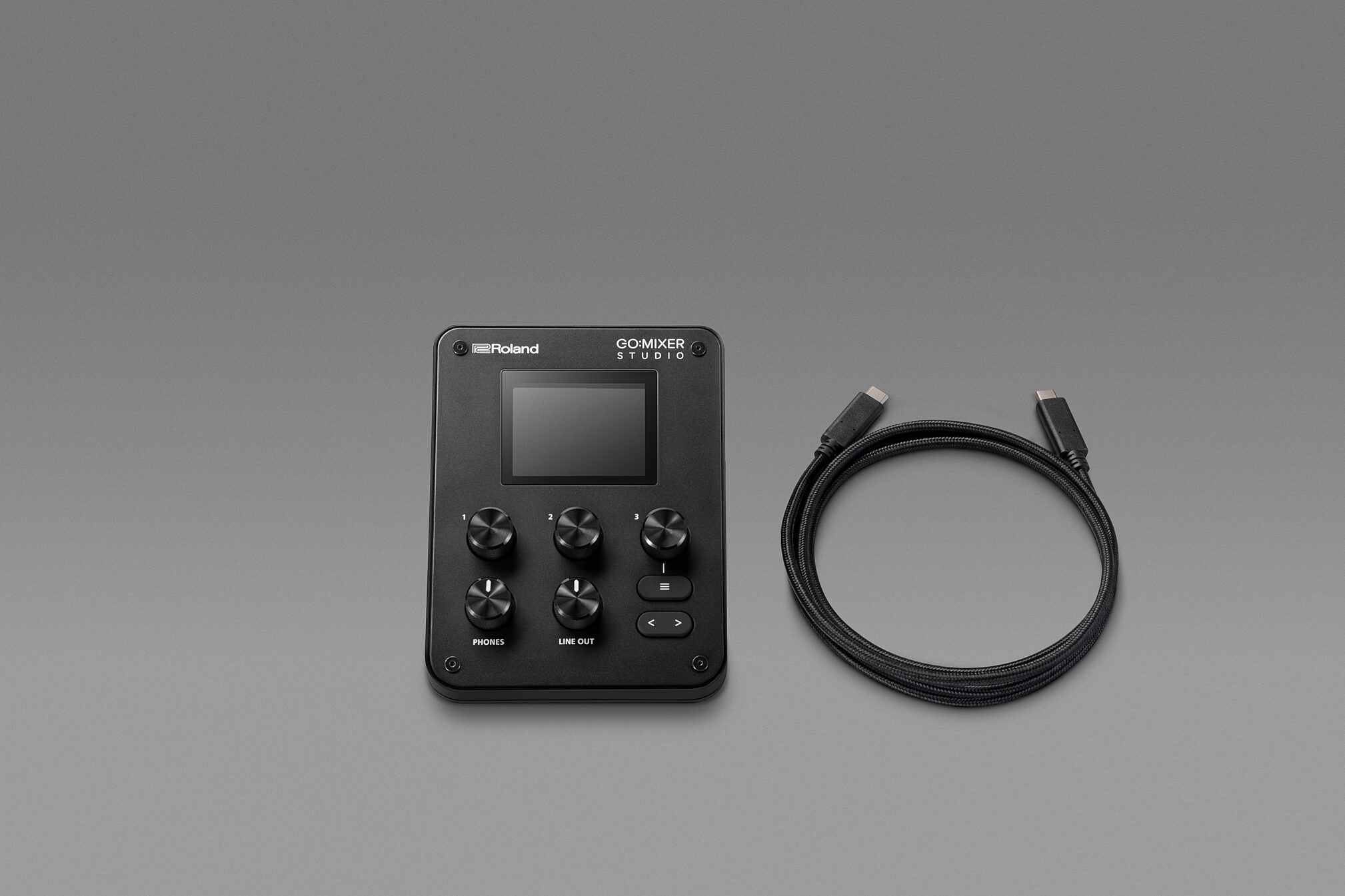

- USB Type-C to Type-C Cable (1.5 m, 5 feet)
