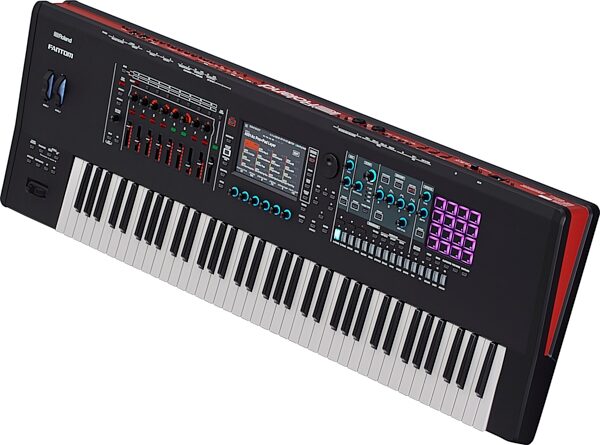

Roland Fantom 7 Music Synthesizer Workstation Keyboard, 76-Key

Keyboard:
FANTOM-6: 61 Keys (semi-weighted keyboard and channel aftertouch)
FANTOM-7: 76 Keys (semi-weighted keyboard and channel aftertouch)
FANTOM-8: 88 Keys (PHA-50 Wood and Plastic Hybrid Structure, with Escapement and Ebony/Ivory Feel, channel aftertouch)

Sound Generator:
ZEN-Core
V-Piano Technology

Parts:
16 Zones(Internal + External)

Scenes:
128 Scenes x 4 Bank

Tones:
Over 3,500 Tones
Over 90 Drum kits

Effects:
Multi-Effects: 16 systems, 90 types
Part EQ: 16 systems
Drum Part COMP: 6 systems
Insertion Effect: 2 System, 90 Type

Chorus: 8 types
Reverb: 6 types
Master Compressor
Master EQ
Mic Input Reverb: 6 types

Analog Filter:
STEREO
Type: LPF1/LPF2/LPF3/HPF/BPF/Bypass
Drive
Amp

Sequencer:
MIDI Tracks: 16(Internal/External)
Group:16
Pattern: 8 (per each Track)
Pattern Length: 32 mesures
Recording Method: Realtime recording, Step recording, TR-REC

Sampler:
-PAD Sampler
Format: 16-bit linear, 44.1/48kHz, WAV/AIFF import supported
Maximum Polyphony: 8
Number of Samples: 16 Pads x 4 Banks

Rhythm Pattern:
-Arpeggiator
-Chord Memory

Controllers:
Pitch Bend/Modulation Lever
Assignable Switch x 2 (S1/S2)
Control Knob x 8
Slider x 8
USB Audio Slider
Wheel x 2
Function Knob x 6
Sound Modified Knob x 11
4 x 4 Pad

Display:
Graphic Type, 7", Wide VGA (800 x 480 dots), backlit LCD (Color/Touch screen)

Connectors:
Headphones Jack: Stereo 1/4-inch phone type
MAIN OUT Jacks (L/MONO, R) (1/4-inch phone type)
MAIN OUT Jacks (L, R) (XLR type)
SUB OUT1 Jacks (L, R) (1/4-inch phone type)
SUB OUT2 Jacks (L, R) (1/4-inch phone type)
ANALOG OUTPUT Jacks(1,2)(1/4-inch phone type)
Mic/Line Input Jacks: (1,2) (1/4 inch phone type/XLR type)
2 x CV OUT, 2x GATE OUT
FOOT PEDAL JackS(HOLD, CTRL1,CTRL2,CTRL3)
MIDI connectors (IN, OUT1, OUT2/THRU)
USB MEMORY Port
USB COMPUTER Port (AUDIO/MIDI)
3 x External Device Port

External Memory:
USB Flash drive (sold separately)

Power Supply:
AC 117-240V 50/60Hz

Power Consumption:
50 W

Dimensions:
FANTOM-6: 1,084 (W) x 403 (D) x 106 (H) mm
FANTOM-7: 1,296 (W) x 403 (D) x 106 (H) mm
FANTOM-8: 1,432 (W) x 439 (D) x 153 (H) mm

FANTOM-6: 42-11/16 (W) x 15-7/8 (D) x 4-3/16 (H) inches
FANTOM-7: 51-1/16 (W) x 15-7/8 (D) x 4-3/16 (H) inches
FANTOM-8: 56-7/16 (W) x 17-5/16 (D) x 6-1/16 (H) inches

Weight:
FANTOM-6: 15.3 kg
FANTOM-7: 17.7 kg
FANTOM-8: 27.7 kg

FANTOM-6: 33 lbs 12 oz
FANTOM-7: 39 lbs 1 oz
FANTOM-8: 61 lbs 2 oz

Accessories:
Owner's manual
Power Cord

Options (sold separately):

Keyboard Stand:
FANTOM-6:KS-10Z, KS-12
FANTOM-7:KS-10Z, KS-12
FANTOM-8:KS-G8B, KS-10Z, KS-12
Pedal Switch: DP series, RPU-3
Expression Pedal: EV-5
USB Flash drive
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 50.5 lbs
Shipping Dimensions: 57 x 22 x 9 in
Manufacturer Part Number (MPN): FANTOM-7
If you have additional warranty questions, please contact the manufacturer at 323-890-3700
(3 ratings)
Submitted July 4, 2020 by a customer from yahoo.com
"Stratch and Dented"
Verified Customer zZounds has verified that this reviewer made a purchase from us.
Bought mine here at zZounds for only 2600 $ because it had broken plastic strip in back and mod wheel stick broken which super glue fixed . Once in a lifetime deal .All the elections still worked!! First time synth user probably over your head with this one . But just watch videos and it all comes together if you come into a snag. Never pay full price there’s to many good deals if you have patients
Musical Background:
40 yrs
Musical Style:
Bad Hair Day style or somewhere between Zappa and those funny guys in white wigs
