Roland ADA7000 8 Channel A/D And D/A Converter

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

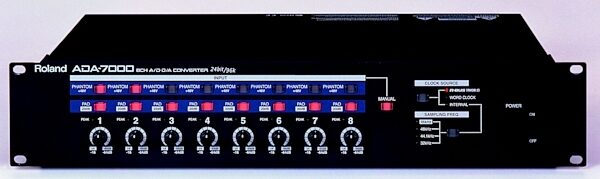

Roland ADA7000 8 Channel A/D And D/A Converter, Main
Roland ADA7000 8 Channel A/D And D/A Converter, Main
Roland ADA7000 8 Channel A/D And D/A Converter, Main Roland ADA7000 8 Channel A/D And D/A Converter, Main
zZounds Gear Experts Say...
8-channel A/D-D/A converter for use with Roland's R-BUS port.

Connecting the ADA-7000 to the R-BUS connector on the expanded VM-7100/7200, VM-3100Pro or V-Studio VSR-880 enables simple expansion of analog input and output in 8-channel units. Connecting 3 ADA-7000 to the 3 R-BUS connectors on expanded VM-7200 processor adds 24 XLR analog inputs to the original 20 already provided, making it possible to configure a 44-channel analog XLR input system. If 2 expanded VM-7200s are connected in a cascade configuration, a large-scale live concert PA system with 88 analog XLR input channels can be run with a single digital mixer.

Features
8-Channel AD/DA converter for use with Roland R-BUS technology

Analog inputs: 8 balanced XLR jacks (with phantom power supply) and eight 1/4 in. jacks

Analog outputs: 8 balanced XLR jacks and 8 RCA jacks

24-bit A/D and D/A converters for pristine sound

Programmable gain enables gain control using R-BUS signal

Convenient 2U rackspace design

Remote operation possible from VM-C7100/C7200 V-Mixing Consoles

Exterior: 2 space rack-mounted unit

Connection jacks (Inputs/Outputs): INPUT 1-8 -64 to +4dBu (XLR-type, balanced, Phantom power supply) or (1/4 in. phone type, TRS balanced)

OUTPUT 1-8: +4 dBu (XLR type, balanced)

OUTPUT 1-8: -10 dBu (RCA type)

Connection jacks (R-Bus/Word Clock): R-BUS (DB-25 type)

WORD CLOCK IN (BNC type with TERMINATOR switch)

WORD CLOCK OUT (BNC type) l AC Inlet

A/D Converter: 64x oversampling 24-bit

D/A Converter: 128x oversampling 24-bit

Shipping Dimensions (H x W x D): 7.5 x 7 x 3.08

Shipping Weight: 22 lbs.

For support or warranty questions, please contact the manufacturer:
Phone: 323-890-3700
