Rode RODECaster Video S All-In-One Production Console for Audio and Video
zZounds Gear Experts Say...
The S is for streamlined! Rode's lighter edition of the RODECaster Video has all the essential I/O: 3 HDMI inputs, HDMI out, 2 mic preamps, and a USB-C port.
Overview
The RODECaster Video S is a revolutionary all-in-one console for video and audio production, giving you intuitive control over every aspect of your content. A streamlined version of the RODECaster Video, it combines powerful video switching, recording, and production tools with a fully integrated professional audio mixer, all in a compact, desktop-friendly package. From studio shoots and video podcasts to interviews and live streams, the RODECaster Video S delivers seamless, broadcast-quality results with total ease.
- High-performance octa-core CPU video and audio processor

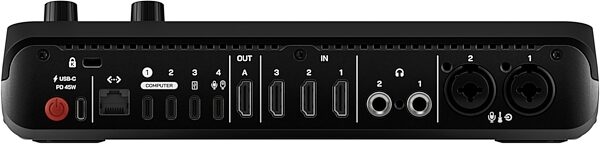

- Three HD (1080p) HDMI inputs, one configurable HDMI output, and one multi-function USB-C port for connecting webcams and RODE USB audio devices
- Two studio-grade Neutrik combo jacks with ultra-low noise, high-gain Revolution Preamps- for capturing pristine audio from XLR microphones, instruments or any other audio source
- Powerful APHEX audio processing, including an EQ, compressor, noise gate, high-pass filter, de-esser and the legendary Aural Exciter, Big Bottom and Compellor effects
- Media playback, keying, transitions, multi-source scenes and graphic overlays accessible from the front panel
- Support for network cameras (including PTZ operation) with up to four NDI inputs, and one output via Ethernet, plus dual-cam streaming with the free RODE Capture app for iOS devices
- 2-inch high-resolution touchscreen… read more and versatile rotary encoder for quick configuration and setting adjustment
- Connect an external SSD via USB to record video or output directly to a computer via UVC
- Remote control, user-assignable graphics and media, custom scene building, audio mixing and effects, and other advanced configuration options via RODECaster App
- Intelligent auto-switching for seamless hands-free switching of video sources and scenes based on audio inputs
- Dual USB-C audio interfaces for simultaneous connection to two computers and/or mobile devices
- Dual internal wireless receivers for connecting RODE Series IV wireless microphones
- Stream directly to all major platforms via Wi-Fi or Ethernet and record directly to an external USB storage device, including isolated (ISO) recording for complete post-editing flexibility
- Designed and made in RODE's state-of-the-art facilities in Sydney, Australia
read less
Features:
- Switch between up to four video sources and five fully customizable scenes- High-performance octa-core CPU video and audio processor
- Three HD (1080p) HDMI inputs, one configurable HDMI output, and one multi-function USB-C port for connecting webcams and RODE USB audio devices
- Two studio-grade Neutrik combo jacks with ultra-low noise, high-gain Revolution Preamps- for capturing pristine audio from XLR microphones, instruments or any other audio source
- Powerful APHEX audio processing, including an EQ, compressor, noise gate, high-pass filter, de-esser and the legendary Aural Exciter, Big Bottom and Compellor effects
- Media playback, keying, transitions, multi-source scenes and graphic overlays accessible from the front panel
- Support for network cameras (including PTZ operation) with up to four NDI inputs, and one output via Ethernet, plus dual-cam streaming with the free RODE Capture app for iOS devices
- 2-inch high-resolution touchscreen… read more and versatile rotary encoder for quick configuration and setting adjustment
- Connect an external SSD via USB to record video or output directly to a computer via UVC
- Remote control, user-assignable graphics and media, custom scene building, audio mixing and effects, and other advanced configuration options via RODECaster App
- Intelligent auto-switching for seamless hands-free switching of video sources and scenes based on audio inputs
- Dual USB-C audio interfaces for simultaneous connection to two computers and/or mobile devices
- Dual internal wireless receivers for connecting RODE Series IV wireless microphones
- Stream directly to all major platforms via Wi-Fi or Ethernet and record directly to an external USB storage device, including isolated (ISO) recording for complete post-editing flexibility
- Designed and made in RODE's state-of-the-art facilities in Sydney, Australia
Specs
- Video Input Feeds: 4 simultaneous
- HDMI Inputs: 3 type-A (HDMI 1.4b)
- USB (UVC) Inputs: 1 multi-function USB-C for UVC video
- HDMI Outputs:
- 1 configurable -
- Preview, Program, Multiview, Inputs 1 - 4
- Video Input Frame Rates:
- 1920x1080p:
- 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HDMI only) 1920x1080i: 25, 29.97, 30
- Video Output Frame Rates:
- 1920x1080p:
- 24, 25, 30, 50, 60
- Video Streaming Standards:
- 1920x1080p:
- 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- Video Engine Colour Space/ Bit Depth: 4:4:4 RGB / 8-bit
- HDMI Input Colour Space / Bit Depth: 4:4:4 RGB, 4:4:4 YUV, 4:2:2 YUV / 8, 10, 12-bit
- USB Input Colour Space: 4:2:2 YUV, 4:2:0 YUV (NV12)
- HDMI Output Colour Space / Bit Depth: 4:4:4 RGB, 4:4:4 YUV / 8-bit
- USB Output Colour Space / Bit Depth: 4:2:2 YUV / 8-bit
- Converters: On all HDMI and USB inputs
- NDI Protocols: Single TCP, Multicast
- NDI Formats: Hx2, Hx3
- NDI Video Codecs: H.264, HEVC/H.265, 4:2:0, 8-bit
- NDI Audio Codecs: AAC-LC, L-PCM Stereo 2.0 at 48kHz
- NDI Interfaces: Wired Ethernet
- HDMI Inputs: 3 type-A (HDMI 1.4b)
- USB (UVC) Inputs: 1 multi-function USB-C for UVC video
- HDMI Outputs:
- 1 configurable -
- Preview, Program, Multiview, Inputs 1 - 4
- Video Input Frame Rates:
- 1920x1080p:
- 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HDMI only) 1920x1080i: 25, 29.97, 30
- Video Output Frame Rates:
- 1920x1080p:
- 24, 25, 30, 50, 60
- Video Streaming Standards:
- 1920x1080p:
- 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- Video Engine Colour Space/ Bit Depth: 4:4:4 RGB / 8-bit
- HDMI Input Colour Space / Bit Depth: 4:4:4 RGB, 4:4:4 YUV, 4:2:2 YUV / 8, 10, 12-bit
- USB Input Colour Space: 4:2:2 YUV, 4:2:0 YUV (NV12)
- HDMI Output Colour Space / Bit Depth: 4:4:4 RGB, 4:4:4 YUV / 8-bit
- USB Output Colour Space / Bit Depth: 4:2:2 YUV / 8-bit
- Converters: On all HDMI and USB inputs
- NDI Protocols: Single TCP, Multicast
- NDI Formats: Hx2, Hx3
- NDI Video Codecs: H.264, HEVC/H.265, 4:2:0, 8-bit
- NDI Audio Codecs: AAC-LC, L-PCM Stereo 2.0 at 48kHz
- NDI Interfaces: Wired Ethernet
Dimensions and Weight in Packaging
Base Item
- Shipping Weight: 3.68 lbs
- Shipping Dimensions: 11 x 6 x 5 in
- Manufacturer Part Number (MPN): RCVS
