Rode RODECaster Video Core Production Console for Audio and Video

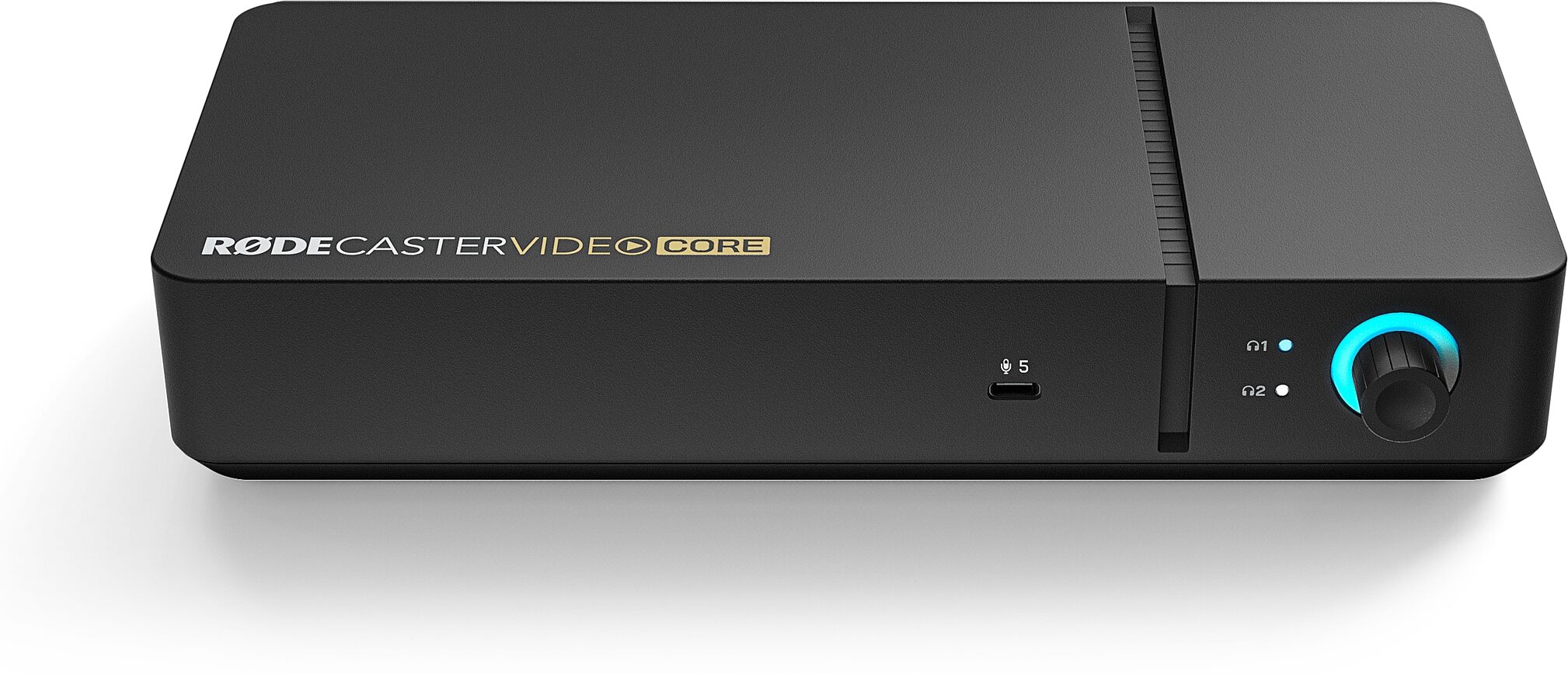

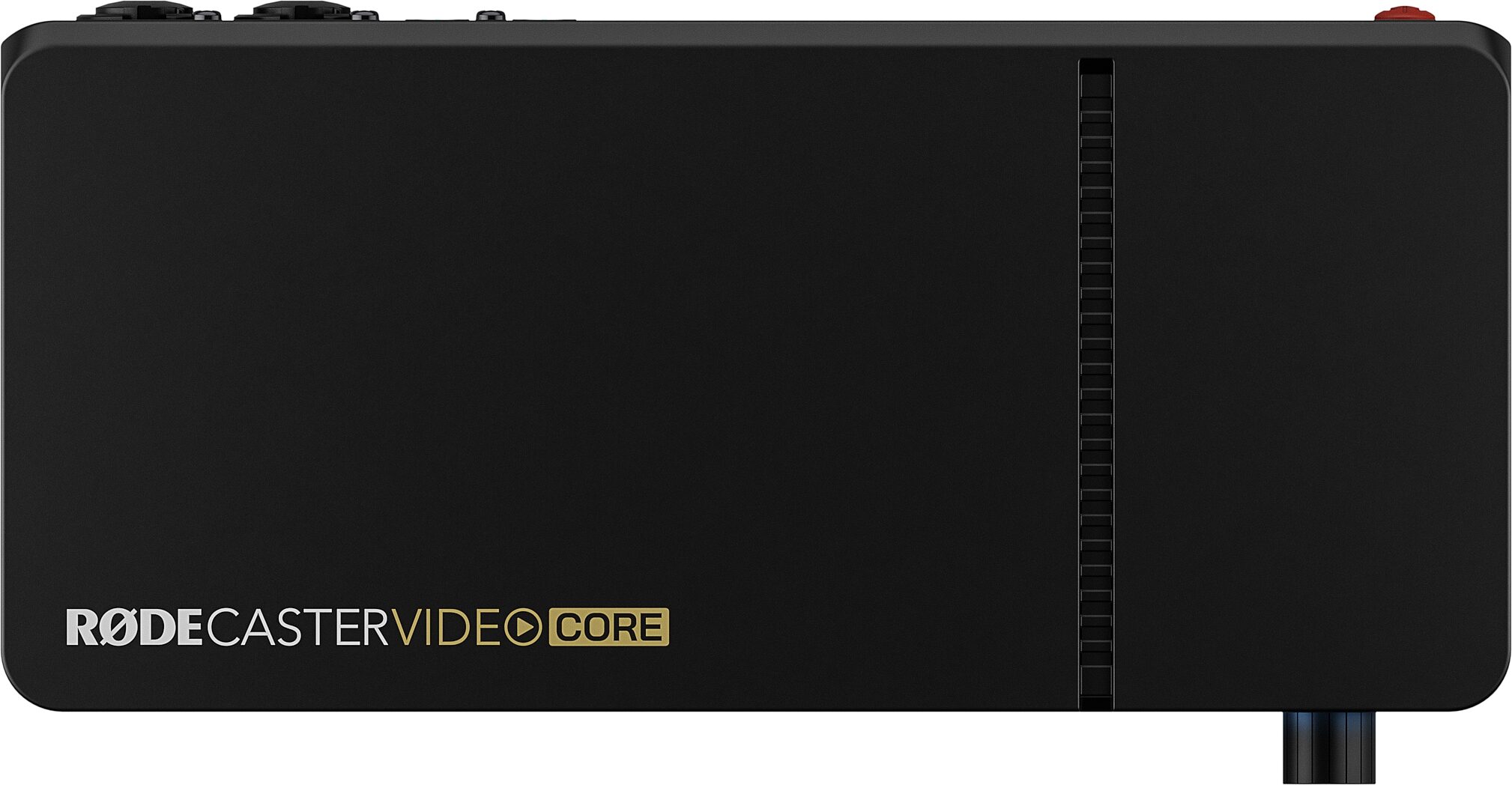

Rode RODECaster Video Core Production Console for Audio and Video, New, Main

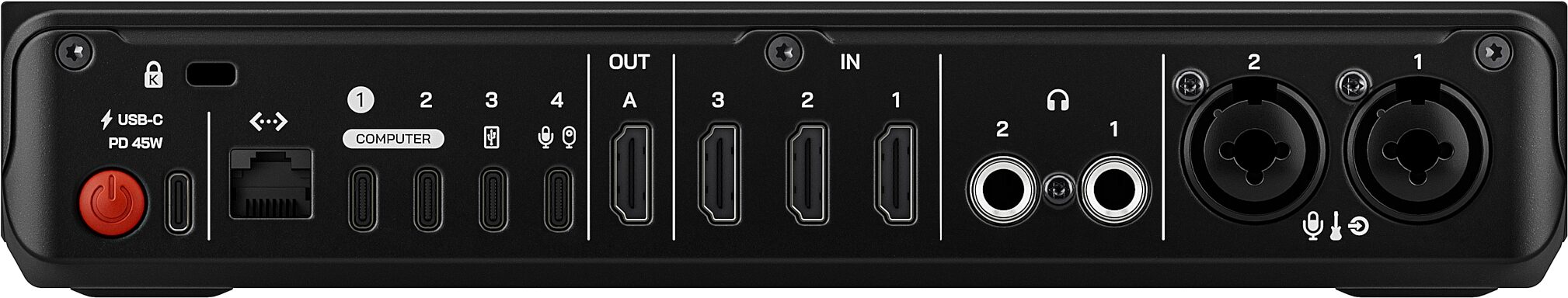

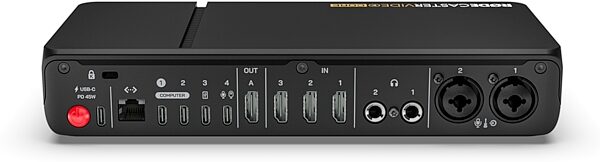

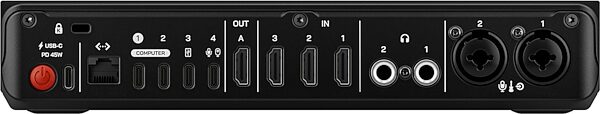

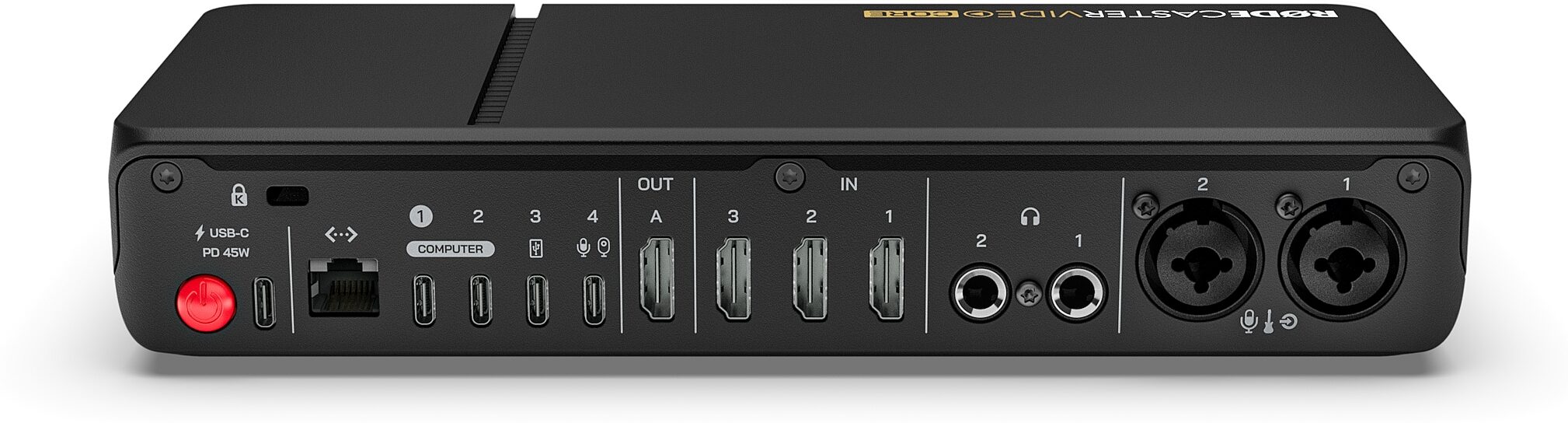

Rode RODECaster Video Core Production Console for Audio and Video, New, Action Position Back

zZounds Gear Experts Say...

With the same CPU (and most of the I/O) as the big-dog RCV, this Core box gives you 4-way video switching, 2 XLR audio ins, Aphex audio processing, and more.

Overview

The RODECaster Video Core is an innovative all-in-one console for video and audio production, delivering a complete solution for producing professional content. Designed for software-based control or as part of a modular production system with RODECaster Sync, it offers the same advanced capabilities of the RODECaster Video in a streamlined form factor. It combines powerful video switching, recording, and production tools with a fully integrated professional audio mixer.

Providing seamless integration across RODE audio devices -- including the RODECaster Pro II and RODECaster Duo -- the RODECaster Video Core offers maximum flexibility and ensures broadcast-quality results for video podcasts, live streams, and studio productions.

Features:

- Switch between up to four video sources and five fully customizable scenes
- High-performance octa-core CPU for video and audio processing
- Three full-HD (1080p) HDMI inputs with auto frame-rate conversion and one configurable HDMI output for program, preview, or multi-view
- Two flexible USB-C ports for connecting select video and audio devices
- Two studio-grade Neutrik combo jacks with ultra-low-noise, high-gain Revolution Preamps for pristine XLR mic and instrument input
- Powerful APHEX audio processing, including EQ, compressor, noise gate, high-pass filter, de-esser, Aural Exciter, Big Bottom, and Compellor
- Integration with RODECaster Pro II or Duo via RODECaster Sync for a fully unified video-audio system with expanded… read more control and I/O
- External SSD support via USB for direct video recording, or output directly to a computer via UVC
- Support for network cameras (including PTZ), with up to four NDI inputs and one NDI output via Ethernet
- Dual-cam streaming using the free RODE Capture app for iOS devices
- Media playback, keying, transitions, multi-source scenes, graphic overlays, audio mixing, and advanced configuration via the RODECaster App
- Remote control, user-assignable graphics and media, custom scene building, and detailed audio/effects configuration through the RODECaster App
- Intelligent auto-switching for hands-free switching of video sources and scenes based on audio inputs
- Dual USB-C audio interfaces for simultaneous connection to two computers and/or mobile devices
- Stream directly to all major platforms via Ethernet, and record to external USB storage, including isolated (ISO) recording for post-production flexibility
- Designed and manufactured in RODE's state-of-the-art facilities in Sydney, Australia

Specs

- Analog Audio Inputs: 2 " combo jacks (microphone, line, or instrument) with Revolution Preamps
- Digital Audio Inputs:
- - USB 1: 2-in / 2-out or multichannel (20-in)
- - USB 1 Chat (via USB 1): 2-in / 2-out with mix-minus
- - USB 2: 2-in / 2-out with MFi support
- - USB 4 & USB 5: Compatible with RODE USB microphones, RODECaster Pro II, and RODECaster Duo
- Analog Audio Outputs: 2 " 1/4-inch headphone outputs
- Audio Processing: APHEX VoxLab per channel
- Advanced APHEX granular processing:
- Compressor
- Equaliser (EQ)
- De-esser
- Panning
- Noise Gate
- High-pass Filter
- Aural Exciter
- Big Bottom
- Preamps:
- - Frequency Range: 20 Hz - 20 kHz
- - Input Gain: up to 76 dB
- - Equivalent Input Noise: -131.5 dBV (A-weighted)
- Streaming & Recording:
- - Streaming Sample Rate / Bit Depth: 48 kHz / 32-bit
- - Recording Sample Rate / Bit Depth: 48 kHz / 24-bit
- Audio Mixer:
- Up to 16 audio sources (9 stereo channels simultaneously):
- Combo Inputs 1 & 2 (stereo link optional)
- Video clips
- Sounds
- HDMI 1, 2, 3 (each splittable to dual mono)
- 3 " USB audio interfaces (computer)
- 2 " USB hosted devices (USB mics)
- 4 " network sources
- Outputs (11 total, fully routable):
- Live Mix
- Headphone 1
- Headphone 2
- Recording
- USB 1 Chat
- USB 1
- USB 2
- USB 4
- USB 5
- HDMI A
- Network
Each output supports custom level, mute, and level offset per input.
- Video Input Feeds: 4 simultaneous video sources
- HDMI Inputs: 3 " Type-A HDMI 1.4b
- USB (UVC) Inputs: 1 " USB-C (multi-function)
- HDMI Outputs:
- 1 configurable output:
- Preview
- Program
- Multiview
- Inputs 1-4
- Video Input Frame Rates:
- 1920"1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- 1920"1080i (HDMI only): 25, 29.97, 30
- Video Output Frame Rates: 1920"1080p: 24, 25, 30, 50, 60
- Video Streaming Frame Rates: 1920"1080p: 23.98-60 fps range (full list above)
- Video Engine Format: 4:4:4 RGB / 8-bit
- Input/Output Formats:
- - HDMI Input: 4:4:4 RGB, 4:4:4 YUV, 4:2:2 YUV (8/10/12-bit)
- - USB (UVC) Input: 4:2:2 YUV, 4:2:0 YUV (NV12)
- - HDMI Output: 4:4:4 RGB or YUV / 8-bit
- - USB (UVC) Output: 4:2:2 YUV / 8-bit
- Format & Frame-Rate Conversion: Automatic on all HDMI and USB inputs
- NDI Support:
- - Protocols: Single TCP, Multicast
- - Formats: Hx2, Hx3
- - Video Codecs: H.264, HEVC/H.265, 4:2:0 8-bit
- - Audio Codecs: AAC-LC, L-PCM Stereo 2.0 at 48 kHz
- - Interface: Wired Ethernet
- Layers: Up to 9 simultaneous layers in Preview & Program
- Keyers:
- - Downstream Keyers: 2 (overlays & logo)
- - Chroma/Luma Keyers: 2
- Media Players: 2 simultaneous
- Transitions:
- SMPTE wipes
- Dip
- Fade
- True Preview: Shows complete scenes, overlays, and live state in both preview and program
- Generated Borders: Available for all scenes
- Displays:
- Program & Preview
- Live inputs
- Scene & media thumbnails
- Audio mixer & channel status
- Recording, network & storage status
- Run time, date & time
- Media Player Storage & Formats:
- 24 GB onboard storage
- Video: MP4
- Images: PNG, JPG
- Audio: WAV
- Power Requirements: USB-C PD 45W, 20V 2.25A
- Weight: 705 g
- Length: 239 mm
- Width: 125 mm
- Height: 45.5 mm
