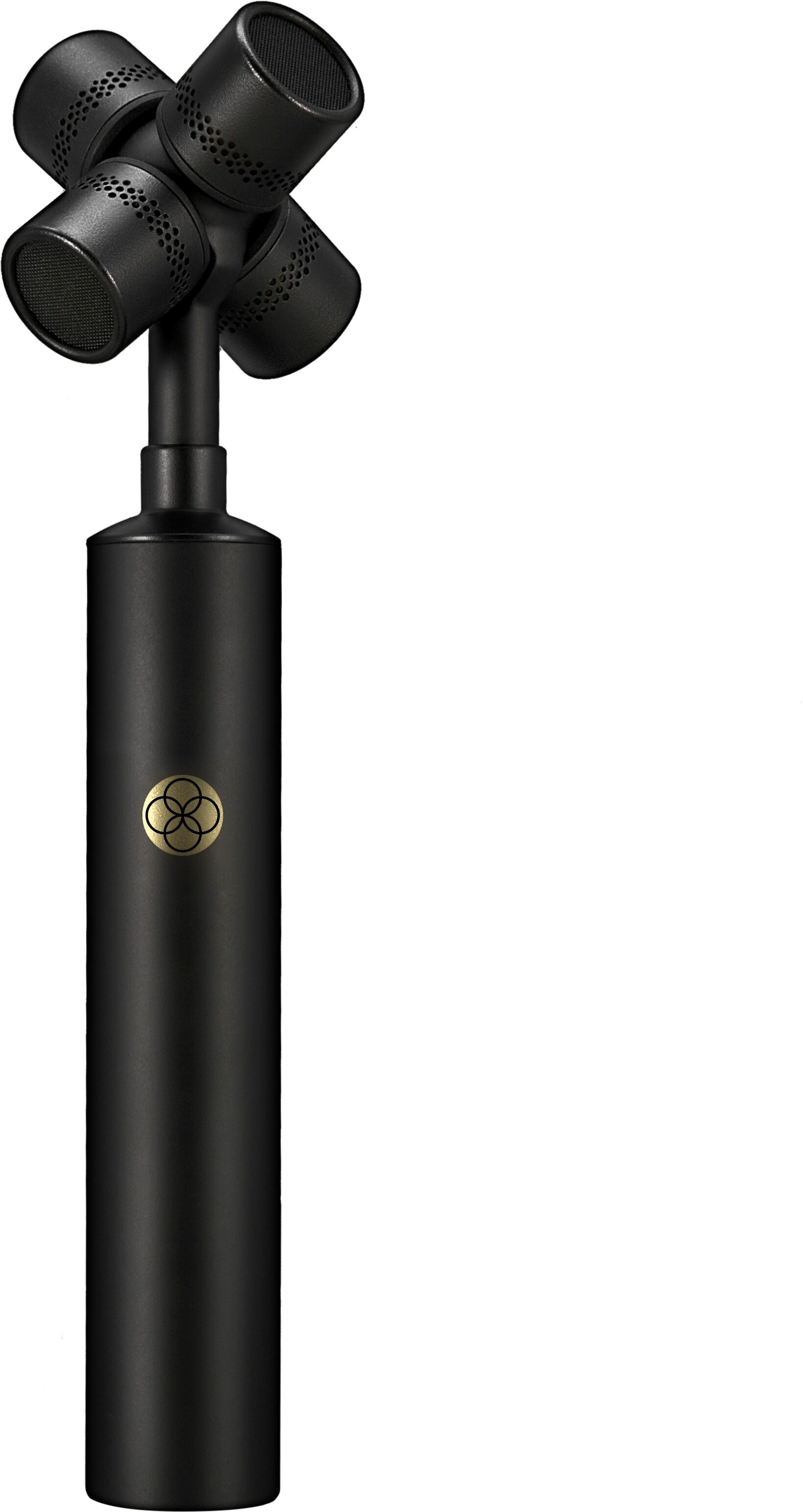

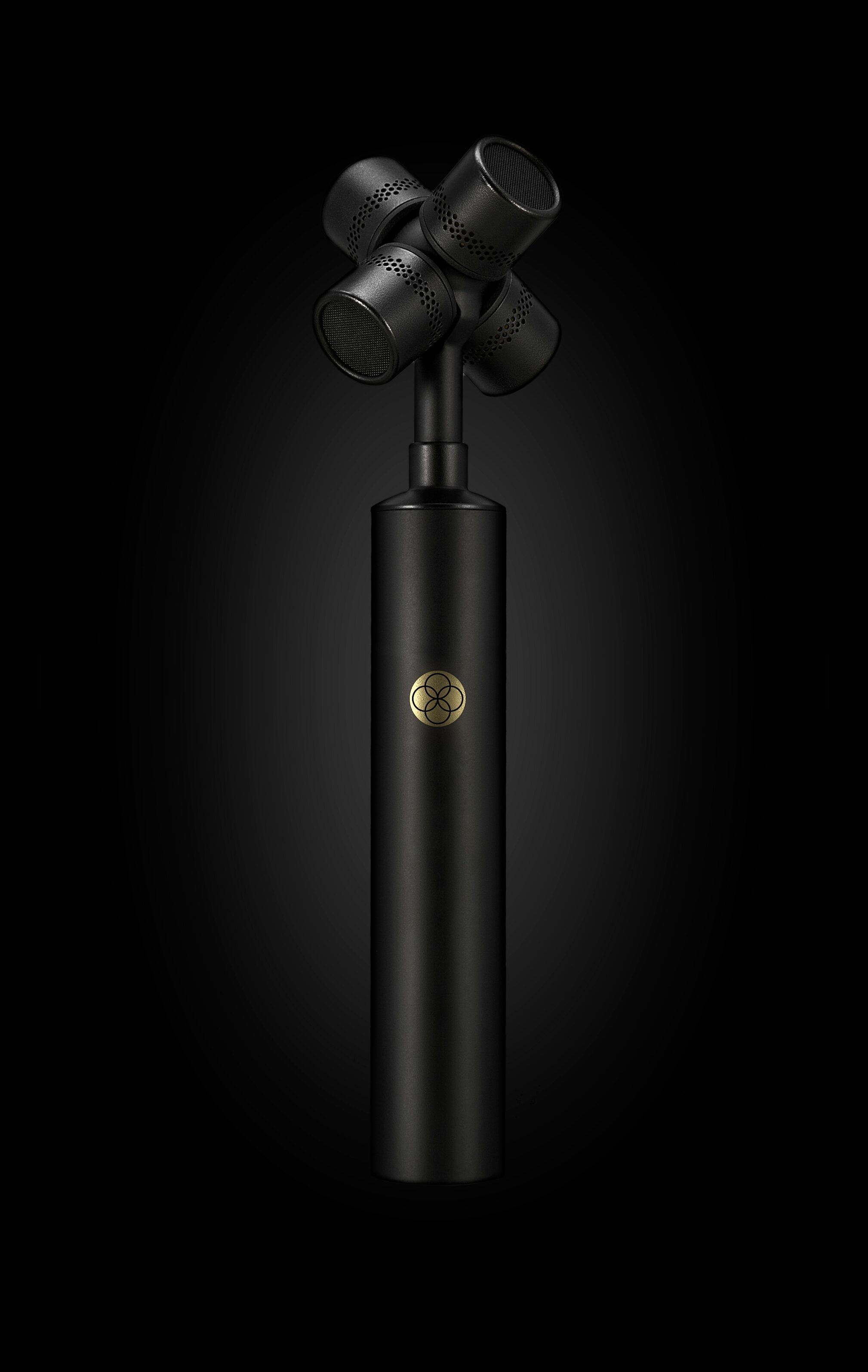

Rode NT-SF1 True Condenser Ambisonic Microphone

Capture sound in 360 degrees! A collab between Rode and SoundField, the NT-SF1 condenser microphone outputs 4 discrete channels for immersive recordings.

The Rode NT-SF1 is a peerless ambisonic microphone that captures broadcast-quality 360-degree surround sound (with height) in A-Format on four separate tracks. It is the first collaboration between the pioneering ambisonic brand SoundField (which invented the first commercial ambisonic microphone) and RODE Microphones.

See how the 4-channel NT-SF1 microphone works in this video from Rode:

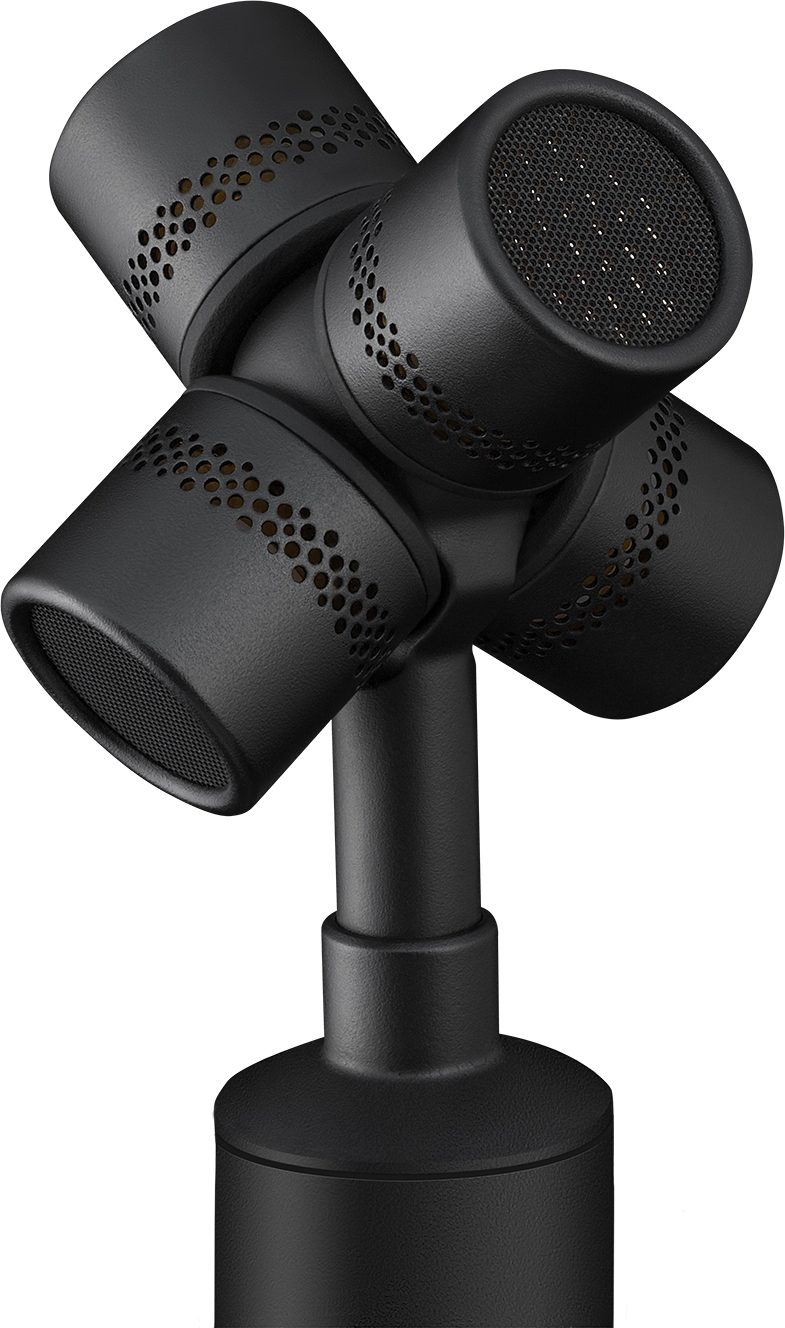

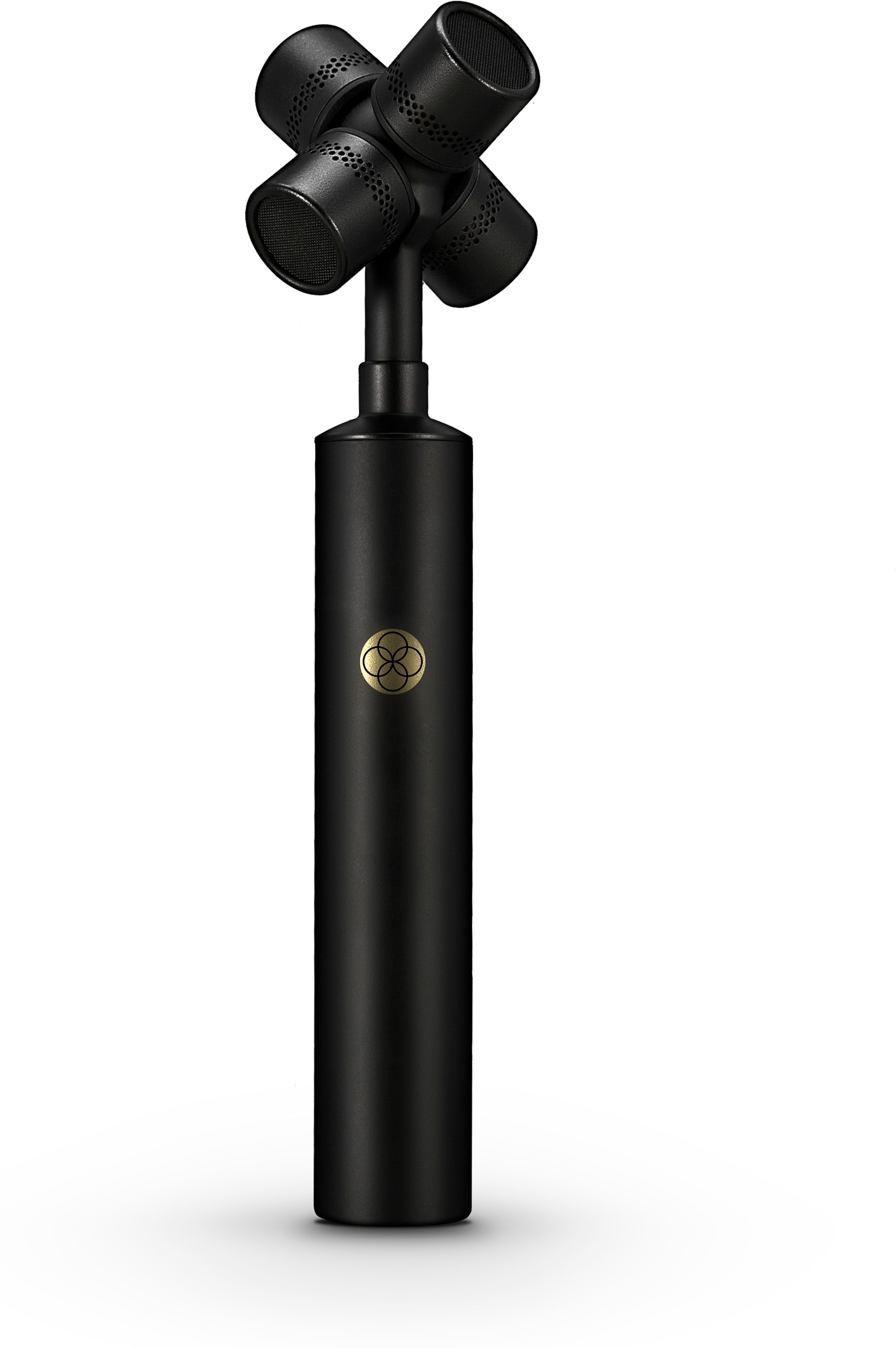

Precision manufactured from solid brass, the NT-SF1 uses four Rode TF-45C 1/2” true-condenser cardioid microphone capsules arranged in a tetrahedral array to record the entire spherical sound field. Every sound, every direction, perfectly. Created in-house at Rode's Sydney HQ, the TF-45C is machined to tolerances of less than 1 micron in our state-of-the-art fabrication facilities. The result is a capsule with breathtaking clarity, sonic purity and exceptionally low noise.

Whether creating surround audio for video games, sports broadcasts, feature films or Virtual Reality (VR) content, the NT-SF1 is perfect for all surround sound recording and, because it is recorded in A-Format and easily converted to B-Format, able to be manipulated in any direction in post-production.

Using the free SoundField by Rode plug-in, you are the architect of the soundscape and can alter the mic directivity, position and rotation. Create a full 7.1.4 surround mix. Create a fully head-tracked 360-degree soundscape for immersive video. Whether recording opera, a swamp or a feature film, the NT-SF1 offers unparalleled read more quality and flexibility.

The SBR plug-in has all standard surround-sound set-ups including Dolby Atmos up to 7.1.4 and is supported by Pro Tools, Cubase, Nuendo, Reaper and Logic in VST, AU or AAX formats, all with Rode's legendary ease-of-use.

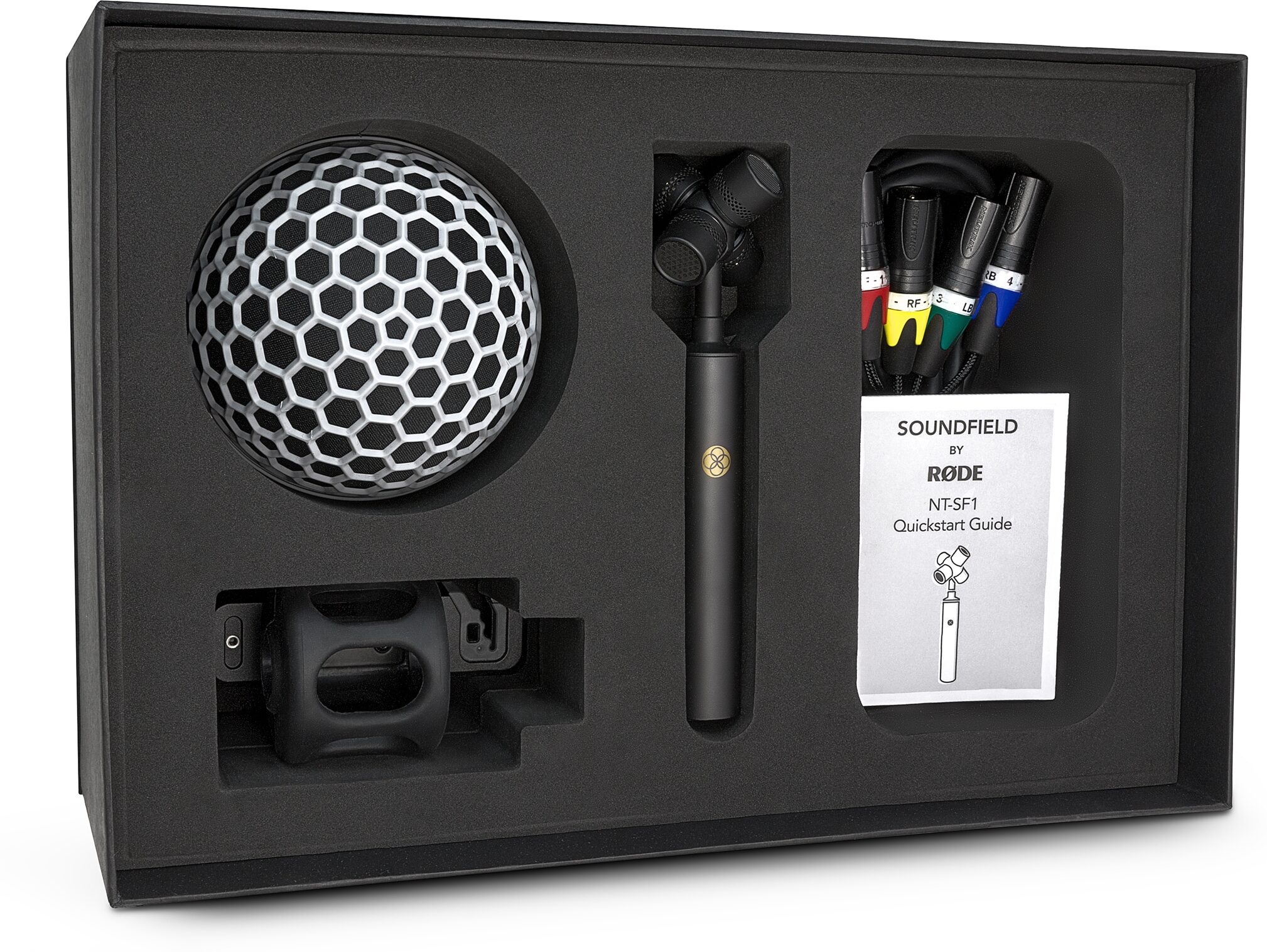

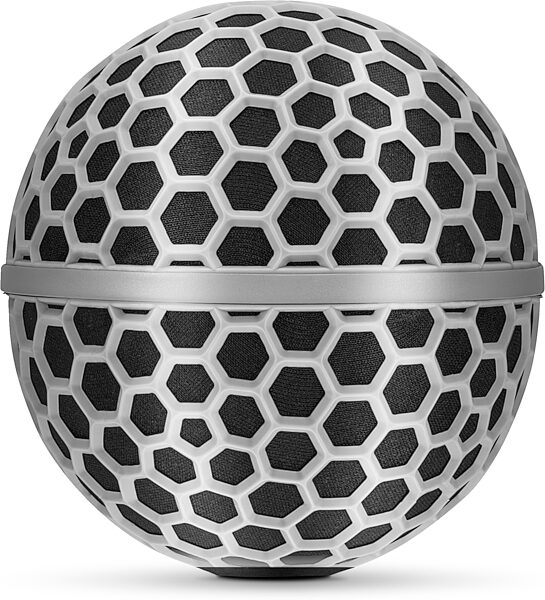

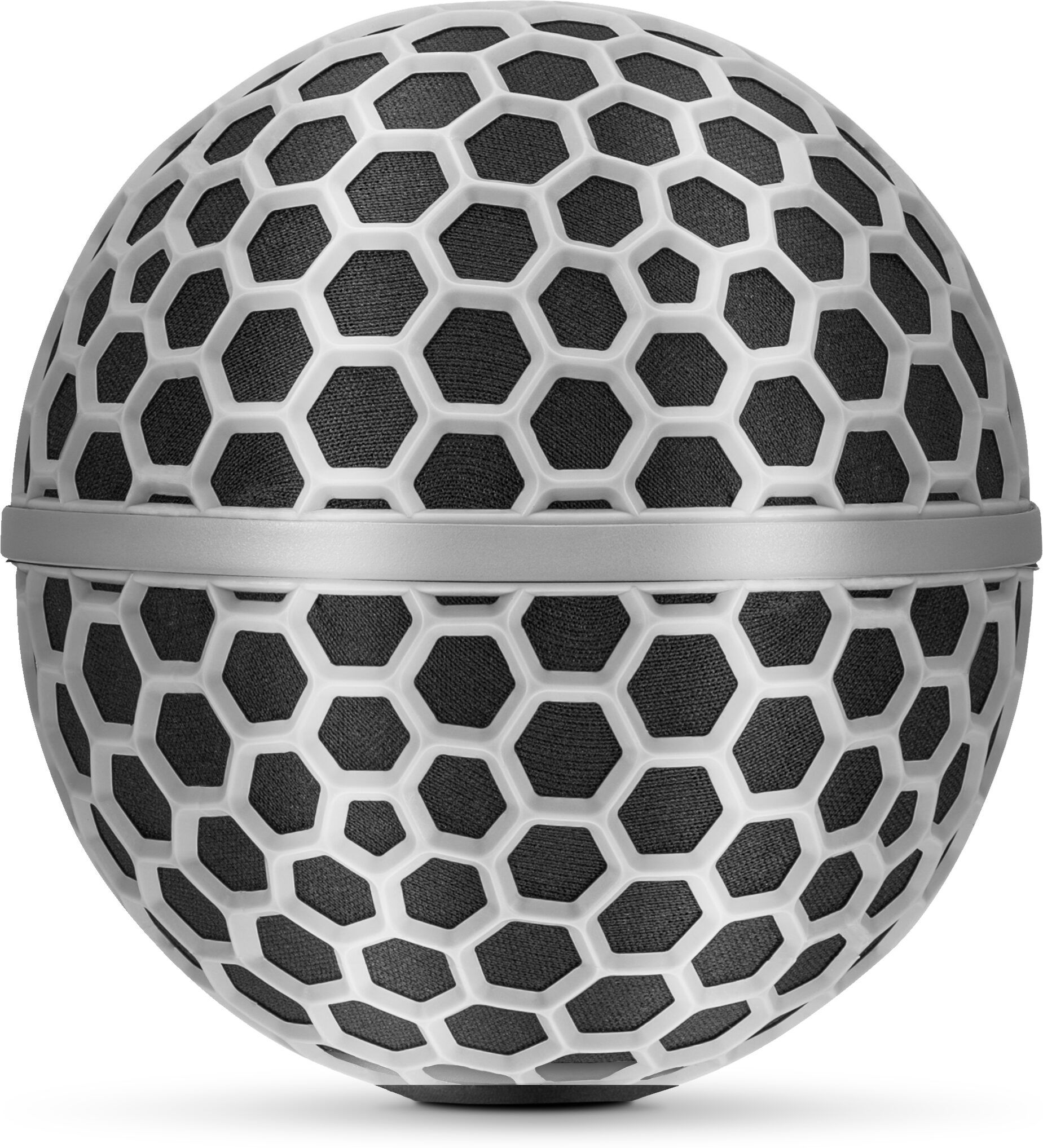

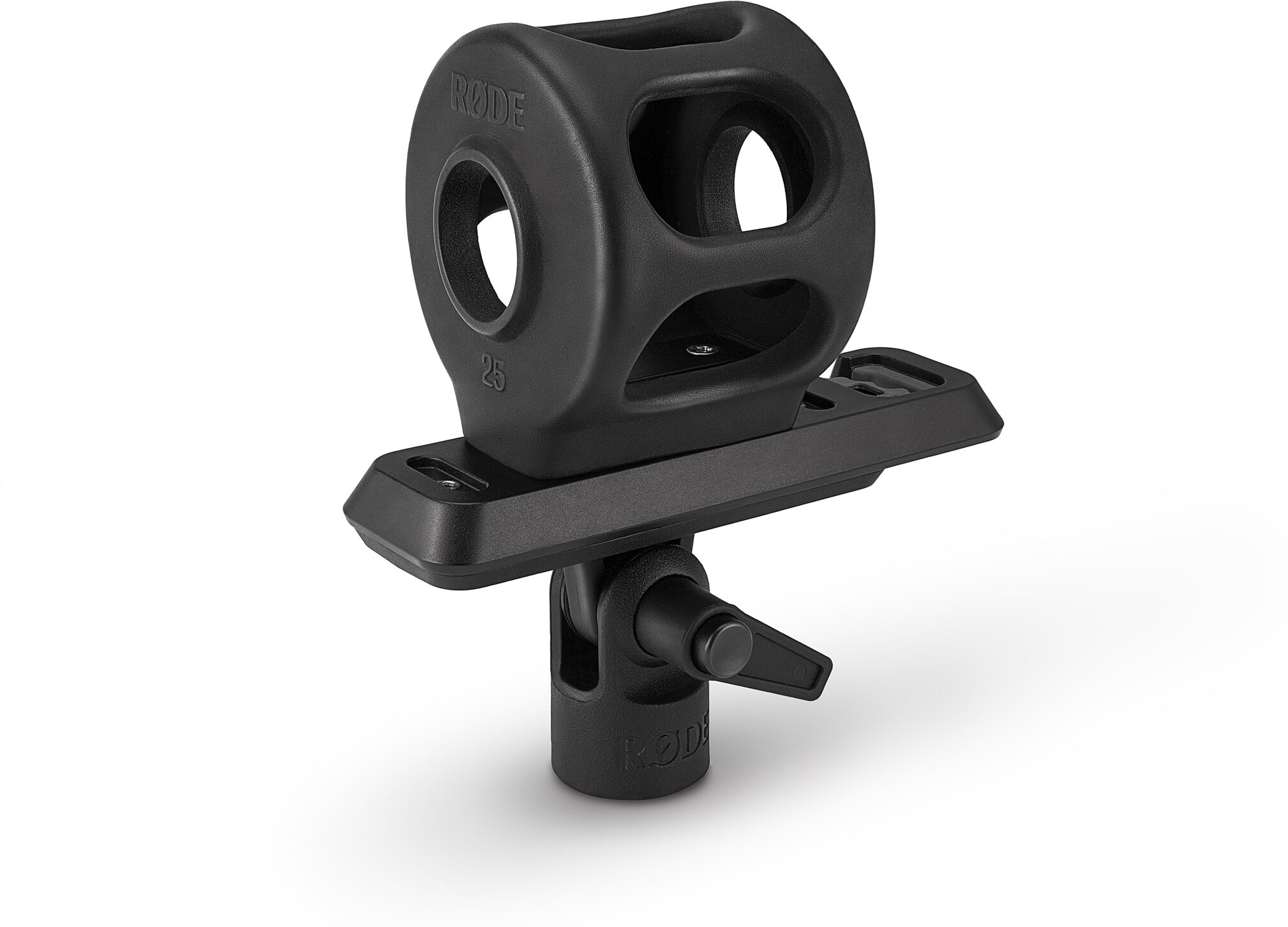

The NT-SF1 comes in a full kit, including custom suspension shockmount, blimp-style windshield and furry wind cover. It is all shipped in a beautiful presentation box.
read less

- Acoustic Principle: Externally Biased Condenser
- Active Electronics: JFET impedance converter with bipolar output buffer
- Frequency Range: 20Hz - 20kHz
- Frequency Response: 30Hz - 20 kHz ±3dB // 20 Hz - 20 kHz =/-4dB
- Signal to noise Ratio: 77 dB
- Power requirements: 6.2mA @ 48V (Per Channel) Phantom Power
- Equivalent Noise: 17 dBA
- Diameter: 45.7mm x 192.3mm x 45.7mm
- Body Diameter: 25.1mm
- Weight: 286g 1x NT-SF1, 1x Shockmount, 1x Cable, 1x Windshield, 1x Furry
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 7 lbs
Shipping Dimensions: 15 x 11 x 7 in
Manufacturer Part Number (MPN): NTSF1
