Rolls PM350B Personal Monitor Mixer

No longer available at zZounds

zZounds Gear Experts Say...

Individual level controls. Multiple headphone outs. Updated with a stereo instrument input and Left and Right balanced outputs.

Overview

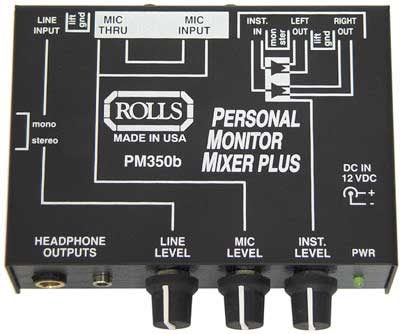

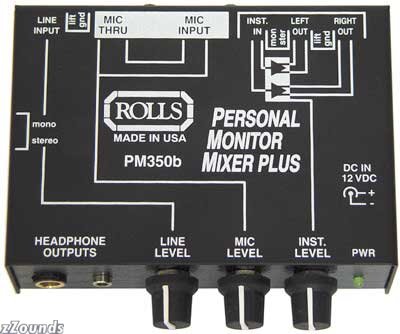

The PM350B is the latest unit in the popular lineup of Rolls personal monitor devices. The PM350 mixes 3 signals; a 1/4 in. stereo or mono line level, an XLR mic, and stereo (TRS) 1/4 in. unbalanced instrument level signal together to 1/4 in. headphone and 1/8 in. earphone outputs. It also now has Left and Right TRS balanced stereo outputs. All signals have individual level controls.

The line input is switchable from stereo to mono via jumper on the side of the unit. The mic input has a hardwired pass through, and the instrument input connects to a balancing transformer and is output via an XLR jack.

This unit is perfect for any instrumentalist/singer needing to mix their mic signal with their instrument and the main monitor mix, plus send their mic and instrument signals to the main mixing board.

Rolls Mixers
Rolls professional mixers are, like all Rolls products, conceived, researched, designed and manufactured for quality - at a popular price. Each are housed in steel chassis, use sturdy glass-epoxy circuit boards and contain the finest components. Finally, their low cost is achieved by high productivity manufacturing.

Specs

Max Input Level: -20 dB XLR, 40 dB Line and Instrument

Inst. Input Impedance: 50K W

Inst. Frequency Response: 50 - 15kHz +/- 3 dB

Output Impedance, Headphone: 10 ohms

Output Impedance, Inst.: 600 ohms

Gain: 15 dB 1/4 in., 50 dB XLR

Hdphn Freq. Response: 20 - 20 kHz

S/N Ratio: 90 dB

Power: 9 - 18 VDC

Size (W x H x D): 4.5 x 3.3 x 1.5 in.

Weight: 1 lb. (.45 kg)
