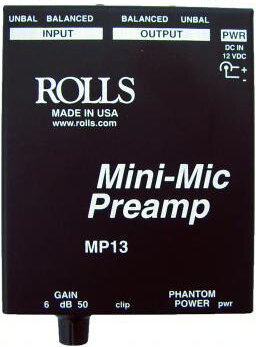

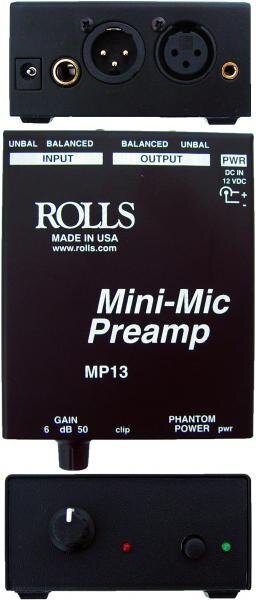

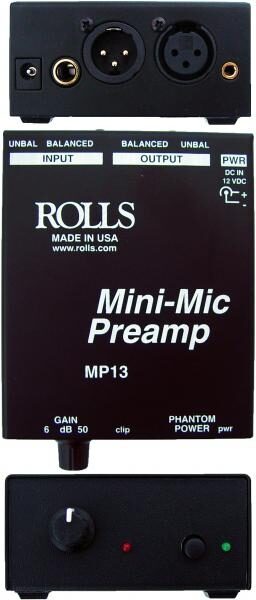

Rolls MP13 Mini-Mic Microphone Preamplifier
The inexpensive Rolls MP13 Mini-Mic preamp features a gain control and switchable phantom power.
The Rolls MP13 Mini-Mic microphone preamplifier is a small, simple, and inexpensive microphone pre amplifier for a variety of applications. The unit has XLR and 1/4 inch Outputs, XLR and 1/8 inch Inputs, and a single Gain control with a Clip indicator. Switchable Phantom Power is included for use with a condenser microphone. The unit comes complete with a power adapter.
Features:
- - Small size
- - Works with dynamic, Phantom and Headset mics
- - XLR and 3.5mm inputs
- - XLR and 1/4 in. outs
- - Works with 9 to 12 Vdc
- - Input Impedance: 10K Ohms balanced/unbalanced
- - Max Input Level: +4dBV XLR balanced, +10dBV unbalanced
- - Max Gain: XLR 60dB, 1/4 in. 54dB
- - Phase Shift: <10 deg. 20 Hz - 20 kHz
- - EIN: -108dB max.
- - THD: <.01%
- - IMD (SMPTE): < .01%
- - CMRR: >80 dB
- - Phantom Power: +21 Volts, 6 mA
- - Power: 12VDC
- - Size: 3.4 x 4.2 x 1.4 in.
- - Weight: 1 lbs (.45 kg)
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 1 lbs
- Shipping Dimensions: 8 x 5 x 3 in
- Manufacturer Part Number (MPN): RLL MP13
If you have additional warranty questions, please contact the manufacturer at 801-263-9053
