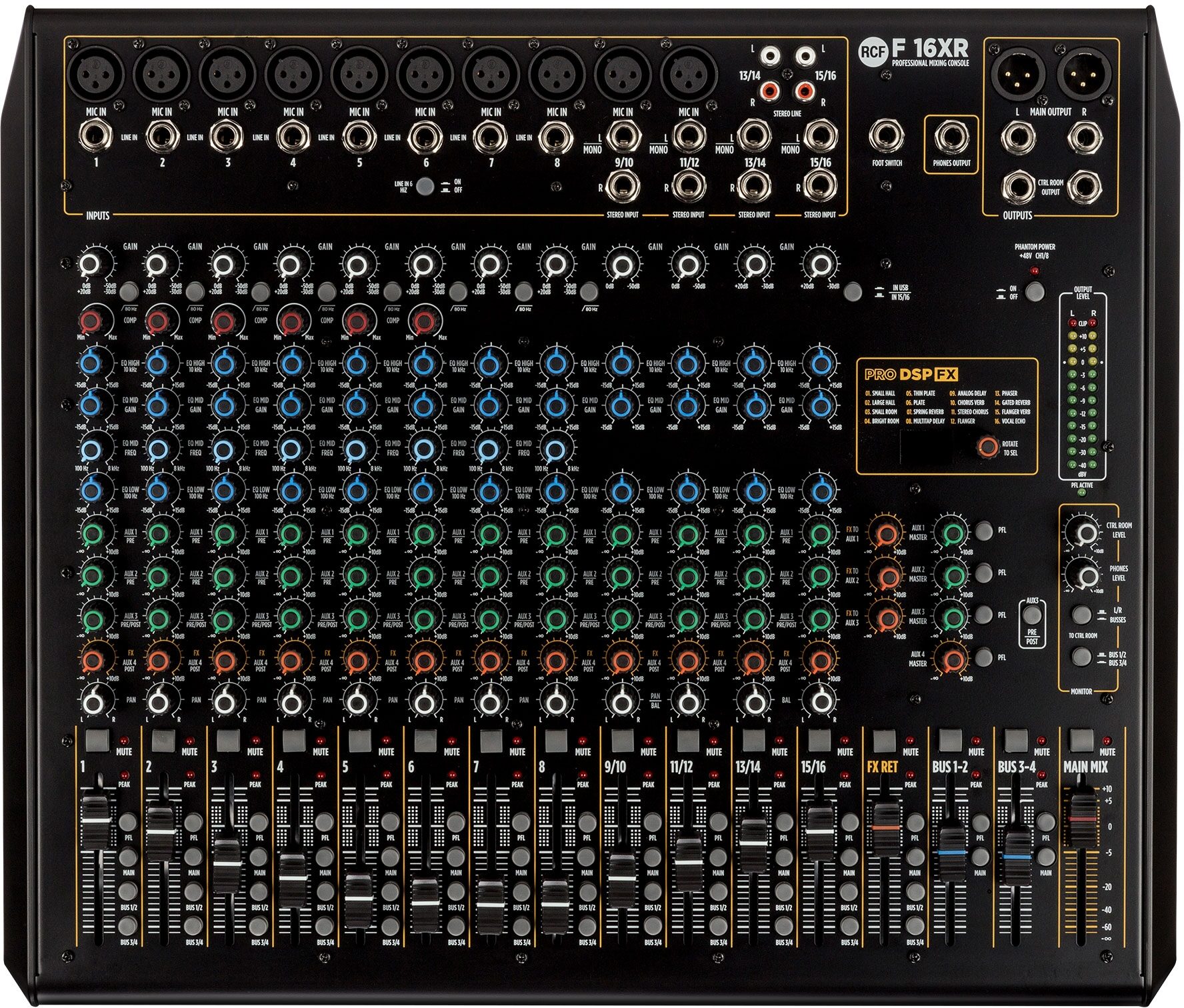

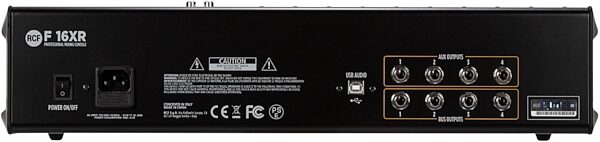

RCF F 16XR USB Mixer with Effects, 16-Channel

Loaded with 10 mic preamps, onboard effects, and four auxiliary sends, the RCF F 16XR can run live sound and record sessions or gigs all at once.

The F 16XR features 10 mic preamp inputs, 4 mono line inputs, 4 stereo line inputs plus multi-FX and Recording via USB port, with balanced main output (Stereo XLR + TRS) and 6 single control compressors. The mono channels are provided with 3-band EQ, with selectable mid frequency, and 3-band for stereo channels. The mixer features 16 PRO DSP internal presets, two stereo output busses and 4 aux sends (2 pre, 1 pre/post, 1 post). It also features 60mm faders.


- 10 Mic preamp inputs, 4 mono line inputs
- 4 Stereo line inputs
- PRO DSP FX onboard with 16 presets
- Stereo recording and playback via USB port
- 6 single control compressors
- Balanced main output +28 dB (Stereo XLR + TRS)
- Two stereo output busses and 4 aux sends (2 pre, 1 pre/post, 1 post)
- 60 mm faders
- Internal universal power supply
- Designed and engineered in Italy
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Dimensions and Weight in Packaging
Base Item
Shipping Weight: 16.25 lbs
Shipping Dimensions: 21 x 18 x 6 in
Manufacturer Part Number (MPN): RCF F16XR

For support or warranty questions, please contact the manufacturer:
Phone: 732-902-6100
Email: service@rcf.it or TechSupport@rcf.it
