RCF Evox JMix8 Active Portable Array PA System

RCF Evox JMix8 Active Portable Array PA System

RCF added an 8-channel digital mixer to the Evox J8 to create the JMix8 PA system. Stream Bluetooth audio and remote-control your mix via iOS/Android app.

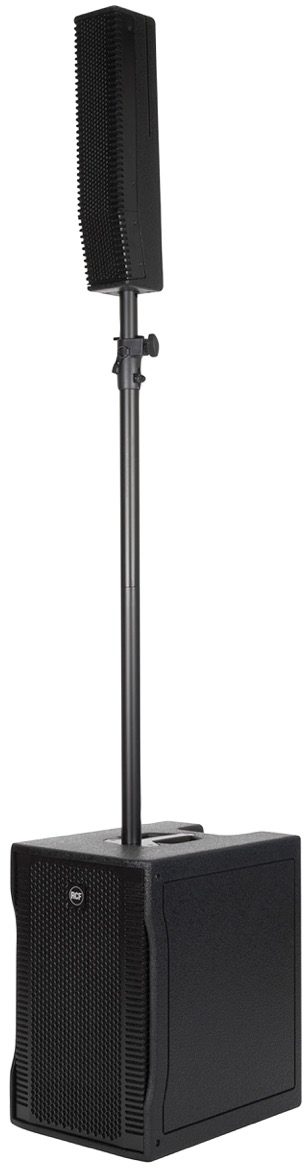

RCF EVOX 8 Portable Compact Line Array PA System

No longer available at zZounds
Pairing a 400-watt HF line array with a 1000-watt subwoofer, all in a unit that weighs just 51 pounds, the RCF EVOX 8 is as powerful as it is portable.

EVOX is the professional RCF answer to small satellite-subwoofer or column style portable speakers. EVOX, designed for live sound, exceeds the portability and the performances of competition products. EVOX systems are primarily designed for live sound. Extensive testing with instruments and voices during the design process as well as power and reliability testing make the EVOX systems the perfect workmates for solo musicians, bands and DJs.

EVOX 8 is a portable compact size sound reinforcement system. EVOX 8 combines the quality and reliability of RCF transducers with a very high amplification power. The system features eight 2.0" full range transducers in the line source satellite and a deep sounding 12" woofer in a bass reflex enclosure. The high excursion woofers are able to extend to the lowest frequencies and offer a quick and precise response up to the crossover point.

EVOX array design features constant horizontal directivity coverage of 120 degrees, offering a perfect listening experience to the audience. The vertical array design is progressively shaped to guarantee a correct listening from the first row and to avoid a high frequency beaming typical of straight array.

The woofer section features a 12" inch driver that, with a 2.5" inside-outside voice coil and a powerful magnetic structure, guarantees a fast and accurate sub-bass frequency range, taking advantage of RCF's superior molding, assembly technologies and read more a wealth of professional knowledge and experience dedicated to achieving extremely high standards.
The system is designed to be the perfect portable solution for live music and DJs. The unique vocal attitude and portability make EVOX 8 the perfect tool for presentations, corporate events and congresses.

The EVOX DSP processing is the result of many years of experience in line array design combined with innovative and dedicated algorithms. Thanks to the frequency dependent drivers' excursion and control of distortion, RCFs' processing is capable to guarantee an incredible and unmatchable output from these small systems. A dedicated vocal processing has been specifically studied for speech reproduction during presentations or conferences.

The EVOX 8 is powered by 1400W peak power digital amplifier, split 400W for the HF and 1000W for the LF. A new generation DSP handles all the processing within the cabinet and allows EQ adjustment. An easy to reach volume knob on the back allows setting the overall volume of the speaker according to its application.

Features:

- Eight 2" full-range satellite HF drivers + 12" subwoofer
- Pole mount hardware included
- 1400 watts peak power
- 128 dB max SPL
- Mic/line XLR input and 1/4" TRS input
- 3 status LEDs: Power/Signal/Limiter for monitoring the system
- EVOX top steel plate joins the handle and the M20 insert for pole mounting
- A comfortable rubber hand grip has been added for great portability.
- Strong cabinets and grilles are designed for heavy professional use
- Freq. response: 40 Hz - 20 kHz
read less

- Frequency response: 40 Hz - 20 KHz
- Max SPL: 128 dB
- Horizontal coverage angle: 120 degrees
- Vertical coverage angle: 30 degrees
- Compression driver: 8 x 2" Ultra compact full range, 1.0 voice coil
- Woofer: 12" Woofer, 2.5" voice coil
- Dimensions (H x W x D): 11.6 x 13.6 x 19.3"
- Weight: 51 Lbs.
- Cabinet: Baltic birch plywood
- Hardware: 2 x M6
- Handles: 1 top
- Pole mount cap: yes

INPUT/OUTPUT SECTION:
- Input connectors: XLR and 1/4" TRS
- Output connector: XLR female
- Input sensitivity: -2 dBu / + 4 dBu

PROCESSOR SECTION:
- Crossover frequencies: 220 Hz
- Protections: Thermal, RMS
- Limiter: soft limiter
- Controls: Volume, EQ, phase, crossover

AMPLIFIER:
- Total Power: 1400 Watts (peak)
- High frequencies: 400 Watts (peak)
- Low frequencies: 1000 Watts (peak)
- Cooling: convection
- Connection: VDE connector
