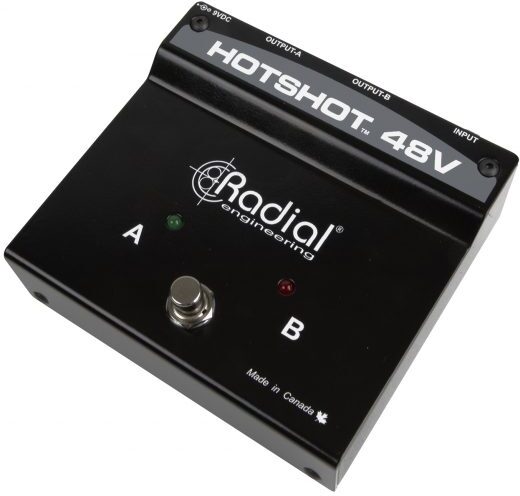

Radial HotShot 48V Phantom Power Supply and Microphone Switcher

zZounds Gear Experts Say...

Forget the hand signals; now you can communicate through your mic with other band members and technicians with the simple press of a footswitch!

Overview

The HotShot 48V is a condenser microphone switcher built for silent operation on stage, allowing an artist to power their vocal mic and reroute it to feed the stage monitoring system for communicating with other band members or technicians at the press of a footswitch. LED indicators display the active output, and the footswitch itself can be configured for latching or momentary action. While the HotShot 48V is specifically designed to address issues when switching condenser microphone outputs, it works equally well with dynamic mics also.

Features:

- +48V phantom power supply
- Condenser microphone switcher
- Built for silent operation on stage

Specs

- Accessory Type: Phantom Power Supply and Microphone Switcher
- Compatibility: Condenser and dynamic microphones
- Connector Type: Locking XLR-F input, 2 XLR-M outputs
- Input Channels: 1
- Output Channels: 2
- Signal Processing Capabilities: Relay-based switching with 5 millisecond time delay, silent switching
- Frequency Response: 20Hz - 20kHz
- Dynamic Range: >140dB
- Signal-to-Noise Ratio: -115dBu noise floor
- Impedance: Source dependent (input and output)
- Power Requirements: 400mA
- Operating Voltage: 9VDC center pin negative (9-12VDC compatible)
- Material: 14 gauge steel chassis
- Mounting Options: Stompbox/floor pedal format
