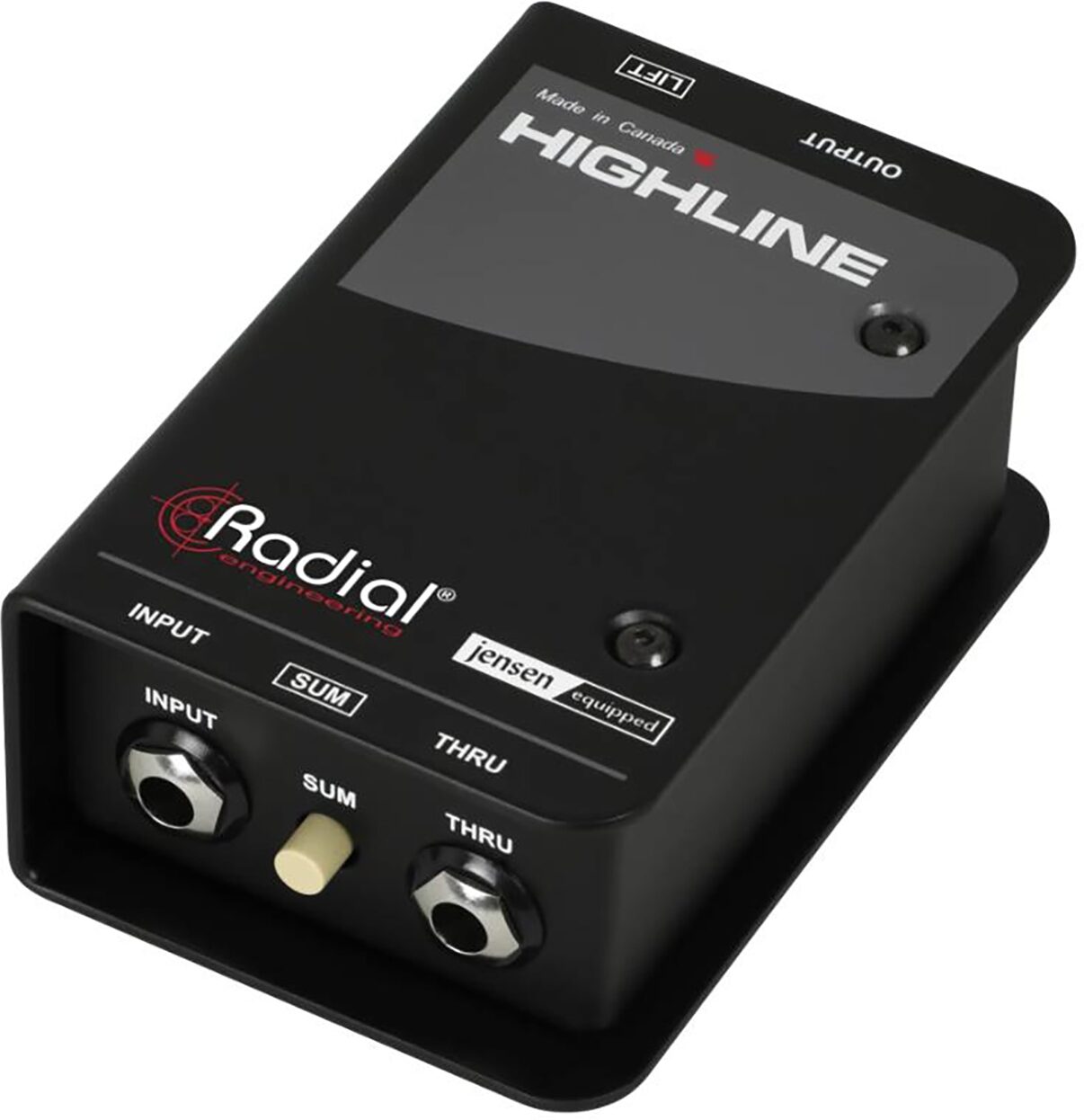

Radial Highline Mono Passive Line Isolator
zZounds Gear Experts Say...
Get the signal from your amp modeler to the mixer with less buzz and a clearer sound with the Radial Highline mono passive line isolator.
Overview
Amp simulators are more popular than ever, but they present a unique set of problems for guitar and bass players who want to interface them with a PA system. While amp sims can produce line-level outputs, they often have 1/4" unbalanced connectors that aren't designed for long cable runs, and they encounter hum and buzz from ground loops when connected directly to the PA.
The Radial Highline is a line isolator ideal for players who utilize amp simulators on their pedalboard. The Highline features premium Jensen 1:1 transformers that retain the full volume from the amp sim while providing isolation that breaks up ground loops and protects against phantom power, along with a balanced output that can be run over long distances without signal degradation.
- Provides isolation that breaks up ground loops
- Protects against phantom power
- Signal clarity and quality

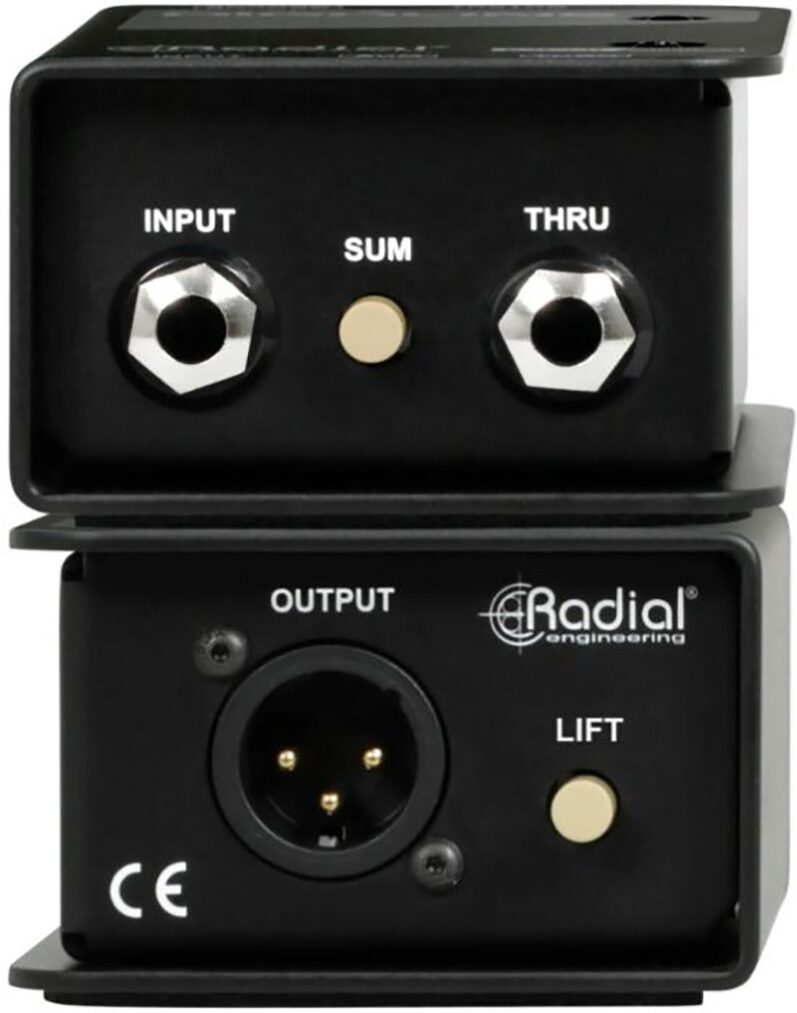

- XLR and 1/4" Inputs
The Radial Highline is a line isolator ideal for players who utilize amp simulators on their pedalboard. The Highline features premium Jensen 1:1 transformers that retain the full volume from the amp sim while providing isolation that breaks up ground loops and protects against phantom power, along with a balanced output that can be run over long distances without signal degradation.
Features:
- Jensen 1:1 transformers- Provides isolation that breaks up ground loops
- Protects against phantom power
- Signal clarity and quality
- XLR and 1/4" Inputs
Specs
- Type: Passive, transformer-based
- Channels: Single channel (mono)
- Input Connectors: 1/4" TRS input (balanced/unbalanced), 1/4" Thru jack
- Output Connectors: Male XLR (balanced)
- Frequency Response: 20Hz - 20kHz (±0.05dB)
- Total Harmonic Distortion (THD): <0.03% from 20Hz - 20kHz at -10dB, 0.0002% at 1kHz at -10dB
- Isolation: Galvanic isolation via Jensen JT-11-YMPC 1:1 transformer
- Ground Lift: Yes, ground lift switch
- Power Requirements: Passive, no power required
- Channels: Single channel (mono)
- Input Connectors: 1/4" TRS input (balanced/unbalanced), 1/4" Thru jack
- Output Connectors: Male XLR (balanced)
- Frequency Response: 20Hz - 20kHz (±0.05dB)
- Total Harmonic Distortion (THD): <0.03% from 20Hz - 20kHz at -10dB, 0.0002% at 1kHz at -10dB
- Isolation: Galvanic isolation via Jensen JT-11-YMPC 1:1 transformer
- Ground Lift: Yes, ground lift switch
- Power Requirements: Passive, no power required
Dimensions and Weight in Packaging
Base Item
- Shipping Weight: 1.35 lbs
- Shipping Dimensions: 6 x 4 x 3 in
- Manufacturer Part Number (MPN): R800 1530 00
