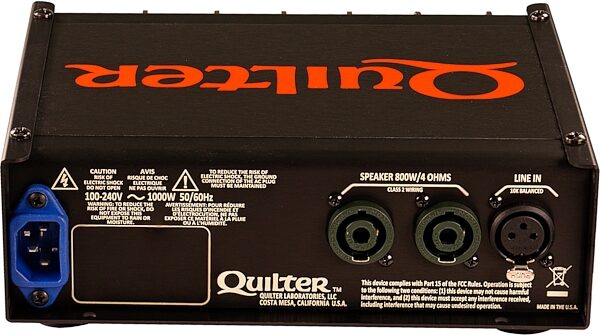

Quilter Bass Block 802 Bass Amplifier Head (800 Watts), Action Position Back
Quilter Bass Block 802 Bass Amplifier Head (800 Watts), Action Position Back
Quilter Bass Block 802 Bass Amplifier Head (800 Watts), Action Position Back
Quilter Bass Block 802 Bass Amplifier Head (800 Watts), Action Position Back
Quilter Bass Block 802 Bass Amplifier Head (800 Watts), Action Position Back
Quilter Bass Block 802 Bass Amplifier Head (800 Watts), Action Position Back
Quilter Bass Block 802 Bass Amplifier Head (800 Watts), Action Position Back
Quilter Bass Block 802 Bass Amplifier Head (800 Watts), Action Position Back
Quilter Bass Block 802 Bass Amplifier Head (800 Watts), Action Position Back Quilter Bass Block 802 Bass Amplifier Head (800 Watts), Action Position Back Quilter Bass Block 802 Bass Amplifier Head (800 Watts), Action Position Back Quilter Bass Block 802 Bass Amplifier Head (800 Watts), Action Position Back Quilter Bass Block 802 Bass Amplifier Head (800 Watts), Action Position Back Quilter Bass Block 802 Bass Amplifier Head (800 Watts), Action Position Back Quilter Bass Block 802 Bass Amplifier Head (800 Watts), Action Position Back Quilter Bass Block 802 Bass Amplifier Head (800 Watts), Action Position Back
zZounds Gear Experts Say...
The Quilter Bass Block 802 provides plenty of power from an amplifier that weighs less than 5 pounds. Bringing a bass rig to a gig has never been easier!

The original Quilter Bass Block 800 set higher standards for "bottomless" energy reserves and hard-hitting bass tone. The Bass Block 802 builds on this foundation with updated features and refinements to further enhance your control of this well-proven platform. This 3.7-lb (1.6kg) powerhouse drives any good speaker to its full potential to keep the crowd moving all night long. Mounts in the expanding line of BassDock speakers to make the perfect traveling companion -- twice the power in half the size!

- Power Output: 450 watts-8 ohms, 800-watts, 4 ohms
- Frequency Response: band-limited to 25Hz-15kHz.
- AC Power Req.: IEC inlet, universal 100-240Vac, 50-60Hz, 250W typical, 1000W peak.
- Input Connections: 1/4-inch unbalanced, 2 meg, 4V peak. Switchable Mute, Passive, or Active (10dB pad).
- Line Input: XLR 10K balanced, 1V full scale.
- Effects Loop: Series, pre-Master, 1V full scale.
- Effects Send: 1/4 inch unbalanced, 1K.
- Effects Return: 1/4 inch unbalanced, 47K (1K if FX Send is not used).
- Switchable Sig Out: Balanced Line Pre-Master, or Mono Headphone Post-Master.
- Line Out: 1.6V full scale, quasi-balanced 39 ohms each leg.
- Headphone Out: Up to 3.3V full scale depending on Master Volume
- XLR Line Input: Post pre-amp, Pre-Master, 1.3V FS, 4.4K balanced
- Speaker Output: 4-8 ohms, 90V, 25A, peak dual Speakon Combo 1/4-inch jacks.
- Dimensions H x W x D: 8.5"(218mm) x 7.9" (201mm) x 3" (76mm)
- Weight: 3.7lbs (1.6kg)
