QSC HPR151W Powered Subwoofer (1x15 in.)

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

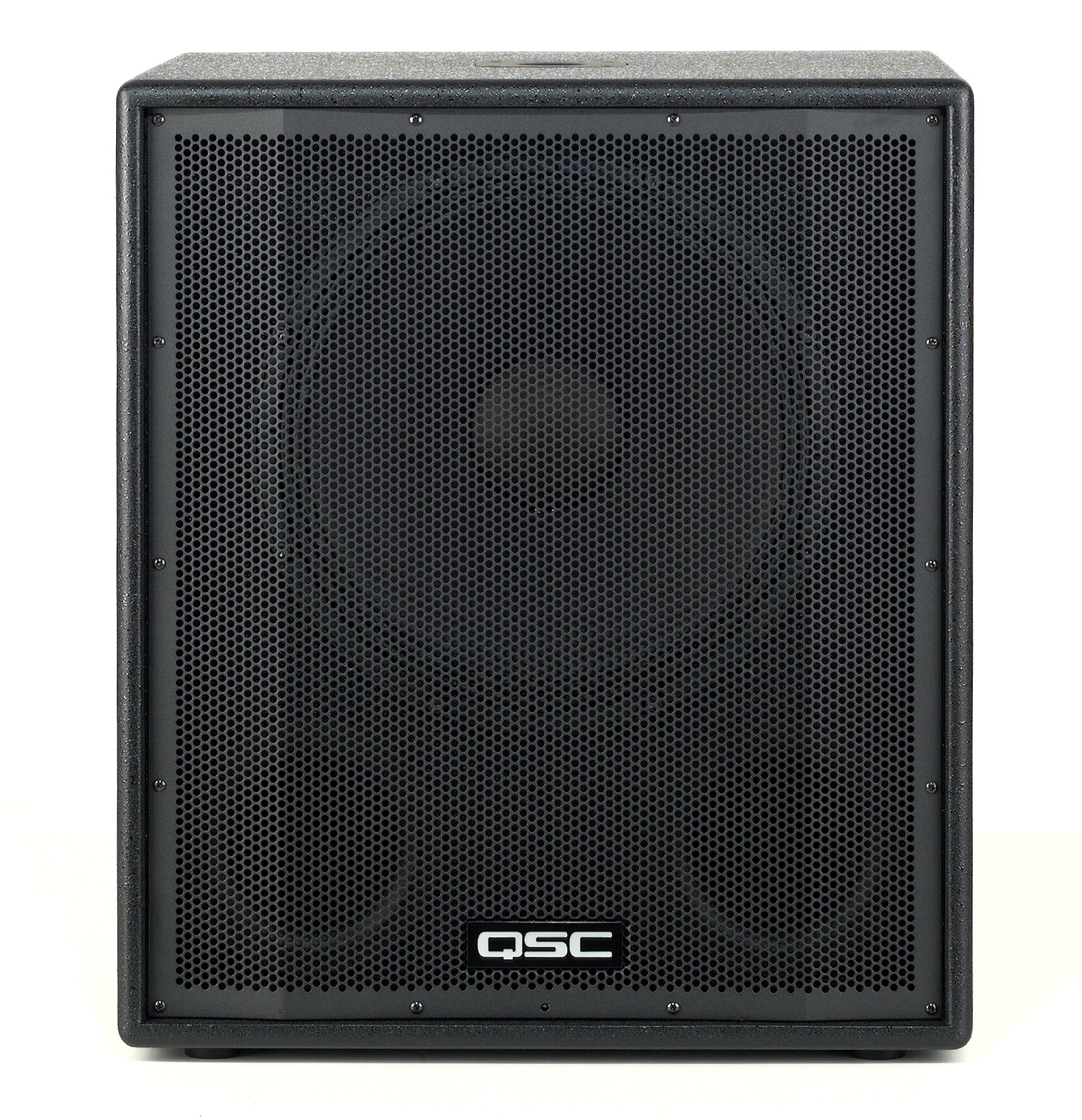

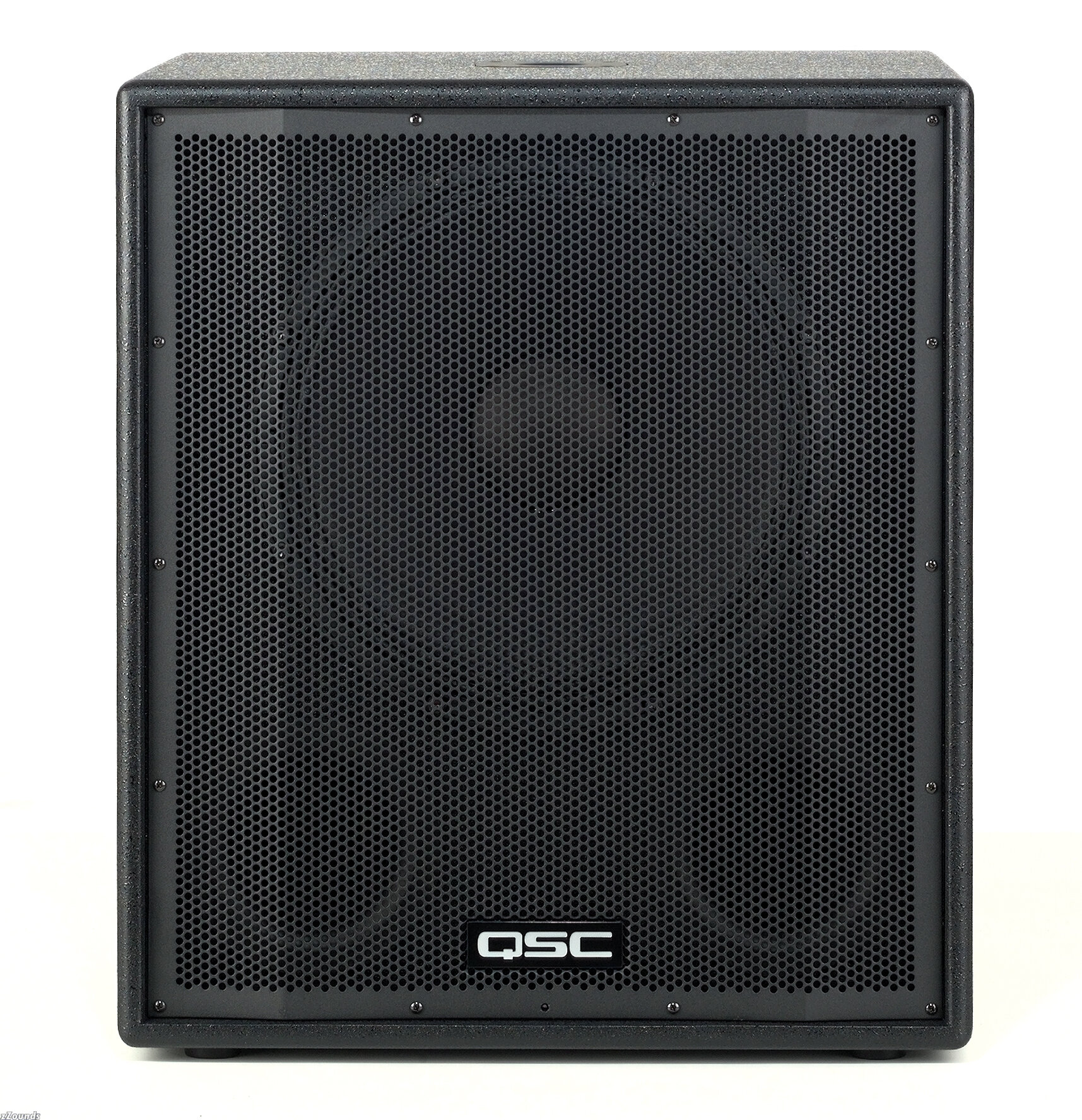

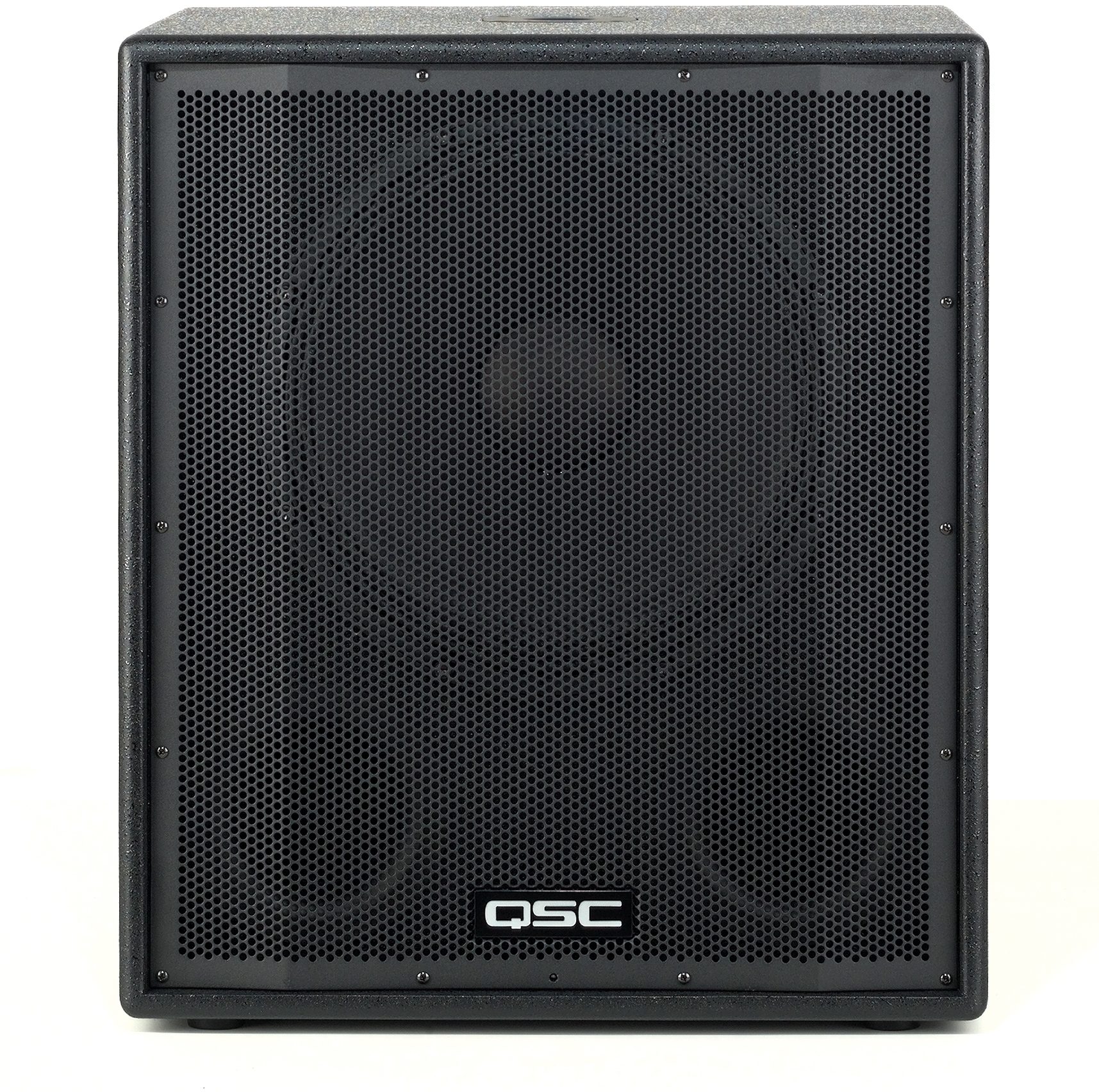

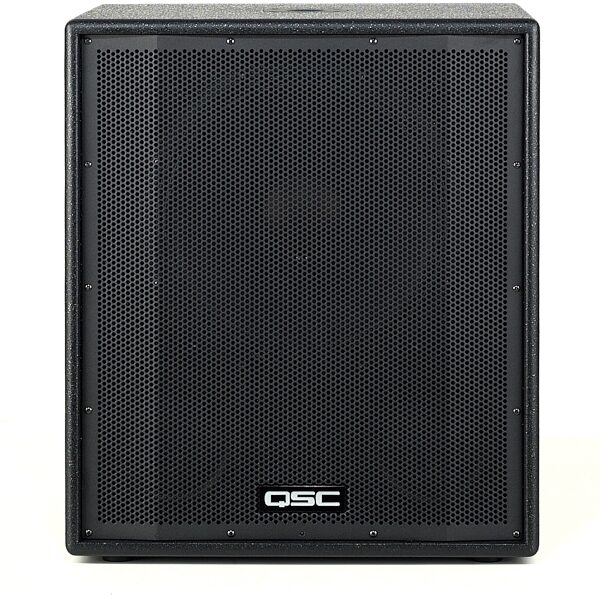

QSC HPR151W Powered Subwoofer (1x15 in.), Main

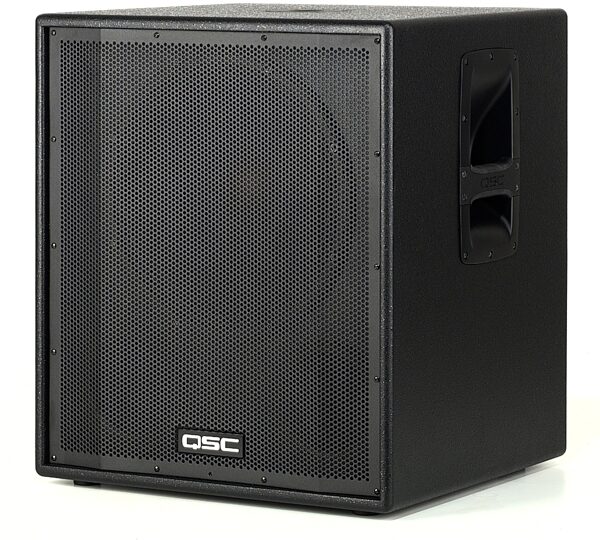

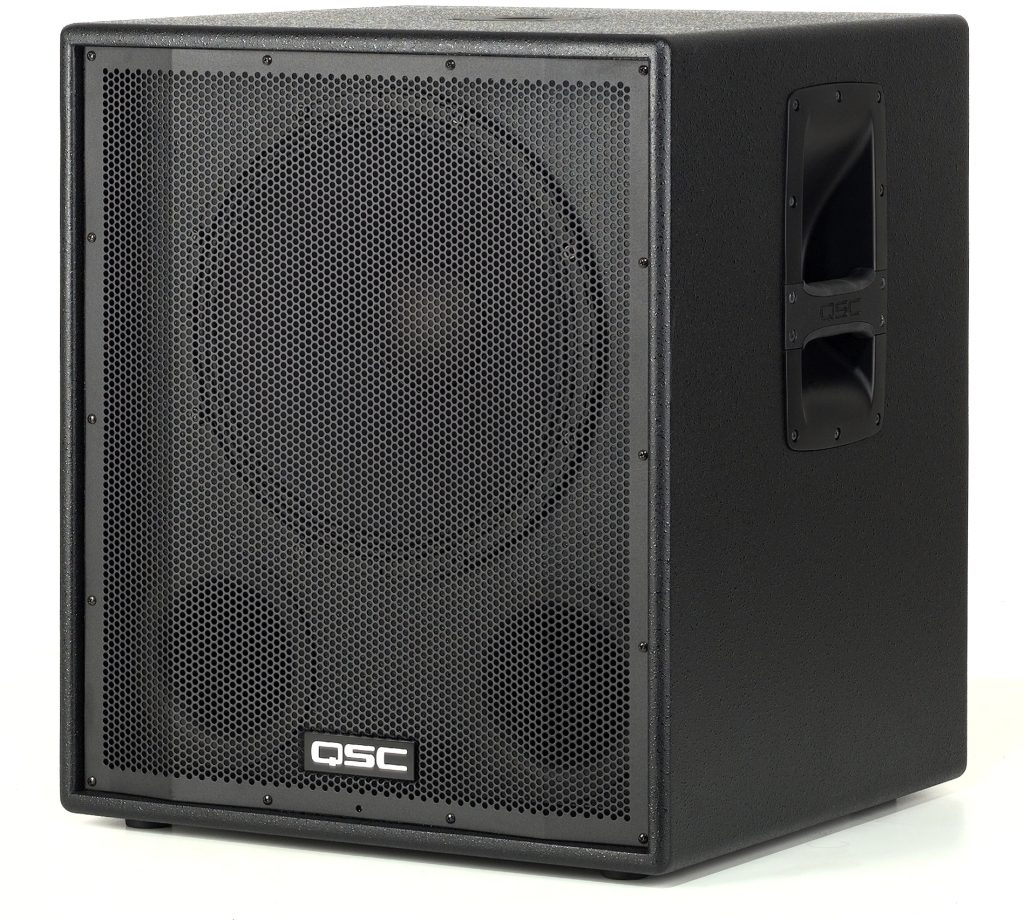

QSC HPR151W Powered Subwoofer (1x15 in.), Angle

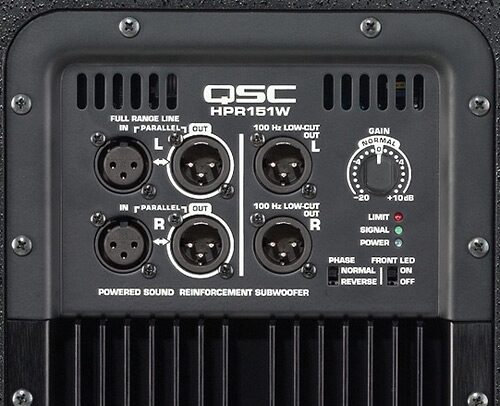

QSC HPR151W Powered Subwoofer (1x15 in.), Detail
QSC HPR151W Powered Subwoofer (1x15 in.), Main QSC HPR151W Powered Subwoofer (1x15 in.), Angle QSC HPR151W Powered Subwoofer (1x15 in.), Detail
zZounds Gear Experts Say...
700 watts. Now with a 6-year warranty upgrade FREE!

For high-level dance music or reinforcement of bass instruments and kick drum, an HPR series subwoofer will add low-frequency extension and power to any sound system. When the requirement is for compact size and tight, punchy low-end, the single 15 in. HPR151W subwoofer is the answer. The 700 watt power module is capable of producing 133 dB peak SPL with frequency response down to 43 Hz and sound quality that rivals many 18 in. subwoofers. A top-mounted 35mm pole socket is provided for use in sub/satellite systems.

Applications
Live sound reinforcement of bass, kick-drum, etc.

Higher-SPL dance music

Now with a 6-year warranty upgrade FREE!

Configuration: 15 in. cone transducer with 3 in. voice coil

Frequency response (-6 dB): 47 Hz - 110 Hz

Frequency range (-10 dB): 43 Hz - 140 Hz

Nominal coverage, -6 dB: N/A

Maximum SPL (1 meter): 133 dB peak

Amplifier
Power output: 700W class H

Input impedance: 22k balanced, 11k unbalanced

Controls: gain, front LED on/off, power, circuit breaker, phase

Indicators: power, signal, limit

Cooling: convection

Amplifier protection: thermal and output power limiting

Current consumption at 120 VA (1/8 power EIA noise): 2.2A

Enclosure: painted birch plywood

Finish: black textured paint

Grille: powder coated 16-gauge steel

Connectors: balanced female XLR line level inputs x 2 (L+R), balanced male
XLR full range line level outputs x 2 (L+R), balanced male XLR low-cut line level outputs x 2 (L+R)

Dimensions: 22 in. W x 25 in. H x 20.75 in. D (559mm x 635mm x 525mm)

Net weight: 98 lbs. / 44.5 kg

For support or warranty questions, please contact the manufacturer:
Phone: 800-772-2834
Web: http://qsc.com/support
HPR Series Manual (English)
HPR Series Manual (Espanol)
House of K Application Installation Guide

Be the first to rate and review this product.

No longer available at zZounds

In most cases, a product is unavailable because it has been discontinued by the manufacturer
