PreSonus EQ3B 3-Band EQ 1/3 Rack Space

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

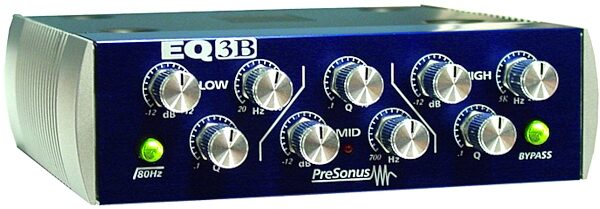

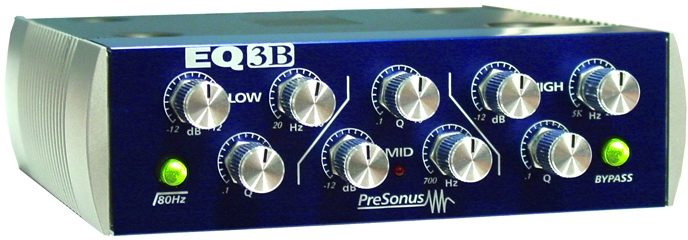

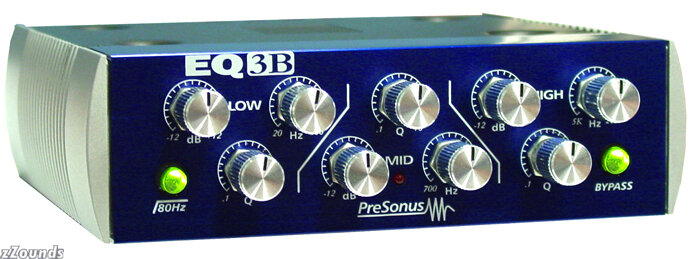

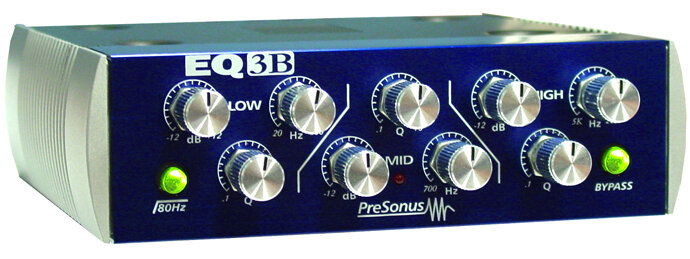

PreSonus EQ3B 3-Band EQ 1/3 Rack Space, Main
PreSonus EQ3B 3-Band EQ 1/3 Rack Space, Diagram Back
PreSonus EQ3B 3-Band EQ 1/3 Rack Space, Main
PreSonus EQ3B 3-Band EQ 1/3 Rack Space, Diagram Back
PreSonus EQ3B 3-Band EQ 1/3 Rack Space, Main
PreSonus EQ3B 3-Band EQ 1/3 Rack Space, Diagram Back
PreSonus EQ3B 3-Band EQ 1/3 Rack Space, Main PreSonus EQ3B 3-Band EQ 1/3 Rack Space, Diagram Back PreSonus EQ3B 3-Band EQ 1/3 Rack Space, Main PreSonus EQ3B 3-Band EQ 1/3 Rack Space, Diagram Back PreSonus EQ3B 3-Band EQ 1/3 Rack Space, Main PreSonus EQ3B 3-Band EQ 1/3 Rack Space, Diagram Back
zZounds Gear Experts Say...
Fully parametric EQ in a compact box.

Need a professional fully parametric EQ in a compact box? PreSonus has created the EQ3B to meet your needs for just about any application.

PreSonus EQ3B 3-Band EQ 1/3 Rack Space

Features

Three fully parametric bands with overlapping frequencies

High pass rumble filter

Extremely quiet operation

Warm, wide dynamic range for recording or live.

Technical Specifications

Input

XLR Impedance
10k Ohms

TRS Impedance
10k Ohm

Panel Controls

Low Frequency Range
20Hz to 800Hz

Mid Frequency Range
700Hz to 7kHz

High Frequency Range
5kHz to 20kHz

Bandwidth Adjust (Q)
.1 to 10

Gain Adjust
-12dB to +12dB

High Pass Filter
80Hz

Meters

Blue Backlit VU

Power Supply

Type
Linear

Input
16VAC/1000mA

Output

XLR Balanced
51 Ohms Impedance

1/4 in. TRS Unbalanced
51 Ohms Impedance

Performance

THD+Noise (Unweighted)
0.006% at 0dB

Noise Floor
-98dB

Signal To Noise
>95dB

Power Supply Rejection
>98dB

Physical

Weight
5lbs.

Dimensions
5.5 x 5.5 x 1.75

Mounting
Universal Rack Tray Insert

Chassis
Steel

Panel
Brushed Aluminum

Sides
Cast Aluminum

Power
16 Watts

For support or warranty questions, please contact the manufacturer:
Phone: 225-216-7887
Web: https://support.presonus.com
Owner's Manual
