- 1- Balanced XLR
- 1- Balanced 1/4 inch TRS
- 1- Unbalanced RCA
- Frequency Response 35 Hz - 22 kHz
- Crossover Frequency 2.2 kHz
- LF Amplifier Power 75 watts
- HF Amplifier Power 65 watts
- Peak SPL (@ 1 meter) 105 dB
- LF Driver 8 in. Kevlar
- HF Driver 1.25 inch silk dome
- Input Impedance 10 kohm
- User Controls:
- Volume Range A-type taper
- MF Control -6, 0, +6 dB
- HF Control -6, 0, +6 dB
- Low Cut Flat, 80 Hz, 100 Hz
- Acoustic Space Flat, -2 dB, -4 dB
- RF interference
- Output-current limiting
- Turn-on/off transient
- Subsonic filter
- External mains fuse
- Power: 100-120V ~50/60 Hz or 220-240V ~50/60 Hz
- Cabinet: Vinyl-laminated, medium-density fiberboard
- Width 9.84 inches (250 mm)
- Depth 11.77 inches (299 mm)
- Height 15.12 inches (384 mm)
- Weight 22.2 lbs. (10.07 kg)

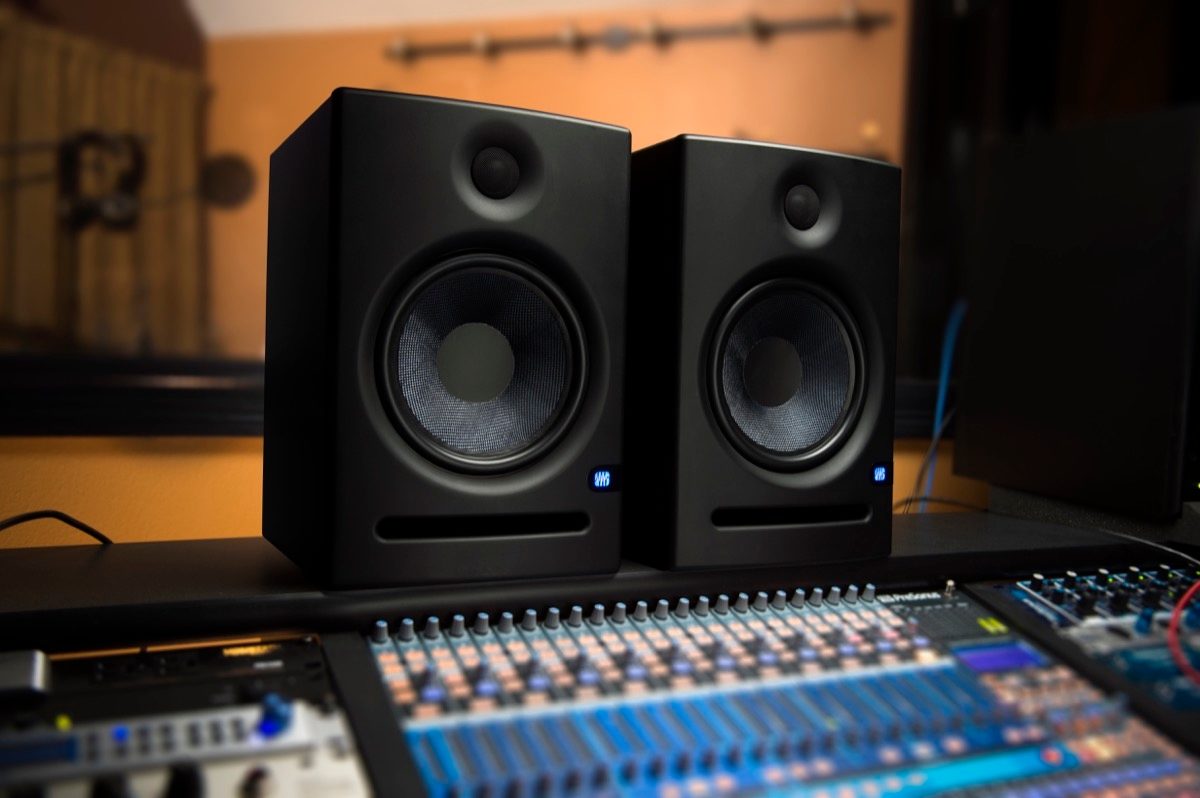

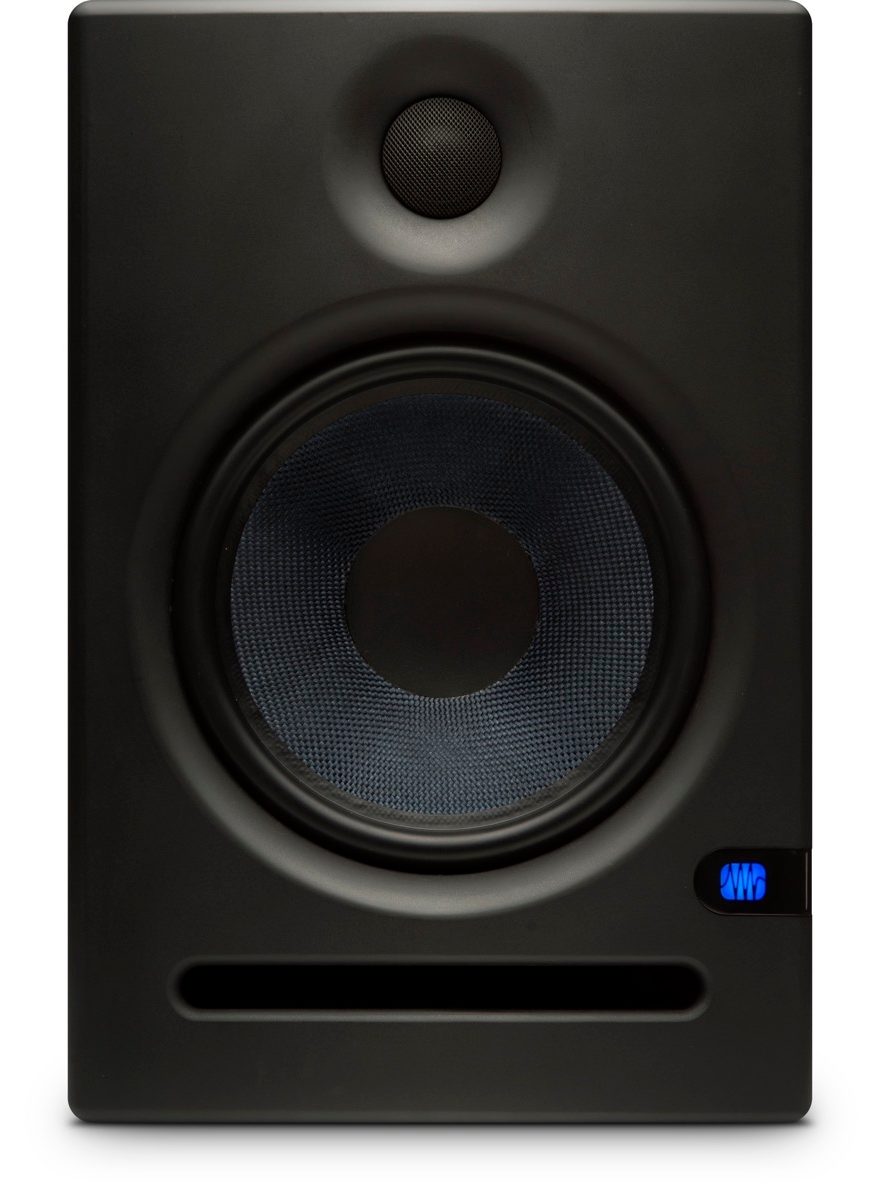

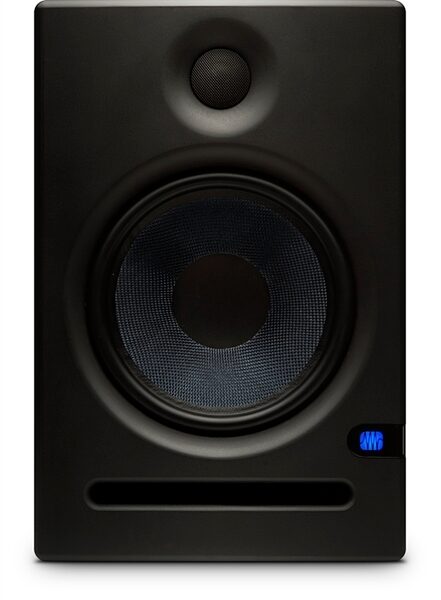

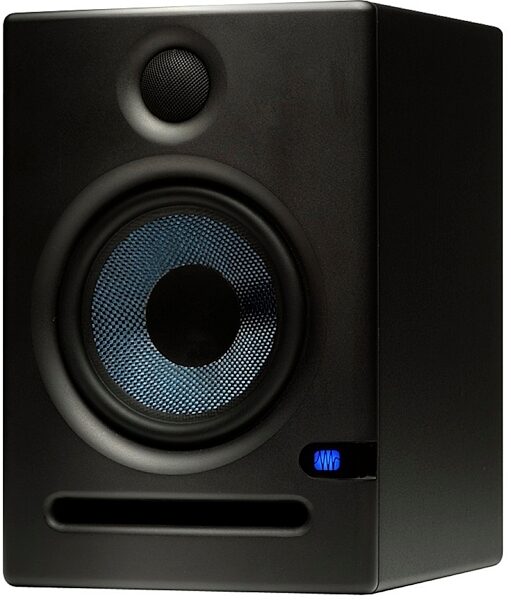

PreSonus Eris E8 Active Studio MonitorThe ultra-affordable PreSonus Eris E8 Monitor is designed to deliver a very accurate response with a tight bass and very clear upper end. That's what you need in a home studio. Thanks to well-designed Kevlar low frequency transducers, low-mass silk-dome tweeters, responsive Class AB amplification, and professional acoustic-adjustment controls, Eris delivers the goods.
When Size MattersFor an extended low-frequency response and a bit more muscle, step up to the Eris E8. With its 8-inch, Kevlar low-frequency transducer, driven by a 75 watt, Class AB power amplifier, it can range down to 35 Hz. The E8 monitor can reach all the way to 22 kHz, thanks to a 1.25-inch (32 mm), silk-dome, high-frequency tweeter. However, the E8's tweeter is driven by a heftier 65W, Class AB amplifier. With its extra juice, the E8 can deliver up to 105 dB SPL, peak.
The Eris E8 speaker has front-ported enclosures made of vinyl-laminated, medium-density fiberboard (MDF).

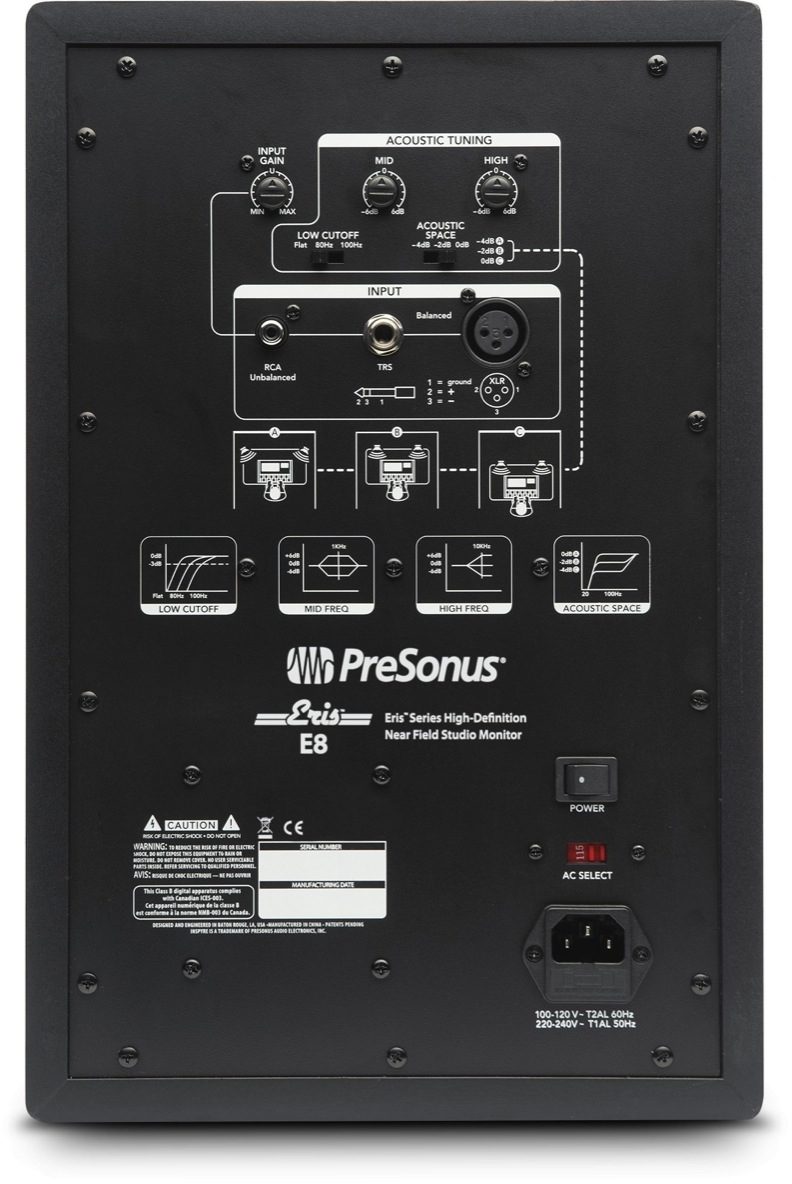

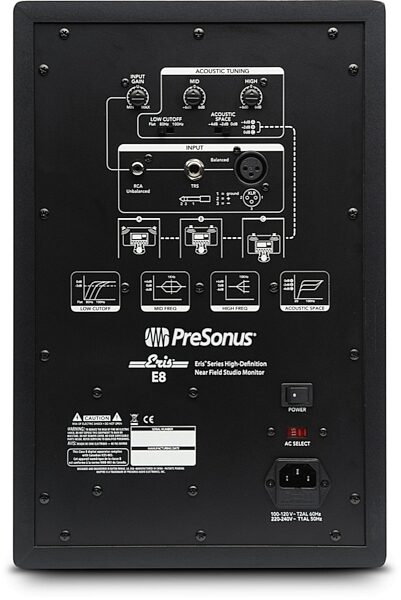

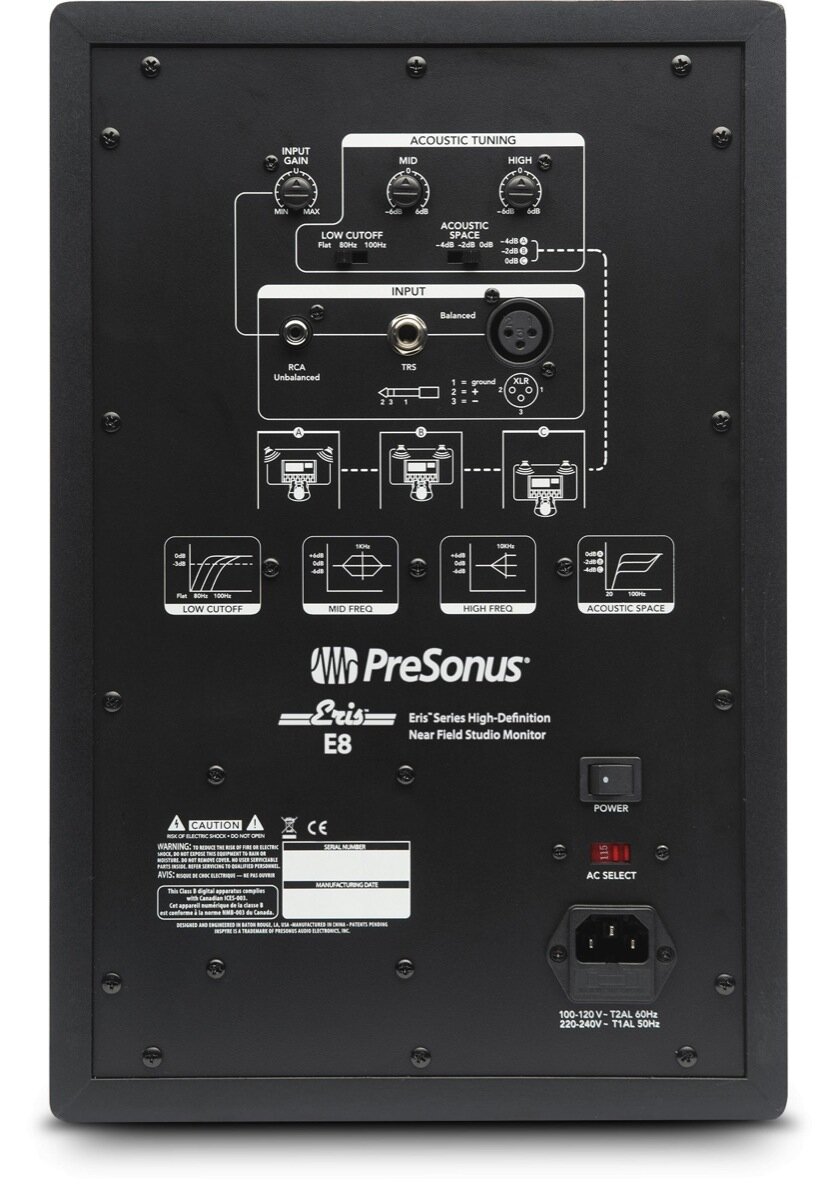

GazintasThe Eris E8 powered studio monitor provides balanced XLR, balanced 1/4 in. TRS, and unbalanced RCA line-level inputs. When both balanced connections are in use, the TRS input will supersede the XLR input. The RCA input is summed into the signal path.
With this selection, you'll have no problem hooking your Eris speakers up with virtually any line-level source. (If your signal source has unbalanced, 1/4" TS outputs, simply use a 1/4" -to-RCA adapter or adapter cable.
You're in control!Today's music producers deal with a wide variety of musical genres and often work in more than one location. It's easy to take your Eris speakers with you when you want to work in a different space. It's almost as easy to customize their sound for your room and type of music. The most basic control is the Input Gain, which determines the signal level before it reaches the power amp. This is part of gain-staging your overall system -- that is, setting the levels for every part of the recording chain in order to get the optimal level of clean audio all the way through. Once you've gain-staged your system, you can leave this control alone.
The Eris E8 provides three EQ controls in its Acoustic Tuning section: High, Mid, and Low Cutoff. These controls enable you to fine-tune the monitors and even to broadly approximate the sounds of different types of speakers so you can hear what your mix might sound like, for instance, on a car stereo or portable radio. The Low control also is useful when using the E8 with a subwoofer.
In addition to the Acoustic Tuning controls, Eris speakers offer a three-position Acoustic Space switch. This switch controls a second-order, low shelving filter that cuts the level of all frequencies below 800 Hz by a specified amount (-2 or -4 dB) to compensate for the boundary bass boost that occurs when the monitor is placed near a wall or corner. If you don't want to roll of those lows, set it to 0 dB.
This combination of controls lets you create a linear response for accurate monitoring and enables you to simulate different listening environments, so you don't have to listen to mixes on your car, consumer computer speakers, and home stereo to check how the music sounds with different systems. Instead, you can adjust the Eris monitors' response and test your mixes without leaving your studio. No other monitors in this price class offer this degree of control.
Safety MattersAny loudspeaker is subject to an assortment of environmental and performance problems, and Eris monitors offer protection from most common of these. RF shielding protects against radio frequencies that could be induced into the signal and become audible. (If you've ever heard a radio broadcast unexpectedly coming out of a guitar amp, that's the result of RF interference.
Eris monitors also provide over-temperature protection to avoid heat-related issues, current-output limiting (to prevent damage should there be a short circuit on the speaker terminals), and subsonic protection to filter out extremely low-frequency vibrations that could interfere with the woofer's performance.
Finally, Eris' power amplifiers have a soft startup so that you don't get damaging pops in the speakers when you power them up.
Sound ThinkingBy now, it should be clear that Eris-series speakers deliver a lot more than you would expect from a budget-priced studio monitors. As you expect from PreSonus, they use quality components, are well constructed, and deliver professional audio quality. They're lightweight and compact and look as professional as they sound.
But what really sets them apart from comparably priced systems are user controls that allow you to tailor the speakers' response to your needs.
Features:- PreSonus Eris E8 Powered Studio Monitor Features
- 8-inch Kevlar low-frequency transducer
- 1-inch (25 mm), ultra-low-mass, silk-dome, high-frequency transducer
- 130 watt, Class AB biamplification
- Front-firing acoustic port for superior bass-frequency reproduction
- Midrange (-6 dB, continuously variable), HF (-6 dB, continuously variable), High-Pass (Off, 80 Hz, 100 Hz) and Acoustic Space settings (flat, -2, -4 dB) for accurate mixing contour
- RF interference, output current limiting, over-temperature, transient, and subsonic protection
- Optimized, resonance-suppressing internal bracing
- Balanced XLR/1/4-inch and unbalanced RCA inputs
- 105 dB maximum continuous SPL
