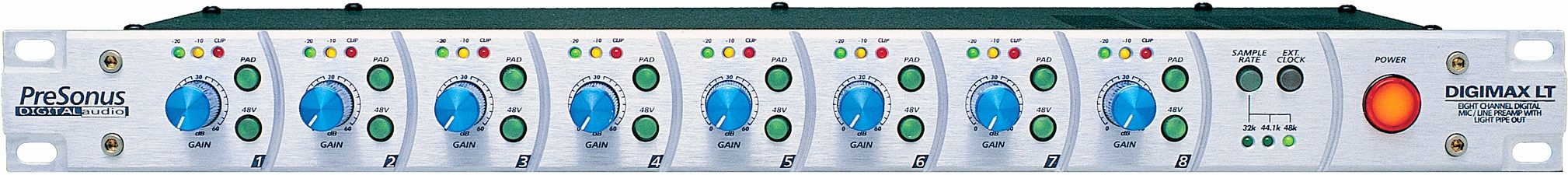

PreSonus DigiMAX LT 8-Channel Microphone Preamp with Digital Output, Main
PreSonus DigiMAX LT 8-Channel Microphone Preamp with Digital Output, Diagram Back

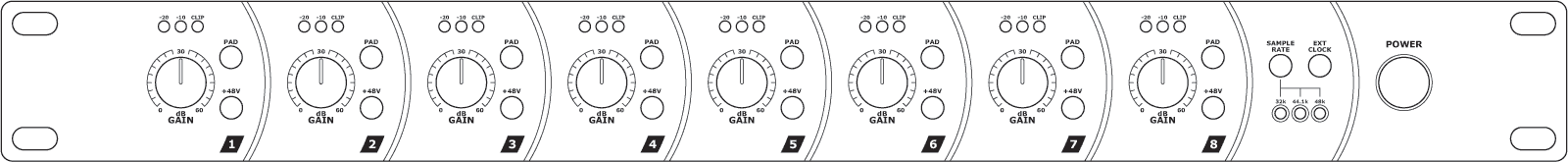

PreSonus DigiMAX LT 8-Channel Microphone Preamp with Digital Output, Diagram Front

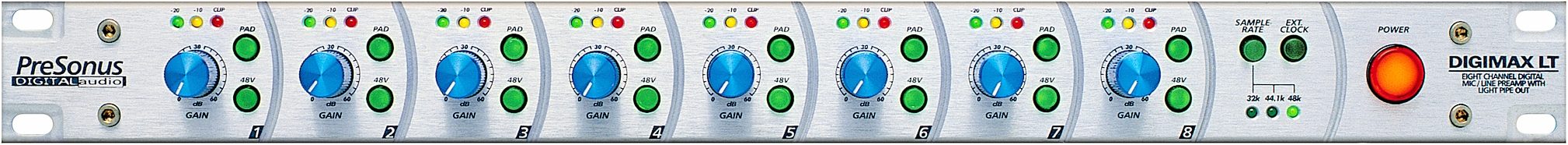

PreSonus DigiMAX LT 8-Channel Microphone Preamp with Digital Output, Front
PreSonus DigiMAX LT 8-Channel Microphone Preamp with Digital Output, Main PreSonus DigiMAX LT 8-Channel Microphone Preamp with Digital Output, Diagram Back PreSonus DigiMAX LT 8-Channel Microphone Preamp with Digital Output, Diagram Front PreSonus DigiMAX LT 8-Channel Microphone Preamp with Digital Output, Front
zZounds Gear Experts Say...
8 Dual Servo Mic Preamps and line inputs. 8 TRS insert Points.

The DigiMAX LT is essential to the modern digital studio. Eight channels of pristine mic preamplification, inserts on every channel, and an internal power supply set this unit apart from anything on the market. Each channel features the award-winning, high performance, dual servo microphone preamplifiers with 48V phantom power, and -20dB pad. Each channel features a Neutrik connector that accepts line level or microphone input. DigiMAX LT digital synchronization is achieved by offering word clock in and out via BNC connectors. The sample rate can be set on the front panel to 48K, 44.1K, and 32K providing compatibility across multiple platforms.

The DigiMAX LT provides TRS inserts on every channel to allow external dynamics processors or equalizers to be placed in the signal chain. The DigiMAX LT is the perfect partner for recording systems such as DigiDesign 001, MOTU 2408 as well as numerous digital mixers and hard disk recorders.

Features
ADAT Lightpipe Output
8 Dual Servo Mic Preamps and line inputs
8 TRS insert points
Linear Internal Power Supply
48V Phantom Power on each channel
-20 dB Pad on each channel
Adjustable Sample Rates
BNC I/O for Sync

Number of Channels: 8

Input
Input Impedance, XLR Input: 1.3k
Input Impedance, Line Level Input: 10k
Connectors: Neutrik Combo
Panel Controls
Gain: 0dB to +40dB
Pan: -20 dB
Phantom Power: +48 V

Meters
Signal Present LED: -20dBu
Clip LED: +22dBu

Output
ADAT Lightpipe digital optical: 24-bit
Insert (TRS)
Send (Unbalanced): 51 Ohms
Return (Unbalanced): 10k Ohms

Digital
Sampling Rates: 32kHz, 44.1kHz, 48kHz

Performance
Headroom: +22dB
Frequency Response: 20Hz-50kHz
THD + Noise (Unweighted): <0.009%
Noise Floor: -94dBu
Signal to Noise: >98dB
Analog Dynamic Range: >120dB
Power Supply Rejection: >98dB
Amplifier Type: Dual Servo

Power Supply
Type: Linear, Internal Input: 100/120/220/240VAC (Factory Configured)
Power: 80 Watts

Physical
Size: 1U Rack
Dimensions: 19 x 1.75 x 7 in.
Weight: 15 lbs.
Chassis: Steel
Panel: Aluminum

For support or warranty questions, please contact the manufacturer:
Phone: 225-216-7887
Web: https://support.presonus.com
Owner's Manual
Spec Sheet

Submitted November 30, 2004

"Great unit"

Overall: 4.5 out of 5 stars
(see rating details)
I will be using this unit for years to come
Sound
The sound is very nice. Use it as an additional 8 preamps with my digi 002 the drums sound I recorded sounded really great.
Features
I have only used it for recording purposes it allows me to record 16 channels at a time into pro tools using my digi 002. Must say sounds great and gets the job done flawlessly. One quirk though the digi max lt must be turned on firs prior to the digi 002 or the computer in order to be recognized and not get digital pops and clicks in your recordings.
Quality
The product has been reliable, it's look is rather sleek. It looks cool in my rack.
Value
For the price it can't be beat
Manufacturer Support
I emailed presonus about the digi 002 were not communicating properly they weren't very helpful. So I did the scientific method
The Wow Factor
It looks good!

Musical Background:

Recording engineer

Musical Style:

Rock
5 of 6 people (83%) people found this review helpful. Did you?
