PreSonus COMP16 Compressor/Limiter 1/3 Rack Space

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

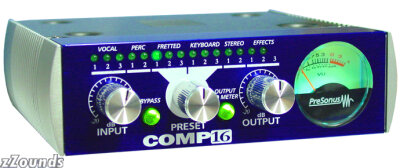

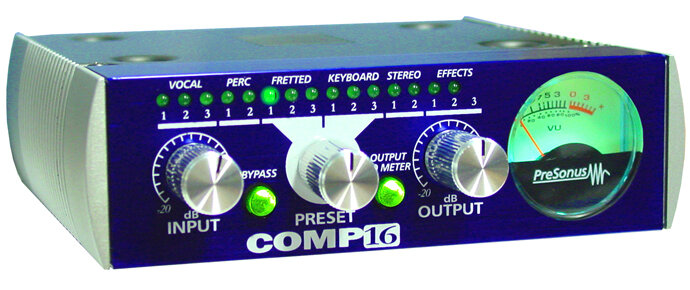

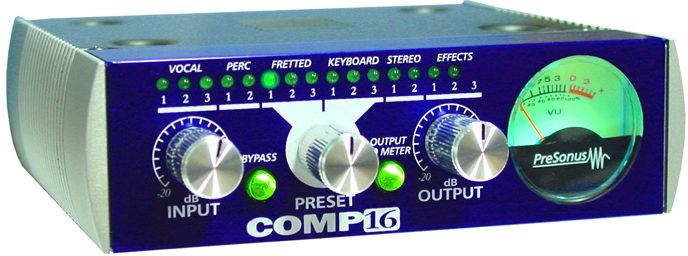

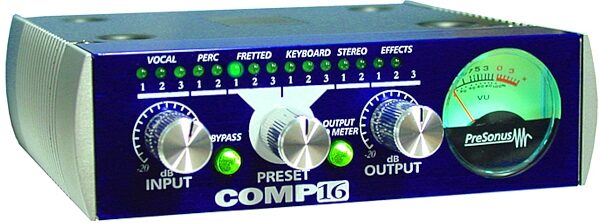

PreSonus COMP16 Compressor/Limiter 1/3 Rack Space, Main

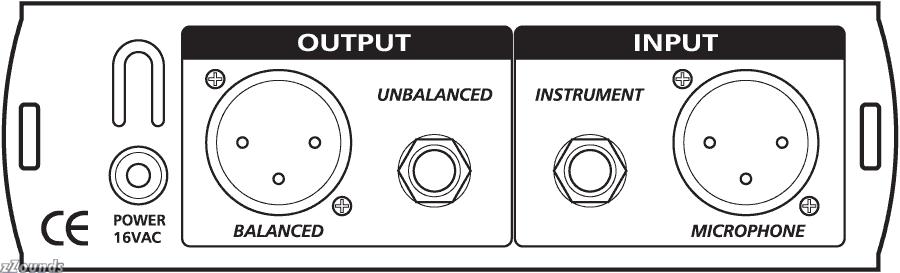

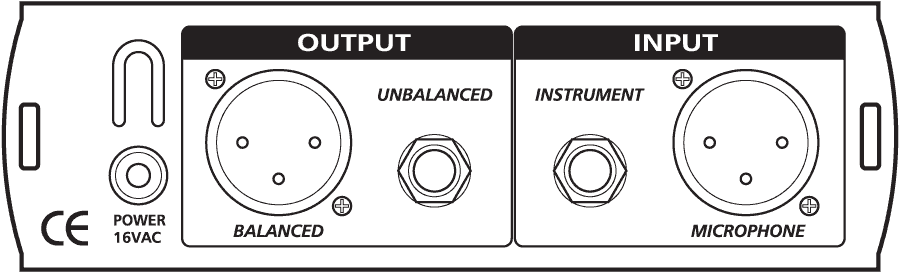

PreSonus COMP16 Compressor/Limiter 1/3 Rack Space, Diagram Back
PreSonus COMP16 Compressor/Limiter 1/3 Rack Space, Front Diagram
PreSonus COMP16 Compressor/Limiter 1/3 Rack Space, Main
PreSonus COMP16 Compressor/Limiter 1/3 Rack Space, Diagram Back
PreSonus COMP16 Compressor/Limiter 1/3 Rack Space, Front Diagram
PreSonus COMP16 Compressor/Limiter 1/3 Rack Space, Main
PreSonus COMP16 Compressor/Limiter 1/3 Rack Space, Diagram Back
PreSonus COMP16 Compressor/Limiter 1/3 Rack Space, Front Diagram
PreSonus COMP16 Compressor/Limiter 1/3 Rack Space, Main PreSonus COMP16 Compressor/Limiter 1/3 Rack Space, Diagram Back PreSonus COMP16 Compressor/Limiter 1/3 Rack Space, Front Diagram PreSonus COMP16 Compressor/Limiter 1/3 Rack Space, Main PreSonus COMP16 Compressor/Limiter 1/3 Rack Space, Diagram Back PreSonus COMP16 Compressor/Limiter 1/3 Rack Space, Front Diagram PreSonus COMP16 Compressor/Limiter 1/3 Rack Space, Main PreSonus COMP16 Compressor/Limiter 1/3 Rack Space, Diagram Back PreSonus COMP16 Compressor/Limiter 1/3 Rack Space, Front Diagram
Versatile, professional, 1-channel compressor in a compact 1/3-rack box.

The powerful COMP16 is a versatile, professional, 1-channel compressor in a compact 1/3-rack (5.5 in. wide) box. It has 16 compression presets, customized for applications like Vocals, Percussion, Fretted Instruments, and more. Simply turn the dial to the preset you want and the COMP16 will make all of the attack, release, ratio, threshold and knee settings automatically. You get full control over Input and Output levels with independent front-panel knobs, and you can always see what is going on with the large, backlit VU meter.

PreSonus COMP16 Compressor/Limiter 1/3 Rack Space

Features
Based on the BlueMax award winning compressor design.

Sixteen presets that control attack, release, ratio, threshold, and knee.

Back-Lit VU Meter.

Warm, wide dynamic range for recording or live.

Technical Specifications

Input

XLR Impedance
10k Ohms

TRS Impedance
10k Ohm

Panel Controls

Input
-20dB to +20dB

Output
-20dB to +20dB

Bypass

Output to Meter

Preset Select Digital Encoder

Meters

Blue Backlit VU

Power Supply

Type
Linear

Input
16VAC/1000mA

Output

XLR Balanced
51 Ohms Impedance

1/4 in. TRS Unbalanced
51 Ohms Impedance

Performance

THD+Noise (Unweighted)
0.006% at 0dB

Noise Floor
-98dB

Signal To Noise
>95dB

Power Supply Rejection
>98dB

Physical

Weight
5lbs.

Dimensions
5.5 x 5.5 x 1.75

Mounting
Universal Rack Tray Insert

Chassis
Steel

Panel
Brushed Aluminum

Sides
Cast Aluminum

Power
16 Watts

For support or warranty questions, please contact the manufacturer:
Phone: 225-216-7887
Web: https://support.presonus.com
Manual
MaxRack Sound Magazine Review

Reviewers gave this product an overall rating of 4.5 out of 5 stars. (12 ratings)
Submitted September 12, 2006 by a customer from knology.net

"well done"

Overall: 4.5 out of 5 stars
(see rating details)
Verified Customer zZounds has verified that this reviewer made a purchase from us.
it's a bit pricey when a 2-ch alesis 3630 is the same cost, but if the compact size is appealing, it's a winner.
Sound
Clean, accurate, transparent.
Features
easy to use, hard to mess up, but that's the benefit of not having much control. really wish it had a gate or expander.
Ease of Use
too easy, wish it had a setting for at least one user preset.
Quality
I really like this little comp.
Value
great for what it is. note, it's not a true 1/3U. It's too wide; 3 will not fit side-by-side in a tray.
The Wow Factor
pretty face, but analog meters are hard to read onstage.

Musical Background:

active musician

Musical Style:

rock, jazz, ccm
10 of 10 people (100%) people found this review helpful. Did you?
Thanks for your opinion!
Rate and Review this Product
Read more reviews

No longer available at zZounds

In most cases, a product is unavailable because it has been discontinued by the manufacturer
