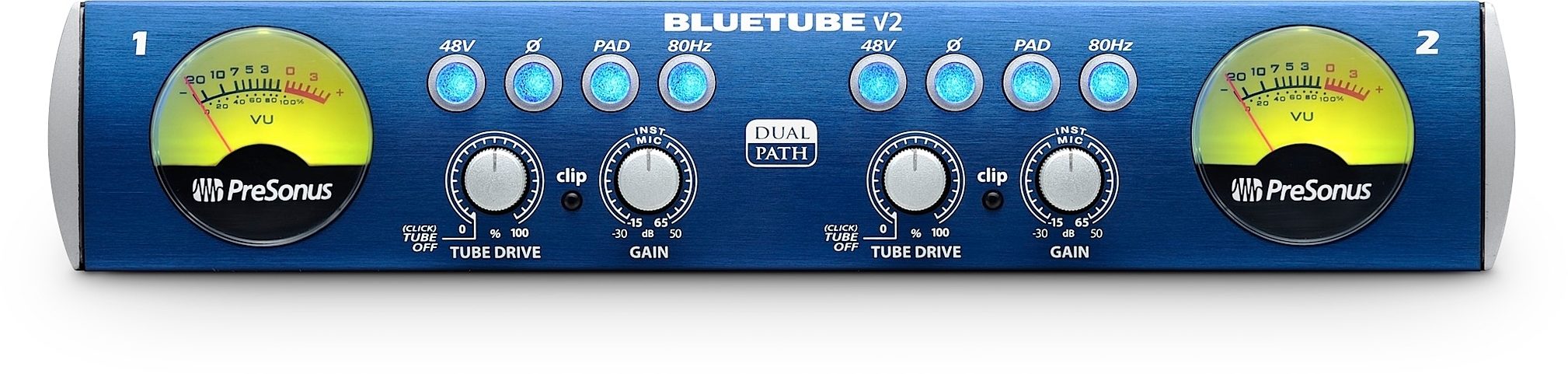

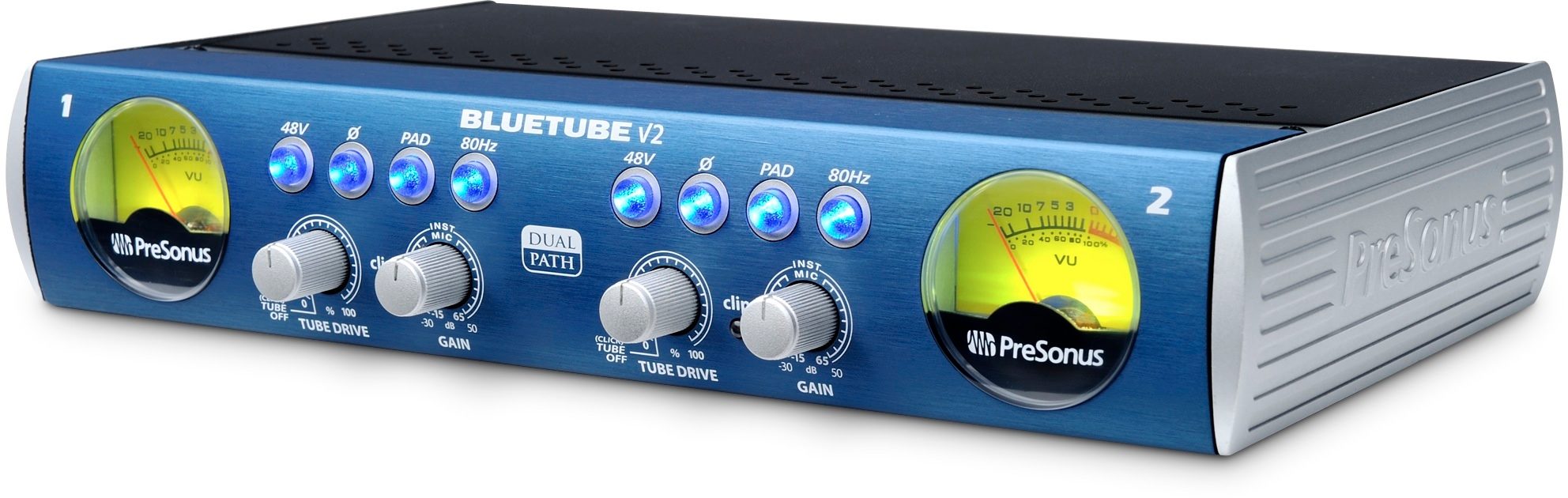

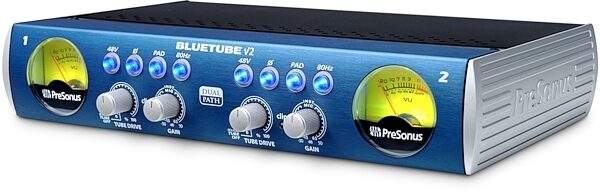

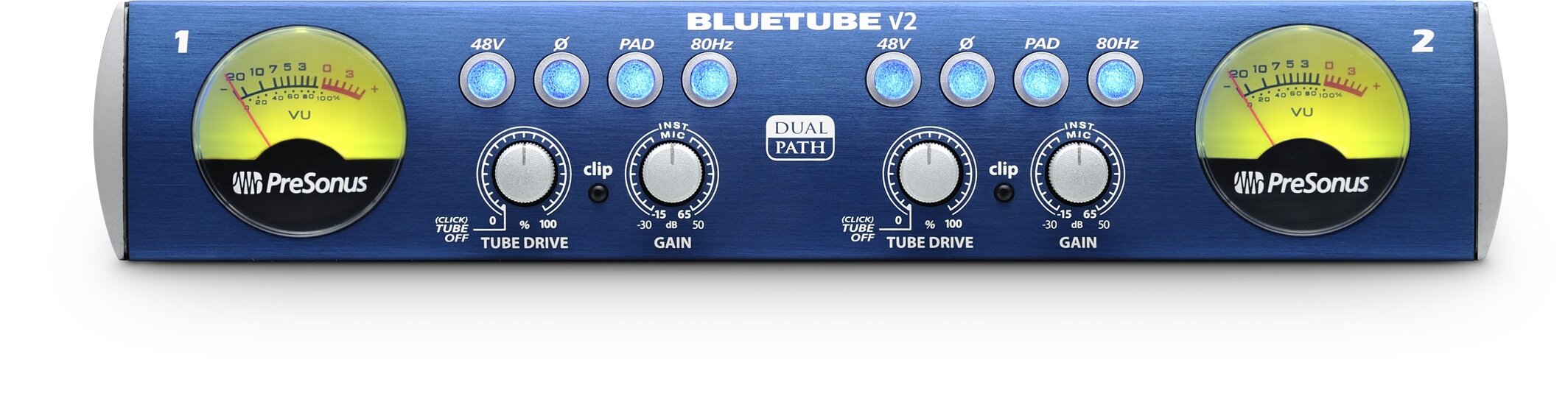

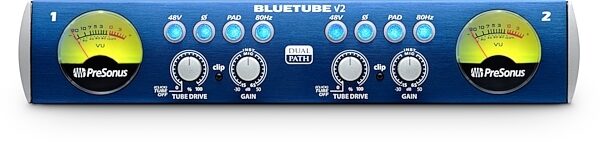

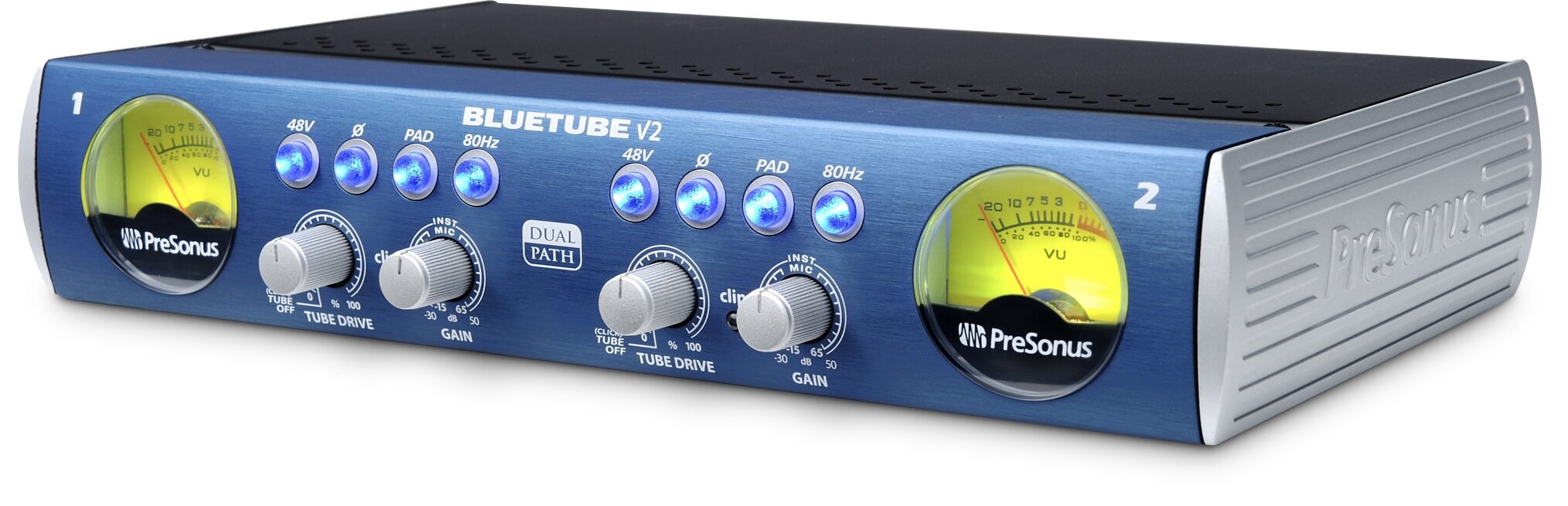

PreSonus BlueTube DP Version 2 Stereo Tube Microphone Preamplifier
zZounds Gear Experts Say...
Dial in gentle warmth -- or edgy bark -- with separate Tube Drive and Gain knobs on the two-channel PreSonus BlueTube DP Version 2 microphone preamplifier.
Overview
Enjoy solid-state clarity or tube warmth with the BlueTube DP dual-path mic/instrument preamp, which features both PreSonus' classic Class A XMAX(tm) solid-state mic preamplifier and a high-output, 12AX7 tube preamp that operates on voltages double that of other preamps in its class, providing lots of headroom and big tone. A Tube Drive control produces anything from gentle warmth to edgy distortion. With two combo mic/instrument inputs, the half-rackspace BlueTube DP is a great choice for guitars and basses as well as vocals.
- Combo mic/instrument inputs with Class A XMAX mic preamplifiers
- XLR and 1/4-inch line outputs
- Tube Drive tube-saturation control
- 48V phantom power
- 80 Hz high-pass filter
- - 20 dB pad
- Polarity-reverse switch
- Illuminated analog VU input-level meter
- Compact 1/2U rack-mount chassis
Features:
- Dual path, with both 12AX7 vacuum tube and solid-state gain stages- Combo mic/instrument inputs with Class A XMAX mic preamplifiers
- XLR and 1/4-inch line outputs
- Tube Drive tube-saturation control
- 48V phantom power
- 80 Hz high-pass filter
- - 20 dB pad
- Polarity-reverse switch
- Illuminated analog VU input-level meter
- Compact 1/2U rack-mount chassis
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
Specs
- Channels: 2

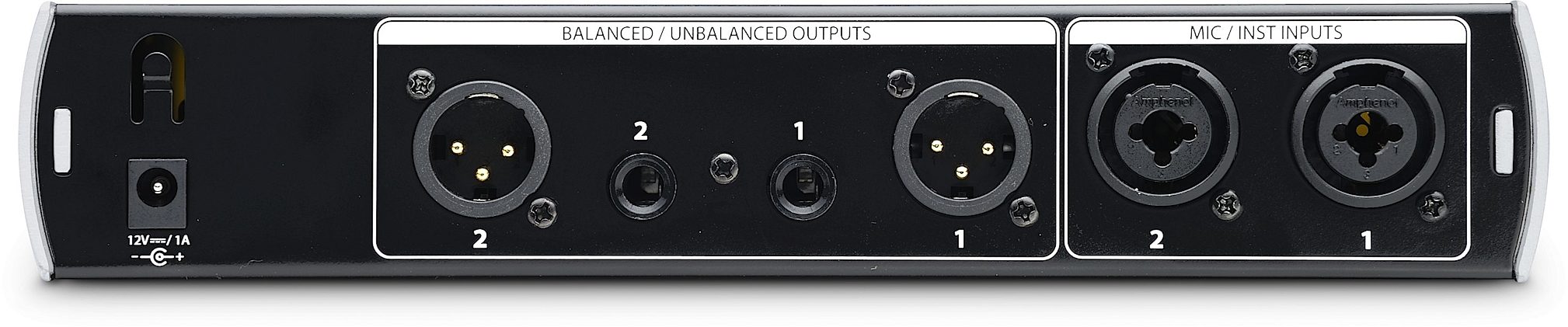

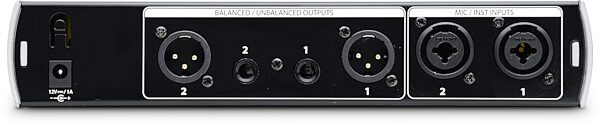

- Input Connectors: Neutrik Combo XLR/1/4" (2 per channel)
- Output Connectors: Balanced XLR and unbalanced 1/4" TS (per channel)
- Gain Range: 80 dB
- Frequency Response: 20 Hz - 20 kHz (-0.3 dB, +4 dBu, unity gain); 5 Hz - 120 kHz (-3 dB, +4 dBu, unity gain)
- Total Harmonic Distortion (THD): 0.01% (-10 dBu, 1kHz, unity gain, 20kHz BW, unweighted) solid-state; 0.01% to 30% tube stage
- Phantom Power: 48V
- Input Impedance: Microphone: 1.3 kΩ; Instrument (Hi-Z): 1 MΩ
- Output Impedance: 51 Ω
- Power Requirements: External 12V DC, 1A power supply (center pin positive)
- Input Connectors: Neutrik Combo XLR/1/4" (2 per channel)
- Output Connectors: Balanced XLR and unbalanced 1/4" TS (per channel)
- Gain Range: 80 dB
- Frequency Response: 20 Hz - 20 kHz (-0.3 dB, +4 dBu, unity gain); 5 Hz - 120 kHz (-3 dB, +4 dBu, unity gain)
- Total Harmonic Distortion (THD): 0.01% (-10 dBu, 1kHz, unity gain, 20kHz BW, unweighted) solid-state; 0.01% to 30% tube stage
- Phantom Power: 48V
- Input Impedance: Microphone: 1.3 kΩ; Instrument (Hi-Z): 1 MΩ
- Output Impedance: 51 Ω
- Power Requirements: External 12V DC, 1A power supply (center pin positive)
Dimensions and Weight in Packaging
Base Item
- Shipping Weight: 4.25 lbs
- Shipping Dimensions: 16 x 8 x 4 in
- Manufacturer Part Number (MPN): 2777400101
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 225-216-7887
Web: https://support.presonus.com
Phone: 225-216-7887
Web: https://support.presonus.com
Reviews
Reviewers gave this product an overall rating of 5 out of 5 stars.
(2 ratings)
Submitted January 27, 2018 by Ben M in Plant City, FL
"Presonus Blue Tube DP"
Verified Purchaser
zZounds has verified that this reviewer purchased this specific product from us.
Great unit, use it to add tube warmth to mics, bass DI, guitar DI. Very clean class A pre amps and the ability to dial in amount of tube tone. Plus, phantom power, phase, 10db pad & 80 Hz low cut.
Musical Background:
40 yrs as musician, engineer & producer
Musical Style:
Rock, blues, jazz, country, bluegrass
14 of 14 people (100%) people found this review helpful. Did you?
Thanks for your opinion!
