Positive Grid Spark Cabinet

Positive Grid Spark Cabinet, Black, Main

Positive Grid Spark Cabinet, Black, Action Position Back

zZounds Gear Experts Say...

Taking the stage with your Positive Grid Spark amp? This 1x10" cab sports 140 watts of Class D power with an FRFR design for powerful, unfiltered sound.

Overview

Spark just got louder. Plug in any Spark (or any amp or FX system with a line level out for that matter) for 140 Watts of ferocious power. This powered FRFR cabinet is optimized to work seamlessly with Spark 40, Spark MINI, and Spark GO amps, as well as other amps and digital modeling systems. Versatile, high-quality sound for live performances, recording sessions, and home practice.

Now this is big
Spark CAB is compact enough to fit anywhere with high-quality sound big enough to blow the doors down. Live performances. Recording sessions. Home practice. CAB has you covered.

Power player
Spark CAB features a 10-inch woofer and 2 high-frequency dome tweeters, powered by a built-in 140-watt Class D amplifier. Get clear and accurate sound reproduction, with full range flat response (FRFR) and low distortion.

Outsized performance
With plenty of power and headroom, CAB offers the authentic feel of a speaker pushing air and delivers your tone at high volume output levels without extra distortion or loss of quality.

Well connected
Spark CAB includes a dedicated 3.5mm stereo input for Spark series amps (Spark 40/MINI/GO), 2 Combo inputs, and 1 XLR balanced output for the house PA or routing to another Spark CAB. And yes, the cable to connect your Spark is included!

Solid Style
Designed to complement your Spark series amp, Spark CAB is constructed from rugged, high-quality materials, including matching tolex and grille cloth. Easy to transport, Spark CAB provides inset handles,… read more durable portability and a compact footprint.

Power to power
Spark CAB is a portable power bank. With a DC power output and a USB-C output, you can connect your Spark (Spark 40, MINI or GO), tablet, or smartphone. No other power source needed.

Box contents:- 3.5mm stereo audio cable for Spark amps
- DC power cable for Spark
- Power cord
- Quick Start Guide
- Safety Instructions Card

Features:

- 140-watt Class D FRFR Powered Cabinet
- 1 x 10-inch woofer and 2 high-frequency dome tweeters
- 2 Combo inputs, and 1 XLR balanced output for the house PA or routing to another Spark CAB
- Dedicated 3.5mm stereo input for Spark series amps (Spark 40/MINI/GO)
- 1 x 1/4 inch & XLR combo input, compatible with all kinds of signal from dynamic microphone to a line level signal.
- Extra USB C Port provides 5V/2A and is able to charge Spark MINI and Spark GO, or mobile devices.
- Extra DC Out Port (label as 19V) for Spark 40 power supply.
- Genuine tolex and grille cloth matches Spark styling
- Solidly constructed of MDF with 2 inset handles for easy transport.
- Dimensions: 40(W) X 48(H) X 25.5(D) cm /15.75(W) X 19(H) X 10(D) inches
- Weight: 14 kg / 30 lbs

Specs

- Frequency Range: 45-20,000 Hz
- Stereo/mono: MONO
- Maximum Sound Pressure Level: 117 dB (RMS), 120 dB (Peak)
- Cabinet Principle: Bass Reflex
- Power Amplifiers: 140W (RMS), 400W (Peak) Class D
- Speakers: 1x10-inch woofer, 2x1-inch (25mm) tweeter
- Total Impedance: 4 ohms

- Main Input Power: AC 100-240V
- DC Power Output For Spark: DC 19V/2.5A
- USB-C power output For Spark MINI & GO: DC 5V/2A

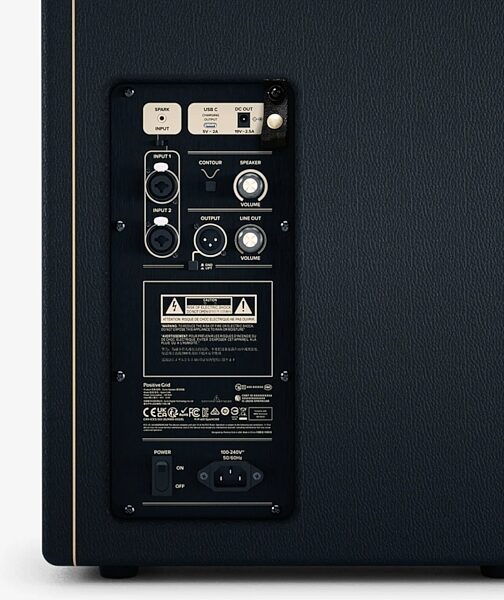

- BACK PANEL CONTROLS:
- Input Selector - Switch between the 3.5 mm Spark Input and the two mono XLR/TRS Combo Inputs
- Speaker Volume
- Line Out Volume
- Ground Lift Switch
- Contour Switch - Boosts low and high frequencies to improve balance at low volumes

- Wired Connectivity:
- 1 x 1/8" dedicated stereo Input for Spark Amp
- 2 x mono XLR/TRS combo inputs
- 1 x mono XLR balanced output

- Dimensions: 492.5 x 399.8 x 255 mm (with rubber feet) (19.39 x 15.74 x 10.04 in)
- Weight: 13.5 kg / 29.76 lbs
- Grille cloth: Woven
- Handle: 2 recessed speaker handles on the sides
- Cable Tie: 1 adjustable cable tie for fixing instrument and audio cables on the back
