Pinnacle Microphones Fat Top Ribbon Microphone Pair









zZounds Gear Experts Say...
Just like the original "fat head" mics, Fat Top ribbons are a studio go-to for tracking piano, percussion, and more! This pair includes a Blumlein bar.
Overview

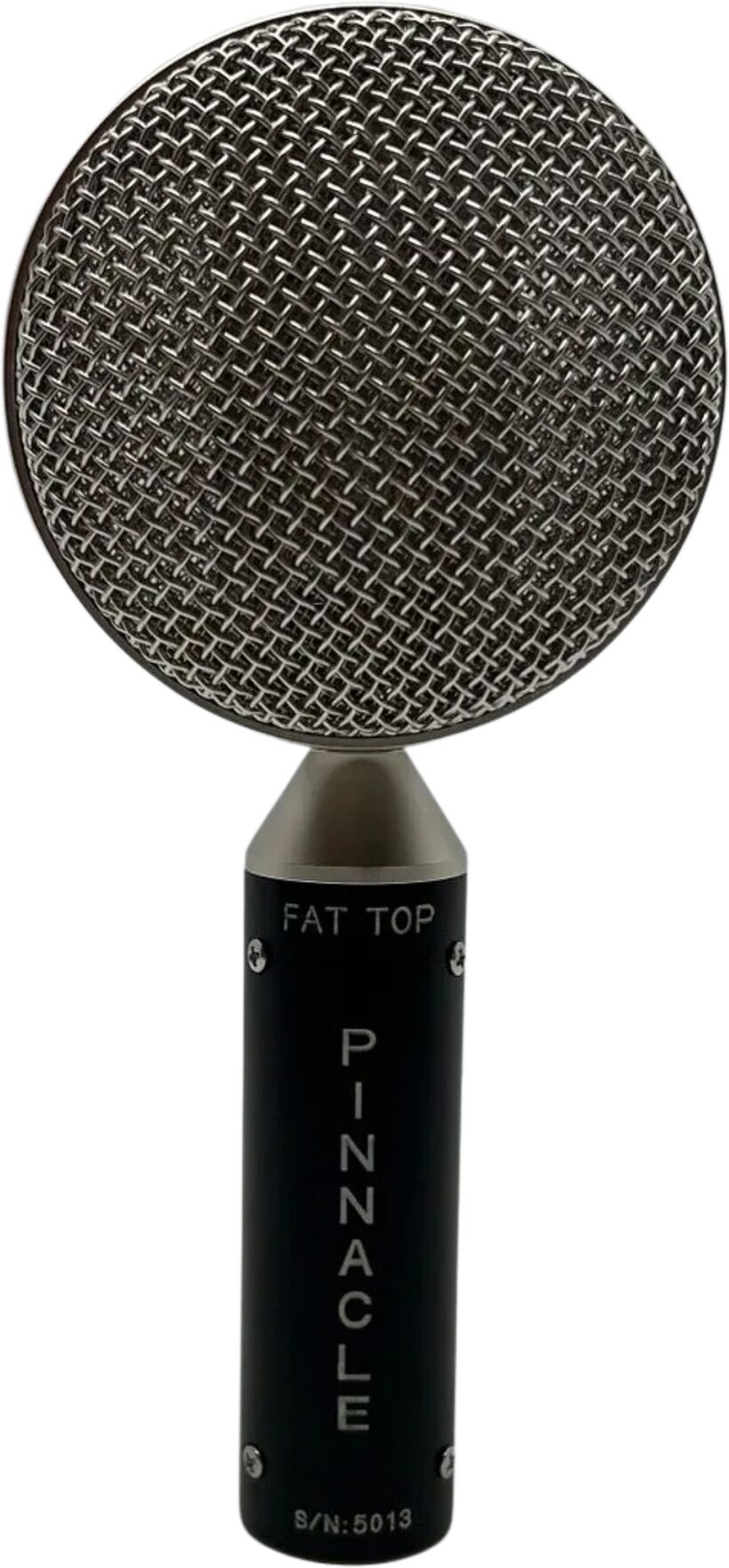

The Fat Top is a short ribbon passive microphone that delivers a smooth, warm, rich, fat, rounded tone. Produces a well-rounded sound without the need to EQ out the brittle or sharp highs. This microphone will roll off the high frequencies that will help with perceived warmth. The bi-directional polar pattern picks up sound equally from both faces with a large null between faces, ideal for isolating sound sources. It's frequency and sensitivity response deliver pristine audio results. Translates natural analog sound into the digital domain, giving warmth and smoothness to what might be a cold and sterile digital recording. Versatile enough to handle any vocals or instruments in recording and live sound application. Can be used in pairs in a Blumlein set up to pick up the entire room. Best suited for guitar cabinets, piano, brass and percussion instruments.
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
Specs
- Type: Ribbon (velocity) Microphone
- Ribbon Type & Dimensions: 99.99% Pure Aluminum, 2.5 microns, 1 3/4" (L) X 3/16" (W)
- Polar Pattern: Symmetrical Figure 8
- Sensitivity: -49.2 dB (3.5 (mV/Pa)
- Frequency Response: 30 to 15 KHz (+/- 3dB)
- Impedance: <=200 Ohms
- Recommended Load Impedance: 1000 Ohms
- Max.SPL (1% THD @1000 Hz): 135 dB
- Equivalent Noise Level: to IEC 268-4 (A weighted) 17dB
- S/N ratio: re 1Pa: 70 dB
- Connector: 3-Pin Male XLR
- Size: Diameter: 3" (O.D. grill), overall length 6 1/2", 7/8" (O.D. body)
Handling Instructions:
Ribbon microphones are not designed to withstand excessive air-pressure. The Ribbon is made up of a very thin corrugated aluminum ribbon under light tension. Use for close mic'ing of a kick-drum or vocals can cause damage to the ribbon. Use of a Pop-Filter will reduce the air-pressure and increase life of microphone. When not in use, microphone should be cased to protect from unwanted air-pressure and/or damage. This product is Phantom Power safe.
- Ribbon Type & Dimensions: 99.99% Pure Aluminum, 2.5 microns, 1 3/4" (L) X 3/16" (W)
- Polar Pattern: Symmetrical Figure 8
- Sensitivity: -49.2 dB (3.5 (mV/Pa)
- Frequency Response: 30 to 15 KHz (+/- 3dB)
- Impedance: <=200 Ohms
- Recommended Load Impedance: 1000 Ohms
- Max.SPL (1% THD @1000 Hz): 135 dB
- Equivalent Noise Level: to IEC 268-4 (A weighted) 17dB
- S/N ratio: re 1Pa: 70 dB
- Connector: 3-Pin Male XLR
- Size: Diameter: 3" (O.D. grill), overall length 6 1/2", 7/8" (O.D. body)
Handling Instructions:
Ribbon microphones are not designed to withstand excessive air-pressure. The Ribbon is made up of a very thin corrugated aluminum ribbon under light tension. Use for close mic'ing of a kick-drum or vocals can cause damage to the ribbon. Use of a Pop-Filter will reduce the air-pressure and increase life of microphone. When not in use, microphone should be cased to protect from unwanted air-pressure and/or damage. This product is Phantom Power safe.
- Dimensions and Weight in Packaging
- Black
- Shipping Weight: 9.2 lbs
- Shipping Dimensions: 17 x 14 x 6 in
- Manufacturer Part Number (MPN): D-FT-ST-S
- Brown
- Shipping Weight: 9.2 lbs
- Shipping Dimensions: 17 x 13 x 6 in
- Manufacturer Part Number (MPN): D-FT-ST-G
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: (360) 623-0912
Email: sales@pinnaclemicrophones.com
Web: https://pinnaclemicrophones.com
Phone: (360) 623-0912
Email: sales@pinnaclemicrophones.com
Web: https://pinnaclemicrophones.com
