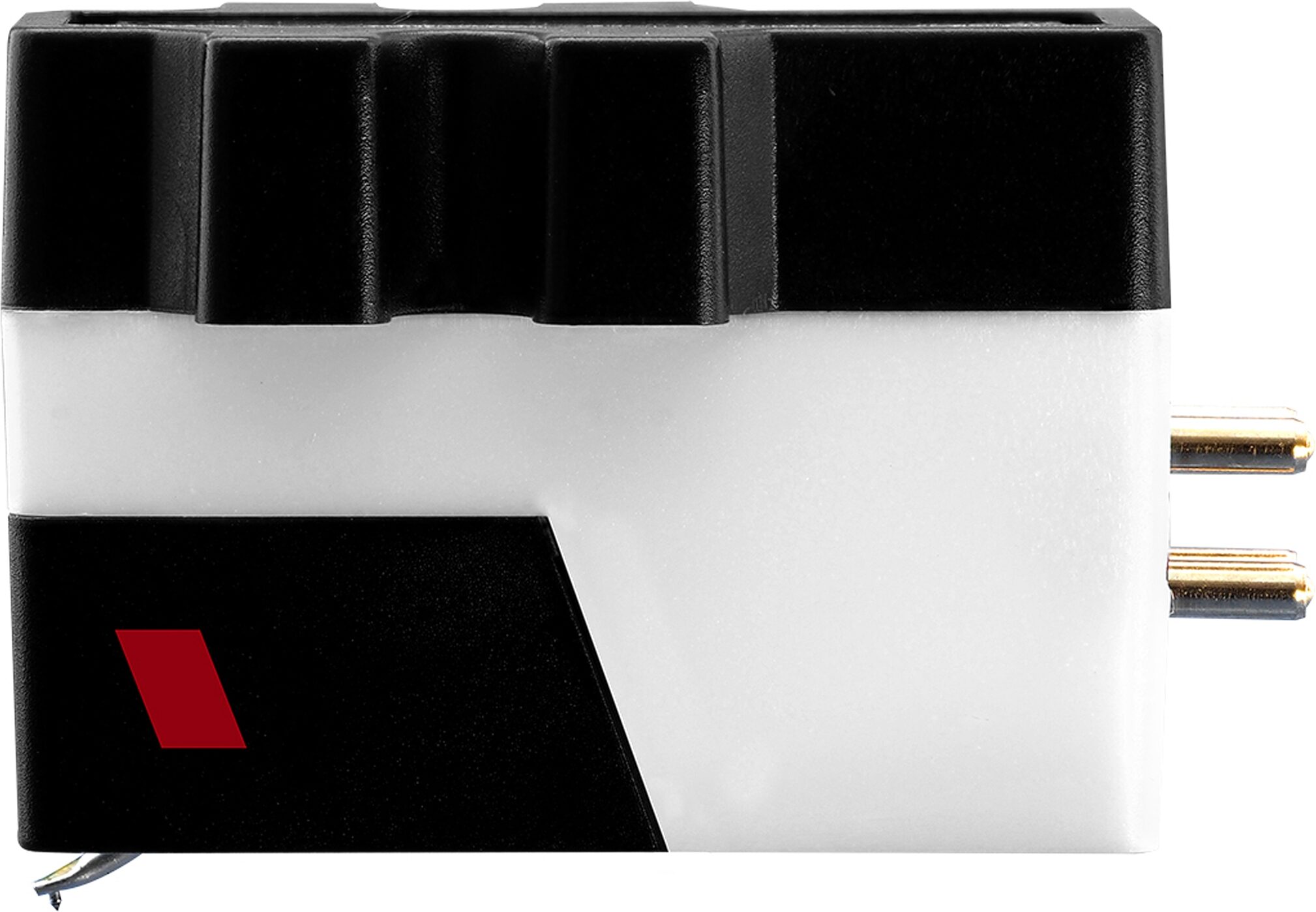

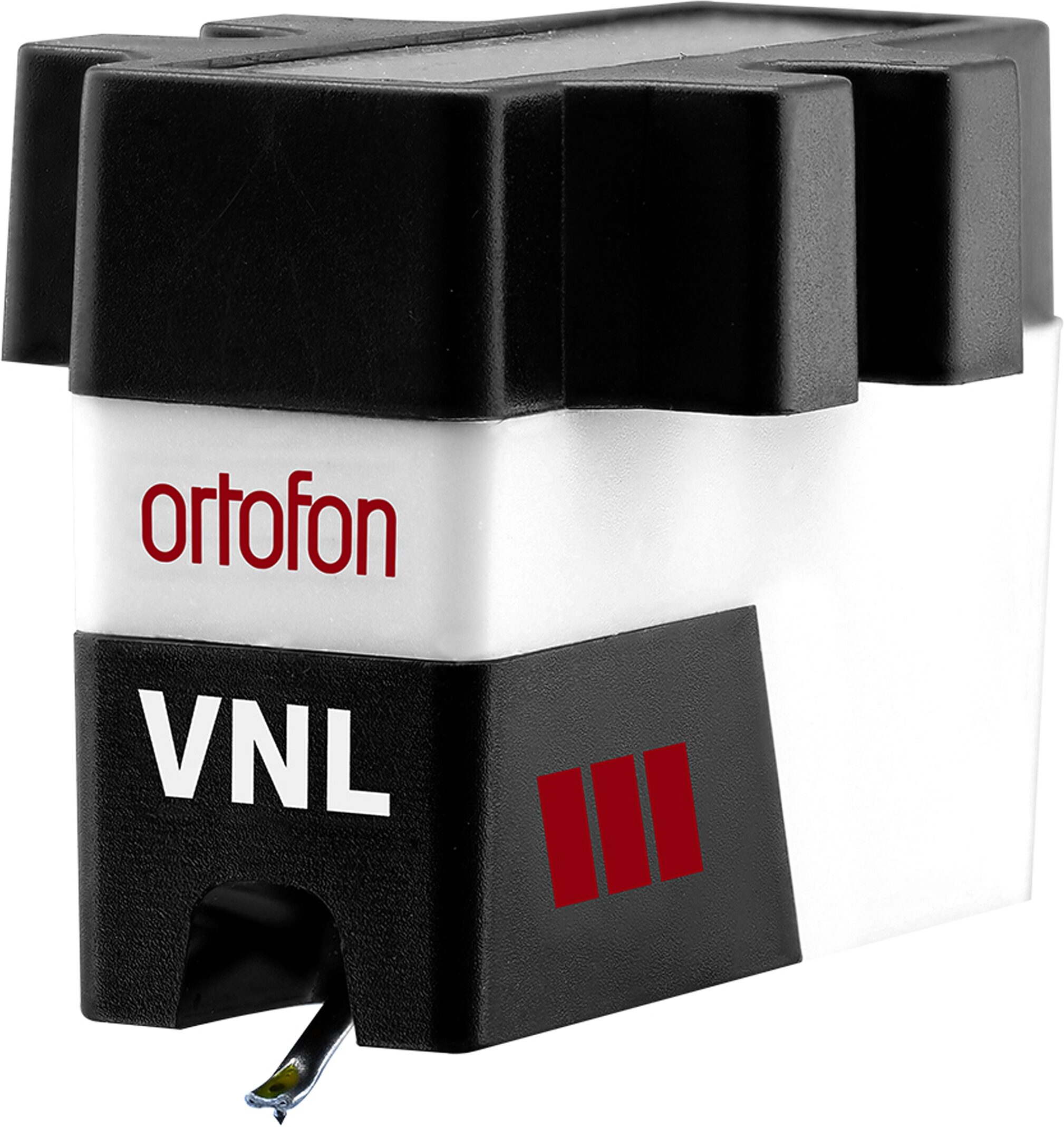

Ortofon VNL DJ Cartridge

- Stylus Type Spherical Tracking Force 4.0 g
- Output Voltage 6 mV
- Frequency Range 20-20.000 Hz
- Output voltage at 1000Hz, 5cm/sec. - 6 mV
- Channel separation at 1kHz - 20 dB
- Frequency response 20 Hz - 20 kHz -2/+4 dB
- Tracking ability at 315 Hz at recommended tracking force:
- VNL I: 100 um

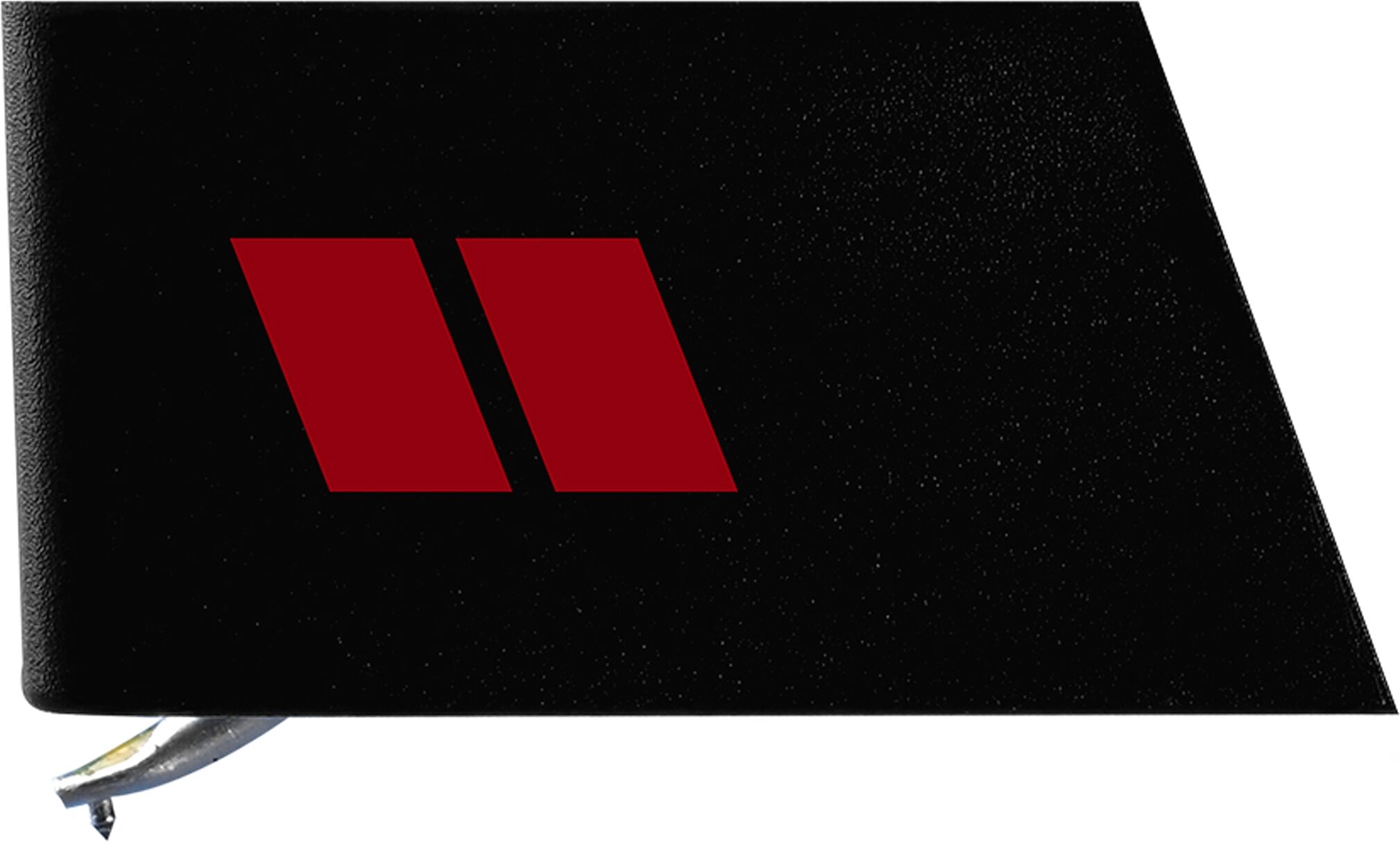

- VNL II: 90 um

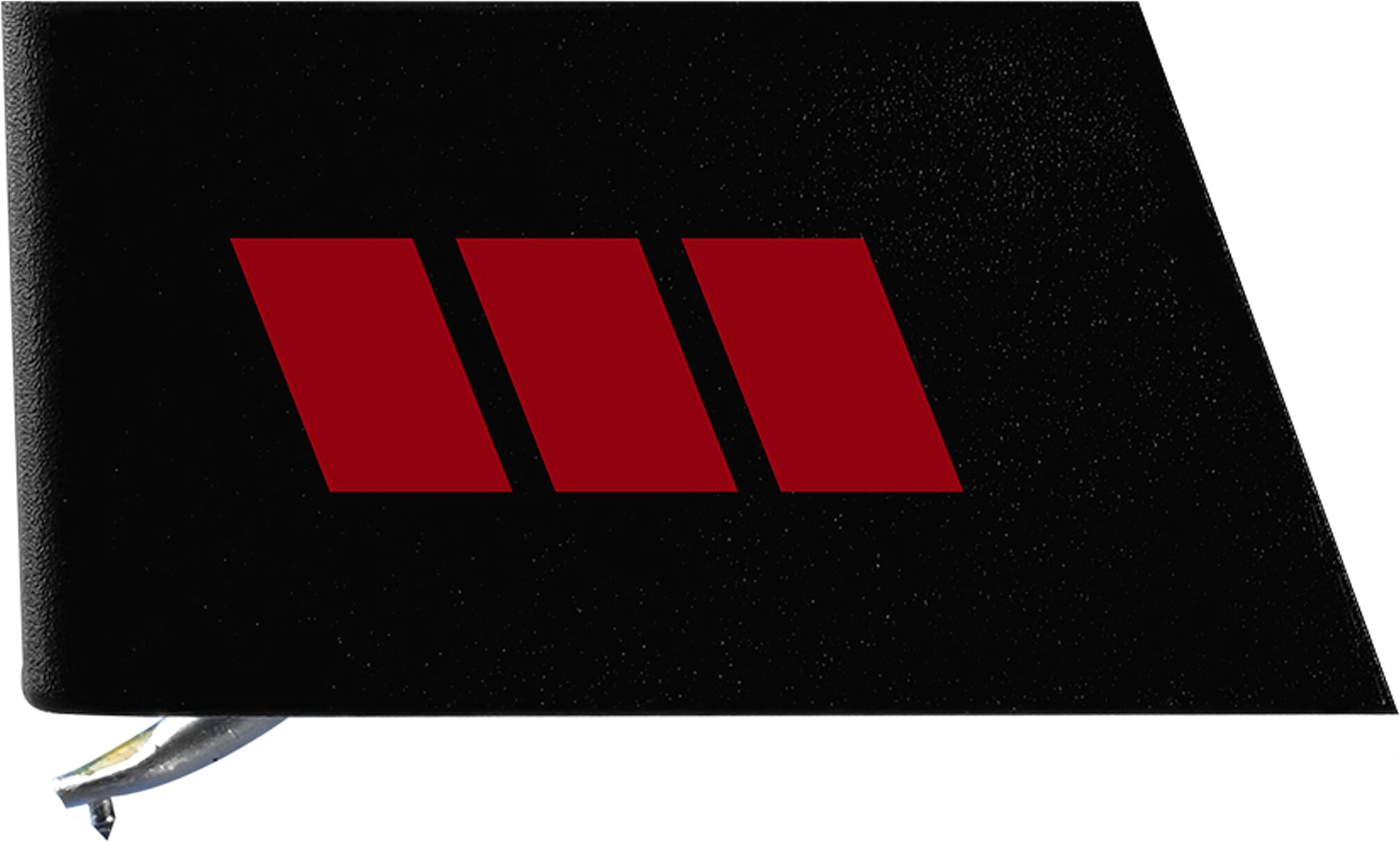

- VNL III: 90 um
- Compliance, dynamic lateral:
- VNL I: 16 um/m N
- VNL II: 15 um/m N
- VNL III: 14 um/m N
- Tracking force range - 3 - 5 g
- Tracking force recommended - 4 g
- Internal impedance, DC resistance - 750 Ohm
- Internal inductance - 450 mH
- Recommended load resistance - 47 kOhm
- Recommended load capacitance - 200-600 pF
- Cartridge weight - 6,5 g
- Replacement stylus units: VNL I, VNL II, VNL III
- Antiskating: for best backcueing performance use "0"
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 0.25 lbs
Shipping Dimensions: 5 x 4 x 1 in
Manufacturer Part Number (MPN): VNL Intro Pack
Warehouse Resealed
Shipping Weight: 0.25 lbs
Shipping Dimensions: 5 x 4 x 1 in
Manufacturer Part Number (MPN): VNL Intro Pack
If you have additional warranty questions, please contact the manufacturer at 914-762-8646
(1 ratings)
Submitted January 16, 2021 by a customer from LIVE.COM
"Ortofon VNL DJ Cartridge + 3 needles"
I had to wait for over a month to get this nice set up. Where else can you get a cartilage and 3 needles in 1 and not empty your pockets. This set is a great quality product with everything you need. I can now play around with 3 different needle ranges and see what the difference is. You can go on Youtube if you want to know more.
