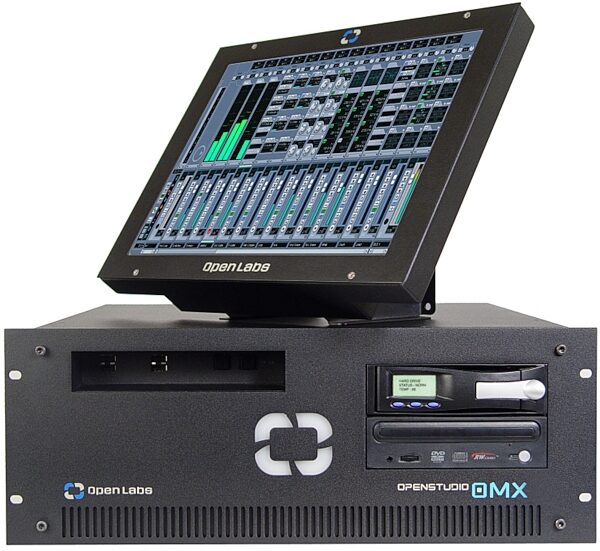

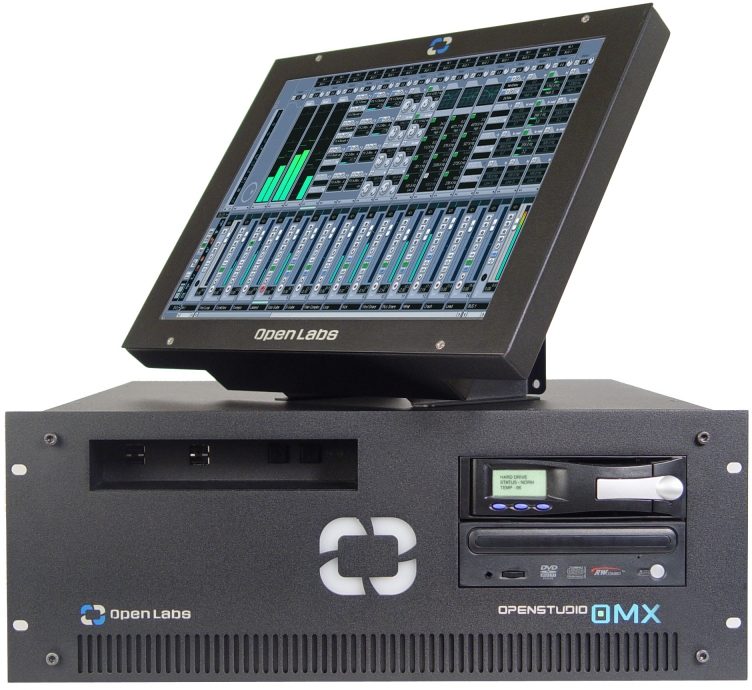

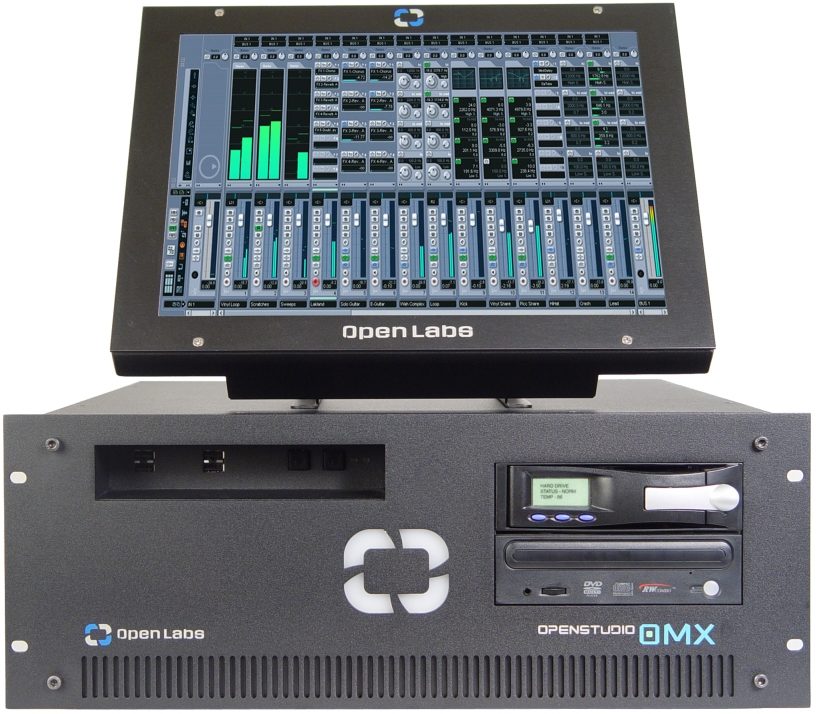

Open Labs OMX64 Dual 1.4 Opteron Desktop Computer with Integrated I/O
No longer available at zZounds
zZounds Gear Experts Say...
Monitor and software not included.
Overview
An Entirely New Species: The OpenStudio OMX64 is not a computer trying to be a musical instrument. The OMX64 is a musical instrument that utilizes server-class computer hardware for increased processing power and to allow you the freedom to use what ever software or plug-ins you like, something you probably have wished many times already while using your current dedicated musical hardware products.
Features:
Loaded with 512MB RAM, expandable to 8 GB.
7200 RPM fast-seeking hard drive.
Auto-switching power.
36-bit embedded DSP.
Enterprise-Class main board.
8 XLR Microphone inputs with preamps or line inputs.
2 XLR balanced outputs.
S/PDIF digital I/O (coaxial) with (2) channel PCM, SCMS copy protection control, digital I/O supports surround-encoded AC-3 and DTS pass-through
Onboard 4-port USB hub.
MIDI in/thru/out/out.
Ability to directly drive up to 7.1 surround (bass management software included).
Software controlled 36-bit internal DSP digital mixing/routing, +4dbu/-10dBV operation individually switched in software.
Word clock I/O for sample accurate device synchronization.

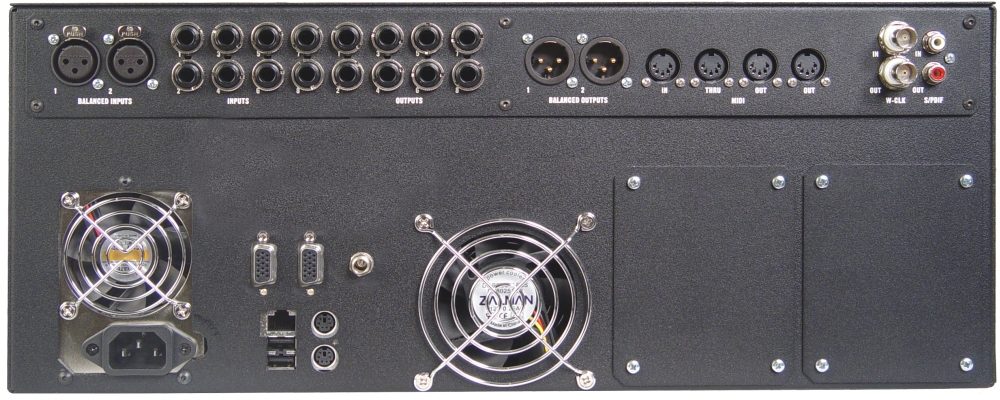

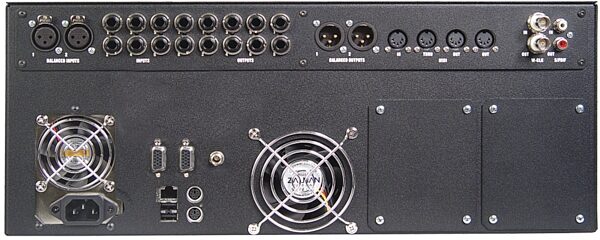

Integrated I/O back panel.
The OpenStudio GUI (Graphical User Interface).
A second 3.5 in. internal hard drive bay as well as third removable 3.5 in. hard drive bay with LCD display.
Recessed Power and Reset button.
Recessed USB ports (safer for dongles)
Four (4) available PCI slots.
Wireless keyboard, mouse and presentation remote are included!
Features:
Loaded with 512MB RAM, expandable to 8 GB.
7200 RPM fast-seeking hard drive.
Auto-switching power.
36-bit embedded DSP.
Enterprise-Class main board.
8 XLR Microphone inputs with preamps or line inputs.
2 XLR balanced outputs.
S/PDIF digital I/O (coaxial) with (2) channel PCM, SCMS copy protection control, digital I/O supports surround-encoded AC-3 and DTS pass-through
Onboard 4-port USB hub.
MIDI in/thru/out/out.
Ability to directly drive up to 7.1 surround (bass management software included).
Software controlled 36-bit internal DSP digital mixing/routing, +4dbu/-10dBV operation individually switched in software.
Word clock I/O for sample accurate device synchronization.
Integrated I/O back panel.
The OpenStudio GUI (Graphical User Interface).
A second 3.5 in. internal hard drive bay as well as third removable 3.5 in. hard drive bay with LCD display.
Recessed Power and Reset button.
Recessed USB ports (safer for dongles)
Four (4) available PCI slots.
Wireless keyboard, mouse and presentation remote are included!
Specs
Specifications
AMD® Opteron® dual 64-bit processor(s)
(4) DDR RAM Slots Upgradeable to 8GB (512MB included)
(1) 80GB 7200RPM HD, (1) Removable, Hotswapable HD Bay
(1) High Speed CDRW Drive (CD-Burner)
4U Road-Ready Rack Chassis
(Dual Processor Version) - (5) Full Length PCI Slots 4 Available and (1) AGP Slot (Used for Video
Card) / (Single Processor Version) - (6) Full Length Slots (5) Available
(4) Drive Bays: (2) 3.5 in. (available), (1) 5.25 in. CDRW, (1) 5.25 in. Removable 3.5 in. HD
(1) High Performance Audio I/O Card with Low Latency: 24 Bit 96 kHz 10 in/ 10 out PCI Digital
Recording Interface with MIDI, S/PDIF i/o,MIDI i/o,wordclock i/o, XLR Microphone inputs with pre
amps. MIDI In/Through/Out/Out
350 Watt Power Supply
Whisper Quiet Cooling Fans (Internal Chassis, Processor & Power Supply)
External Monitor Support (1024 X 768 and higher Resolution), Dual Monitor Support Option
(6) USB Ports
(1) Optional Firewire Kit
Onboard 10/1000T (Gigabit) Ethernet
Microsoft® Windows® XP Professional
OpenStudio Custom GUI (Graphic User Interface)
AMD® Opteron® dual 64-bit processor(s)
(4) DDR RAM Slots Upgradeable to 8GB (512MB included)
(1) 80GB 7200RPM HD, (1) Removable, Hotswapable HD Bay
(1) High Speed CDRW Drive (CD-Burner)
4U Road-Ready Rack Chassis
(Dual Processor Version) - (5) Full Length PCI Slots 4 Available and (1) AGP Slot (Used for Video
Card) / (Single Processor Version) - (6) Full Length Slots (5) Available
(4) Drive Bays: (2) 3.5 in. (available), (1) 5.25 in. CDRW, (1) 5.25 in. Removable 3.5 in. HD
(1) High Performance Audio I/O Card with Low Latency: 24 Bit 96 kHz 10 in/ 10 out PCI Digital
Recording Interface with MIDI, S/PDIF i/o,MIDI i/o,wordclock i/o, XLR Microphone inputs with pre
amps. MIDI In/Through/Out/Out
350 Watt Power Supply
Whisper Quiet Cooling Fans (Internal Chassis, Processor & Power Supply)
External Monitor Support (1024 X 768 and higher Resolution), Dual Monitor Support Option
(6) USB Ports
(1) Optional Firewire Kit
Onboard 10/1000T (Gigabit) Ethernet
Microsoft® Windows® XP Professional
OpenStudio Custom GUI (Graphic User Interface)
