NUX Tape Echo Pedal

Want a modern take on classic '70s-style tape echo? The NUX Tape Echo pedal delivers classic tape echo nuance, with modern updates ideal for your workflow.

The Nux tape echo is a tribute to the classic '70s space echo with several innovations. Every nuance of the original space echo has been reproduced!
Nux Tape Echo offers all the essential knobs like BASS, TREBLE, TIME, REPEAT, LEVEL, REVERB and SELECT (repeat pattern) for quick tweaking. SHORT PRESS and hold the SELECT knob to enter ALT TWEAKING for SATURATION, WOW, FLUT, KILL DRY, EXP. (Use Foot Switch for self-FEEDBACK.)

Using Tap Tempo, the longest delay time can reach 1600ms
NUX Tape Echo keeps the controls of the original hardware, with extra features for modern workflows. Use the SELECT knob for various head combinations, TIME for timing control, and REPEAT for repeats and self-oscillation. Added features include BPM(Sub-division)/MS switching, and TAP TEMPO.

Spring Reverb brings psychedelic Slapback & Ambience
The important characteristic of Space Echo is the spring reverb. Core-Image technology captured the natural spring reverb sound, combined the warm and organic delay, TAPE ECHO gives you lush echoes.

Hold the ON foot switch, you can engage self-oscillation to get the infinite feedback.

SOS mode
Press ON and TAP footswitches simultaneously to enter SOS mode(looper). In the meantime, ON footswitch can do REC/PLAY/DUB as phrase looper function. The display will show you current status. During loop playing, you can press ON and TAP footswitch to quit SOS mode, the loop will keep playing. You can change the parameters and re-enter to SOS mode.

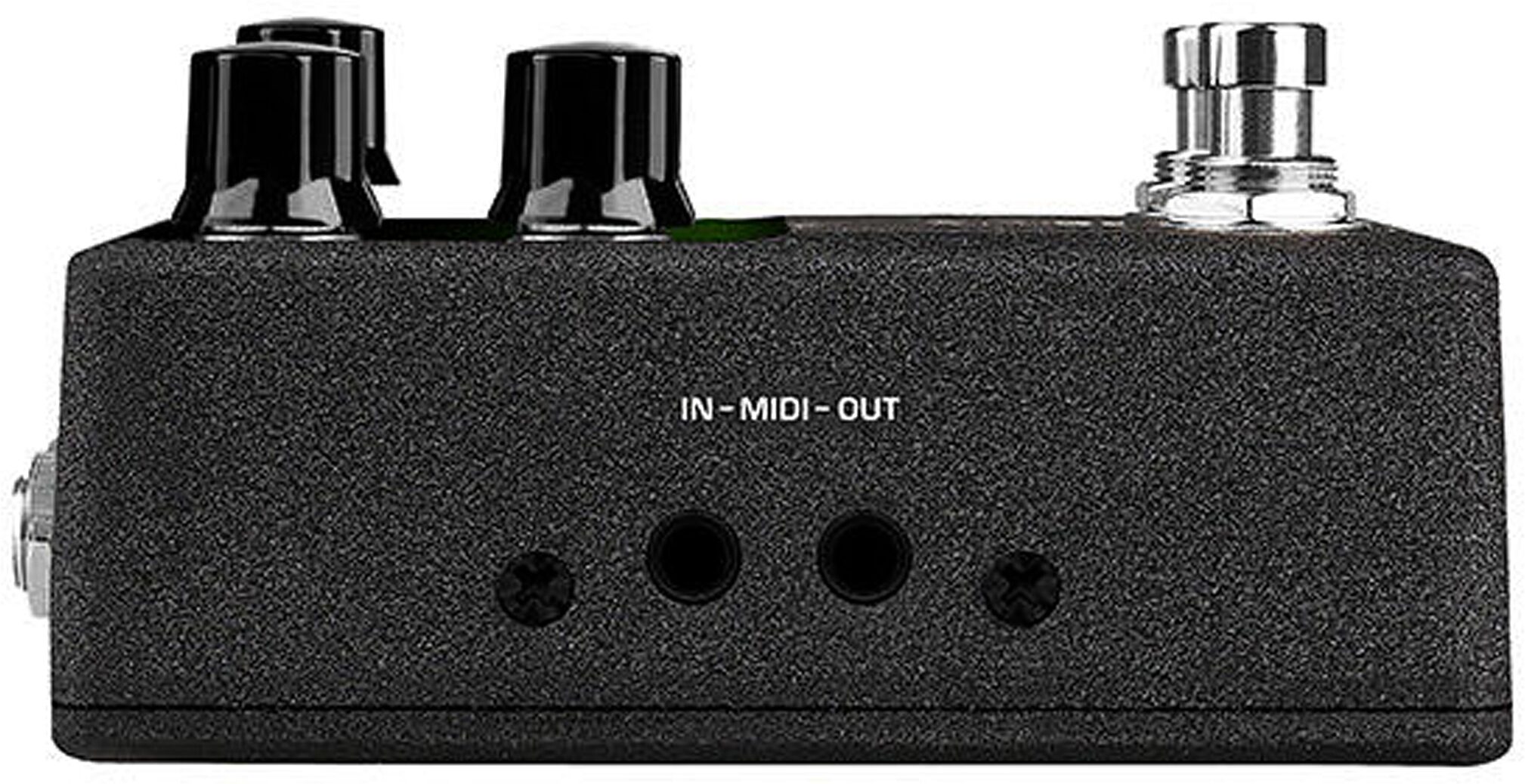

You can assign read more the MIDI settings through editor. TAPE ECHO includes 3.5mm TRS/MIDI adaptors for MIDI IN / OUT functionality. It's a versatile and compact tool for modern guitarists looking for retro echo sound.


- Up to 1600ms stereo delay time by Tap Tempo
- 7 Repro-Tape Heads combinations and Reverb only
- Core-Image technology brings natural Tape Echo with
- parallel spring reverb sound back
- Realistic infinite pitch-shift feedback with TIME & REPEAT
- Knobs tweaking
- Sub-division time signature with Tap Tempo footswitch
- 40 seconds stereo phrase loop with OLED status display
- Optional delay time display (MS / BPM)
- MIDI In/Out
- Holding ON footswitch for self-feedback
WARNING: Cancer and Reproductive Harm -
read less

- Sampling Rate: 48kHz
- A/D Converter: 32Bit
- Signal Processing: 32Bit
- Frequency Response: 20Hz~20kHz - +/-1dB
- Input Impedance: 5MO
- Maximum Input Level: 1.5Vrms
- Output Impedance: 100O
- Maximum Output Level: 1.5Vrms
- System Latency: 1ms
- Dynamic Range: 103dBu/105dBu(A-Weighting)
- THD+N Ratio: 0.0038% @ input 1Vrms_1kHz ;0.01% @ input 1.5Vrms_1kHz
- Power: 9V DC (Negative tip, Optional ACD-006A adapter)
- Current Draw: approximately 100mA, <150mA
- Dimensions: 105mm(L)x115mm(W)x58(H)mm
- Weight: 440g
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 1.5 lbs
Shipping Dimensions: 6 x 6 x 4 in
Manufacturer Part Number (MPN): NDD-7 Tape Echo
