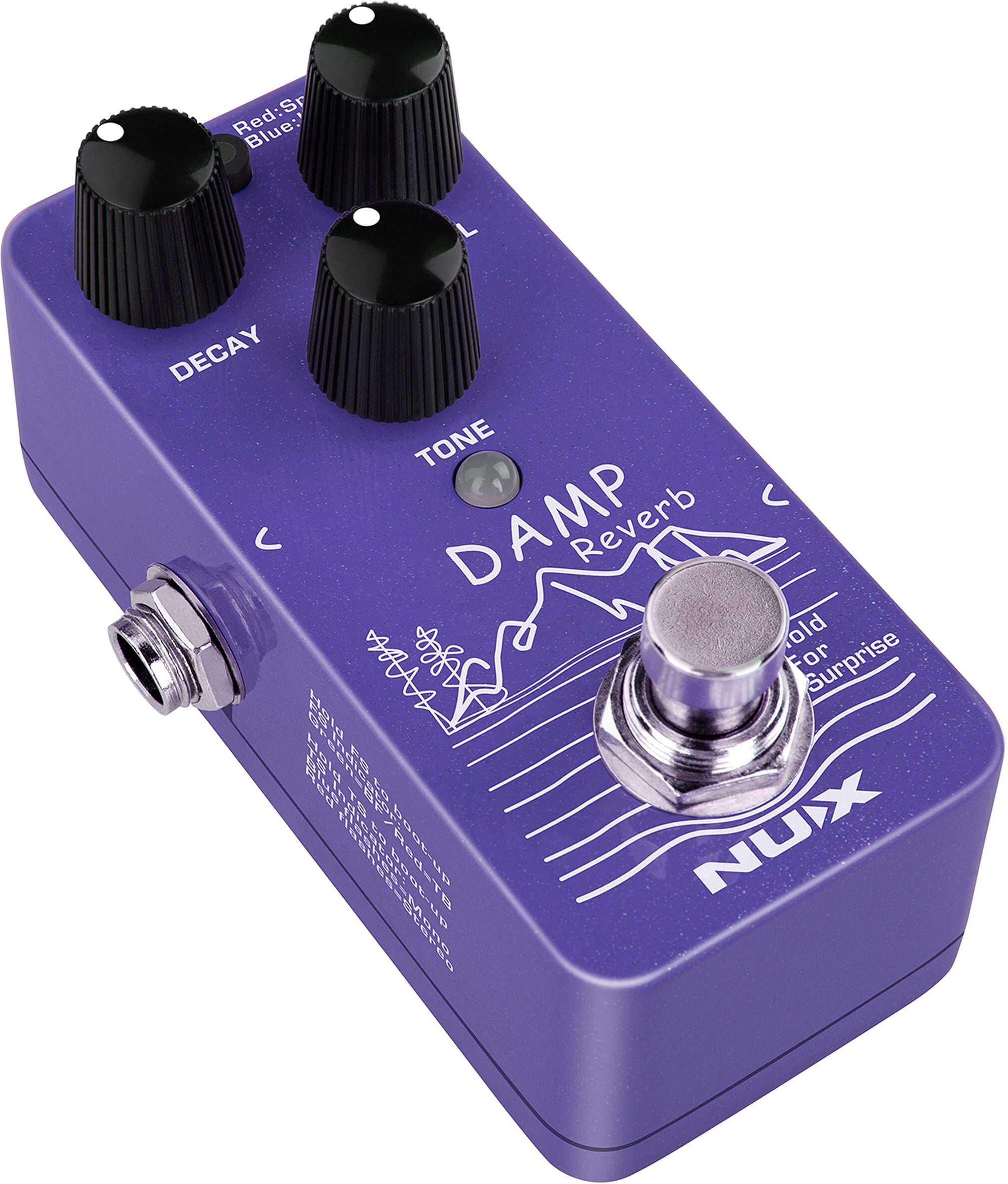

NUX NRV-3 Damp Reverb Pedal

Dial in classic spring or ambient soundscapes with ease! NUX's NRV-3 Damp reverb pedal boasts three different reverb types all with true-bypass and trails.

Whether you're a classic spring reverb fan, a studio rack aficionado, or an ambient soundscape creator searching for new sonic textures, DAMP reverb provides three different reverb types that makes everything musical and beautiful.

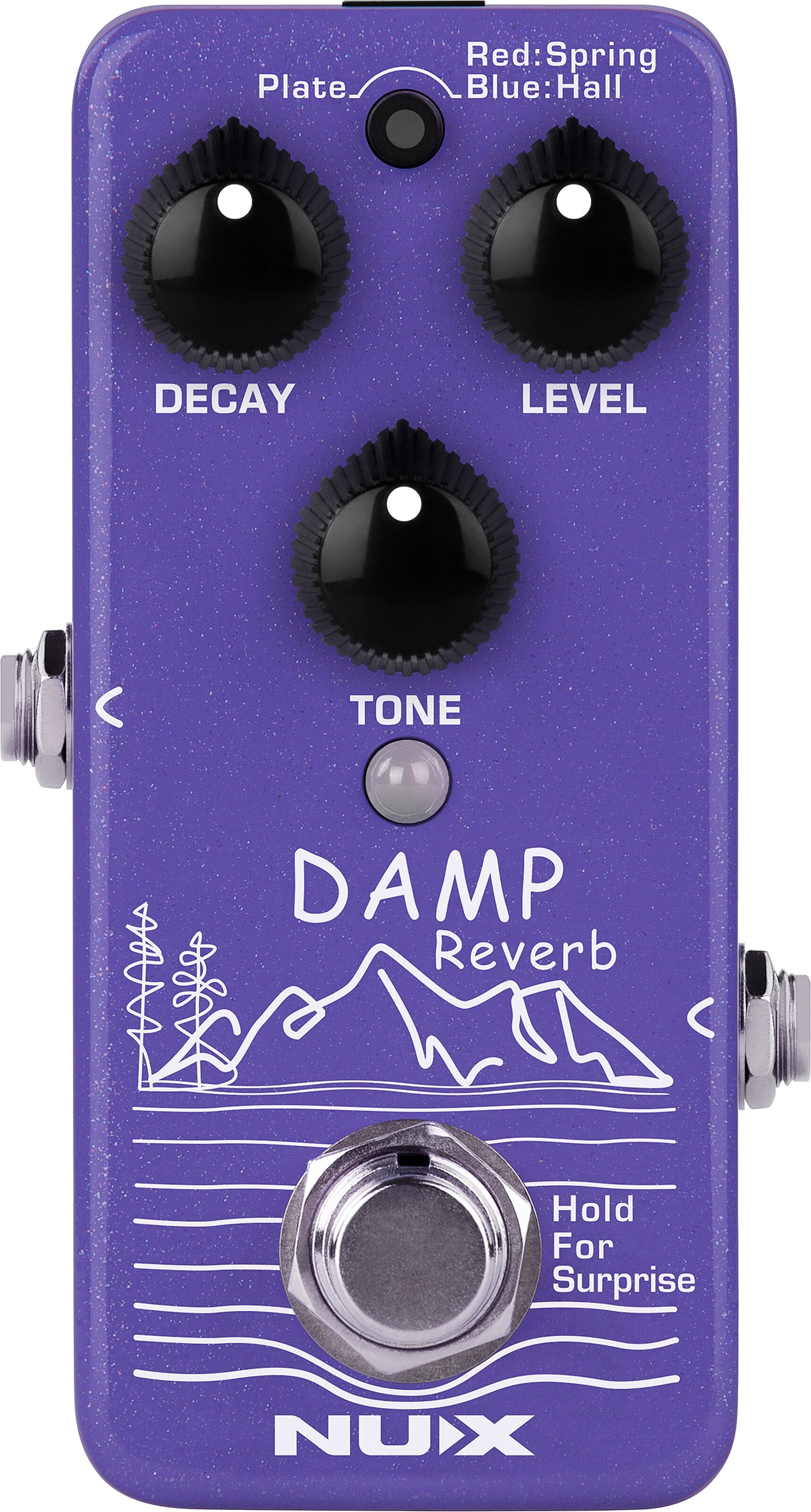

DAMP Reverb (NRV-3) is a mini reverb pedal with three different reverb types including Plate, Spring, and Hall. You can switch the types by tapping the tap switch.

Plate reverb was inspired by EMT 140, which made use of a metal plate suspended in a steel frame, that was able to recreate reverberations similar to those heard in an acoustic space; renowned studio reverb found on classic recordings.
Spring reverb simulates the spring tank that a mechanical disturbance propagated in a spring by creating a mechanical oscillation. To achieve a "bouncy" tone, Spring reverb is a solid choice for adding a bottom-heavy dimension. Classic "surf" reverb; great for Rockabilly too!

Hall reverb is based on the legendary Lexicon 224 which was unleashed in 1978. NUX simplified the Decay, Level, and Tone controls. It has a famously lush reverb tail which single-handedly defined the sound of an entire era. Large encompassing reverb with warm decay.

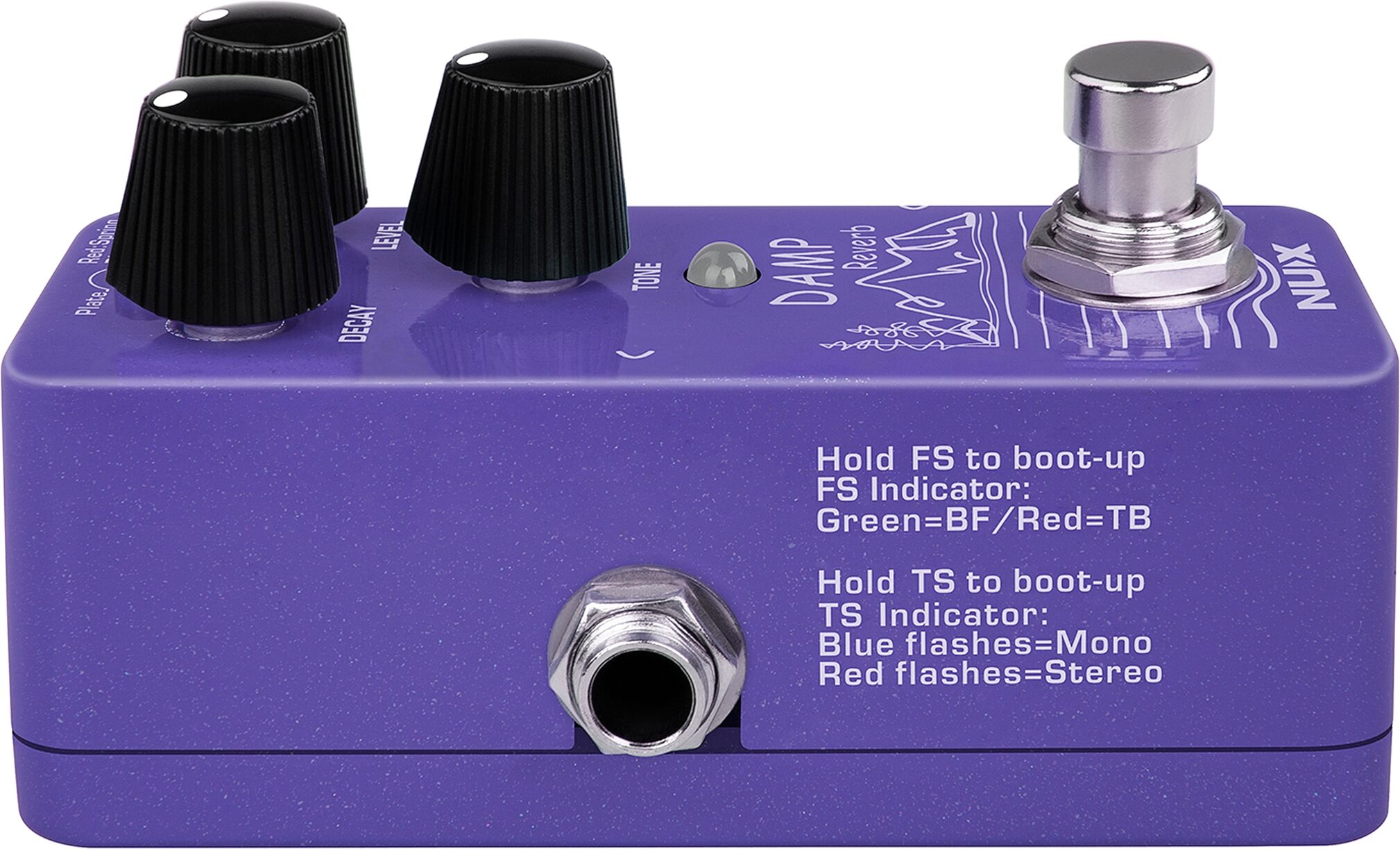

DAMP reverb offers True-bypass and Buffer-bypass (Trails), just hold the footswitch to boot-up the pedal (do not connect USB). The footswitch indicator will show you the bypass status. (While you boot-up the pedal, if the FS indicator flashes "Green"=BF, "Red"=TB.)

Mini but mighty! It also supports stereo input & output. read more (Use 1/4" TRS plug, and choose Stereo mode.)

*All of the brand and model names mentioned on this page are Trademarks of their respective owners, which are in no way associated or affiliated with NUX Effects and Cherub Technology CO. LTD.


- Three reverb types in the mini enclosure.
- Plate: Clear ambience. Renowned studio reverb found on classic recordings.
- Spring: Bottom-heavy dimension flashback. Classic "surf" reverb; great for Rockabilly!
- Hall: Lush & large encompassing reverb with warm decay.
- Holding footswitch for secondary function. (Shimmer, Freeze)
- True-bypass or Buffer-bypass (Trails).
- Supports Stereo.
- Low power consumption. (less than 100mA)
- Analog dry signal for low noise and zero latency.
WARNING: Cancer and Reproductive Harm -
read less

- Input Impedance: 1MO
- Output Impedance: 10kO
- Dynamic Range: 103 dB
- DSP Processing: 48KHz / 32-bit
- A/D D/A Sampling Rate: 48KHz / 24-bit
- Power:9V DC (Negative tip, Optional ACD-006A adapter)
- Current Draw: Less than 100mA
- Dimensions: 94(L)X51(W)X53(H)mm
- Weight: 175g
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 0.5 lbs
Shipping Dimensions: 5 x 3 x 2 in
Manufacturer Part Number (MPN): NRV-3
