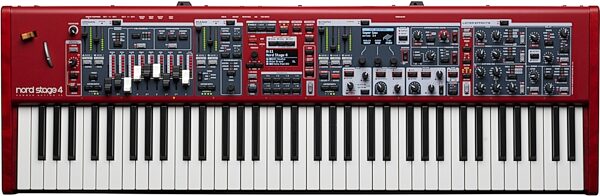

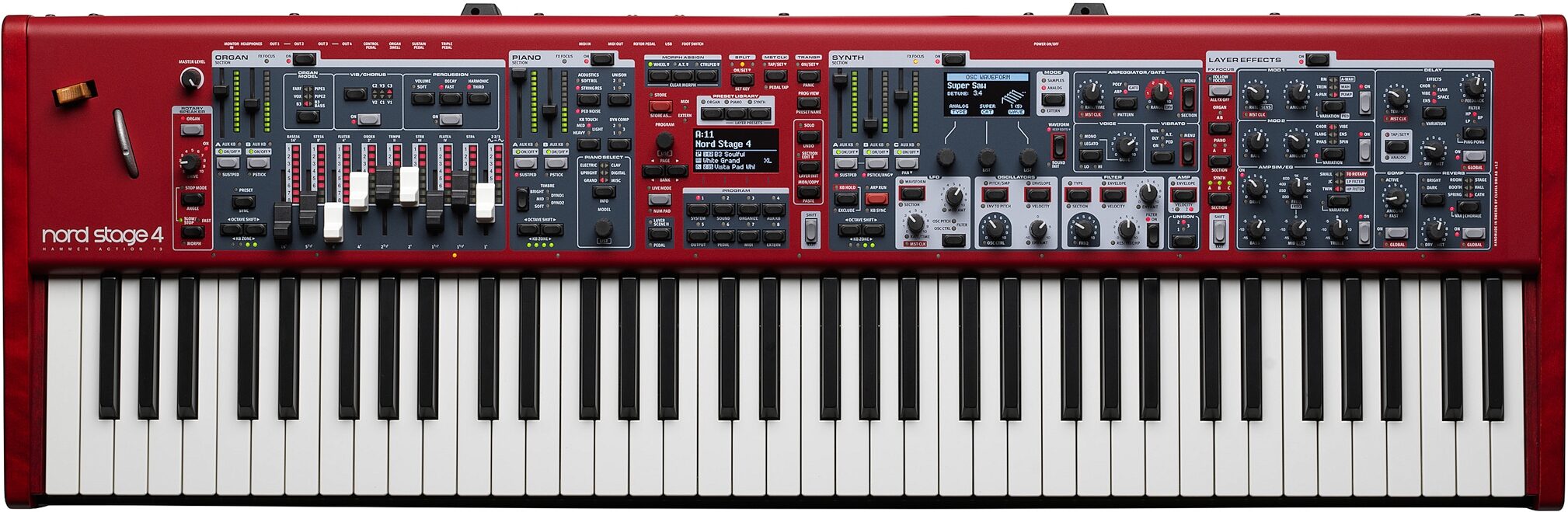

Nord Stage 4 73 Performance Keyboard, 73-Key
Express yourself onstage with the Nord Stage 4-HA73, a fully featured performance keyboard with Layer Scene switching and a Triple Sensor keybed.
Overview
With an intuitive panel design, a premium triple sensor keybed, complete effect sections for each layer, and massive enhancements to Nord's award-winning technologies, the Nord Stage 4 sets a high standard.
The Nord Stage 4 features a panel design with dedicated LED faders for each Layer, providing exceptional overview and flexibility when creating sounds and performing live. The Preset Library is packed with inspiring ready-to-use Piano, Synth, and Organ sounds for quick and smooth patch creation.
The Layer Scene lets you seamlessly switch between two different sound setups at the touch of a button. Adding a powerful Effect section coupled with versatile pedal options and a premium Triple Sensor keybed, the Nord Stage 4 offers a high level of musical expression.
- Dynamic Compression
- Unison feature
- Creative Timbre presets
- The Nord Stage 4 comes with an enhanced collection of Grands, Uprights and Electric Pianos from Nord's exclusive Nord Piano Library combined with features such as Dynamic compression and Unison.
- Three independent Synth Layers
- Doubled sample memory
- Enhanced samples with Tru-Vibrato, Unison and Round Robin
- Extensive real time controls
- Advanced Arpeggiator with Polyphonic, Gate and Pattern modes
- Extern mode for advanced MIDI control
- The Synth section with its three independent Layers is based on the powerful Nord Wave… read more 2 Synth Engine, including Virtual Analog synthesis, Samples, FM and Digital Waves. An extensive collection of samples from the Nord Sample Library offers a broad sonic palette of Strings, Bass, Choirs, Guitars and much more. The advanced Arpeggiator features Polyphonic, Gate, and Pattern modes and can be used for a huge variety of rhythmic applications with customizable patterns.
- Physical drawbars with LED indicators
- B3 Bass mode
- Drawbar Live mode
- Model 122 Vintage Rotary Speaker with normal or close mic positions
- The Organ section features Nord's award-winning simulations of B3 Tonewheel, B3 Bass, classic Vox and Farfisa as well as two Pipe Organ models. All Stage 4 models are equipped with Physical drawbars with LED indicators for optimal hands-on experience and overview.
- Variations for Modulation, Amp, Delay and Reverb Effects
- Spring, Booth and Cathedral Reverb
- Pump effect
- Spin effect
- Flam and Space Delay
- The Nord Stage 4 has a powerful Effect section offering a complete setup of Effects for each Layer. The extensive range of Effects includes a Pump effect for tempo synced or pedal controlled side chain modulation, a Spin effect, and variations of Reverb, Delay, Amps, and Modulation effects.
read less
The Nord Stage 4 features a panel design with dedicated LED faders for each Layer, providing exceptional overview and flexibility when creating sounds and performing live. The Preset Library is packed with inspiring ready-to-use Piano, Synth, and Organ sounds for quick and smooth patch creation.
The Layer Scene lets you seamlessly switch between two different sound setups at the touch of a button. Adding a powerful Effect section coupled with versatile pedal options and a premium Triple Sensor keybed, the Nord Stage 4 offers a high level of musical expression.
Piano Features
- Enhanced collection of Uprights, Grands, EPs and more- Dynamic Compression
- Unison feature
- Creative Timbre presets
- The Nord Stage 4 comes with an enhanced collection of Grands, Uprights and Electric Pianos from Nord's exclusive Nord Piano Library combined with features such as Dynamic compression and Unison.
Synth Features
- Nord Wave 2 Synth Engine- Three independent Synth Layers
- Doubled sample memory
- Enhanced samples with Tru-Vibrato, Unison and Round Robin
- Extensive real time controls
- Advanced Arpeggiator with Polyphonic, Gate and Pattern modes
- Extern mode for advanced MIDI control
- The Synth section with its three independent Layers is based on the powerful Nord Wave… read more 2 Synth Engine, including Virtual Analog synthesis, Samples, FM and Digital Waves. An extensive collection of samples from the Nord Sample Library offers a broad sonic palette of Strings, Bass, Choirs, Guitars and much more. The advanced Arpeggiator features Polyphonic, Gate, and Pattern modes and can be used for a huge variety of rhythmic applications with customizable patterns.
Organ Features
- Award-winning organ simulations of B3, Vox/Farfisa and Pipe Organ models- Physical drawbars with LED indicators
- B3 Bass mode
- Drawbar Live mode
- Model 122 Vintage Rotary Speaker with normal or close mic positions
- The Organ section features Nord's award-winning simulations of B3 Tonewheel, B3 Bass, classic Vox and Farfisa as well as two Pipe Organ models. All Stage 4 models are equipped with Physical drawbars with LED indicators for optimal hands-on experience and overview.
Effects Features
- Dedicated Effect section per Layer- Variations for Modulation, Amp, Delay and Reverb Effects
- Spring, Booth and Cathedral Reverb
- Pump effect
- Spin effect
- Flam and Space Delay
- The Nord Stage 4 has a powerful Effect section offering a complete setup of Effects for each Layer. The extensive range of Effects includes a Pump effect for tempo synced or pedal controlled side chain modulation, a Spin effect, and variations of Reverb, Delay, Amps, and Modulation effects.
Specs
- Master Level Control
- Wooden Pitch Stick
- Modulation Wheel
- 512 Programs - 8 Banks with 8 Pages each. Each Page has 8 Program locations
- Preset Library with Organ, Piano and Synth Presets including effects. 2x64 Organ Preset locations, 2x64 Piano Preset locations, 8x64 Synth Preset locations.
- 8 Live Programs
- 2 Individual Layer Scene Setups
- 3 Morph sources: Modulation Wheel (also controllable by Swell pedal), Control Pedal, Aftertouch
- Stereo and Mono output routing options
- Programmable Transpose +/- 6 semitones
- Master Clock functionality with manual, external and tap-tempo rate control
- Internal and MIDI clock source
- MIDI over USB functionality
- Level control
- Aftertouch
- Up to 3 Split Points (4 Keyboard Zones) with visual LED indication between zones
- 3 Split Point width (crossfade) options: Lrg, Sml or Off
- Nord C2D B3 Tone wheel Organ simulation
- Vox Continental and Farfisa models
- 2 Digital Pipe Organ models
- B3 Bass mode
- Physical Drawbars with LED graphs
- Preset or Drawbar Live mode
- Percussion controls
- Vibrato / Chorus control
- 2 Layers (2-Part Multitimbral)
- 2 GB memory for Piano sounds
- All sounds can be replaced using Nord Sound Manager (Mac/Win)
- 120 Voice Polyphony
- Categories: Grand, Upright, Electric, Digital, Layer and Clav/Harpsichord
- 3 Selectable Keyboard Touch Curves (Heavy, Medium, Light)
- Piano Timbre controls with custom settings for Electric Pianos and Clavinet
- String Resonance for acoustic Grand Pianos and Uprights
- Selectable Soft Piano Release
- Pedal Noise when used with Nord Triple Pedal 1, Nord Triple Pedal 2 or Nord Sustain Pedal 2 on selected acoustic and electric pianos
- Dynamic Compression
- Unison functionality
- 2 Layers (2-Part Multitimbral)
- Nord Wave 2 Synth Engine with Sample Playback
- Dedicated OLED Display for Waveform/Sample selection and parameter editing
- 1 GB Memory for Nord Sample Library
- All samples can be replaced using Nord Sound Manager (Mac/Win)
- 46 Voice polyphony
- Oscillator Types: Analog (incl. Super, Noise and Misc waveforms), Digital Waves, FM and Sample
- Analog Waveform options: Pure, Shape, Shape Sine, Multi, Super, Sync, Bell, Misc (Noise)
- Classic Transistor Ladder Filter (LP M), 12 & 24 dB Low Pass, High Pass, Band Pass and combined Low Pass/Band Pass (LP+BP) filter
- Filter Drive: Off, 1, 2 and 3
- Filter Tracking: Off, 1/3, 2/3 and Full
- 3 Unison modes
- Vibrato modes controllable from Mod Wheel, Aftertouch and pedal.
- Filter envelope (Attack, Decay, Sustain) with Velocity control
- Amplitude envelope (Attack, Decay, Sustain) with Velocity control
- Oscillator envelope (Attack, Decay, Sustain) with Velocity control
- LFO with 5 waveforms/modes: Square, Triangle, Ramp Dn, Ramp Up and Sample & Hold
- Advanced Arpeggiator with Arp, Polyphonic and Gate modes
- Arpeggiator Patterns for all modes, with Accent and Pan options
- LFO and Arpeggiator synchronizable to Master Clock
- 3 Layers (3-Part Multitimbral)
EFFECTS
Mod 1: Tremolo, Auto Pan, Ring Modulator, Wah-Wah, Auto-Wah, Pump (Sidechain modulation). Variation for each effect
Mod 2: Phaser, Flanger, Vibe, Chorus, Ensemble, Spin. Variation for each effect
Delay with Tempo, Feedback and Mix (Dry/Wet) controls, Ping Pong (stereo taps), Tap-Tempo, Feedback Filter (HP/LP/BP), Feedback Effects with Variations and panel selectable Analog mode.
3 types of Amp/Speaker simulations, Twin, JC and Small. Variation for each model
Filter Mode (HP24/LP24) with Cut-off, Resonance and Mix controls
Tube amp simulation with adjustable overdrive
3-band Equalizer with sweepable mid. EQ ranges: 100 Hz, 200 Hz - 8 kHz and 4 kHz
Rotary Speaker: selectable speed (Stop, Slow and Fast) and separate overdrive
Effect rates/tempo can be synchronized to the Master Clock
Compressor with Fast Mode
Reverb: 6 algorithms (Spring, Booth, Room, Stage, Hall and Cathedral) with Dark/Bright modes and Variation/Chorale options
- Wooden Pitch Stick
- Modulation Wheel
- 512 Programs - 8 Banks with 8 Pages each. Each Page has 8 Program locations
- Preset Library with Organ, Piano and Synth Presets including effects. 2x64 Organ Preset locations, 2x64 Piano Preset locations, 8x64 Synth Preset locations.
- 8 Live Programs
- 2 Individual Layer Scene Setups
- 3 Morph sources: Modulation Wheel (also controllable by Swell pedal), Control Pedal, Aftertouch
- Stereo and Mono output routing options
- Programmable Transpose +/- 6 semitones
- Master Clock functionality with manual, external and tap-tempo rate control
- Internal and MIDI clock source
- MIDI over USB functionality
- Level control
- Aftertouch
- Up to 3 Split Points (4 Keyboard Zones) with visual LED indication between zones
- 3 Split Point width (crossfade) options: Lrg, Sml or Off
Organ Specifications
- Nord C2D B3 Tone wheel Organ simulation
- Vox Continental and Farfisa models
- 2 Digital Pipe Organ models
- B3 Bass mode
- Physical Drawbars with LED graphs
- Preset or Drawbar Live mode
- Percussion controls
- Vibrato / Chorus control
- 2 Layers (2-Part Multitimbral)
Piano Specifications
- 2 GB memory for Piano sounds
- All sounds can be replaced using Nord Sound Manager (Mac/Win)
- 120 Voice Polyphony
- Categories: Grand, Upright, Electric, Digital, Layer and Clav/Harpsichord
- 3 Selectable Keyboard Touch Curves (Heavy, Medium, Light)
- Piano Timbre controls with custom settings for Electric Pianos and Clavinet
- String Resonance for acoustic Grand Pianos and Uprights
- Selectable Soft Piano Release
- Pedal Noise when used with Nord Triple Pedal 1, Nord Triple Pedal 2 or Nord Sustain Pedal 2 on selected acoustic and electric pianos
- Dynamic Compression
- Unison functionality
- 2 Layers (2-Part Multitimbral)
Synth Specifications
- Nord Wave 2 Synth Engine with Sample Playback
- Dedicated OLED Display for Waveform/Sample selection and parameter editing
- 1 GB Memory for Nord Sample Library
- All samples can be replaced using Nord Sound Manager (Mac/Win)
- 46 Voice polyphony
- Oscillator Types: Analog (incl. Super, Noise and Misc waveforms), Digital Waves, FM and Sample
- Analog Waveform options: Pure, Shape, Shape Sine, Multi, Super, Sync, Bell, Misc (Noise)
- Classic Transistor Ladder Filter (LP M), 12 & 24 dB Low Pass, High Pass, Band Pass and combined Low Pass/Band Pass (LP+BP) filter
- Filter Drive: Off, 1, 2 and 3
- Filter Tracking: Off, 1/3, 2/3 and Full
- 3 Unison modes
- Vibrato modes controllable from Mod Wheel, Aftertouch and pedal.
- Filter envelope (Attack, Decay, Sustain) with Velocity control
- Amplitude envelope (Attack, Decay, Sustain) with Velocity control
- Oscillator envelope (Attack, Decay, Sustain) with Velocity control
- LFO with 5 waveforms/modes: Square, Triangle, Ramp Dn, Ramp Up and Sample & Hold
- Advanced Arpeggiator with Arp, Polyphonic and Gate modes
- Arpeggiator Patterns for all modes, with Accent and Pan options
- LFO and Arpeggiator synchronizable to Master Clock
- 3 Layers (3-Part Multitimbral)
EFFECTS
Mod 1: Tremolo, Auto Pan, Ring Modulator, Wah-Wah, Auto-Wah, Pump (Sidechain modulation). Variation for each effect
Mod 2: Phaser, Flanger, Vibe, Chorus, Ensemble, Spin. Variation for each effect
Delay with Tempo, Feedback and Mix (Dry/Wet) controls, Ping Pong (stereo taps), Tap-Tempo, Feedback Filter (HP/LP/BP), Feedback Effects with Variations and panel selectable Analog mode.
3 types of Amp/Speaker simulations, Twin, JC and Small. Variation for each model
Filter Mode (HP24/LP24) with Cut-off, Resonance and Mix controls
Tube amp simulation with adjustable overdrive
3-band Equalizer with sweepable mid. EQ ranges: 100 Hz, 200 Hz - 8 kHz and 4 kHz
Rotary Speaker: selectable speed (Stop, Slow and Fast) and separate overdrive
Effect rates/tempo can be synchronized to the Master Clock
Compressor with Fast Mode
Reverb: 6 algorithms (Spring, Booth, Room, Stage, Hall and Cathedral) with Dark/Bright modes and Variation/Chorale options
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 46.25 lbs
- Shipping Dimensions: 50 x 20 x 11 in
- Manufacturer Part Number (MPN): AMS-NSTAGE4-HA73
- Blemished
- Shipping Weight: 46.25 lbs
- Shipping Dimensions: 50 x 20 x 11 in
- Manufacturer Part Number (MPN): AMS-NSTAGE4-HA73
- Warehouse Resealed
- Shipping Weight: 46.25 lbs
- Shipping Dimensions: 50 x 20 x 11 in
- Manufacturer Part Number (MPN): AMS-NSTAGE4-HA73
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Web: https://www.nordkeyboards.com/support
Web: https://www.nordkeyboards.com/support
New
$5,399.00
- 12 Interest-Free Payments with zZounds
This is a carousel with product cards. Use the previous and next buttons to navigate.
Related Accessories
K&M Spider Pro Double-Tier Keyboard Stand
$479.99
- 8 x$60.00
- No Credit Check6 x$80.00
- No Credit Check4 x$120.00
Nord NTP2 Triple Pedal for Nord Stage 4 Keyboard
$349.00
- 8 x$43.63
- No Credit Check6 x$58.17
- No Credit Check4 x$87.25
K&M 18820 Omega Pro Keyboard Stand
$319.99
- 8 x$40.00
- No Credit Check6 x$53.33
- No Credit Check4 x$80.00
Nord NSP2 Single Pedal for Nord Stage 4 Keyboard
$149.00
- No Credit Check6 x$24.83
- No Credit Check4 x$37.25
This is a carousel with product cards. Use the previous and next buttons to navigate.
Related Accessories
-
K&M Spider Pro Double-Tier Keyboard Stand
$479.99
- 8 x$60.00
- No Credit Check6 x$80.00
- No Credit Check4 x$120.00
-
-
Nord NTP2 Triple Pedal for Nord Stage 4 Keyboard
$349.00
- 8 x$43.63
- No Credit Check6 x$58.17
- No Credit Check4 x$87.25
-
K&M 18820 Omega Pro Keyboard Stand
$319.99
- 8 x$40.00
- No Credit Check6 x$53.33
- No Credit Check4 x$80.00
-
Nord NSP2 Single Pedal for Nord Stage 4 Keyboard
$149.00
- No Credit Check6 x$24.83
- No Credit Check4 x$37.25
This is a carousel with product cards. Use the previous and next buttons to navigate.
People who bought this item also bought
Nord Soft Case with Wheels for 73-Key Keyboards
$499.00
- 8 x$62.38
- No Credit Check6 x$83.17
- No Credit Check4 x$124.75
Mogami Gold Stereo Keys Cable with Right Angle Ends
$115.95
- No Credit Check6 x$19.32
- No Credit Check4 x$28.99
-
Nord NSP2 Single Pedal for Nord Stage 4 Keyboard
$149.00
- No Credit Check6 x$24.83
- No Credit Check4 x$37.25
Roland KC-600 Keyboard Amplifier
$849.99
- 12 x$70.83
- 8 x$106.25
- No Credit Check6 x$141.66
- No Credit Check4 x$212.50
Gator GTSA-KEY76 TSA ATA Molded 76-Key Keyboard Case with Wheels
$449.99
- 8 x$56.25
- No Credit Check6 x$75.00
- No Credit Check4 x$112.50
This is a carousel with product cards. Use the previous and next buttons to navigate.
