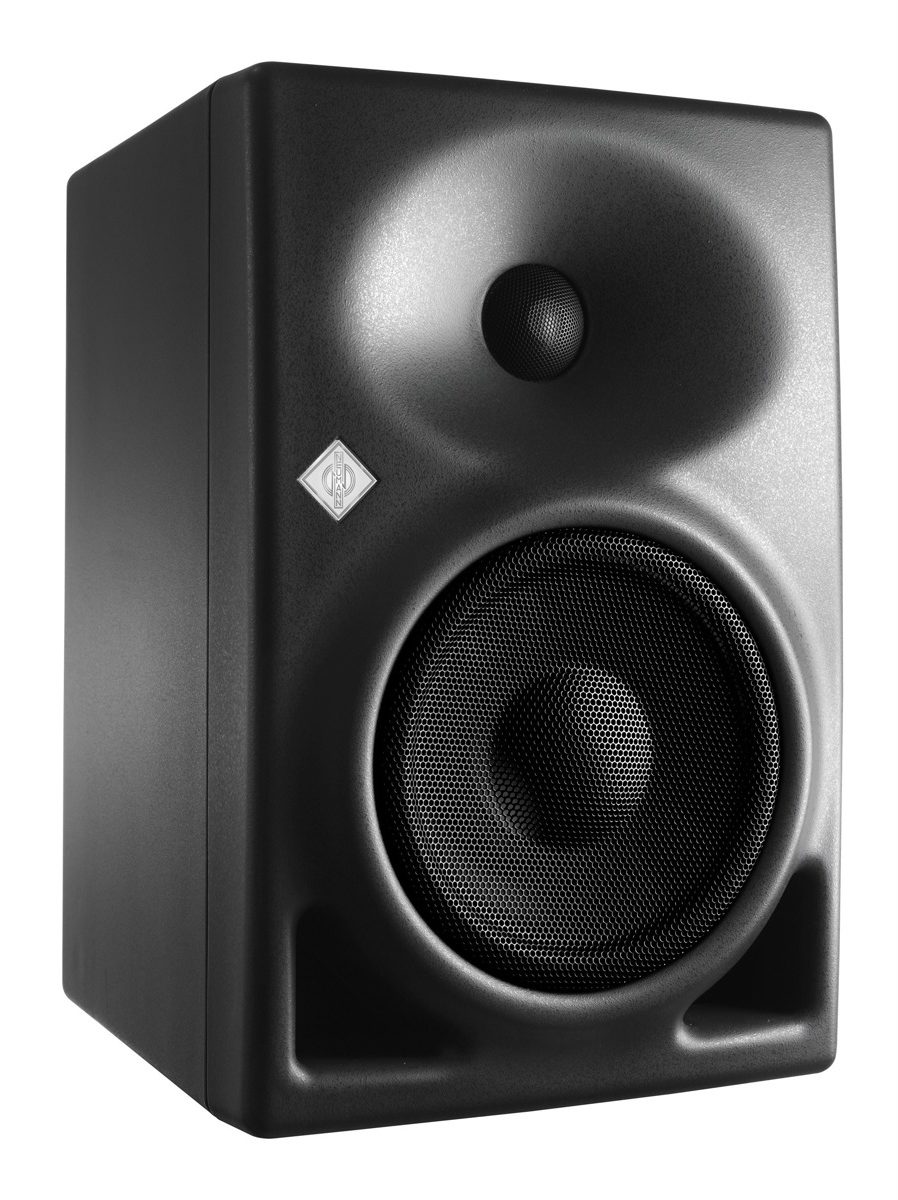

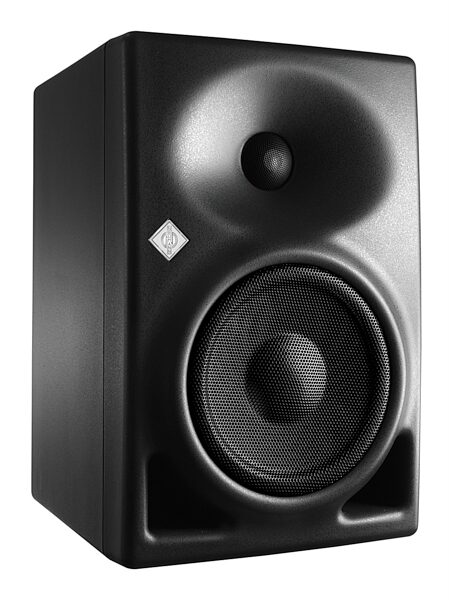

Neumann KH 120 II Powered Full-Range Studio Monitor

Neumann's venerable KH 120 nearfield monitor is back for round II and better than ever -- with deeper bass, more power, and built-in DSP for room alignment.

Neumann KH 120 II Powered Full-Range Studio Monitor

$999.00

18 x
12 x
$83.25
8 x
$124.88
No Credit Check

6 x
$166.50
No Credit Check

4 x
$249.75

FREE delivery Thursday

Neumann KH 120 D Digital Active Studio Monitor

No longer available at zZounds

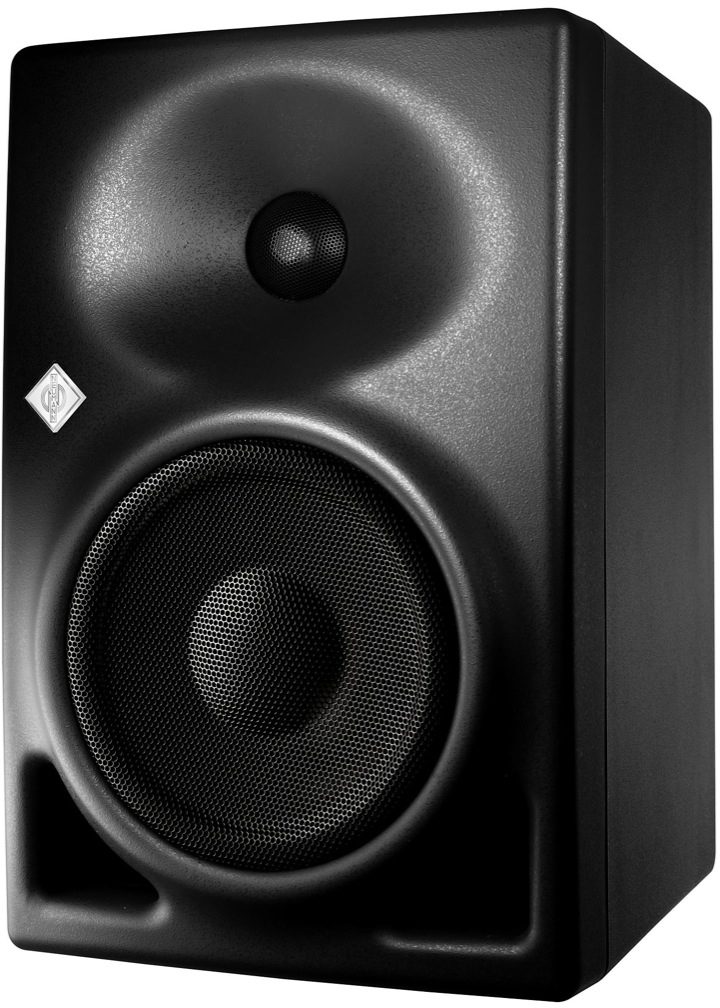

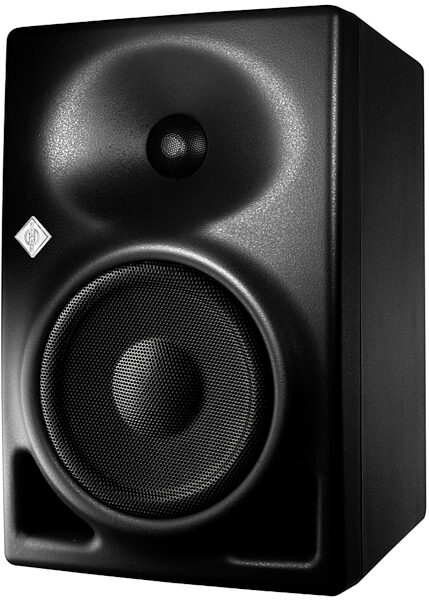

Neumann KH 120 D Digital Active Studio Monitor, Angle

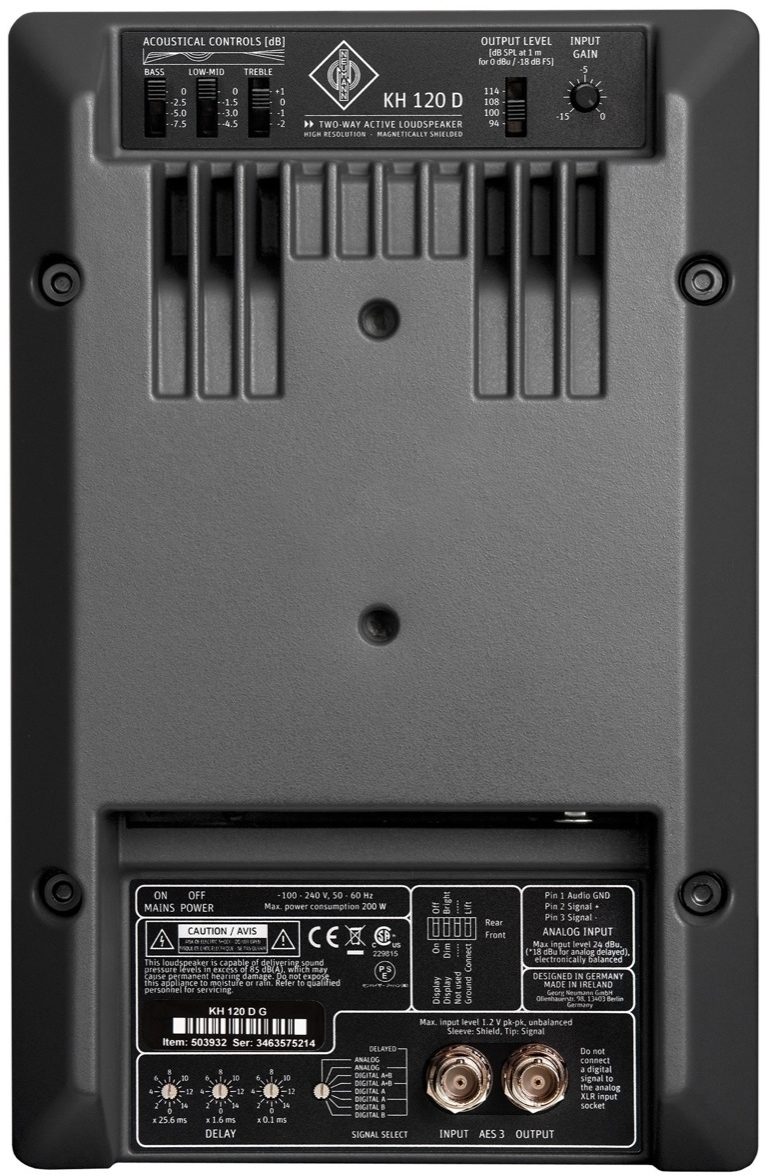

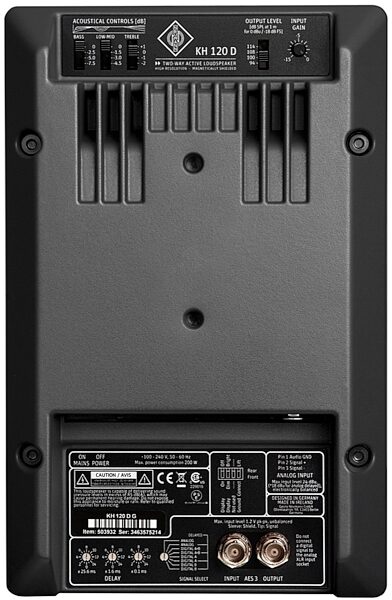

Neumann KH 120 D Digital Active Studio Monitor, Rear

zZounds Gear Experts Say...

Get super-accurate monitoring in a small footprint. This version of Neumann's KH-120 powered monitor gives you digital inputs and pristine D/A conversion.

Overview

The Neumann KH 120 D studio monitor is designed for use as a near-field loudspeaker or as a rear loudspeaker in larger multi-channel systems. The KH 120 D represents the latest in acoustic and electronic simulation and measurement technologies to ensure the most accurate sound reproduction possible. It has a Mathematically Modeled Dispersion waveguide (MMD ), flexible acoustical controls, analog class-AB amplifiers, various input formats (analog and digital) and an extensive mounting hardware range. All of this provides the user with the maximum versatility over a wide variety of acoustic conditions, source equipment, and physical locations.

The KH 120 D is perfect for tracking, mixing and mastering in music, broadcast, project and post-production studios.

Features:

- Powerful titanium fabric dome
- Elliptical Mathematically Modelled Dispersion (MMD) waveguide
- Composite sandwich cone
- Long throw bass driver
- Two-color + dimmable Neumann logo
- Robust metal grille
- Large front panel ports
- Compact aluminum cabinet (magnetically shielded)
- Wide horizontal dispersion
- Narrow vertical dispersion
- One-piece front panel with no discontinuities
- Powerful analog amplifiers with large headroom
- Production consistency
- 4-position bass, low-mid and treble acoustical controls
- Wide range input gain and output level controls
- Mounting hardware options
- Separate woofer and tweeter electronic peak limiters and thermal-protection circuitry
- Analog XLR input
- Digital BNC… read more input and buffered BNC output

Specs

- Free field frequency response: 52 Hz - 21 kHz, +/- 3 dB
- Pass band free field frequency response: 54 Hz - 20 kHz, +/- 2 dB
- Self-generated noise (with input gain set to 100 dB for 0 dBu) : < 20 dB(A) at 10 cm
- Total harmonic distortion < 0.5 % at 95 dB SPL at 1 m >: 100 Hz
- Max. SPL in full space / calc. in half space at 3% THD at 1m: 105.1 / 111.1 dB SPL
- Bass capability: Max. SPL in half space at 3% THD at 1m: 104.8 dB SPL
- Woofer amplifier, cont.(peak) output power: 50 W (80 W)
- Tweeter amplifier, cont.(peak) output power: 50 W (80 W)
- Crossover Frequency: 2.0 kHz
- Crossover Slope (dB/oct.) : 24, 4th order
- Equalization - Bass: 0, 2.5, 5, 7.5 dB
- Equalization - Mid: 0, 1.5, 3, 4.5 dB
- Equalization - High: +1, 0, 1, 2 dB
- Protection circuitry: Limiter: low, high
- Infrasonic filter frequency; slope: 30 Hz; 6 dB/oct.
- Mains Power Supply, voltage; frequency: 100-240 V~; 50/60 Hz
- Power consumption - Idle: 40 W
- Power consumption - Full output AC: 200 W
- Operating conditions: +10* C to +40* C (+50* F to +104* F), <90% RH, non-condensing
- Transport/storage conditions: 25* C to +70* C (13* F to 158* F), <90% RH, non-condensing
- Drivers: Magnetically shielded
- Woofer: 130 mm (5.25")
- Tweeter: 25 mm (1")
- Mounting points: 2 x M8 on rear panel
- Height x width x depth, mm (inches) : 277 x 182 x 220 mm (10 7/8" x 7 1/8" x 8 5/8")
- Internal net volume / external volume: 6.5 liters / 9.7 liters
- Weight: 6.5 kg (14.3 lbs)
- Delivery includes: 1x KH 120 D, 1x Power cables (Euro and USA), 1x Operating manual
