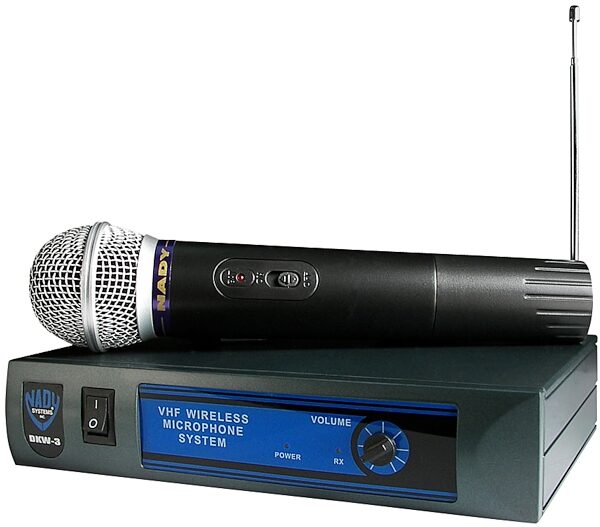

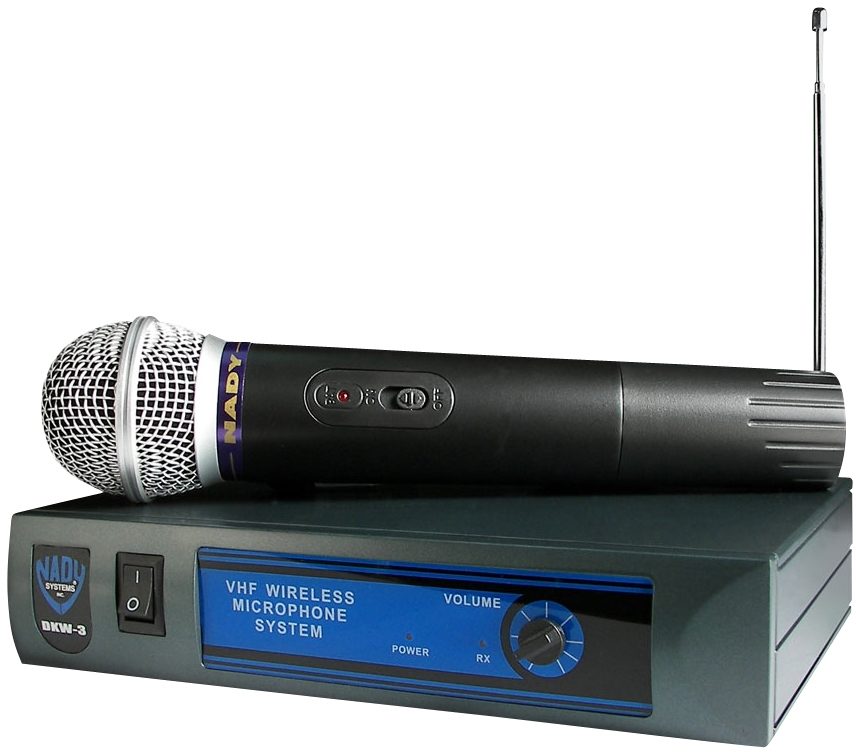

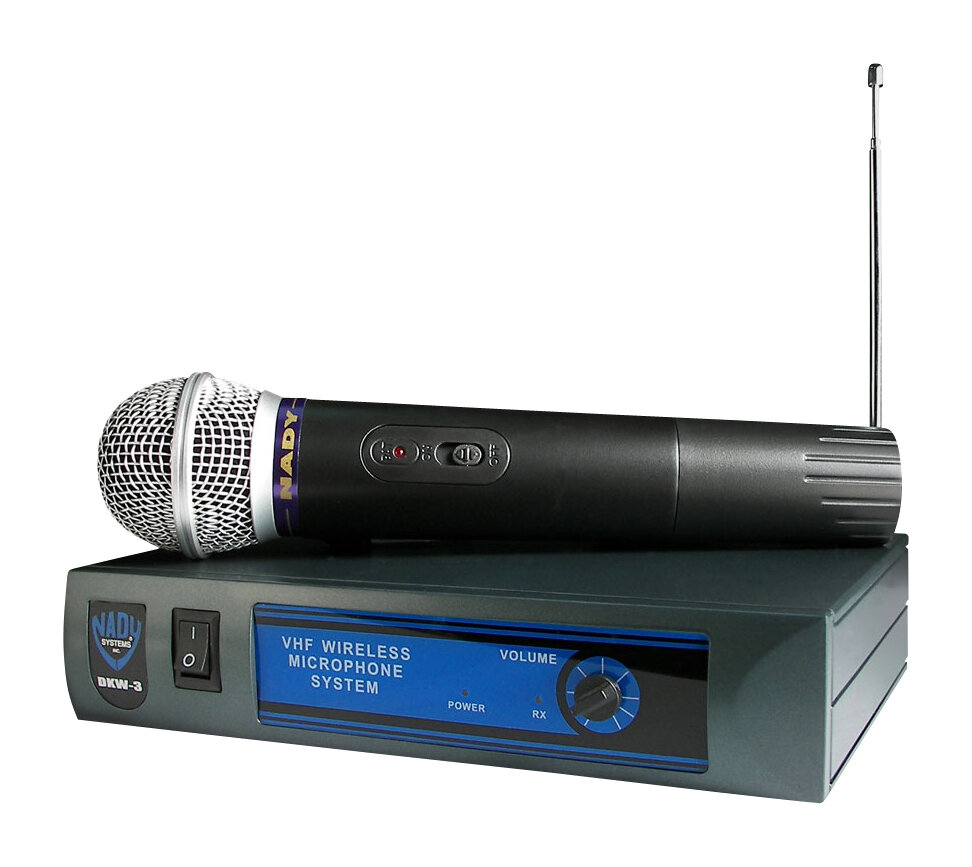

Nady DKW3 HTD Wireless Handheld Microphone System

Frequency Response: 80-14,000 Hz, +/-3dB

Dynamic Range: 95dB

Total Harmonic Distortion: <0.7%

RF Carrier Frequency Range: 170-216 MHz

Frequency Stability: +/- 0.005%, crystal controlled

Modulation: FM (F3E), +/-15KHz max.

Operating Range: 150 feet typical and up to 300 plus feet line-of-sight

Transmitter

Controls: Off/On switch

LED Indicator Unit: "On" (single flash), Low Battery Alert (steady)

RF Power Out: 50mW (Max. allowed by FCC)

Harmonic & Spurious Emissions: >-40dB

Battery: 9V Alkaline

Battery Life: Up to 15 hours

Dimensions: 8.9 x 1.4 inches Diameter (22.6 x 3.5 cm)

Weight (without battery) : 5.4 oz. (151 g.)

Receiver

Controls: Power On/Off

Connectors: 1/4 inch unbalanced audio out jack, 2.1mm barrel-type DC input jack

LED Indicator: Power On, Transmitter RF (CH A & CH B)

Dimensions: 8.2 x 5.3 x 1.75 inches, (20.8 x 13.5 x 4.4 cm.)

Weight: 16.1 oz. (451 g)

Power Requirements: 9V at 120mA, nominal, AC/DC adapter supplied

Antenna: Single 15 in. (38 cm), collapsible
Dimensions and Weight in Packaging
Band B (185.15 MHz)
Shipping Weight: 2.25 lbs
Shipping Dimensions: 11 x 7 x 5 in
Manufacturer Part Number (MPN): DKW-3 HT/B
If you have additional warranty questions, please contact the manufacturer at 510-652-2411
