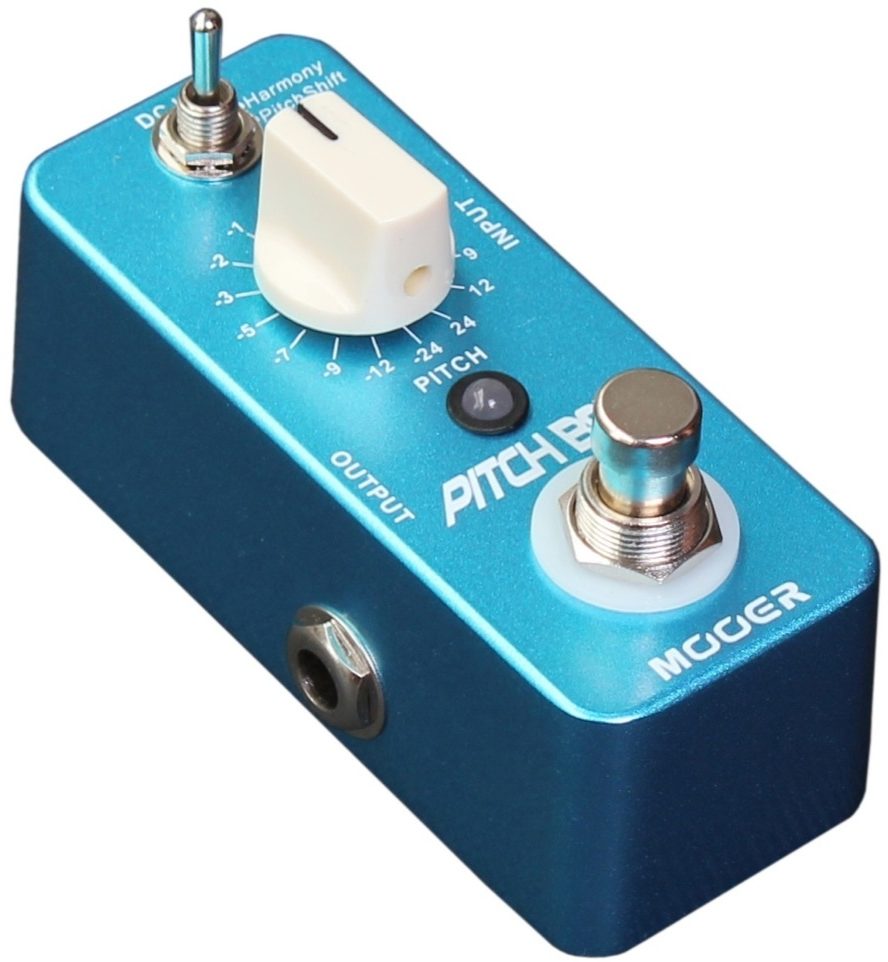

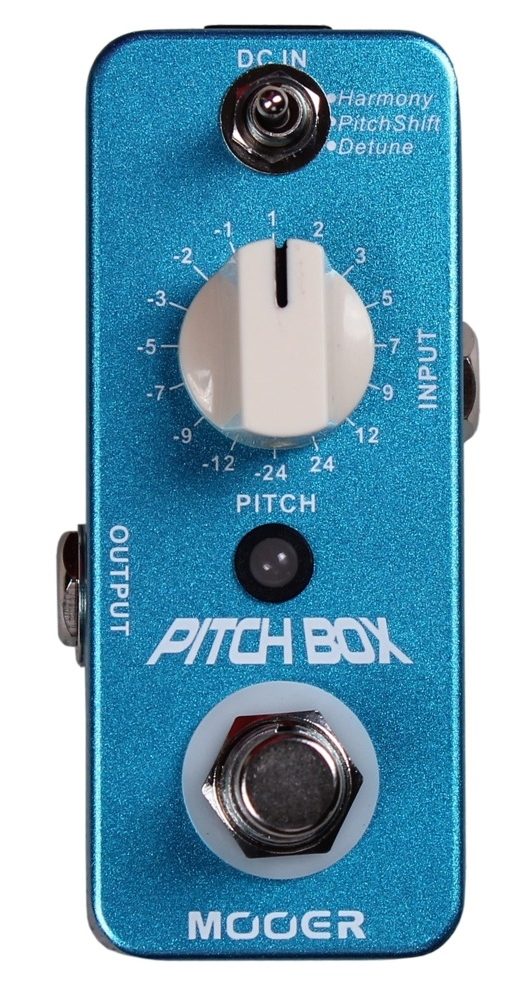

Mooer Pitch Box Pedal, Main
Mooer Pitch Box Pedal, Angle
Mooer Pitch Box Pedal, Main Mooer Pitch Box Pedal, Angle
Add a precise harmony voice, shift your whole signal up to two octaves, or detune up or down to create a chorus-like effect with the tiny Mooer Pitch Box.

Create a wide range of precise polyphonic harmony, pitch shift and detuned effects with the Mooer Pitch Box's three modes:

Harmony: Shift your pitch up to two octaves up or down (-24/+24 semitones in intervals of +/- 1, 2, 3, 5, 7, 9, 12, or 24), then mix it back with your original signal to create a rich harmonic voice.

Pitch Shift: Outputs a 100% wet pitch-shifted signal, -24/+24 semitones in intervals of +/- 1, 2, 3, 5, 7, 9, 12, or 24, with a precise polyphonic pitch-shifted voice.

Detune: Detune your signal slightly from -40 cents to +40 cents and mix it with your original signal to create a spacey, ringing, chorus-like effect.

Features:

- 3 Effects Modes: Harmony, Pitch Shift, Detune
- Precise polyphonic pitch shifting
- +/- 2 Octave Pitch Range (16 optional parameters)
- Full metal shell
- Very small and exquisite
- True bypass
- DC 9V Adapter power supply

- Effects Modes: 3 (Harmony, Pitch Shift, Detune)
- Input: 1/4" monaural jack (impedance: 470k Ohms)
- Output: 1/4" monaural jack (impedance: 100 Ohms)
- Power Requirements: AC adapter 9V DC (center minus plug)
- Current Draw: 128 mA
- Dimensions: 93.5mm (D) x 42mm (W) x 52mm (H)
- Weight: 170g
