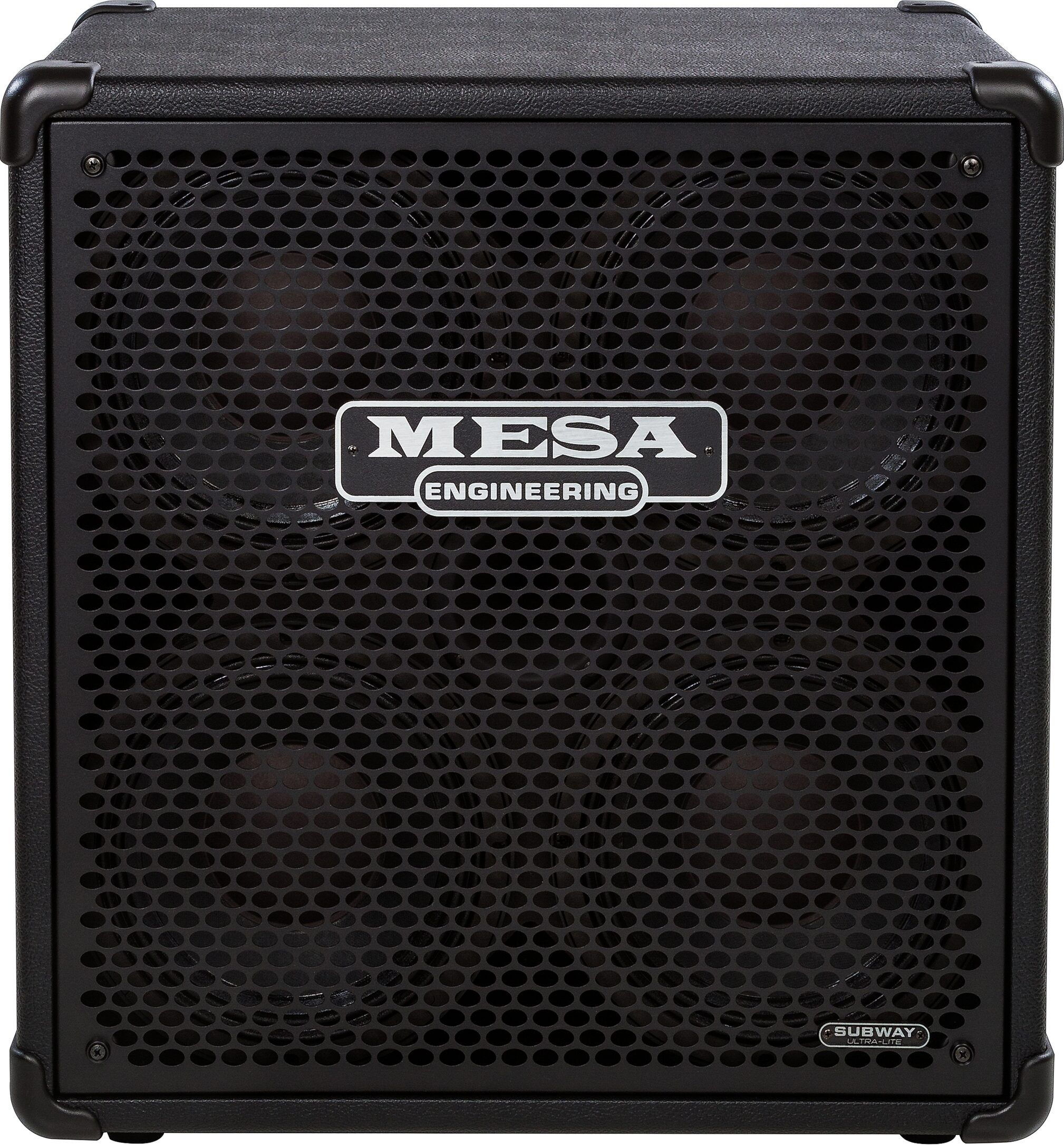

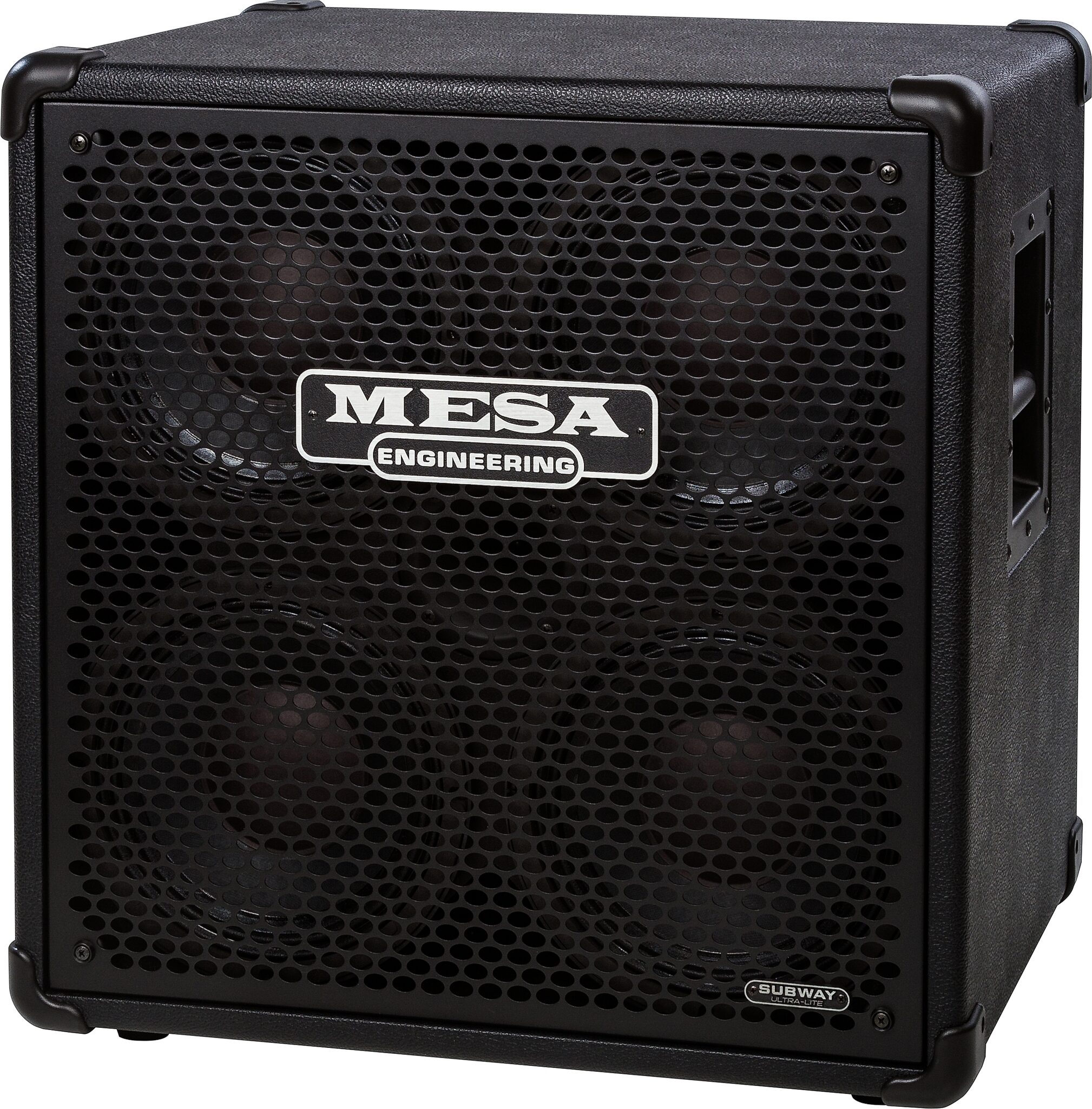

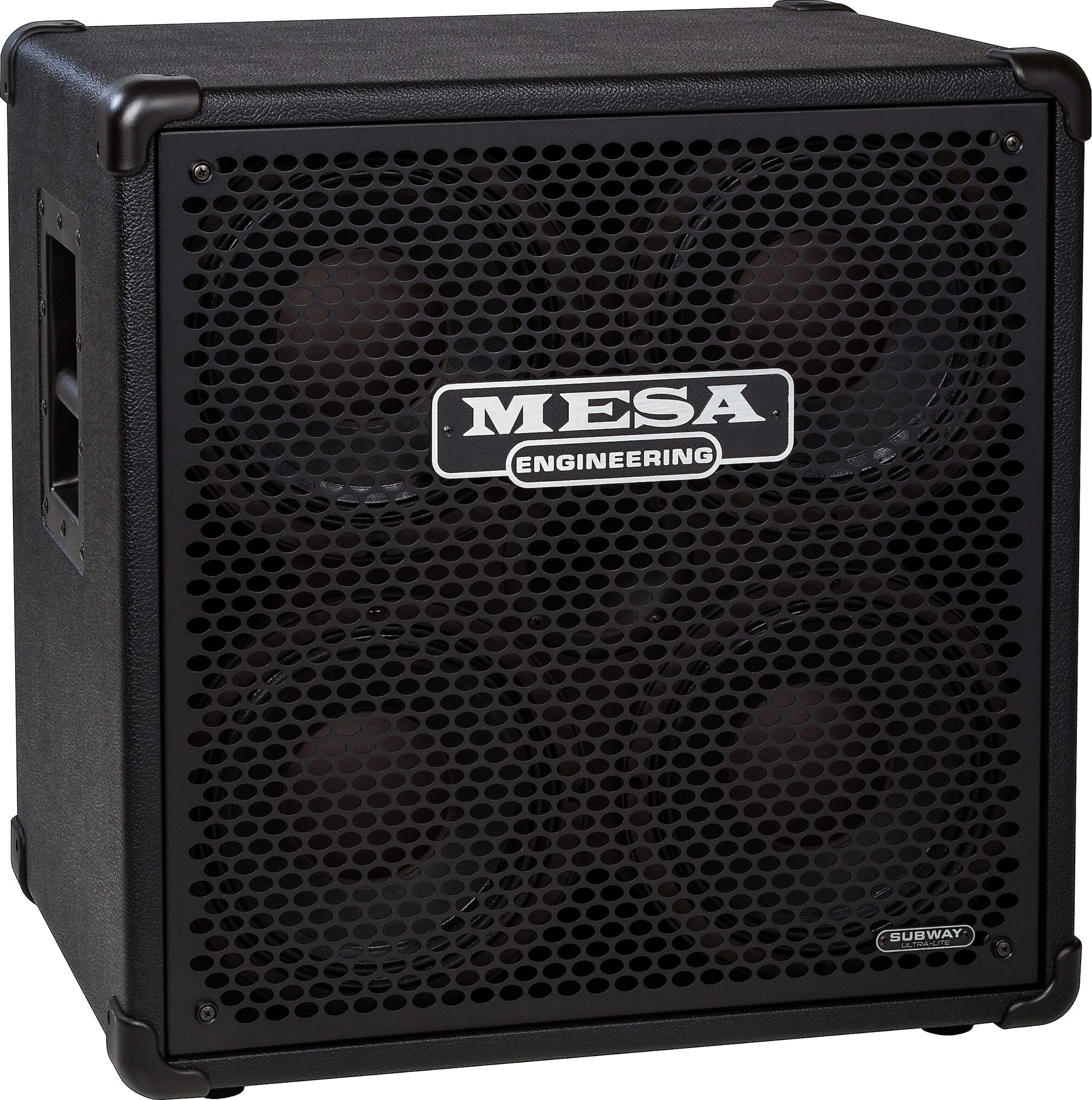

Mesa/Boogie 4x10 Subway Ultra Lite Bass Cab (4x10", 1200 Watts)
A lightweight cabinet with incredible attention to detail, Mesa's Subway bass cab features an Italian poplar cabinet and Subway Series Neodymium speakers.
Overview
Where MESA's passion for design excellence and portability meets the demand for great tone in a simple, accessible package...the next chapter in the MESA/Boogie Bass Story awaits; Introducing the SUBWAY ULTRA-LITE Cabinet. Handcrafted in Petaluma, California, these lightweight Italian poplar cabinets are tuned and loaded with features.
- Tuned Front Ported Tri-Port Porting w/Aviation style bracing (superior strength/reduced weight)
- Lightweight Italian Poplar Cabinets - Legendary Mesa Quality Construction
- Custom Subway Neodymium Speakers & High Frequency Horn w/Premium Attenuator

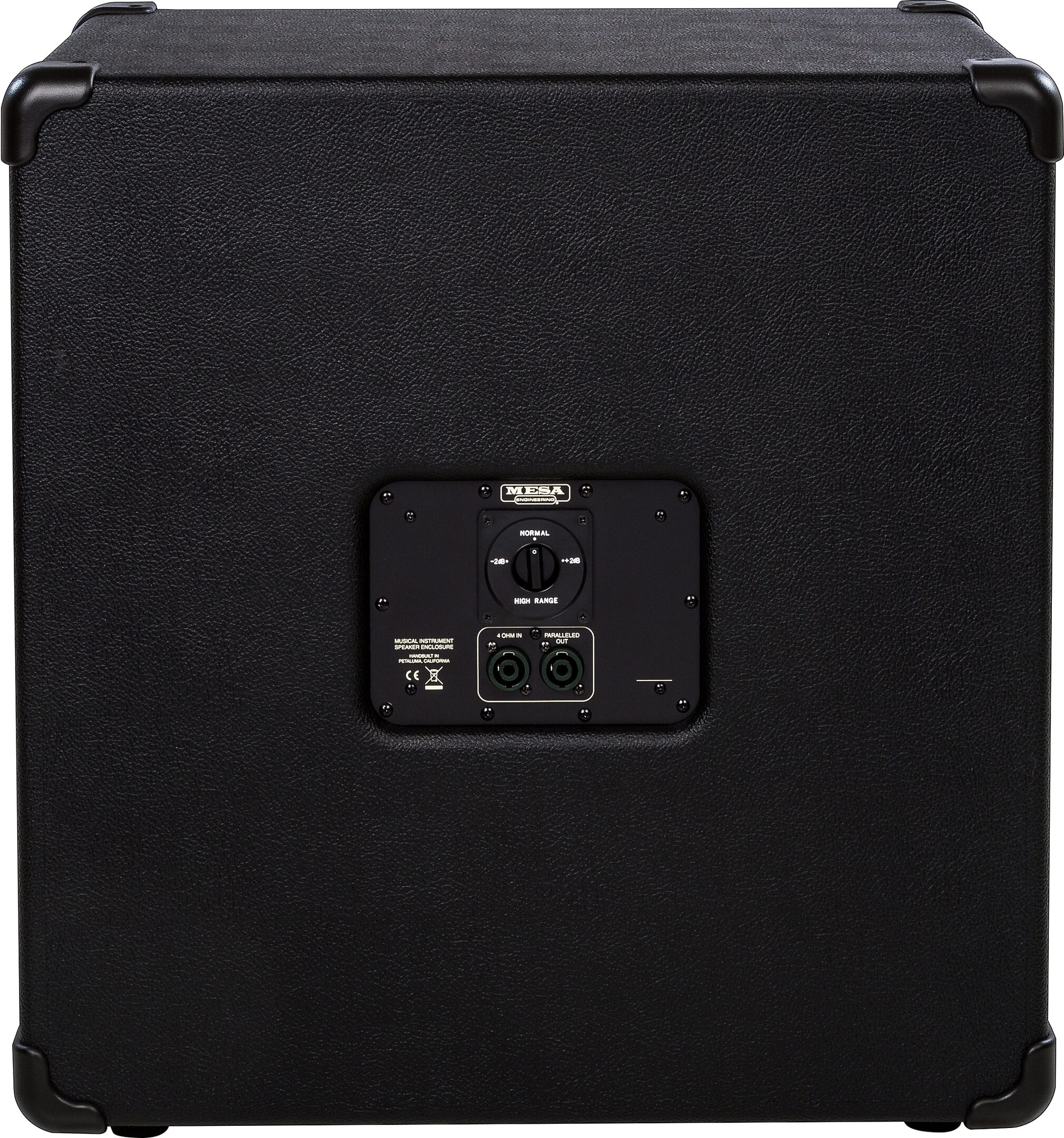

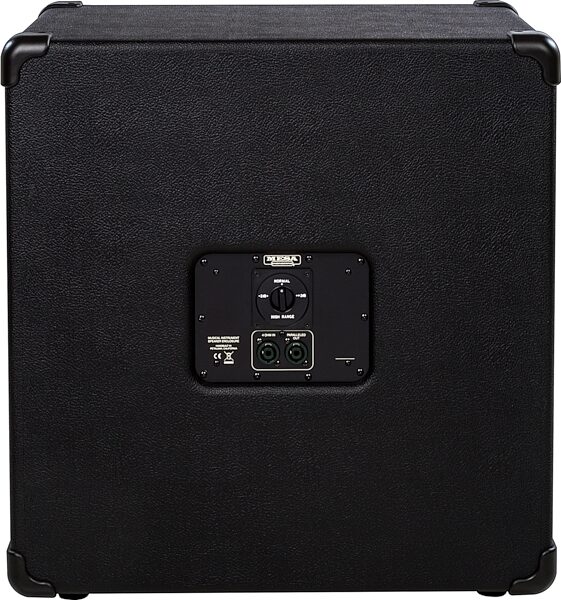

- Combination speakON & 1/4" Input and Parallel Output
- Recessed, Flip-Out Metal Handles
- Black Bronco Vinyl with Black Metal Grille
- Lexan Corners
- Slip Cover
Features:
- Designed & Handcrafted in Petaluma, California- Tuned Front Ported Tri-Port Porting w/Aviation style bracing (superior strength/reduced weight)
- Lightweight Italian Poplar Cabinets - Legendary Mesa Quality Construction
- Custom Subway Neodymium Speakers & High Frequency Horn w/Premium Attenuator
- Combination speakON & 1/4" Input and Parallel Output
- Recessed, Flip-Out Metal Handles
- Black Bronco Vinyl with Black Metal Grille
- Lexan Corners
- Slip Cover
Specs
-Product Name, Format & Orientation (if applicable): 4x10 Subway Bass
-Product Series: Subway Bass Series
-Build Location: Petaluma, CA USA with the World's Finest Materials
-Cabinet Material: Light-Weight Italian Poplar
-Standard Finish Options: Choice of Black Bronco or Black Taurus Vinyl with Black Metal Grille
-Corner Material: Lexan
-Style/Type: Tuned Front Ported Tri-Porting (2 x 5.0" square x 4" deep / port area = 60.5 sq. in.)
-Cabinet Internal Volume: 4.25 CF
-Speaker(s) & Mounting Position: Subway Neodymium Speakers / Front Mounted
-High Frequency Horn: Yes
-Horn Control: Premium Attenuator
-Input/Output Connectors (speakON Connectors wired 1+/1-): 2 x speakON-1/4" (NL-4 combo)
-Nominal Impedance (Average impedance normalized up to standard value): 4 ohms (only)
-Minimum Impedance @ Frequency (Minimum cabinet impedance value from 20Hz - 5kHz): 4.01 ohms (@20.9Hz)
-Average Sensitivity (RMS) 50Hz-1000Hz (Average sensitivity based on an RMS signal from 50Hz - 5kHz): 100.4dB/1W/1M
-Maximum SPL - 50Hz-1000Hz (Maximum SPL calculated from average sensitivity and maximum RMS input power): 131.5dB/1M
-Average Thermal Power (RMS) 50Hz-1000Hz (Power rating ("RMS") of L.F. driver based on EIA RS-426A standard): 1200 Watts
-Average Mechanical Power (RMS) 50Hz-1000Hz (Average power rating ("RMS") based on average safe cone excursion): 1000 Watts
-Minimum Mechanical Power (RMS) @ Frequency (Power rating ("RMS") based on point of maximum safe cone excursion): 925 Watts (@79.9Hz)
-Low Freq F3 (Hz) (-3dB point of the LF response below the average response): 59.4Hz
-Low Freq F6 (Hz) (-6dB point of the LF response below the average response): 49.0Hz
-Low Freq F10 (Hz) (-10dB point of the LF response below the average response): 41.3Hz
-High Freq Response (Nominal HF response, dependent on the position of HF attenuator): >12kHz
-Transport Assistance: Included - Track-Loc Removable Casters
-Slip Cover: Included - Fitted Slip Cover
-Product Series: Subway Bass Series
-Build Location: Petaluma, CA USA with the World's Finest Materials
-Cabinet Material: Light-Weight Italian Poplar
-Standard Finish Options: Choice of Black Bronco or Black Taurus Vinyl with Black Metal Grille
-Corner Material: Lexan
-Style/Type: Tuned Front Ported Tri-Porting (2 x 5.0" square x 4" deep / port area = 60.5 sq. in.)
-Cabinet Internal Volume: 4.25 CF
-Speaker(s) & Mounting Position: Subway Neodymium Speakers / Front Mounted
-High Frequency Horn: Yes
-Horn Control: Premium Attenuator
-Input/Output Connectors (speakON Connectors wired 1+/1-): 2 x speakON-1/4" (NL-4 combo)
-Nominal Impedance (Average impedance normalized up to standard value): 4 ohms (only)
-Minimum Impedance @ Frequency (Minimum cabinet impedance value from 20Hz - 5kHz): 4.01 ohms (@20.9Hz)
-Average Sensitivity (RMS) 50Hz-1000Hz (Average sensitivity based on an RMS signal from 50Hz - 5kHz): 100.4dB/1W/1M
-Maximum SPL - 50Hz-1000Hz (Maximum SPL calculated from average sensitivity and maximum RMS input power): 131.5dB/1M
-Average Thermal Power (RMS) 50Hz-1000Hz (Power rating ("RMS") of L.F. driver based on EIA RS-426A standard): 1200 Watts
-Average Mechanical Power (RMS) 50Hz-1000Hz (Average power rating ("RMS") based on average safe cone excursion): 1000 Watts
-Minimum Mechanical Power (RMS) @ Frequency (Power rating ("RMS") based on point of maximum safe cone excursion): 925 Watts (@79.9Hz)
-Low Freq F3 (Hz) (-3dB point of the LF response below the average response): 59.4Hz
-Low Freq F6 (Hz) (-6dB point of the LF response below the average response): 49.0Hz
-Low Freq F10 (Hz) (-10dB point of the LF response below the average response): 41.3Hz
-High Freq Response (Nominal HF response, dependent on the position of HF attenuator): >12kHz
-Transport Assistance: Included - Track-Loc Removable Casters
-Slip Cover: Included - Fitted Slip Cover
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 78.5 lbs
- Shipping Dimensions: 34 x 29 x 23 in
- Manufacturer Part Number (MPN): 0.S410.AMB
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 707-789-3348
Web: https://www.mesaboogie.com/support/index.html
Phone: 707-789-3348
Web: https://www.mesaboogie.com/support/index.html
