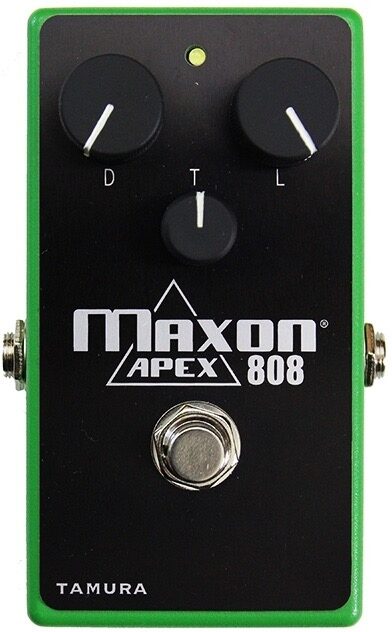

Maxon APEX808 Overdrive Pedal

- Input Impedance: 500K Ohms
- Input Jack: 1/4 inch standard phone jack
- Output Impedance: 10K Ohms
- Output Jack: 1/4 inch standard phone jack
- Output: 1
- Controls: Drive, Tone, Balance
- Switch: Normal/Effect
- Noise (IHF-A): -110 dBu
- Max Amplitude: 35 dBu
- Power Supply: 9V Manganese dry cell battery (S-006P) or special AC adaptor
- Power Voltage: DC9 V (Battery) / DC10 V (AC-adaptor)
- Current Consumption: 5 mA (9V) / 6 mA (10 V)
- AC Adaptor: PA-9 Power-All (option)
- Input: AC120V
- Output: DC9V/200 mA Center - / Sleeve +)
- Dimensions (main body): 61 mm (W) x 112 mm (D) x 35 mm (H)
- Dimensions (whole): 70 mm (W) x 112 mm (D) x 55 mm (H)
- Weight: 260 g
- Accessories: 9V Manganese dry cell battery (S-006P) x 1
- Non-skid pad: x 2
- Warranty Card: x 1
- User's Manual: x 1
- Maxon Sticker: x 1
- Apex Manual: x 1
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 1 lbs
Shipping Dimensions: 6 x 4 x 3 in
Manufacturer Part Number (MPN): OD808-A
Maxon Warranty ´╗┐Godlyke offers a 3-year limited warranty from date of purchase on all Maxon products.┬á This means 1-year for moving parts (pots, switches, jacks, tubes), and 3-years for PCB and circuit failure.
If you have additional warranty questions, please contact the manufacturer at 866-2GODLYKE
