Mackie 802VLZ4 8-Channel Mixer

open zoom image for Mackie 802VLZ4 8-Channel Mixer, Open Box (Like New), Left

open zoom image for Mackie 802VLZ4 8-Channel Mixer, Open Box (Like New), Rear

open zoom image for Mackie 802VLZ4 8-Channel Mixer, Open Box (Like New), Right

open zoom image for Mackie 802VLZ4 8-Channel Mixer, Open Box (Like New), Side

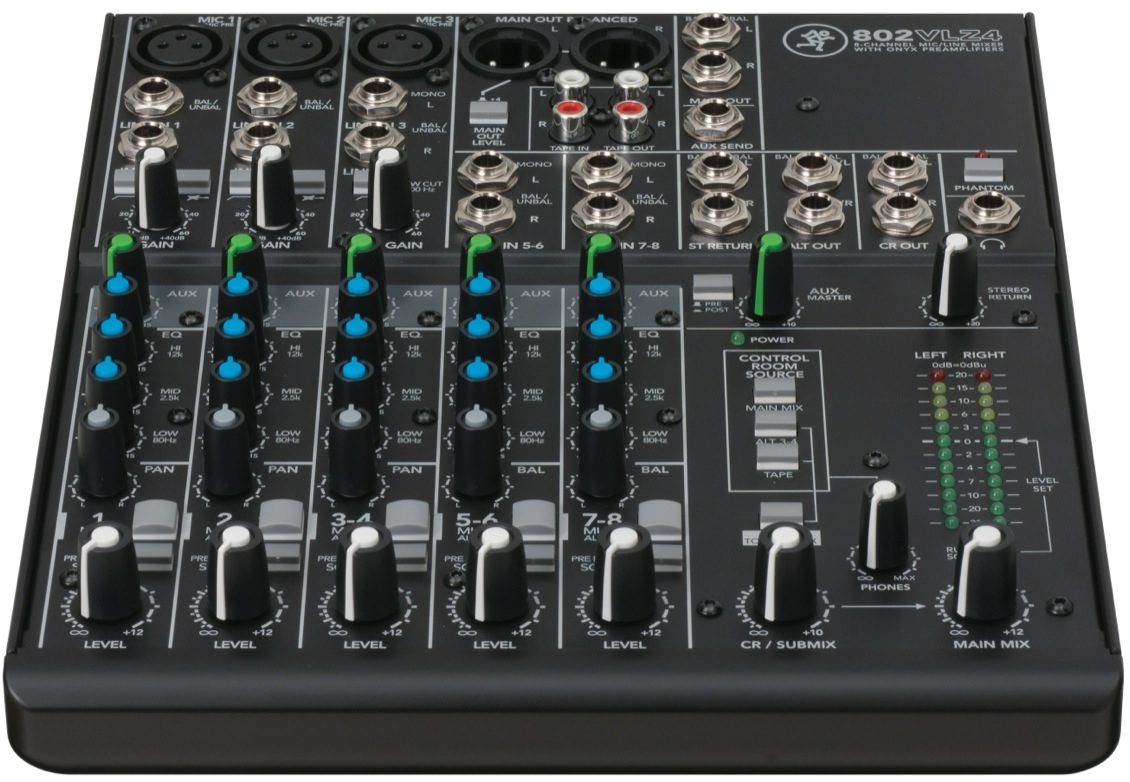

Mackie 802VLZ4 8-Channel Mixer, Open Box (Like New), Main

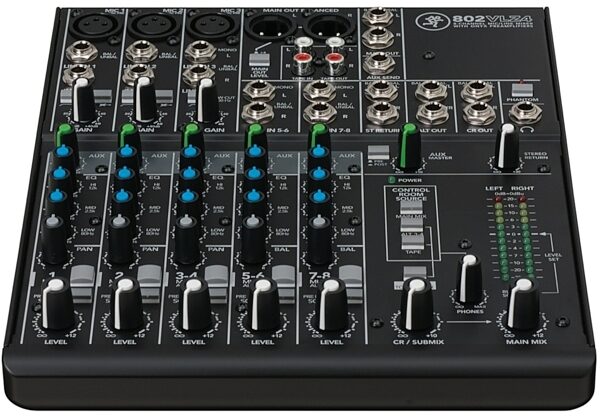

Mackie 802VLZ4 8-Channel Mixer, Open Box (Like New), Front

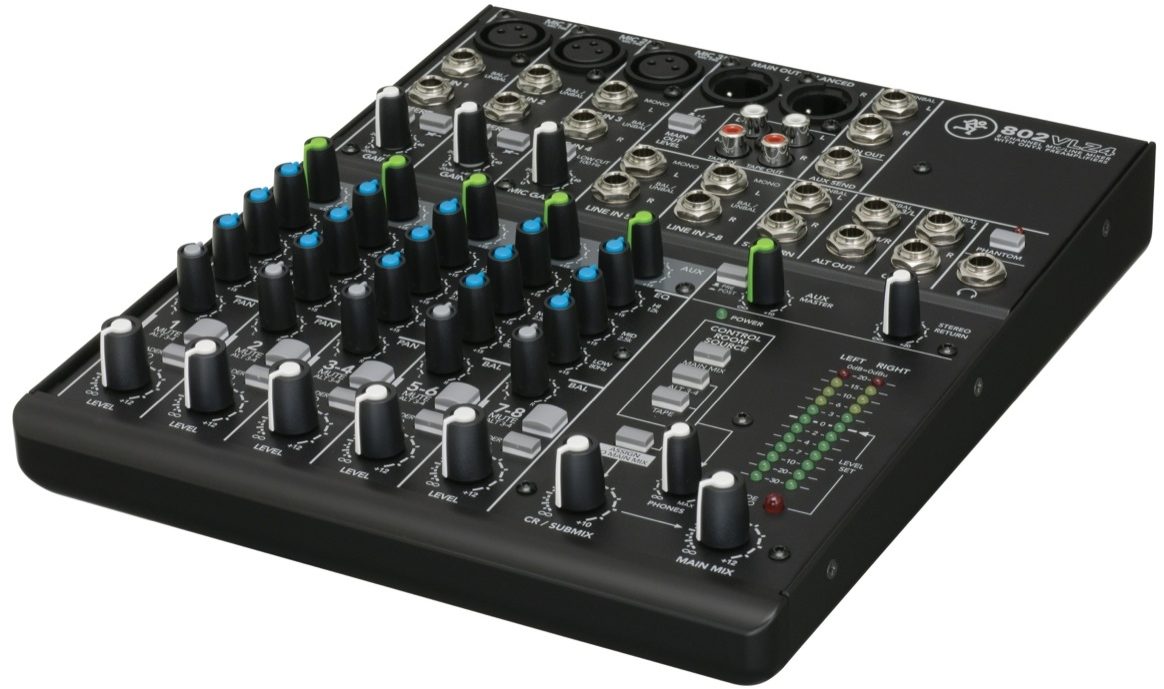

Mackie 802VLZ4 8-Channel Mixer, Open Box (Like New), Left

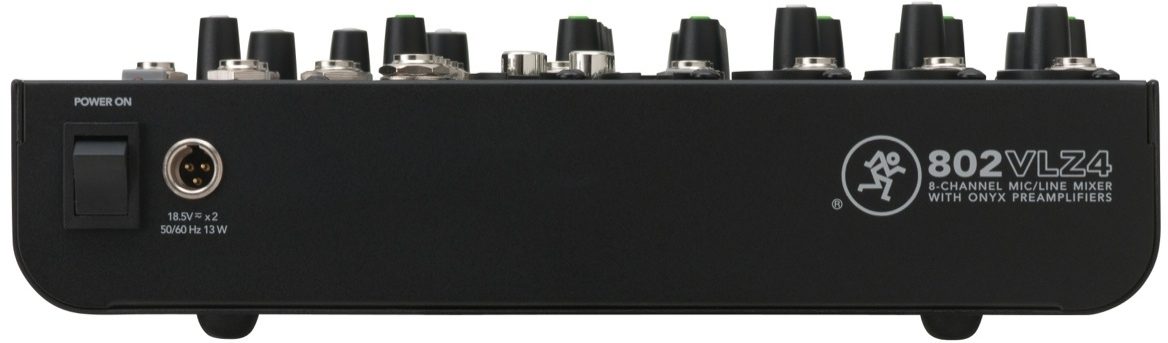

Mackie 802VLZ4 8-Channel Mixer, Open Box (Like New), Rear

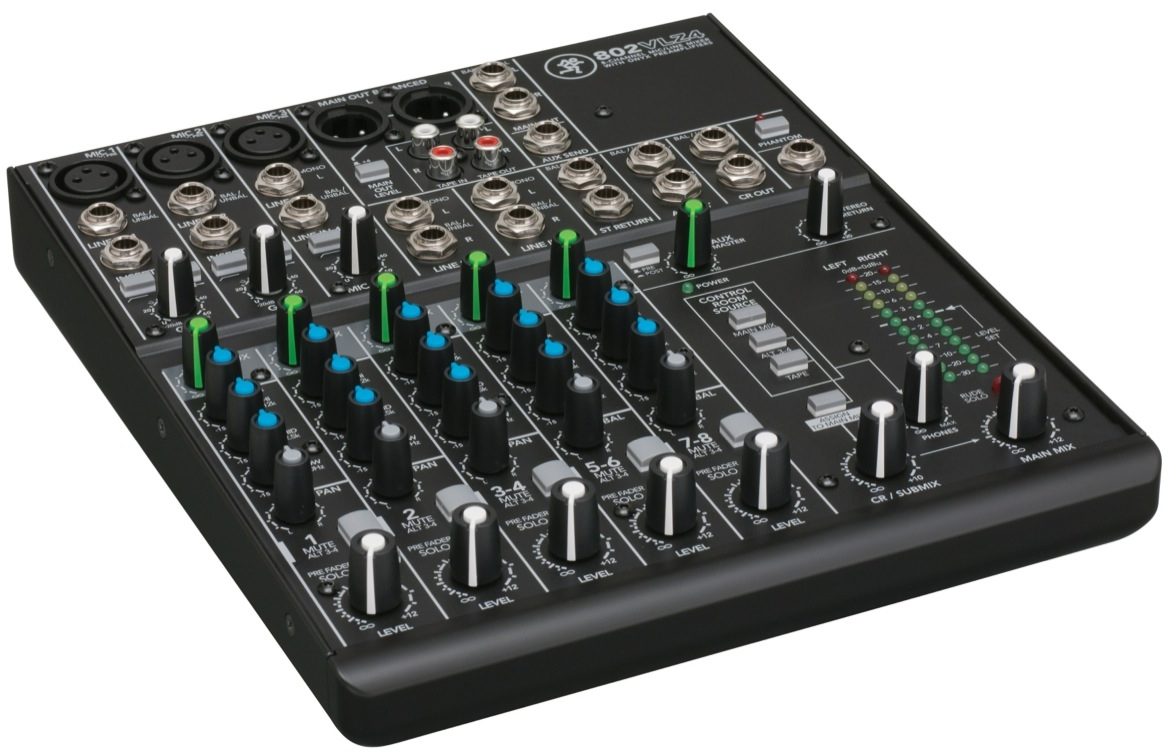

Mackie 802VLZ4 8-Channel Mixer, Open Box (Like New), Right

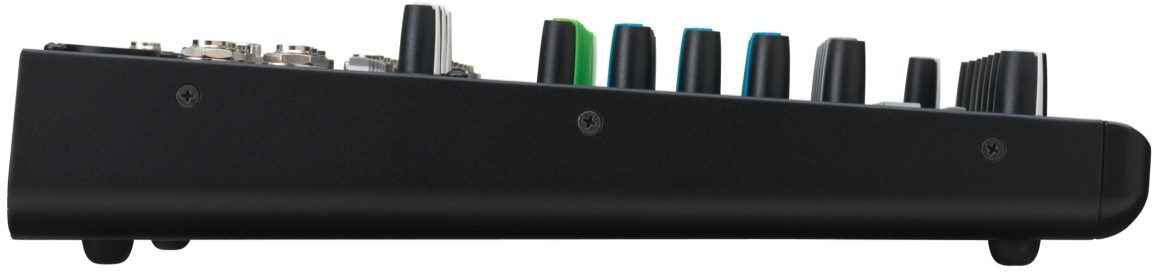

Mackie 802VLZ4 8-Channel Mixer, Open Box (Like New), Side

zZounds Gear Experts Say...

This compact 8-channel Mackie mixer fits on any desk -- and sounds great, with 3 Onyx mic preamps and instrument-level Hi-Z switches on the first 2 channels.

Overview

The 8-channel 802VLZ4 features the proven performance of Mackie's Onyx mic preamps in a desk-friendly, ultra-compact design perfect for professional applications with a lower input need.

Learn more about the Mackie VLZ4 Series:

From every input to every output, the Mackie 802VLZ4 is designed to provide the highest headroom and lowest noise possible for maximum signal integrity. Plus, it is truly "Built-Like-A-Tank" with a ridiculously rugged solid steel chassis plus high-contrast controls for ultimate tactile control. And with features like instrument level inputs, phantom power and level metering, the 802VLZ4 offers a true step up in performance and durability that's ideal for your professional application.

Check out this video from the Mackie MixBusters:

Specs

- Channels: 8
- Mic Inputs: 3 (XLR)
- Line Inputs: Channels 1-2: 1/4" mono line inputs, Channels 3/4, 5/6, 7/8: stereo 1/4" line inputs
- Phantom Power: 48V (all mic inputs)
- Channel Inserts: 2
- Main Outputs: XLR and 1/4"
- Aux Sends: 1
- Aux Returns: 1 stereo
- Alt Outputs: 1 stereo (Alt 3/4)
- EQ Bands per Channel: 3-band (80Hz, 2.5kHz, 12kHz)
- High-Pass Filter: 100Hz at 18dB/octave (channels 1-3)
- Frequency Response: +0/-1dB 20Hz to 50kHz
- Total Harmonic Distortion (THD): <0.001% (1kHz @ 30dB gain)
- Dynamic Range: 128.5dB
- Crosstalk: 100dB at 1kHz
- Maximum Input Level: +22dBu
- Maximum Output Level: +22dBu
- Power Supply: External (100-120VAC)
- Metering: 12-segment stereo LED meters

Dimensions and Weight in Packaging

Base Item

Shipping Weight: 5.83 lbs
Shipping Dimensions: 15 x 12 x 4 in
Manufacturer Part Number (MPN): 2040767-00

Open Box (Like New)

Shipping Weight: 5.83 lbs
Shipping Dimensions: 15 x 12 x 4 in
Manufacturer Part Number (MPN): 2040767-00

Documents and Manuals

For support or warranty questions, please contact the manufacturer:
Phone: 800-898-3211
Email: support@mackie.com
Web: https://mackie.com/en/support/contact

Owner's Manual

Reviews

(1 ratings)

Submitted August 13, 2013 by Victor Tarassov in Princeton, NJ

"Love the 802 VLZ4"

Overall:

(see rating details)

Verified Purchaser zZounds has verified that this reviewer purchased this specific product from us.

I have used other Mackie mixers but needed a small mixer for solo gigs and when my other brand died I decided to try the new 802VLZ4 Mackie mixer and I am so glad I did. The mic pres are amazing to my ears and others. I am using the mixer with a DPA 4099G Gutiar mic and RMC Pickups with a Poly Drive II preamp for the RMC then I run the pickups and blend with the DPA. Just warm tone. No bright high or mud. The mic pres are very clean and clear with detailed tone. Then I run the Aux send to a Lexicon MX 300 for nice touch of reverb. Nice easy set up for Flamenco Gutiar or Acoustic. I also use another guitar with the Fishman Blend system into a Rane AP 13 and split the mic and pickup. Sounds great through the Mackie 802VLZ. Nice mixer, I ordered the bag too. Thanks Mackie.
