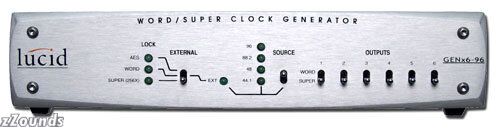

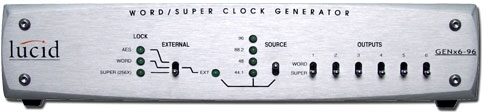

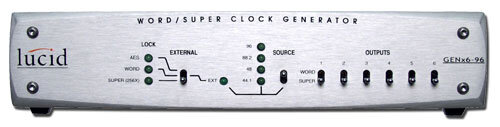

Lucid GENx6 96 Word/Super Clock Generator

No longer available at zZounds

Wouldn't it be great if all your gear would play nice? If they'd just make friends with the box next door, plus those three across the room. Wouldn't life be simpler if every time some new digital toy turned your head, it didn't require a studio remodel in the morning?

Lucid is here to help. With their new distribution specialists, you can circulate audio and sync all around your studio, no questions asked. The GENx8-96 can distribute or generate sync information. They route Word Clock and Superclock to six BNC outs. With the flip of a switch, they operate as a stand-alone clock source, generating Word Clock and Superclock at 44.1. 48, 88.2, or 96kHz rates. As well as generate or distribute clock, it can output Word Clock or Superclock simultaneously by switching each of its outputs individually.

Expand your studio without fear of gear misbehavior, using digital distros from Lucid.

Generates word or superclock at 44.1 or 48kHz

Generates word clock at 88.2 or 96kHz

Front panel switches for format selection (word or superclock) per output

Locks to incoming AES, word, or superclock

Generate extremely stable, low jitter clock streams

Convert AES11 (sync) to word or superclock

Can function as 1x6 clock distribution amplifiers provide a cost-effective solution that reduces system jitter and improves audio performance

Input impedance: AES: 110 ohm, Clock: 75 ohm

Output impedance: AES: 110 ohm

External sync range: 32kHz to 96kHz (internal jumper selects either 32-48kHz or 44-96kHz)

Internal sample rates: 44.1 kHz. 48 kHz, 88.2 kHz, and 96 kHz.

AES input: Balanced XLR-3

Word/Superclock input: BNC

Word/Superclock outputs: 6 x BNC

Power supply: External AC (Luci PS-3, PS-3E, or PS-3J) using 7-pin DIN

1/2 unit Chassis (H x W x D): 1.72 x 8.5 x 8 in. (4.37 x 21.59 x 20.32 cm)

Net Weight: 2.5 lb. (1.1 kg)

For support or warranty questions, please contact the manufacturer:
Phone: 425-778-7728
