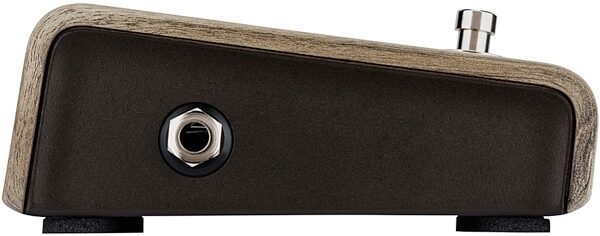

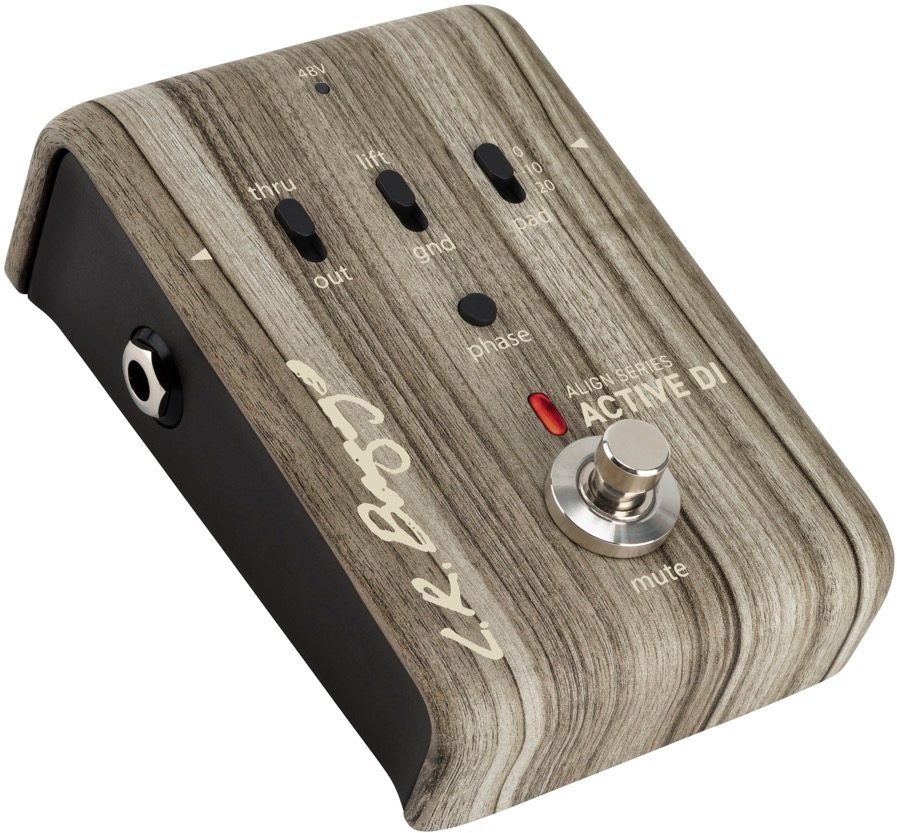

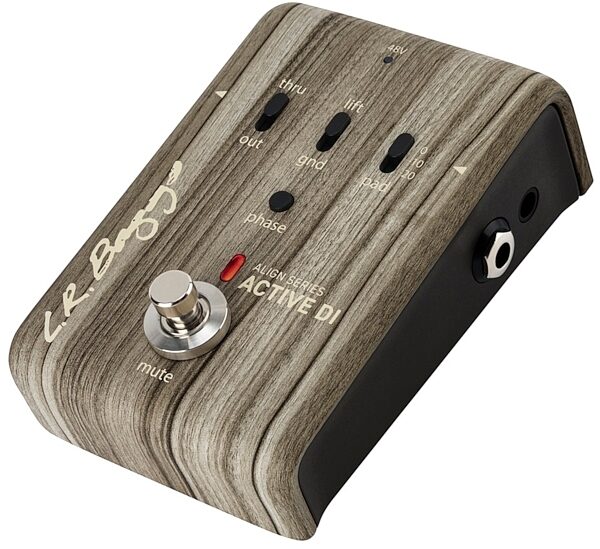

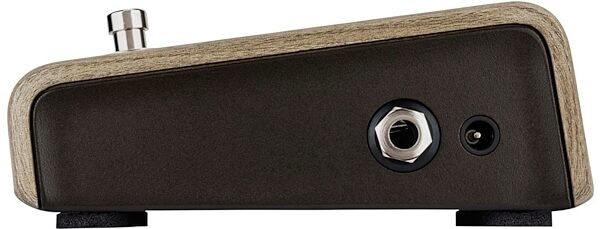

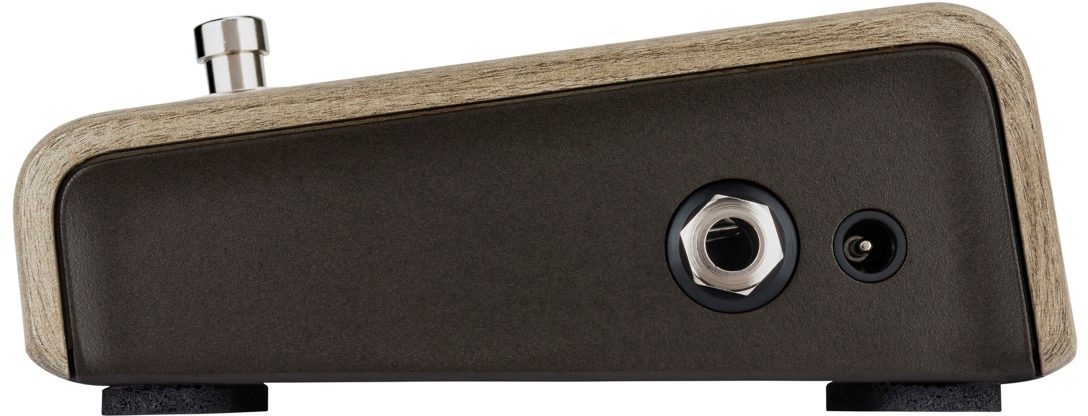

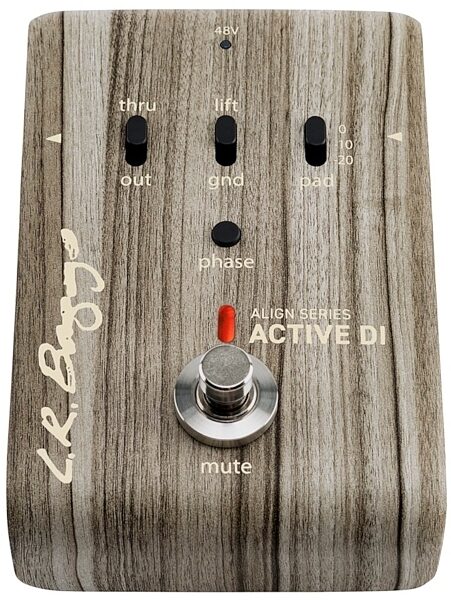

LR Baggs Align Active DI Pedal
zZounds Gear Experts Say...
Enhance your signal with this stompbox-style DI! The LR Baggs Align DI pedal features XLR and 1/4" outputs, ground-loop noise reduction and a mute switch.
Overview
Building upon decades of experience creating studio-quality gear for the stage, the Align Active DI is the embodiment of LR Baggs engineering at its highest level and uses the most pristine circuitry LR Baggs has developed in a DI. The Align's all-discrete design preserves the authenticity of your sound while providing high headroom for a wide range of signals. Equally at home on a pedalboard or standalone, the Align DI delivers a high degree of fidelity and functionality.

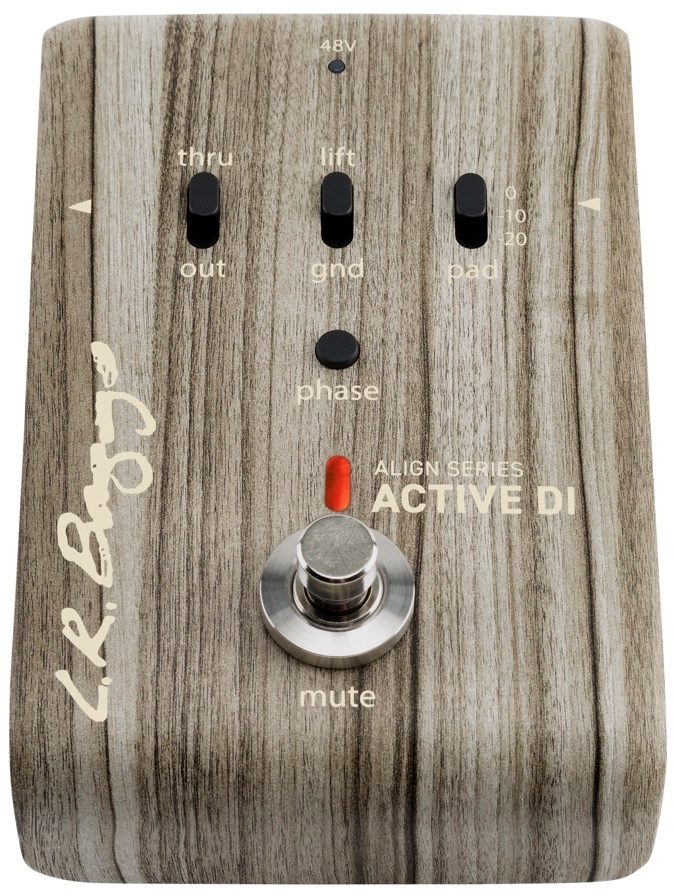

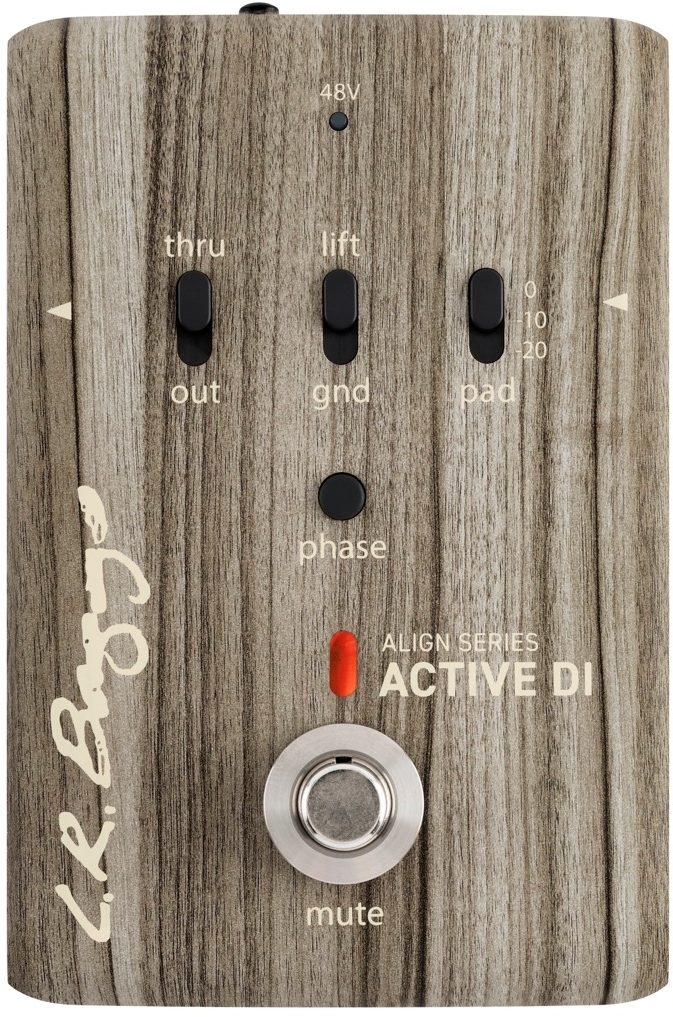

- Pad boosts or cuts XLR out to meet the needs of the PA
- Ground lift switch effectively eliminates ground-loop noise
- Phase inversion for best sound and feedback control
- Thru/Out switch for added output versatility
- Mute footswitch for accessible control of your signal when switching instruments or in between sets
- 48V phantom power option
Features:

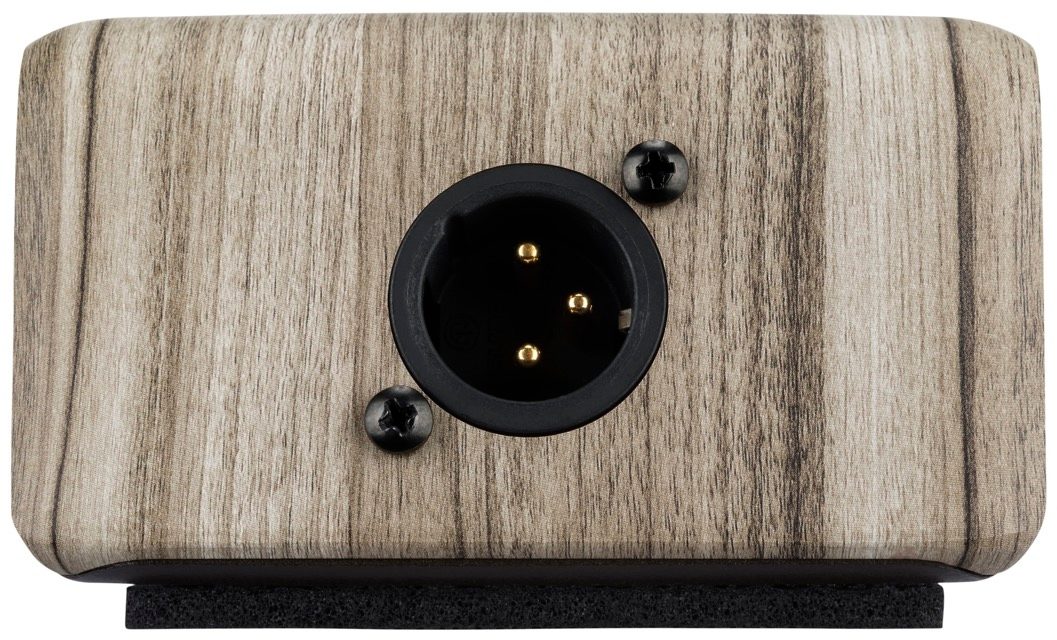

- XLR and 1/4" outputs- Pad boosts or cuts XLR out to meet the needs of the PA
- Ground lift switch effectively eliminates ground-loop noise
- Phase inversion for best sound and feedback control
- Thru/Out switch for added output versatility
- Mute footswitch for accessible control of your signal when switching instruments or in between sets
- 48V phantom power option
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
Specs
- Input Impedance: 2.2 Megohms
- Output Impedance: 470 Ohms (Line/Unbalanced), 620 Ohms (DI/Balanced)
- Frequency Response: 20Hz - 60kHz (-1dB point)
- Gain Range: 0dB, -10dB, -20dB
- Phantom Power: 48V
- Battery Type: 9V
- Power Requirements: 9VDC recommended, 12VDC maximum, 100mA minimum
- Signal-to-Noise Ratio: 90dB (Unweighted)
- Maximum Input Level: +8.5dBv (2.651Vrms)
- Maximum Output Level: +8.5dBv (2.651Vrms)
- Output Impedance: 470 Ohms (Line/Unbalanced), 620 Ohms (DI/Balanced)
- Frequency Response: 20Hz - 60kHz (-1dB point)
- Gain Range: 0dB, -10dB, -20dB
- Phantom Power: 48V
- Battery Type: 9V
- Power Requirements: 9VDC recommended, 12VDC maximum, 100mA minimum
- Signal-to-Noise Ratio: 90dB (Unweighted)
- Maximum Input Level: +8.5dBv (2.651Vrms)
- Maximum Output Level: +8.5dBv (2.651Vrms)
Dimensions and Weight in Packaging
Base Item
- Shipping Weight: 1 lbs
- Shipping Dimensions: 7 x 4 x 3 in
- Manufacturer Part Number (MPN): Align Active DI
