Line 6 P360 Omni Active Antenna Pair
No longer available at zZounds
zZounds Gear Experts Say...
Enhance your reception strength with this antenna pair. Designed for use with for use with the Line 6 XD V70 or Relay G90 digital wireless systems.
Overview

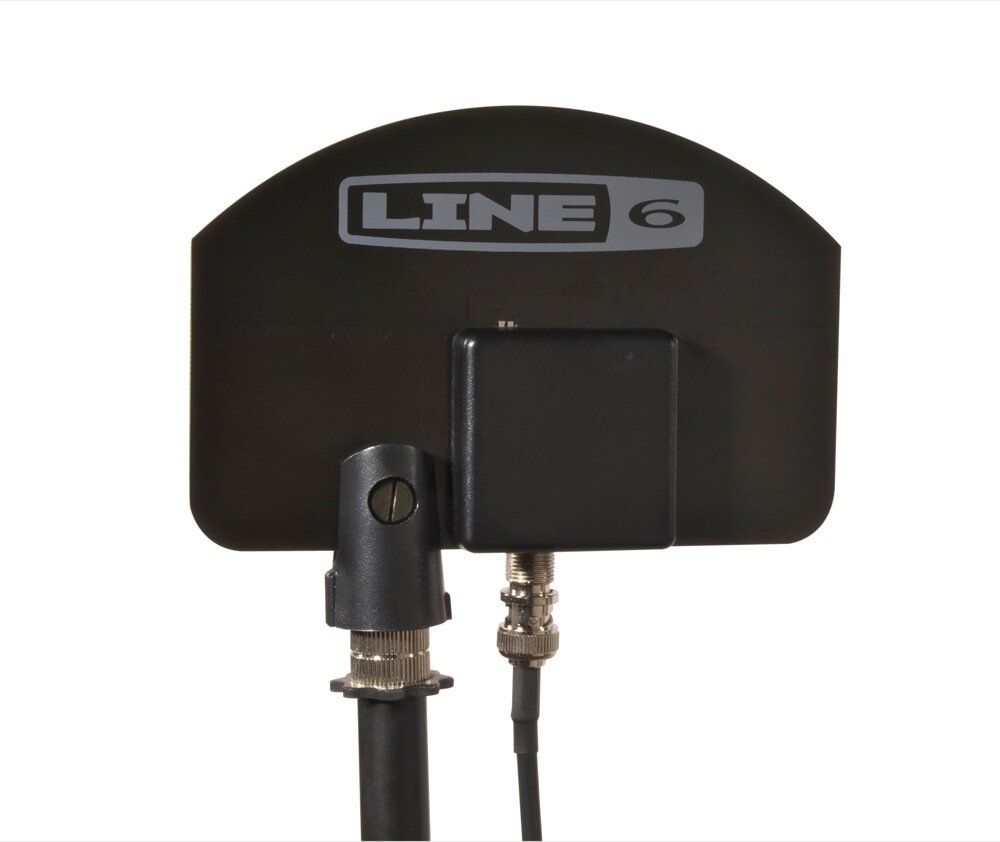

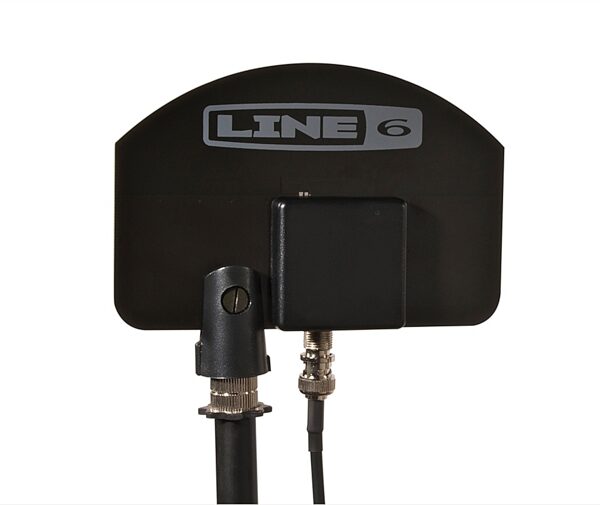

The Line 6 P360 Omni Active Antenna Pair of omni-directional paddle antennas with gain switch and microphone stand mount are for use with Line 6 XD V70 and Relay G90 digital wireless systems. It features a single inverted F design. To compensate for coaxial cable signal loss, the P360 has an on-board amplifier that offers user selectable 6dB, 15dB or 26dB of gain.
The gain setting is indicated in cable length increments 25' (6dB), 50' (15dB) and 100' (26dB) on the 'cable length selector' switch, which is located on the rear of the antenna. Remote 3 Vdc power for the antenna amplifier is provided by the Relay G90 receiver or XD V70 receiver through the connecting coaxial cable.
The Line 6 P360 can be mounted on a microphone stand using the integrated adapter.
The gain setting is indicated in cable length increments 25' (6dB), 50' (15dB) and 100' (26dB) on the 'cable length selector' switch, which is located on the rear of the antenna. Remote 3 Vdc power for the antenna amplifier is provided by the Relay G90 receiver or XD V70 receiver through the connecting coaxial cable.
The Line 6 P360 can be mounted on a microphone stand using the integrated adapter.
Specs
- Power Source: Remote 2.8 min - 3.6 max Vdc at antenna via cable connection to receiver
- Power Consumption: 0.2 W (3 Vdc)
- Antenna Gain: 3.3dB max
- Amplifier Gain: Gain Switch at 25': 6dB +/- 2dB
- Gain Switch at 50': 15dB +/- 2dB
- Gain Switch at 100': 26dB +/- 2dB
- Reception Pattern: Omnidirectional
- Connector: Female, BNC-type
- Dimensions: 5.85 inch x 3.9 inch
- Stand Adapter: Microphone clip standard 5/8 inch -27 thread
- Net Weight (without cable): 2.6 oz.
- Power Consumption: 0.2 W (3 Vdc)
- Antenna Gain: 3.3dB max
- Amplifier Gain: Gain Switch at 25': 6dB +/- 2dB
- Gain Switch at 50': 15dB +/- 2dB
- Gain Switch at 100': 26dB +/- 2dB
- Reception Pattern: Omnidirectional
- Connector: Female, BNC-type
- Dimensions: 5.85 inch x 3.9 inch
- Stand Adapter: Microphone clip standard 5/8 inch -27 thread
- Net Weight (without cable): 2.6 oz.
No longer available at zZounds
In most cases, a product is unavailable because it has been discontinued by the manufacturer
