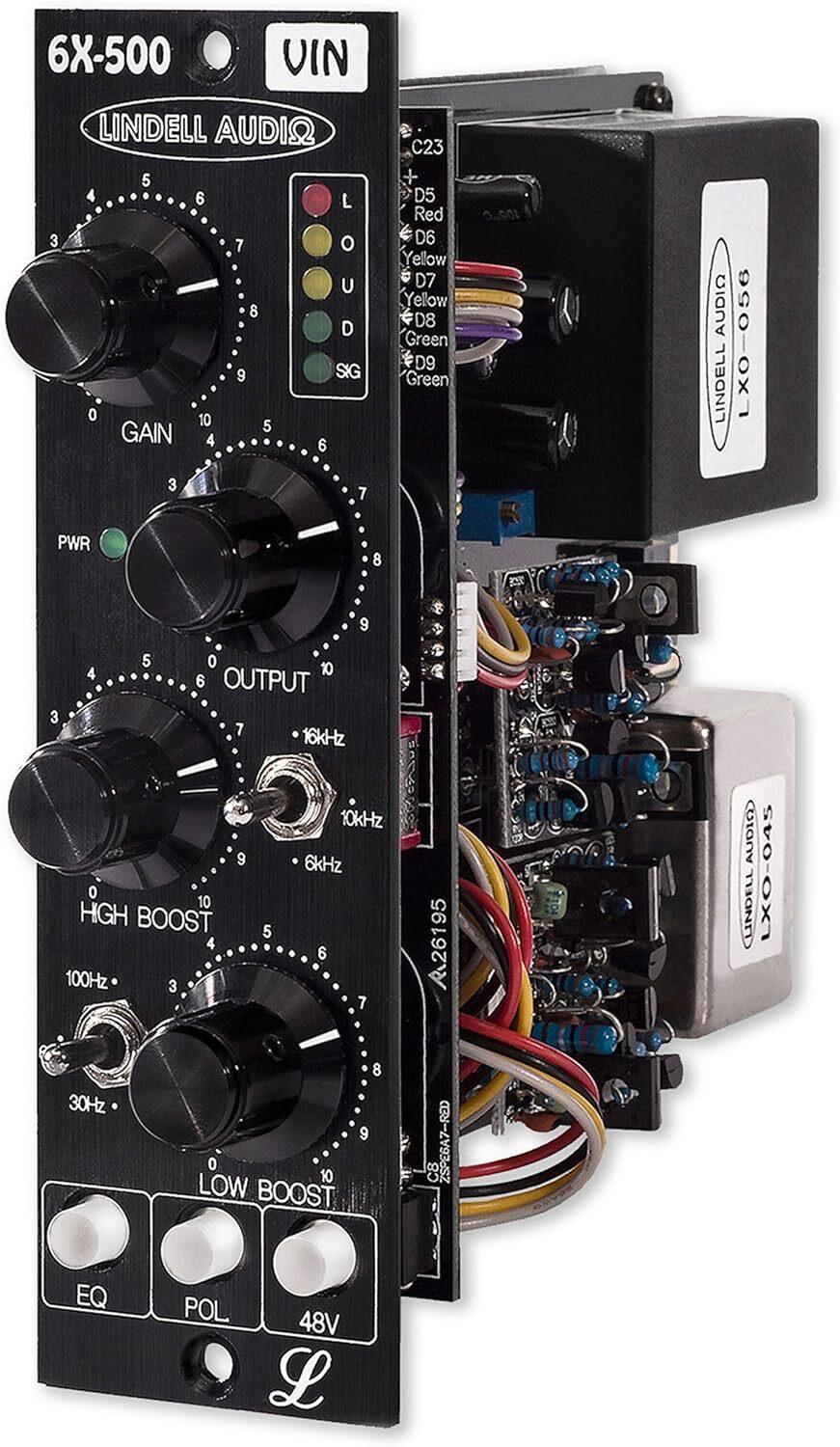

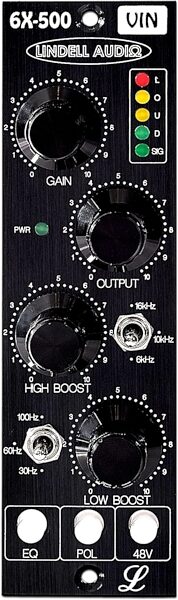

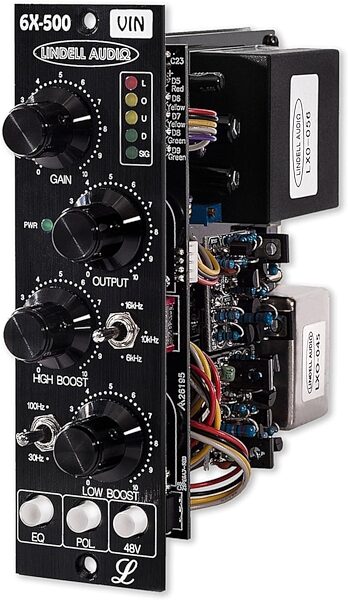

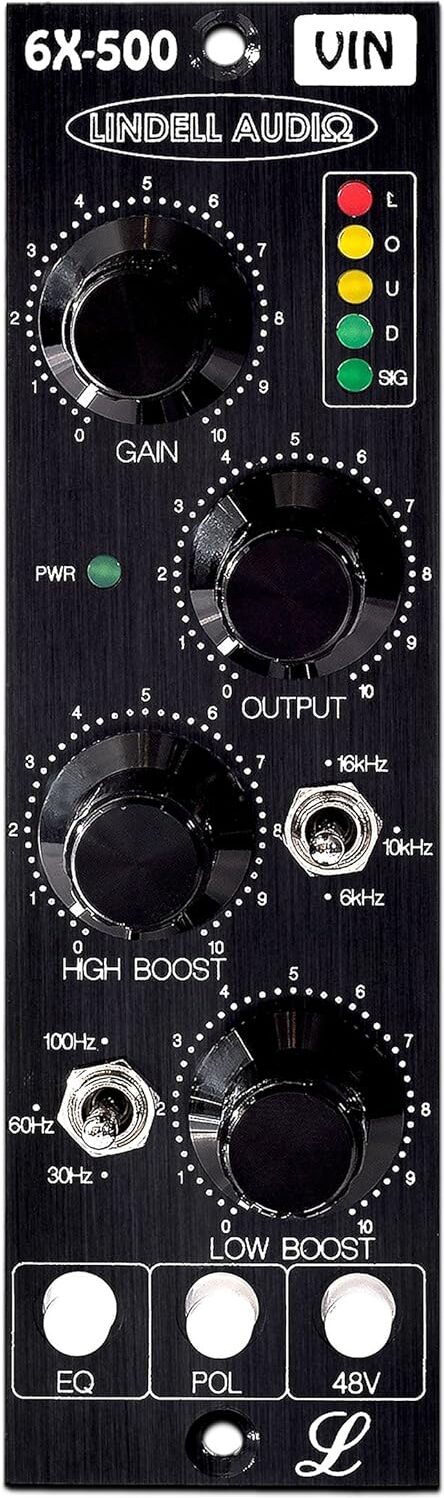

Lindell Audio 6X-500VIN 500-Series Mic Preamp/EQ

This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.
open zoom image for Lindell Audio 6X-500VIN 500-Series Mic Preamp/EQ, New, Action Position Back
open zoom image for Lindell Audio 6X-500VIN 500-Series Mic Preamp/EQ, New, Action Position Back
Lindell Audio 6X-500VIN 500-Series Mic Preamp/EQ, New, Action Position Back Lindell Audio 6X-500VIN 500-Series Mic Preamp/EQ, New, Action Position Back
zZounds Gear Experts Say...
Put some vintage bite in your 500-series rack with a preamp based on the classic Melcor 1731, and a Pultec-inspired 2-band EQ for broad-strokes tone shaping.

Lindell Audio's Vintage take on the magical classic Pultec design...
The 6X-500VIN "Vintage Edition" juices your 500 Series rack with a single-channel transformer-coupled mic preamp along with a passive 2-band Pultec-style equalizer. This all-discrete design, based upon the highly respected Vintage 1731 amplifier, gives you an EQ section with the magical sound of a classic Pultec. With a 15db boost of the silkiest high end you'll ever hear and stunningly punchy low end, you'll wonder how Lindell managed to stuff a Pultec into this little module. Arm your studio with the fast, in-your-face sound of the delightfully affordable 6X-500VIN.

Features:

- Transformer coupled Balanced inputs and Balanced Outputs
- Up to 65db of Gain
- Passive Pultec Equalizer. Inductor + 990 gain make-up amplifier
- 3 Step Switched Eq Low Freq Boost 30Hz, 60Hz, 100Hz +/-10%
- 3 Step Switched Eq High Freq Bosst 6kHz, 10kHz, 16kHz +/-10%
- Selectable High Boost Bandwidth on pcb
- Polarity Reverse
- Pin Compatible with 990&2520 type op-amps
- 48V Phantom Power
- All discrete Vintage OPA1731
- 5-LED VU Meters
- Gold Plated Pcb
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

- Channels: 1
- Input Connectors: XLR (Transformer Coupled Balanced)
- Output Connectors: XLR (Transformer Coupled Balanced)
- Gain Range: Up to 65dB
- Frequency Response: 20Hz - 20kHz
- Phantom Power: 48V
- Maximum Output Level: +28dBu
- Input Impedance: 2.4kΩ
- Output Impedance: 70Ω
- Power Requirements: 100mA

Dimensions and Weight in Packaging

Base Item

  • Shipping Weight: 1.7 lbs
  • Shipping Dimensions: 8 x 6 x 3 in
  • Manufacturer Part Number (MPN): 6x500VIN

For support or warranty questions, please contact the manufacturer:
Phone: 845-378-1266
Email: info@lindellaudio.com
Web: https://lindellaudio.com/en/tech-support
