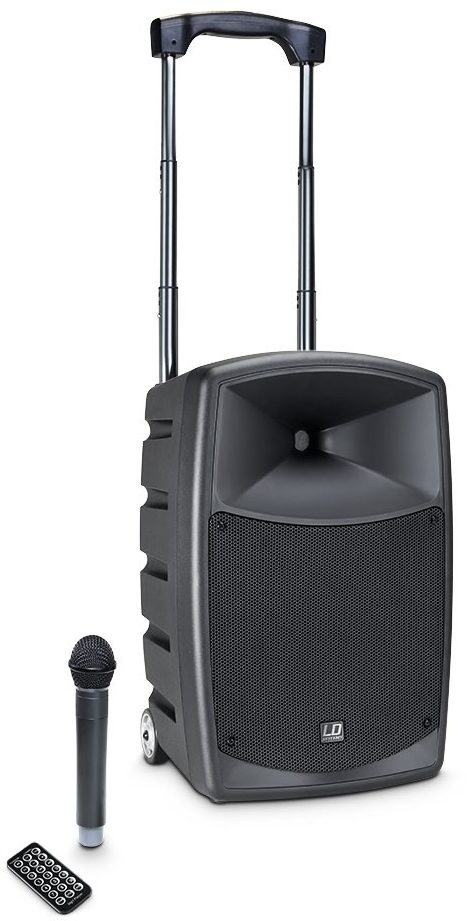

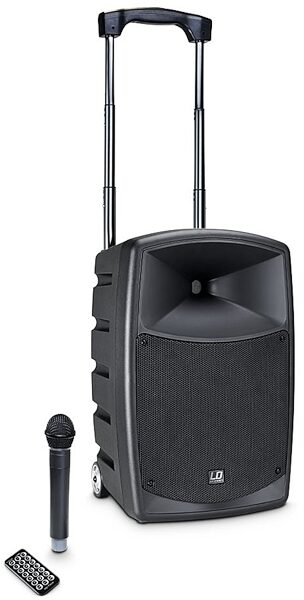

LD Systems RoadBuddy 10 B5 Battery-Powered Portable PA System

No longer available at zZounds

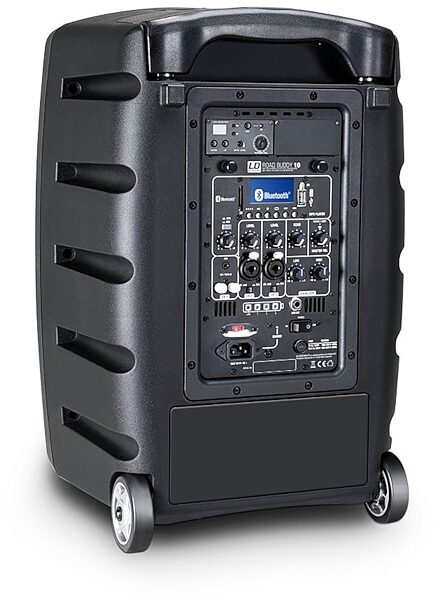

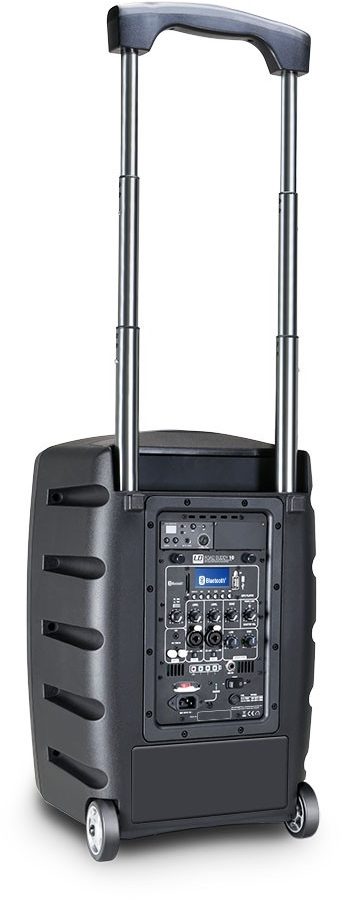

LD Systems RoadBuddy 10 B5 Battery-Powered Portable PA System, Back

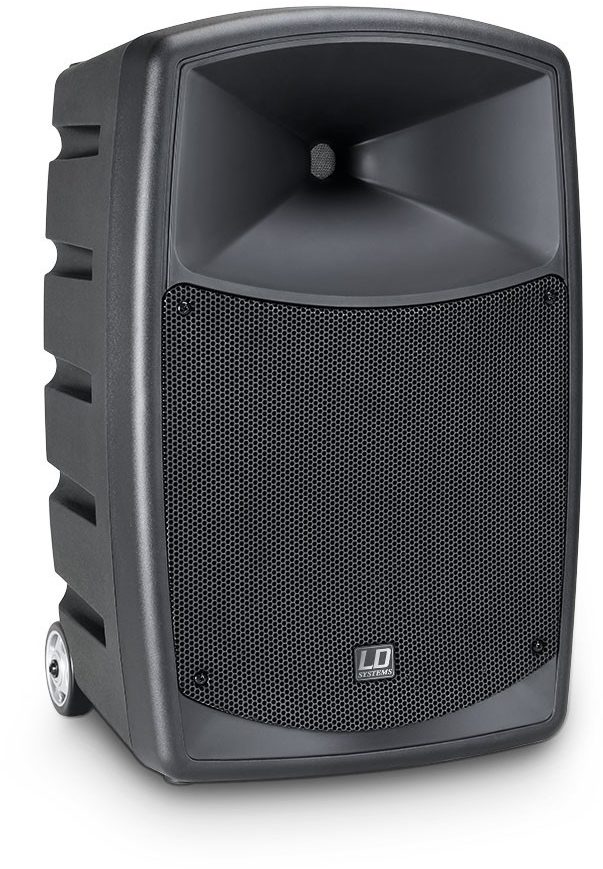

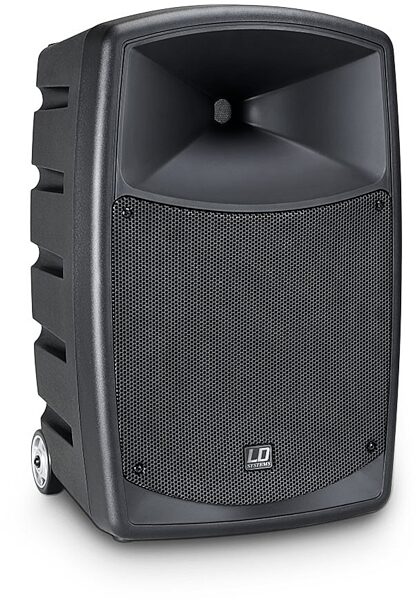

LD Systems RoadBuddy 10 B5 Battery-Powered Portable PA System, View

zZounds Gear Experts Say...

Bring a full-range PA system with you wherever you want to go. The LD Systems RoadBuddy 10 B5 uses UHF and Bluetooth for convenient, wireless operation.

Overview

The LD Systems RoadBuddy 10 B5 is an elegant solution for voice and music transmission on the go. The 2-way speaker with a 10" custom woofer and a 1" compression driver is operated with a rechargeable battery for up to 8 hours and is powered by a class D power amplifier with a highly efficient switching power supply and 480 watts of peak power.

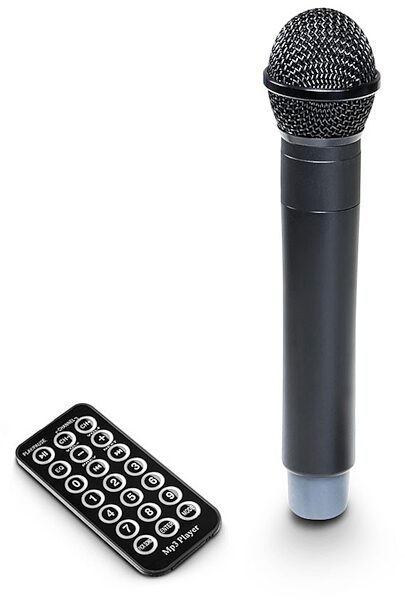

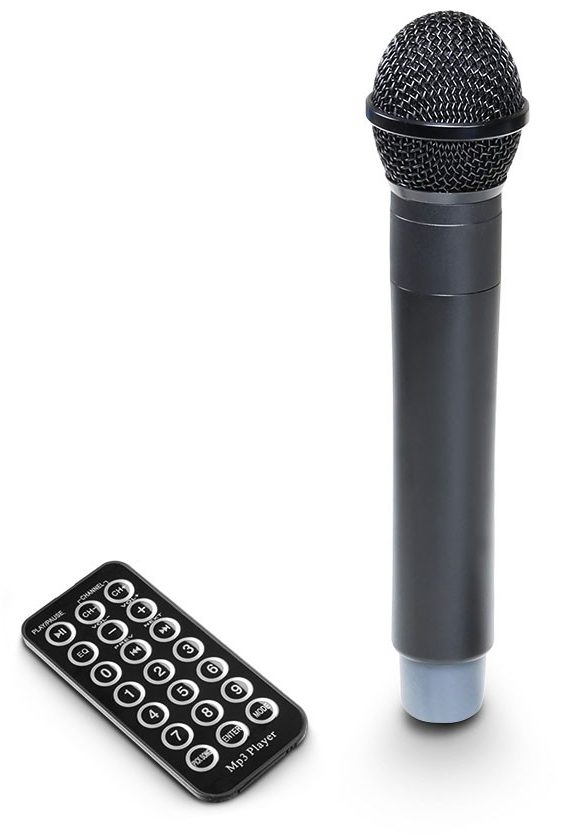

The Roadbuddy relies fully on wireless transmission: it has an UHF radio receiver which operates in the 584 -607 MHz range, and can be expanded with an additional system. The on-board Bluetooth player with backlit multifunction display, equalizer, USB port and SD card slot supports the mp3, wma and wav formats. A handheld microphone with 10 mW output power (LDRBUD10B5) or as an alternative a headset microphone with belt pack (LDRBUD10HSB5) and an IR-remote control for the player are included.

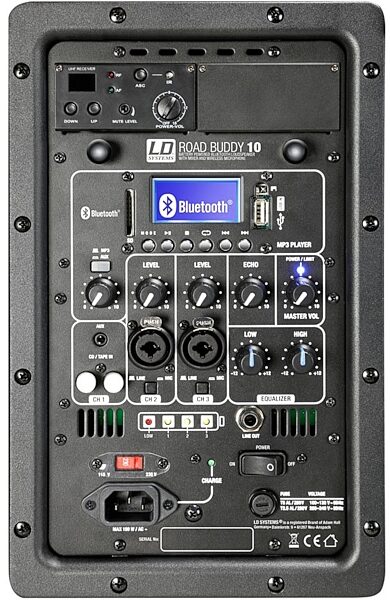

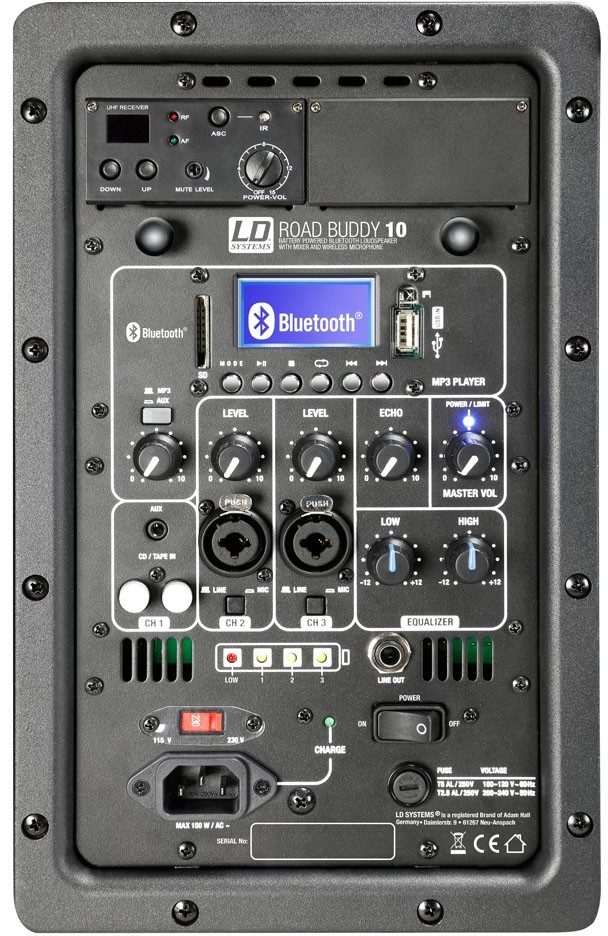

For wired devices, the Roadbuddy has two channels with combo jacks and individual volume controllers that are switchable for microphone and line level, a stereo input via RCA (Cinch) sockets (mono summed) and a 3.5 mm Aux input. Treble, Bass, Echo and Master Volume controllers complete the control panel.

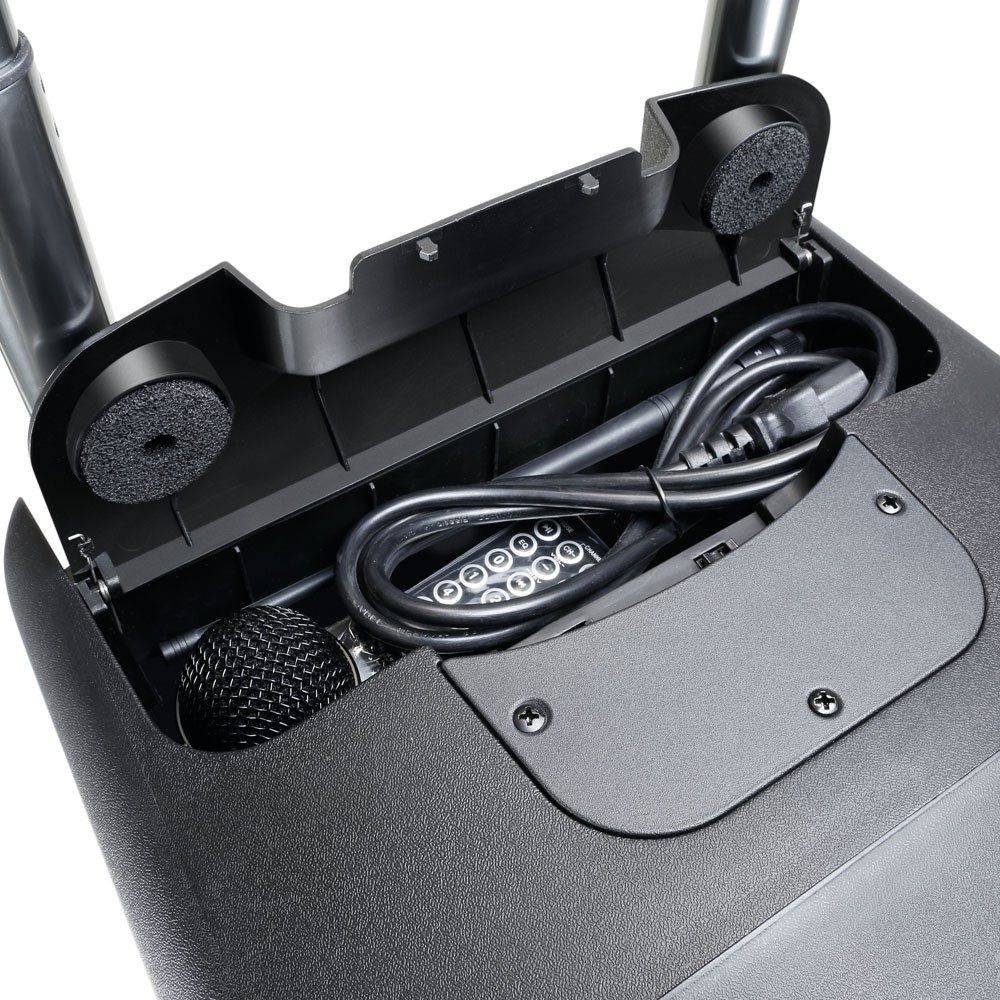

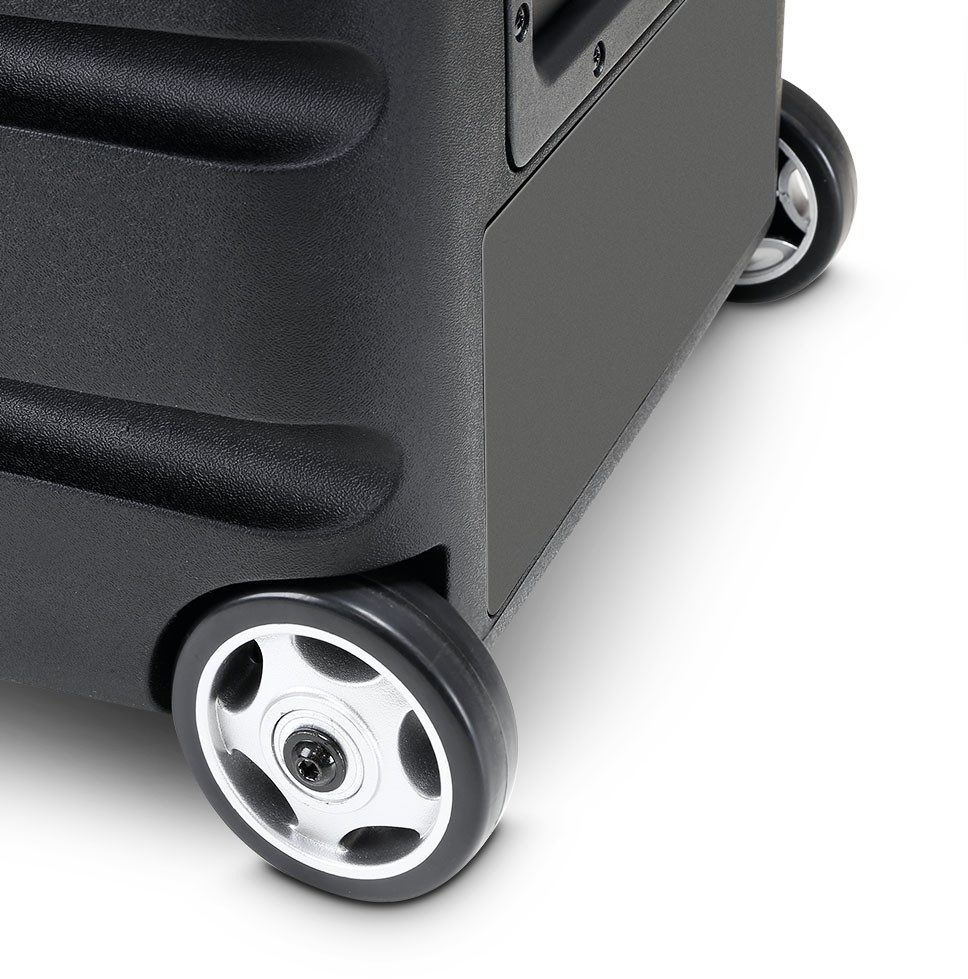

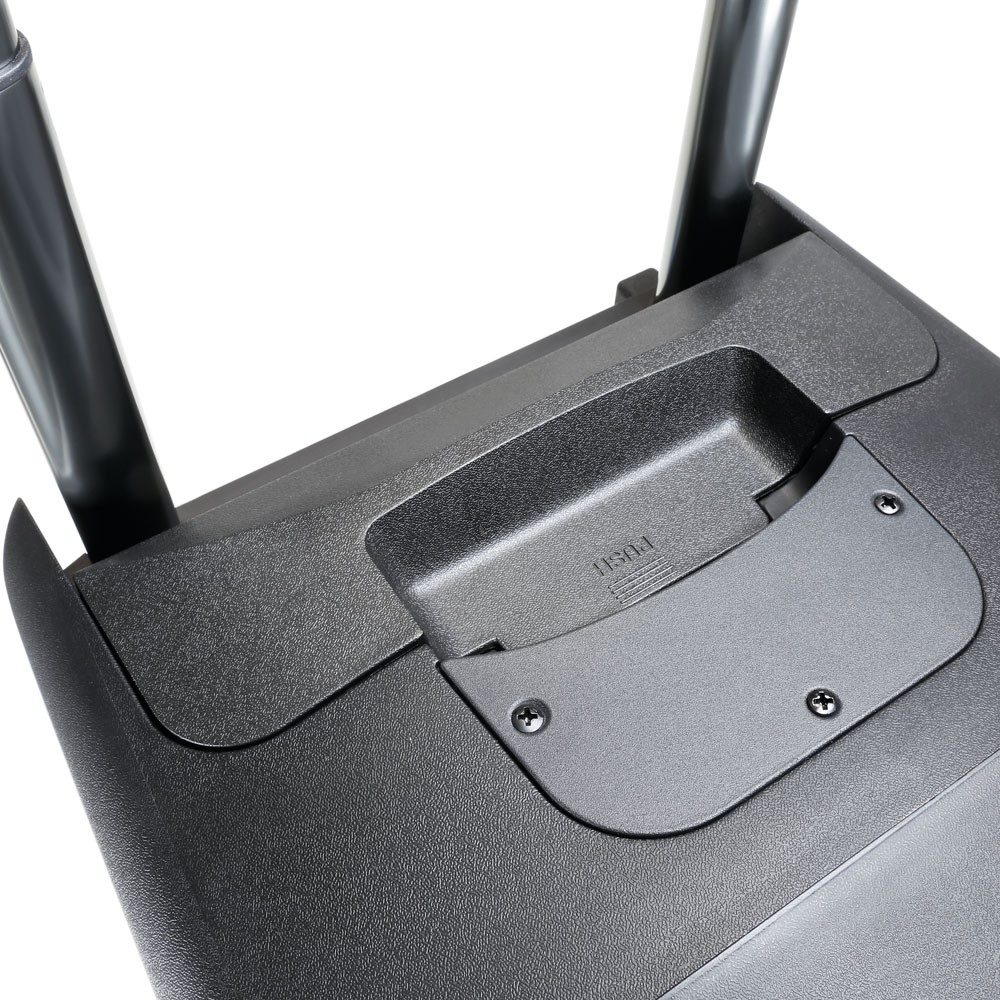

The LD Systems Roadbuddy is easily transportable thanks to built-in castor wheels and a pull-out handle. On the top, there is a handy storage compartment for up to two hand-held transmitter microphones. The plastic housing of this lightweight device has been designed to accommodate a 35 mm tripod mount.

Specs

Product type: Battery-powered PA speaker
Low/mid driver dimensions: 10"
Woofer size: 254mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
HF driver dimensions: 1"
HF Driver Size: 25.4mm
HF driver magnet: Ferrite
HF driver brand: Custom-made
Amplifier: Class D
RMS: 120W
Peak power: 480W
Frequency response: 55 - 18000Hz
SPL (1W/1m): 96dB
Max. SPL: 115dB
Protection circuits: over-current, thermal overload, short circuit
Controls: AUX / MP3 switch, Echo, low, Total volume, CD / Tape IN Level, Mic 1 Level, Mic 2 Level, high
Indicators: Charge/battery status, Power

Media player:
- Supported media: Bluetooth, SD Card, USB stick
- Supported formats: WAV-CD, WMA file, MP3 file
- Media player controls: Mode (Menu / Bluetooth /SD / USB), Stop, Play / Pause, equalizer, Previous Track, Next Track, Repeat
- Media player display elements: Lighted multifunctional LC display

Line inputs: 1
Line input connectors: 6.3 mm jack, 2 x XLR, 2 x RCA, 3.5 mm jack
Mic inputs: 2, 2 x XLR, 6.3 mm jack

Wireless Unit:
- Transmission frequency range: 584 - 607MHz
- Modulation Type: FM
- Channels: 16
- Frequency Response Wireless Unit: 50 - 17000Hz
- Controllers Wireless Unit: Value Up, Mute Level (Squelch), Value Down, ASC, Power / Volume
- Indicators Wireless Unit: AF (LED), LED Display, RF (LED)
- Connections Wireless Unit: nTNC for receiver antenna
- RF Transmitter Power Output: 10mW
- Handheld Microphone Weight: 0.285kg
- Handheld Microphone Material: Aluminum
- Operating voltage: Switching power supply, 220 V - 240 V AC / 50 Hz
- Rechargeable batteries: 12 V / 5 Ah

Cabinet material: Polypropylene
Cabinet construction: Vented
Width: 415mm
Height: 525mm
Depth: 328mm
Weight: 16,5kg
Other features: Transport casters, extendable handle, IR Remote for Media Player, transport handle, Stand mount 36 mm
