LD Systems MIX 6 A G3 Powered Portable PA System

Featuring a 4-channel mixer with built-in effects and a 6.5" woofer, the LD Systems Mix 6 A G3 is ideal for use as a small PA or personal monitor speaker.

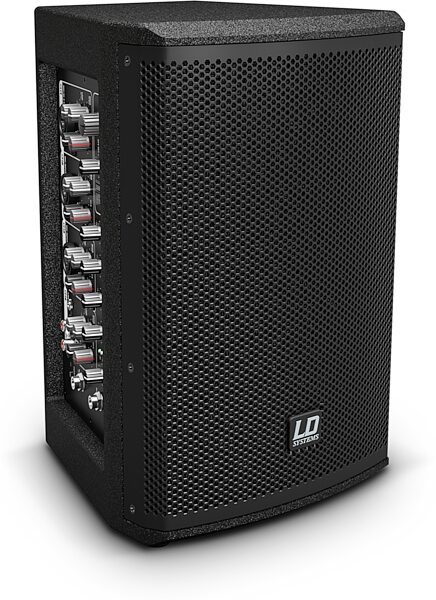

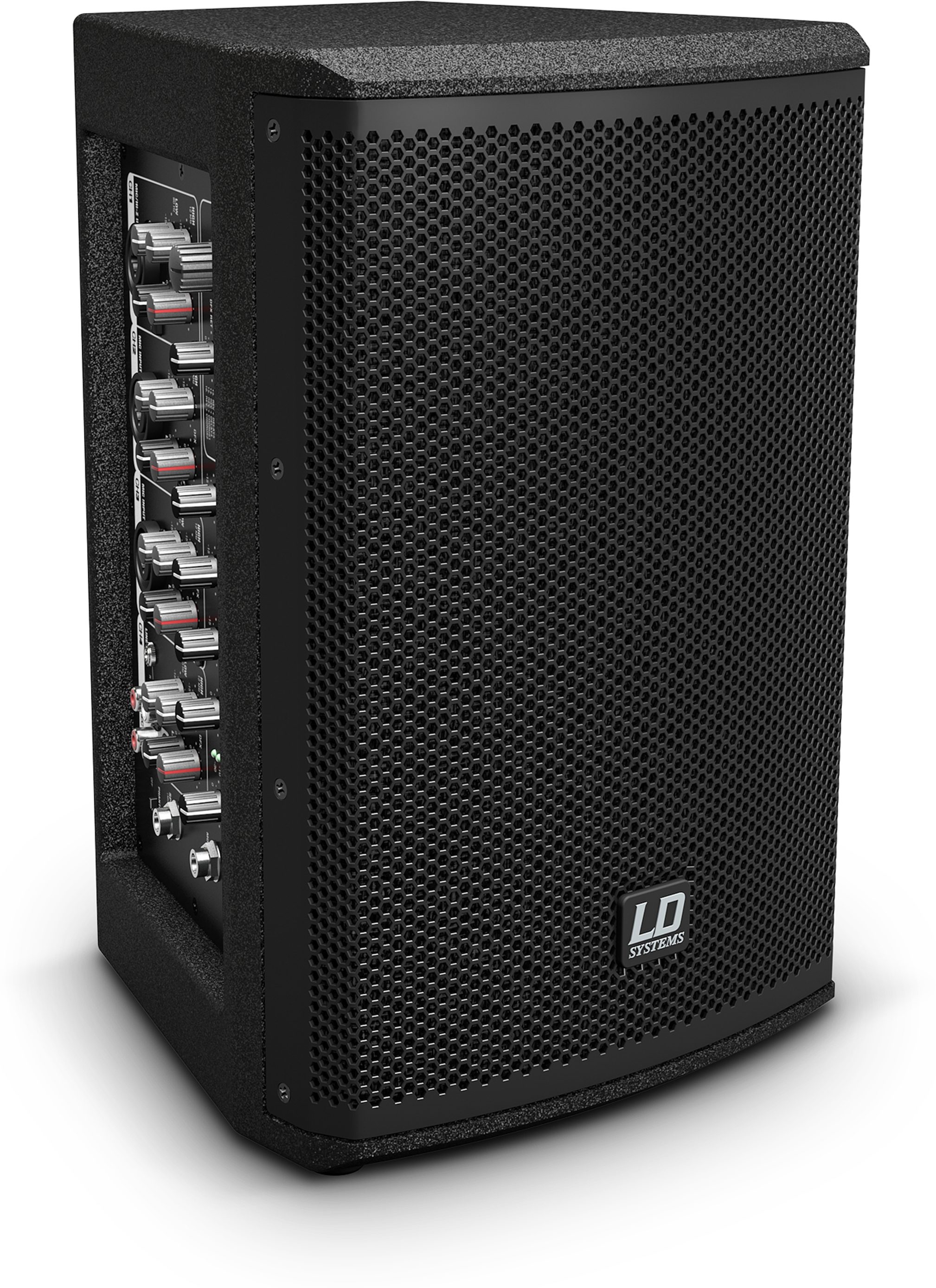

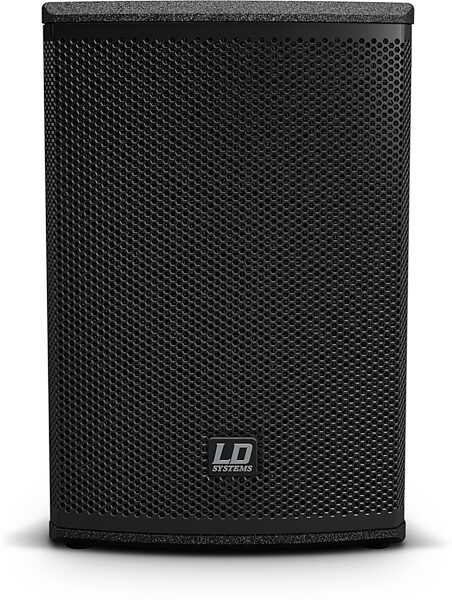

The ideal choice for small-scale PA and personal monitoring applications, the active LD MIX 6 A G3 integrates a 4-channel mixer and Class D amplification with 2 x 280 watts peak power. The compact bass reflex loudspeaker features a 6.5" custom woofer and 1" HF driver complement, 80 Hz to 20 kHz frequency response and 80 degrees x 70 degrees dispersion delivering crystal clear sound with punch and detail.

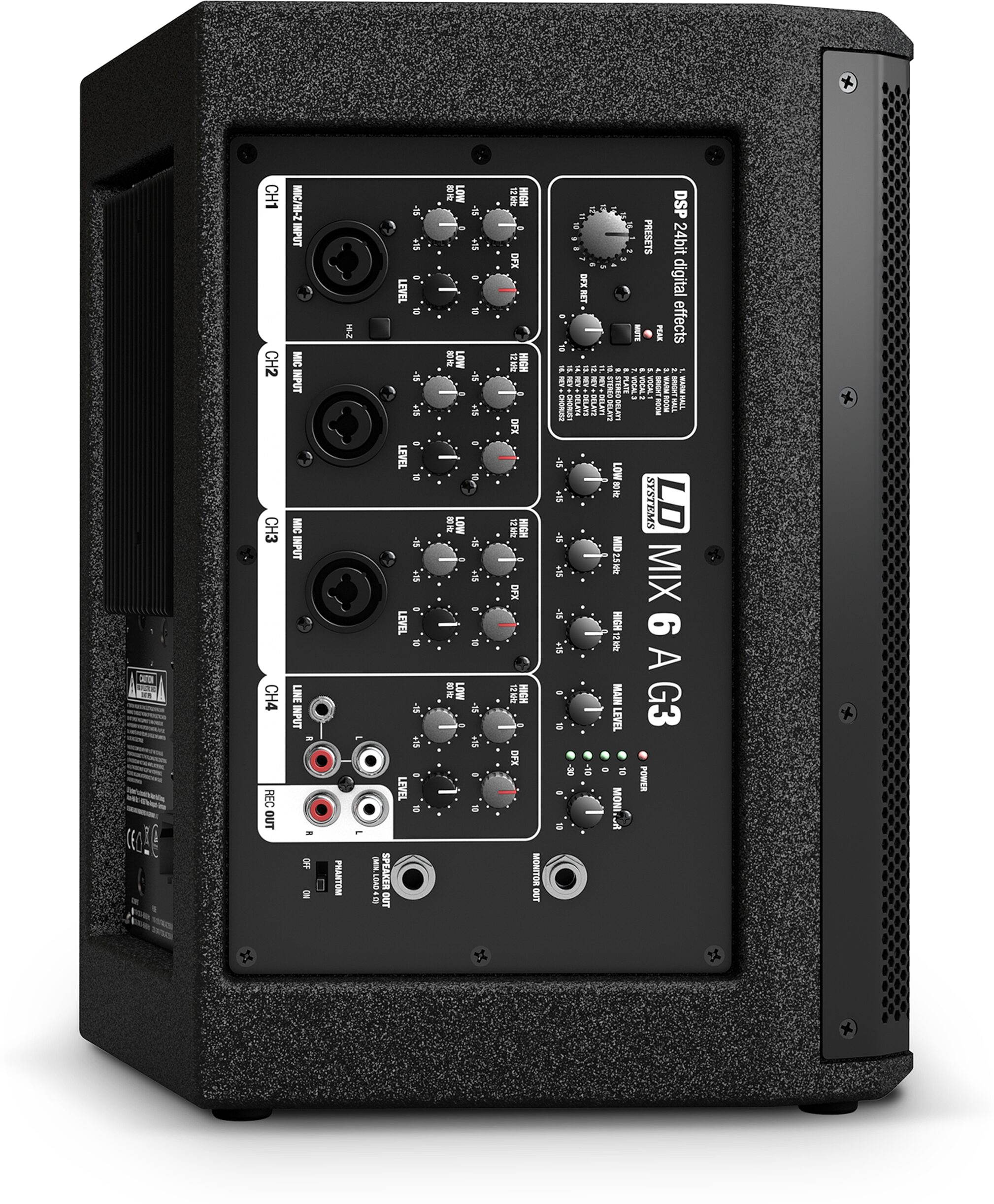

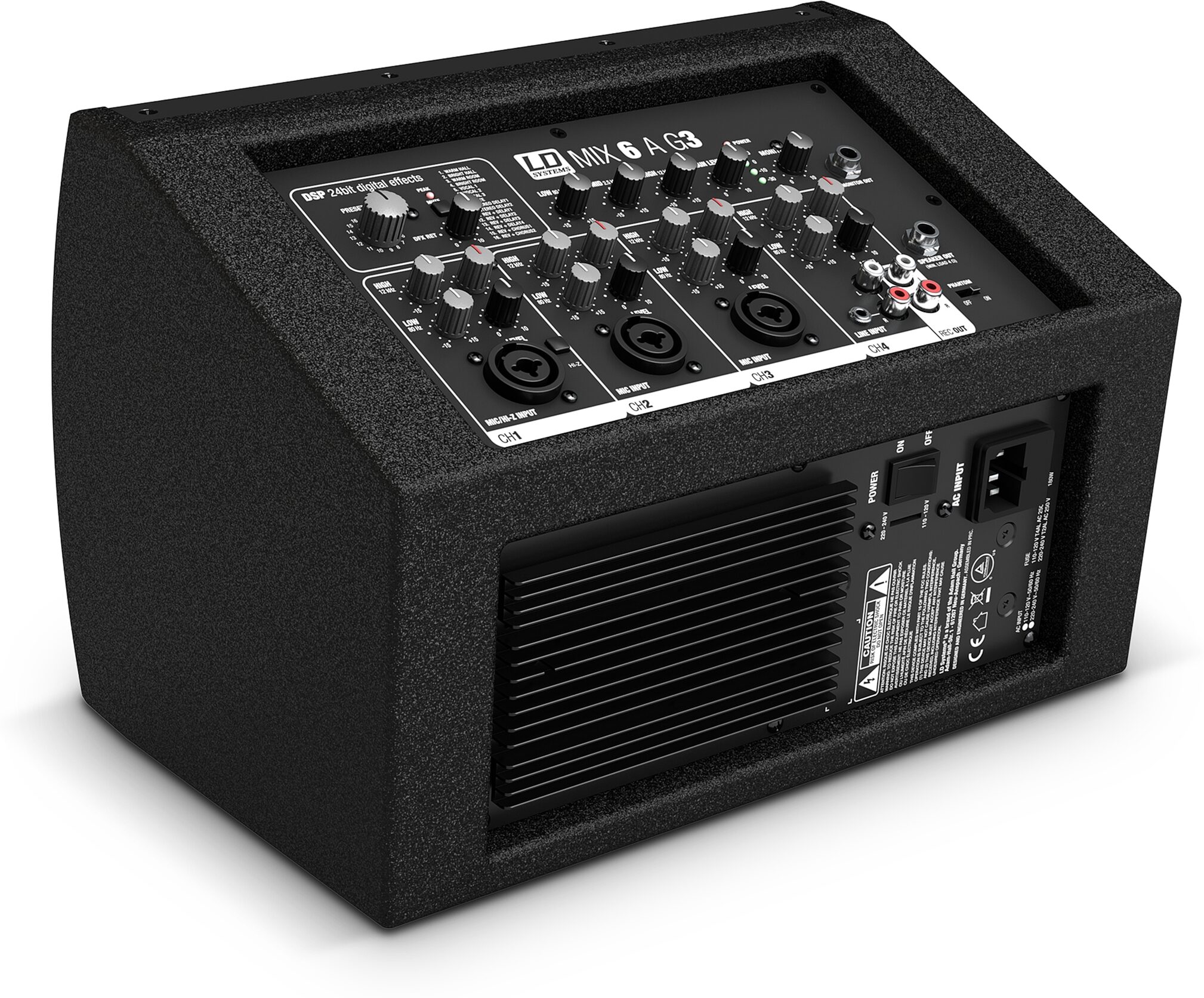

Accommodating a wide variety of input sources including electric instruments, smartphones, tablets, MP3 and CD players, the built-in mixer provides 3 microphone channels and a stereo line channel with 2-band EQ each plus switchable hi-Z input and 15 V phantom power. The output section includes a 3-band master EQ for overall tone shaping, 4-segment LED metering, an adjustable monitor and RCA recording outputs. In addition, the LD MIX 62 A G3 sports a DSP with 16 effect presets, limiter and overcurrent, overload, short circuit and thermal protection. A 4 ohm slave output allows powering the passive LD MIX 6 G3 for a dual speaker setup.

The rigid MDF enclosure features two 16 mm pole mounts for horizontal or vertical orientation. On its own or in tandem with the passive unit, the LD MIX 62 A G3 provides amazing performance and versatility in a lightweight, easily portable package.

Features:

- Class D amplification with 2 x 280 watts peak power
- 6.5” custom read more woofer and 1” HF driver
- Integrated 4-channel mixer
- 24-bit DSP with 16 FX Presets
- Slave output for combination with LD MIX 6 G3 passive loudspeaker
- Bass reflex enclosure for powerful, punchy bass

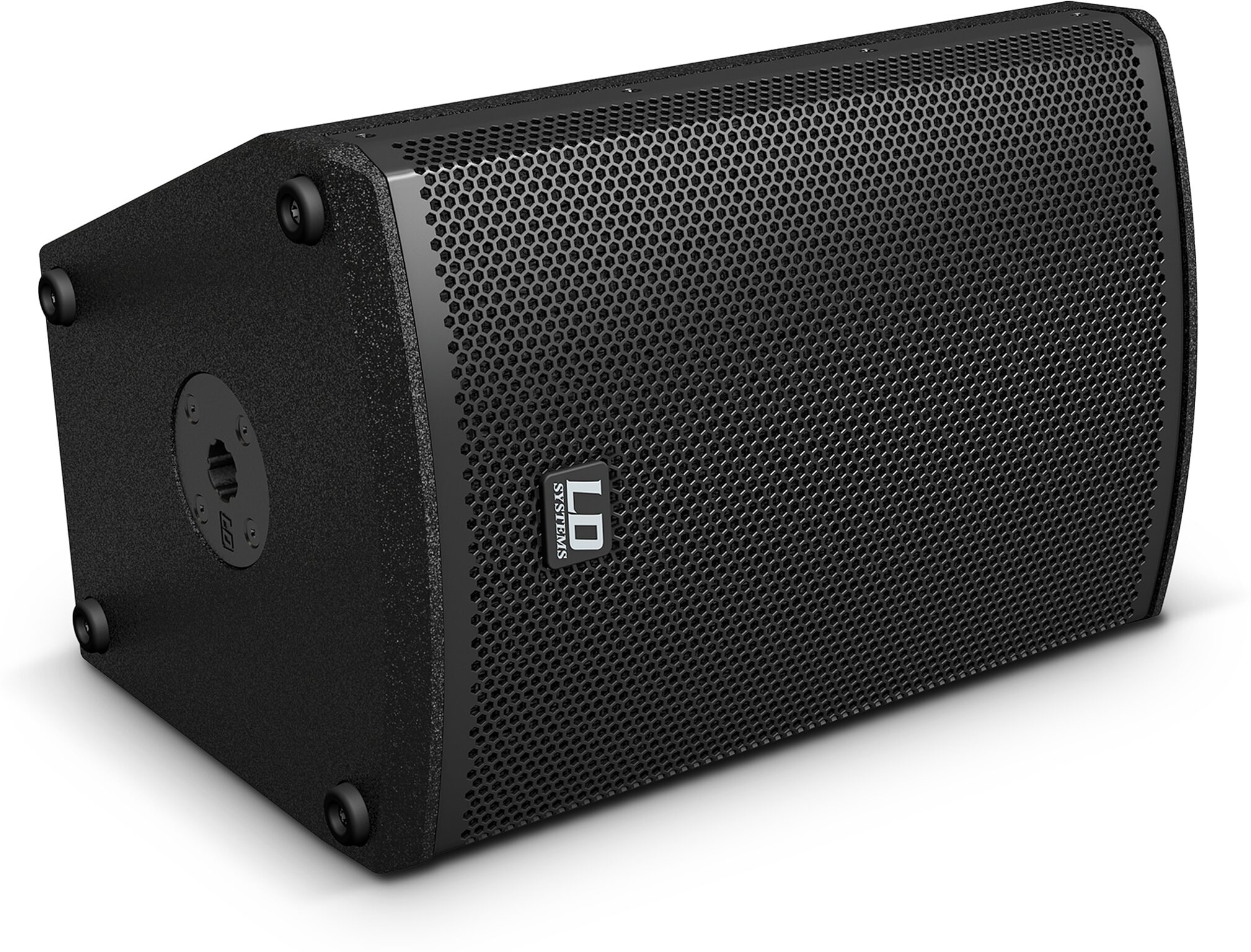

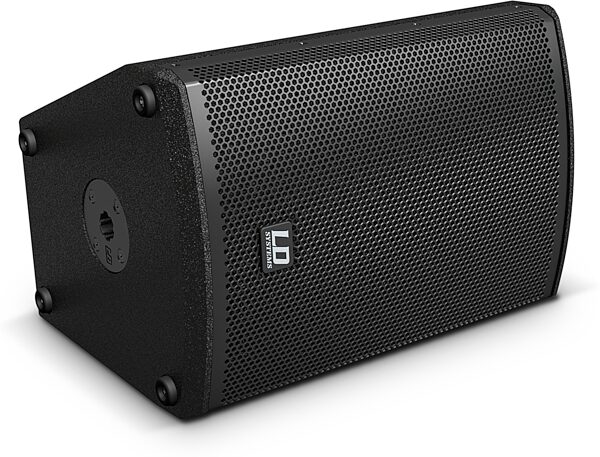

- Dual 16 mm pole mounts for horizontal or vertical orientation
read less

- Type: active
- Woofer dimensions: 6.5"
- Tweeter dimensions: 1"
- Dispersion (H x V): 80 x 70 degrees
- Frequency response: 80 - 20,000 Hz
- Amplifier: Class D
- Amplifier output (RMS): 2x70 W
- Amplifier output (peak): 2x280 W
- Max. SPL: 122 dB
- Protection circuits: ICL (Intelligent Clip Limiting), over-current, overload, short circuit, thermal overload

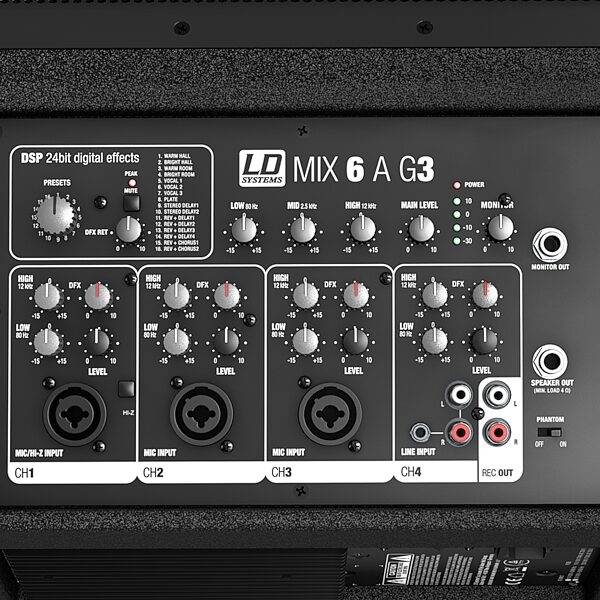

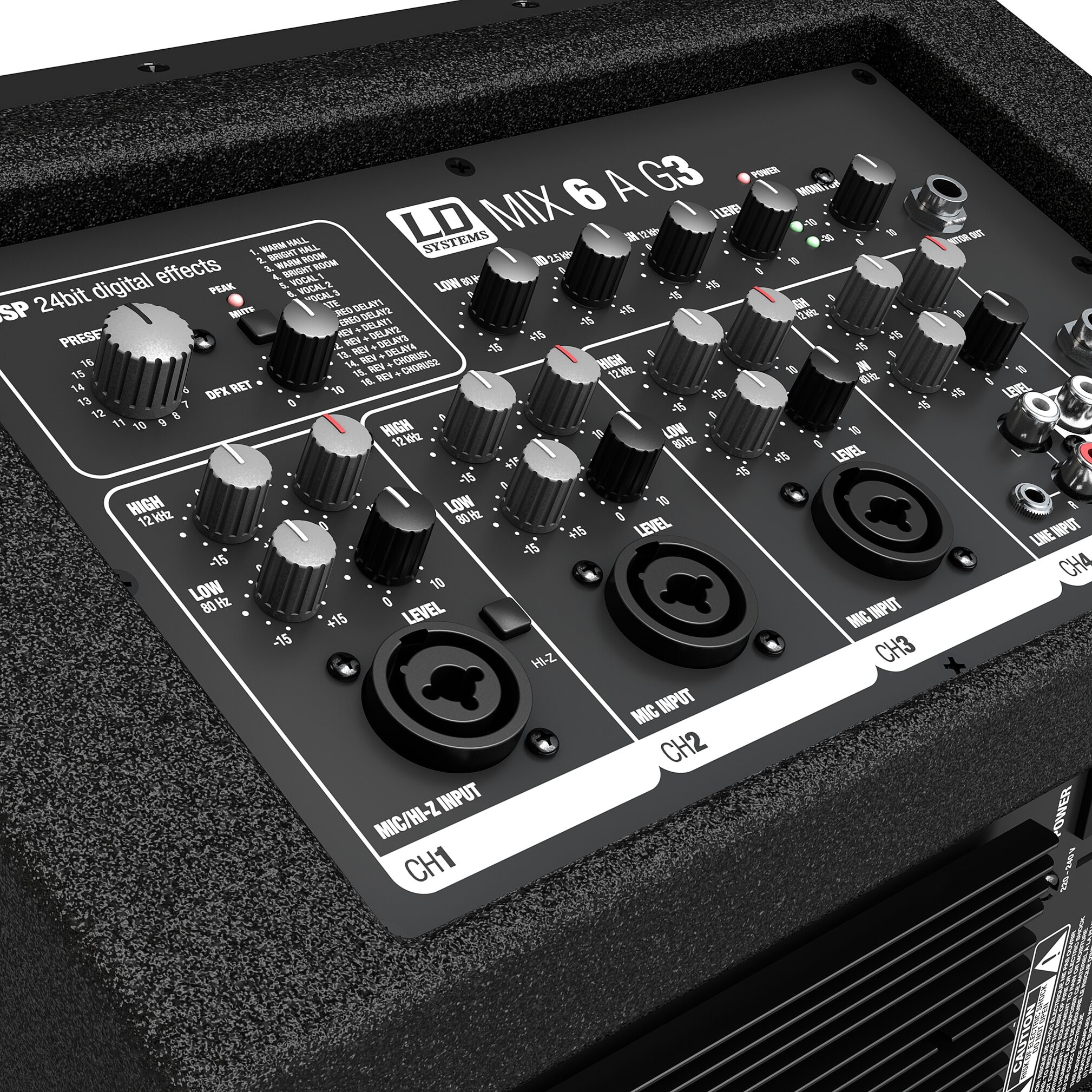

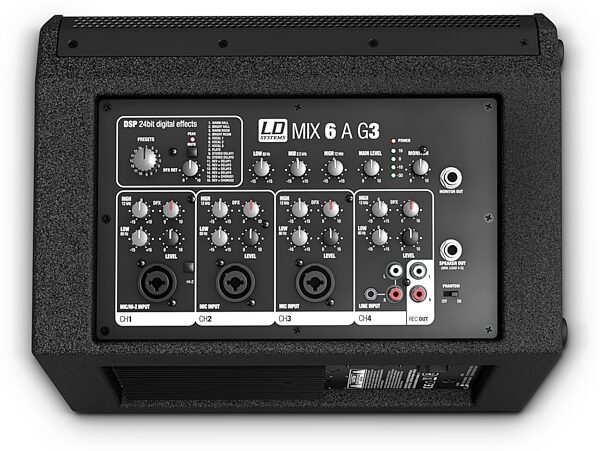

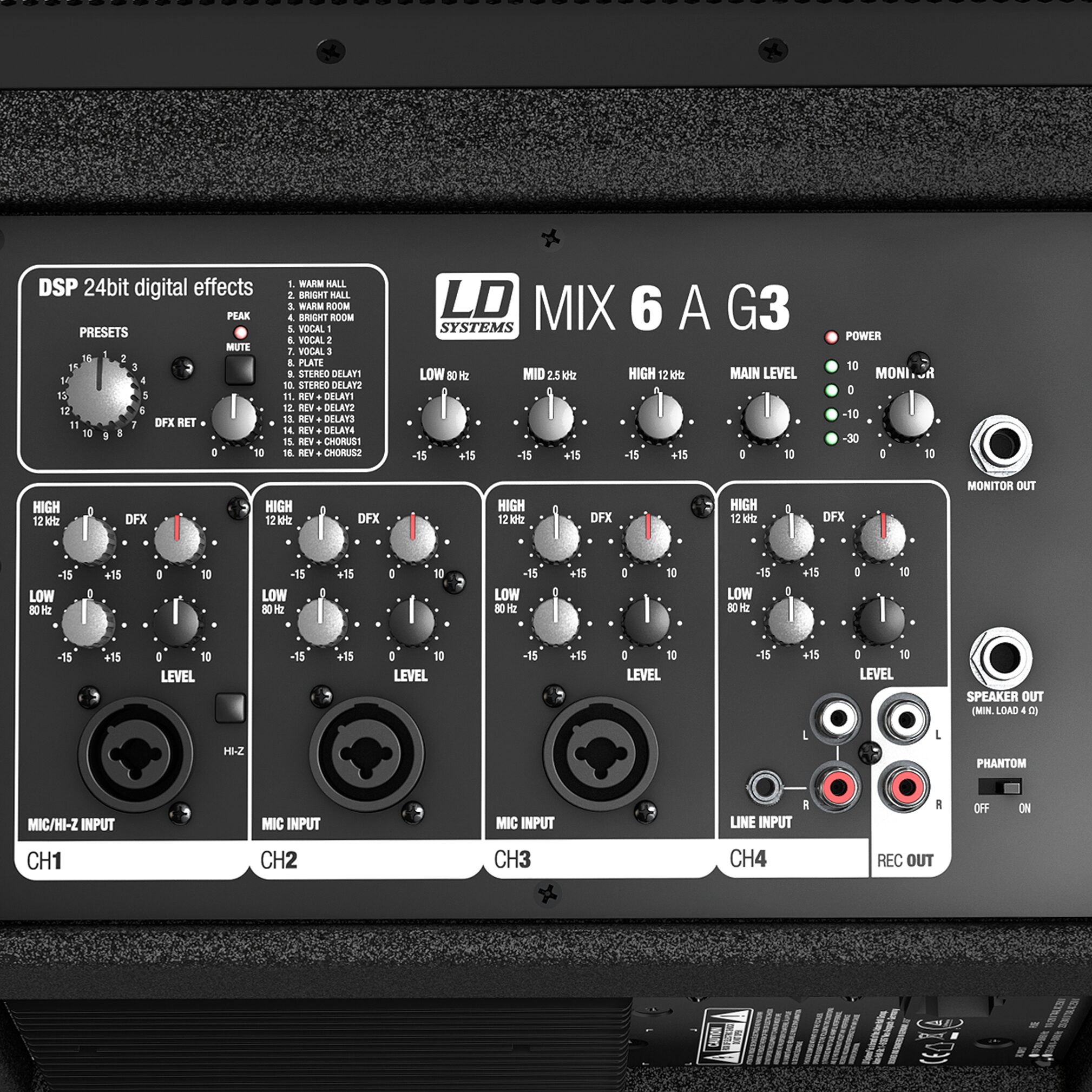

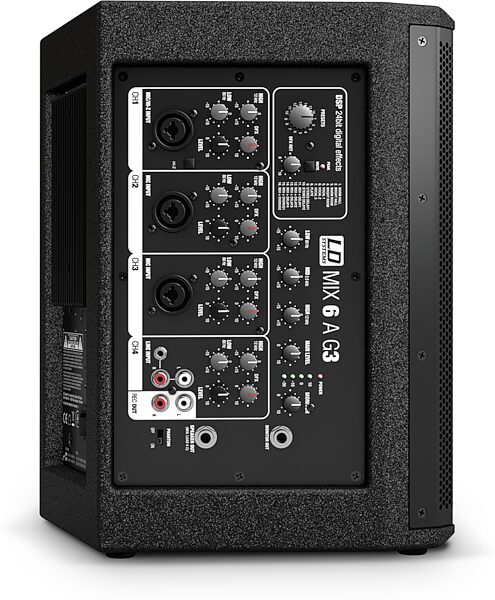

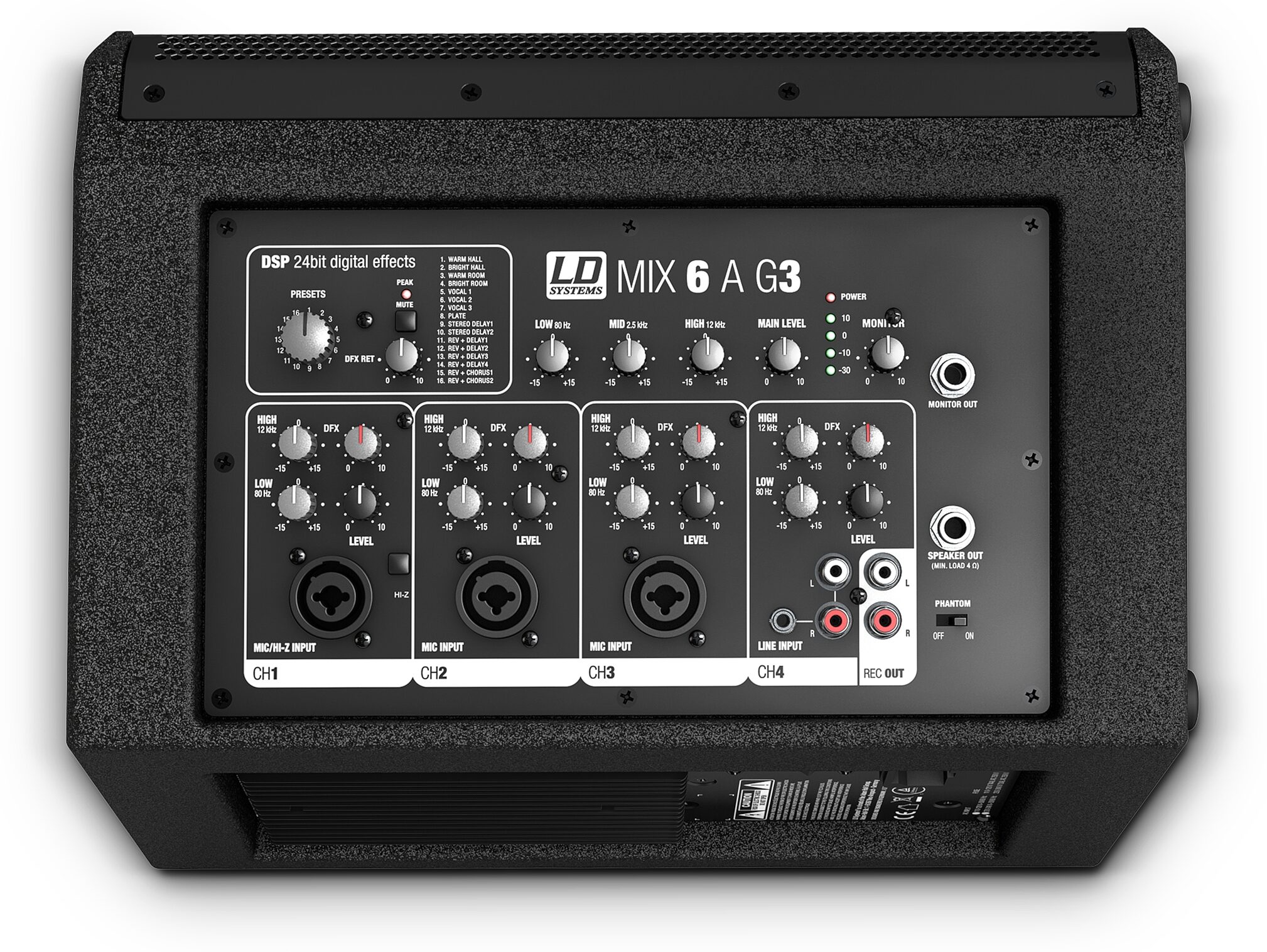

Mixer:
- Channels: 4
- Mic inputs: 3
- Mic inputs: 1/4-inch, XLR
- Mic Input Controls: DFX Send, EQ Hi, EQ Low, Hi-Z Switch (channel 1 only), level
- Mic Input Impedance: 14 kOhm
- Mic Input Sensitivity: 70 mV
- Line input connectors: 2 x RCA
- Line Input Controls: DFX Send, EQ Hi, EQ Low, level
- Line Input Impedance: 4.4 kOhm
- Line Input Sensitivity: -5 dBu
- Hi-Z input: 1 x 1/4-inch jack
- Hi-Z Input Connector Impedance: 100 kOhm
- Monitor Line Output: 2 x RCA
- Monitor Line Output Controls: Monitor Volume
- Monitor Line Output Max Leve: 28 dBu
- Record Output: 2 x RCA
- Increased power main output (at 4 ohm): 70 W

DSP Digital Effects Unit:
- DSP Number of Programs: 16
- DSP Controls: DFX Return , Mute switch
- DSP Display Elements: Peak LED

Main Section:
- Main section controls: EQ Hi, EQ Low, EQ Mid, Master Volume, Phantom Power, voltage selector switch
- Main section indicators: 4-segment Level Meter, power LED
- Phantom power: 15 V

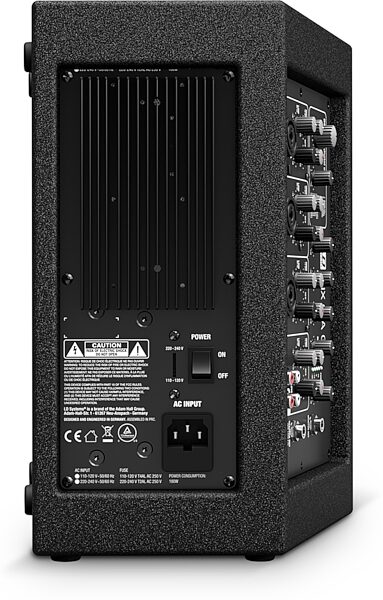

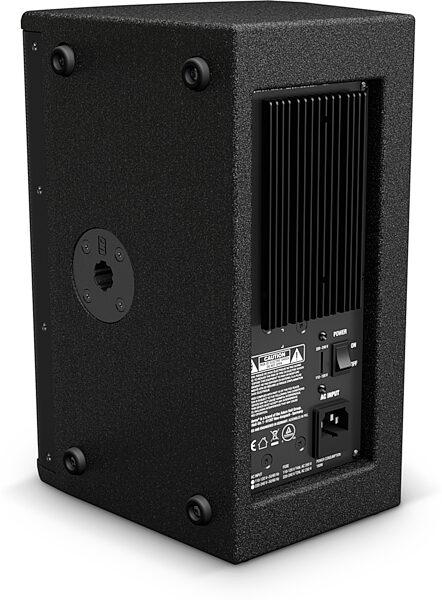

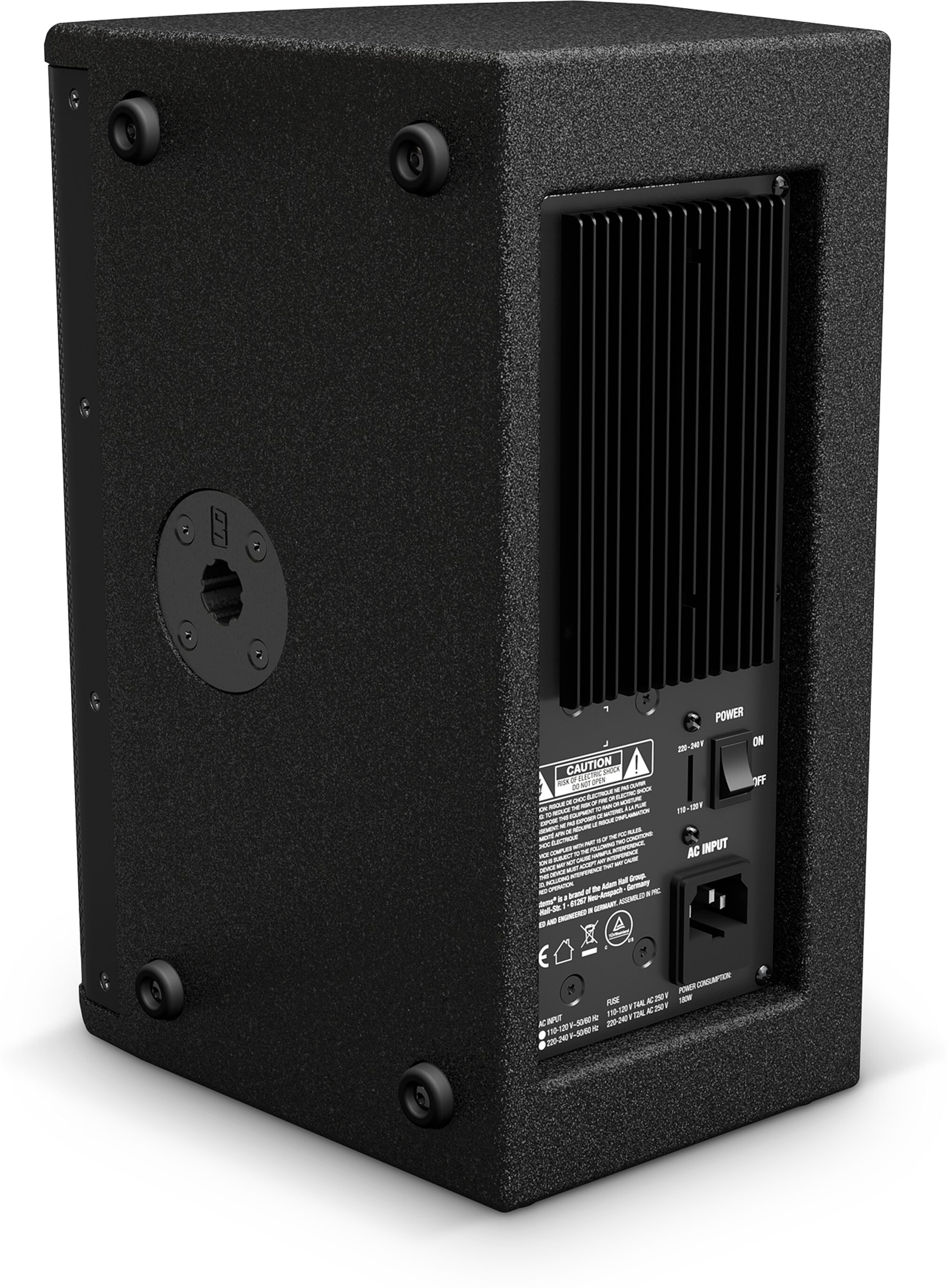

- Mains connector: IEC socket
- Operating voltage: 110 - 120 V ~ 50/60 Hz or 220 - 240 V ~ 50/60 Hz, switchable
- Power consumption: 180 W

Cabinet:
- Cabinet construction: vented
- Cabinet material: MDF
- Cabinet surface: texture paint
- Width: 8.42"
- Height: 12.7"
- Depth: 8.7"
- Weight: 15.4 lbs
- Other features: 2 x 16 mm pole mount socket, rubber feet
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 18.25 lbs
Shipping Dimensions: 16 x 11 x 11 in
Manufacturer Part Number (MPN): LDS-MIX6AG3
