LD Systems MIX 10 A G3 Powered PA System

The LD Systems Mix 10 A G3 is perfect for self monitoring, or as a small-scale PA rig. It features a 7-channel mixer with built-in effects, and a 10" woofer.

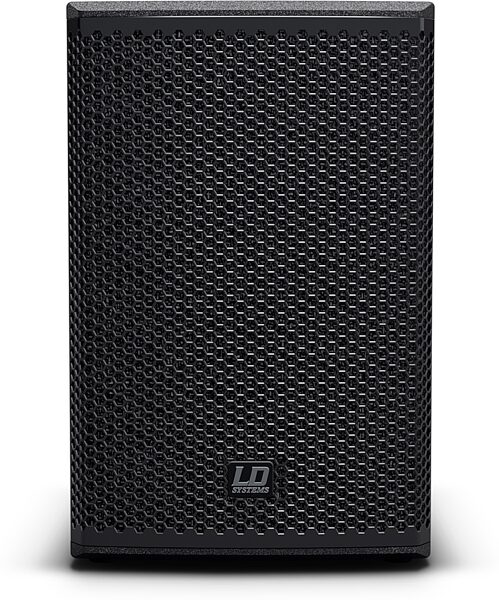

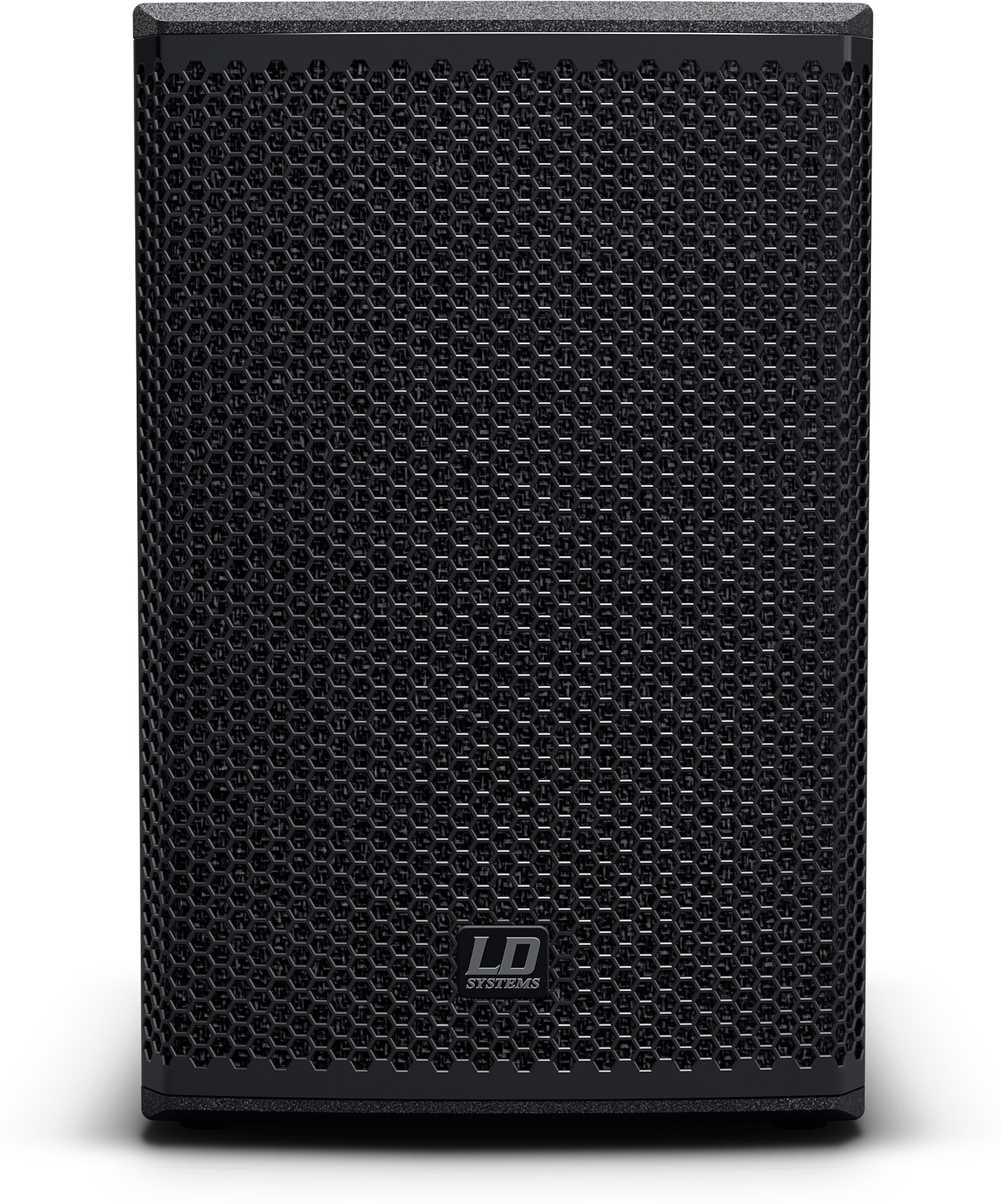

The ideal choice for small-scale PA and personal monitoring applications, the active LD MIX 10 A G3 integrates a 7-channel mixer and Class D amplification with 2 x 400 watts peak power. The compact bass reflex loudspeaker features a 10" custom woofer and 1" Celestion HF driver complement, 65 Hz to 20 kHz frequency response and 90 degrees x 60 degrees dispersion delivering crystal clear sound with punch and detail.

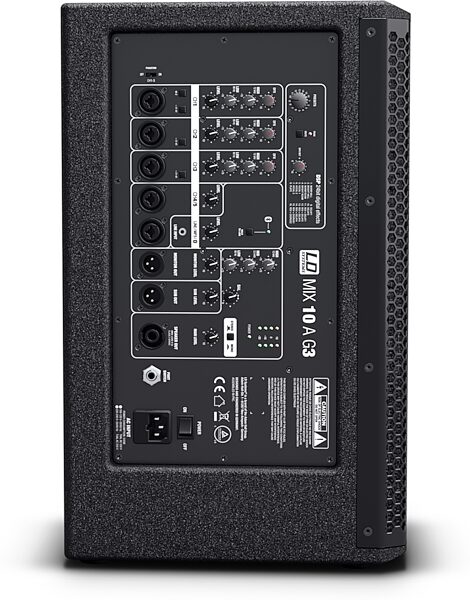

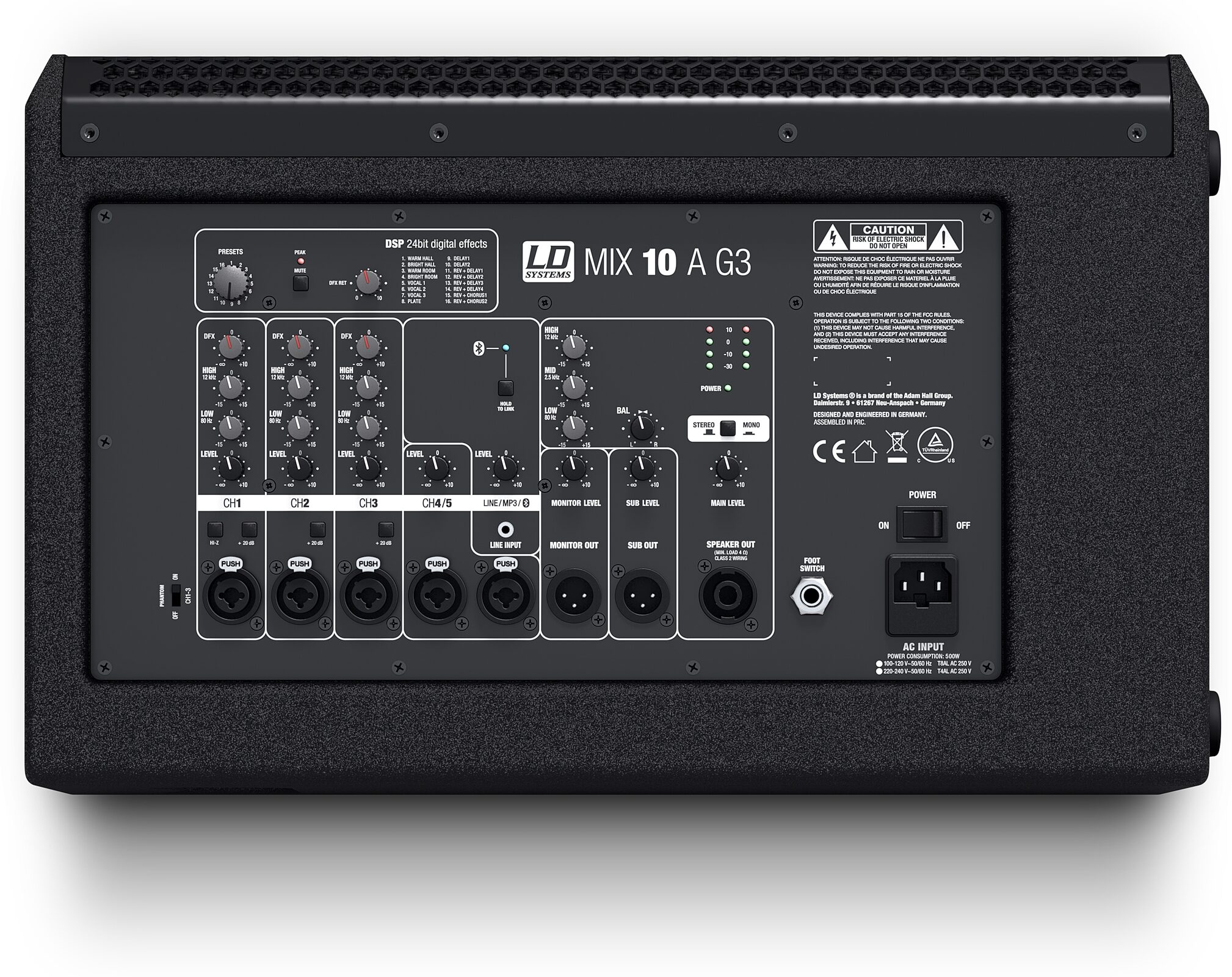

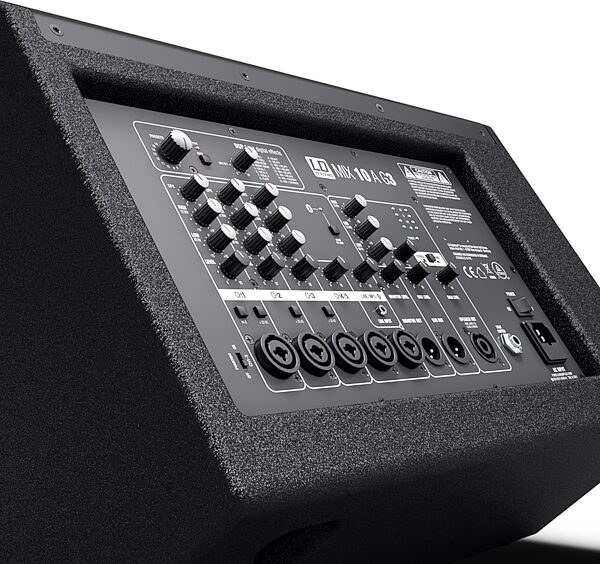

Accommodating a wide variety of input sources including electric instruments, smartphones, tablets, MP3 and CD players, the built-in mixer provides 3 microphone channels with 2-band EQ, 48 V phantom power plus switchable hi-Z input (CH1) and stereo line channel. The output section includes a 3-band master EQ for overall tone shaping, 4-segment LED metering and XLR monitor and subwoofer outputs. In addition, the LD MIX 10 A G3 sports a DSP with 16 effect presets, limiter and over current, overload, short circuit and thermal protection. A speakON output allows powering the passive LD MIX 10 G3 to easily create a stereo setup.

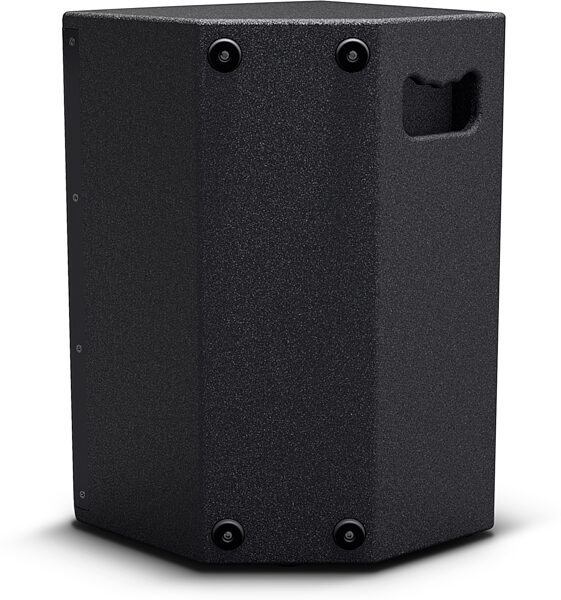

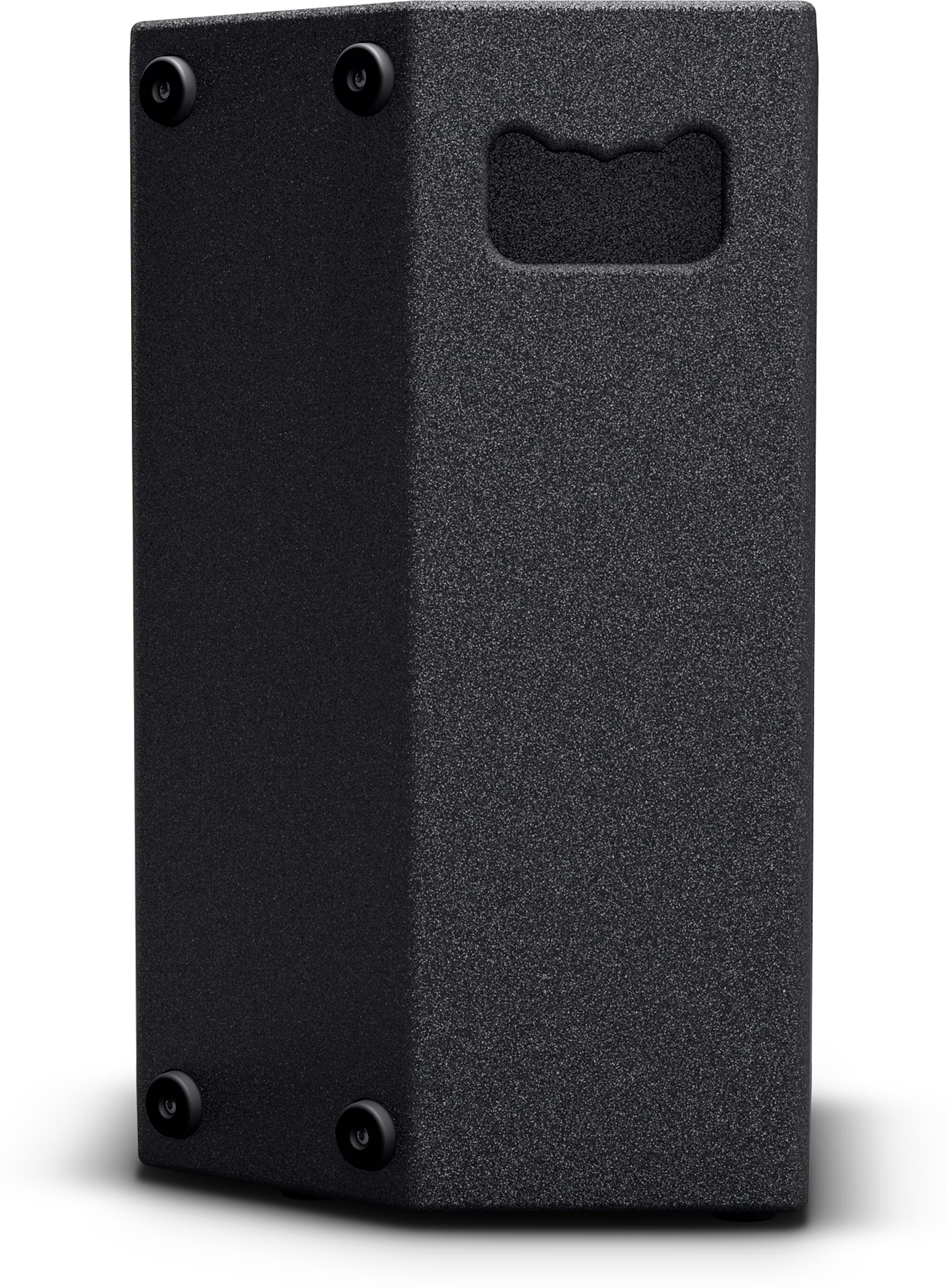

The rigid enclosure is constructed with tough plywood featuring a 50 degrees monitor angle and Dual-Tilt pole receptacle for 0 degrees or 5 degree mounting angles. On its own or in tandem with the passive unit, the LD MIX 10 A G3 provides amazing performance and versatility in a lightweight, easily portable package.

- Product type: PA loudspeaker
- Type: active
- Woofer dimensions: 10"
- Woofer size: 10"
- Woofer brand: Custom-made
- Tweeter dimensions: 1"
- Tweeter brand: Celestion
- Dispersion (H x V): 80 x 70 degrees
- Frequency response: 65 - 20.000 Hz
- Amplifier: Class D
- Amplifier output (RMS): 2 x 200 W
- Amplifier output (peak): 2 x 400 W
- Max. SPL: 124 dB
- Protection circuits: limiter , over-current , overload , short circuit , thermal overload

Mixer:
- Channels: 7
- Mic inputs: 3
- Mic inputs: 1/4" jack , XLR
- Controls for Mic Inputs: + 20 db switchable , DFX Send , EQ Hi , EQ Low , Hi-Z Switch (channel 1 only) , level
- Line inputs: 2
- Line input connectors: 2 x XLR , 1/8" TRS
- Controls Line Inputs: level
- Hi-Z inputs: 1
- Hi-Z input connectors: 1/4" jack
- Input Impedance Hi-Z Input Connectors: 1000 kOhm
- Monitor Line Outputs: 2
- Connector Type Monitor Line Output: XLR
- Controls for Monitor Line Output: Monitor Volume , Sub level
- Max Output Level Line Output Monitor: 17 dBu
- Record Outputs: 1
- Increased power main output (at 4 ohm): 200 W
- DSP Digital Effects Unit
- DSP Number of Programs: 16
- DSP Controls: DFX Return , footswitch , Mute switch , presets
- DSP Display Elements: Peak LED

Main Section:
- Main section controls: Balance , EQ Hi , EQ Low , EQ Mid , Master Volume , mono/stereo , Phantom Power , Power On/Off , switch operating voltage
- Main section indicators: 4-segment Level Meter , power LED
- Phantom power: 48 V
- Mains connector: IEC socket
- Operating voltage: SMPS
- Operating voltage: 110 - 120 V ~ 50/60 Hz or 220 - 240 V ~ 50/60 Hz, automatic switching
- Power consumption: 500 W

Cabinet:
- Cabinet construction: vented
- Cabinet material: .6" Plywood
- Cabinet surface: texture paint
- Cabinet colour: Black
- Width: 12.4"
- Height: 19.25"
- Depth: 12"
- Weight: 27.1 Lbs

- Other features: Bluetooth , dual-tilt flange (0/5 degrees) , Ergonomic handle
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 33.25 lbs
Shipping Dimensions: 23 x 16 x 16 in
Manufacturer Part Number (MPN): LDS-MIX102AG3
