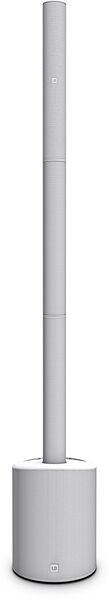

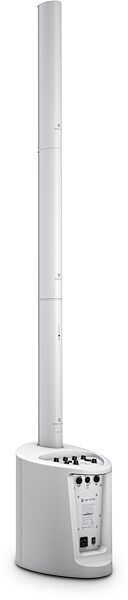

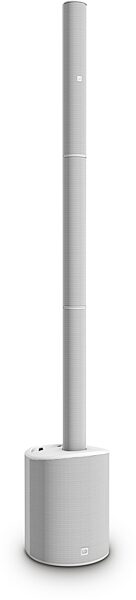

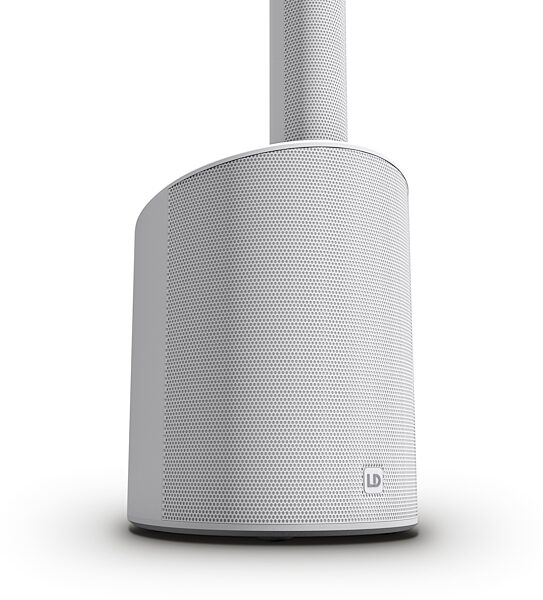

LD Systems Maui 5 GO 100 Portable Battery-Powered PA System

Extremely portable with 12 hours of operation on battery power, the LD Systems Maui 5 GO 100 is great for small gigs, street performing, events, and more.

Perfectly equipped throughout, the MAUI 5 GO 100 is the ultimate system to deliver crystal-clear, powerful sound in any location. The ultra-portable battery-powered column-PA is supplied by a high-performance lithium-ion unit that provides power for up to 12 hours of operating time.

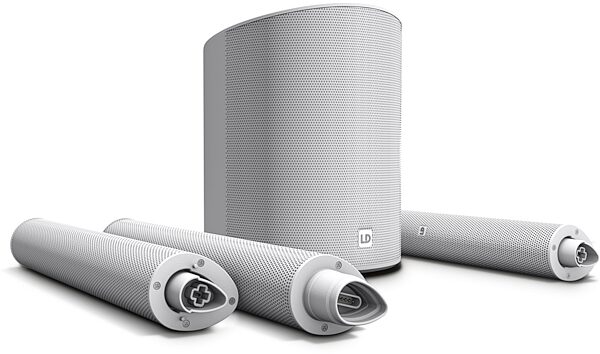

The charger is built into the subwoofer. An external charging dock is available as an accessory. Inputs for microphone, instrument and line signals as well as Bluetooth stereo streaming make the MAUI 5 GO 100 the ideal ideal system for street musicians or for music and speech reproduction at events. Its super-light weight of just 12 kg makes the four-piece design ultra-easy to transport, and thanks to its special multi-pin connectors, it is assembled and ready to use in seconds.

The line-array arrangement of the drivers achieves an extremely high range. The systems wide dispersion and excellent feedback-resistance removes the need for separate monitors. With 800 watts peak power, the MAUI 5 GO 100 is the loudest and best-sounding battery-powered PA system on the market, effortlessly providing sound for audiences of over 100 people. For unparalleled sound quality in all applications, the column system features LD Systems' LECC DSP with multi-band limiter, equalizer, compressor and crossover.

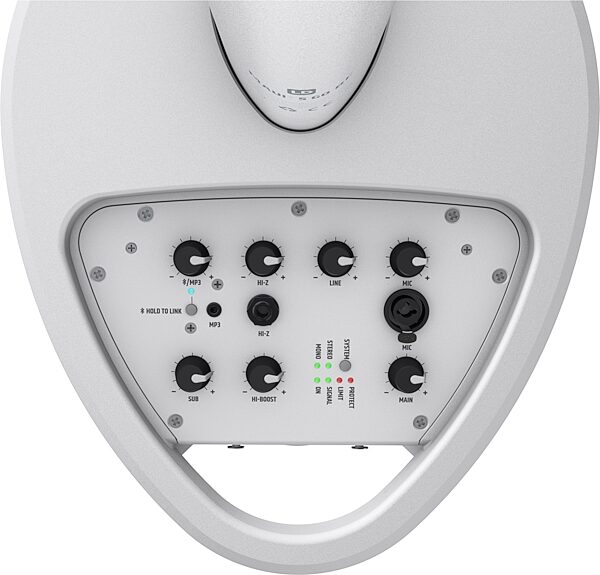

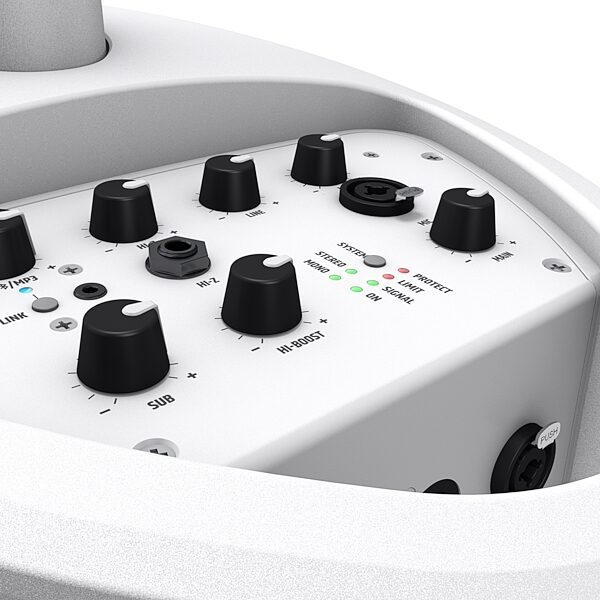

The integrated 4-channel mixer provides separate volume controls for the input channels, sum and subwoofer as well as a variable high-frequency boost to facilitate fast and balanced adjustment to the sound. read more LD Systems Quick-Swap Technology also facilitates immediate and simple battery replacement for practically unrestricted operating times for the MAUI 5 GO 100.

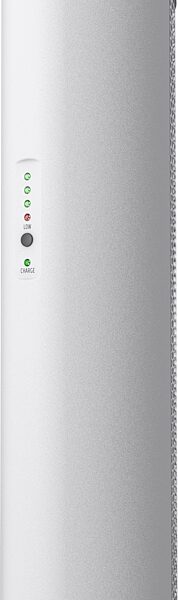

- Plug-and-play lithium-ion battery for up to 12 hours continuous operation
- Practically unlimited power supply thanks to Quick-Swap Technology
- Provides sound to over 100 people. Ultra-light, portable 4-piece design that weighs only 28 lbs.
- Integrated 4-channel mixer with Bluetooth stereo audio streaming
- All-in-one column speaker for PA and monitor applications
- Increased range and broader coverage thanks to line-array design
read less

- Product type: PA Complete Systems
- Max. SPL (peak): 120 dB
- Frequency response: 50 - 20000 Hz
- Dispersion (H x V): 120 x 20
- Overall height: 78 inch
- Battery: Rechargeable batteries 29.36V / 3200 mAh
- Battery manufacturer: LG Chem
- Battery technology: Lithium-ion
- Battery operation time: at maximum load 12 hours @ 98 dB (Lounge), 4 hours at 120 dB (DJ mode), 6 h @ 104 dB (Live music)
- Charging time: 1.5 hours up to 80%, 2 hours up to 100%
- Woofer characteristics: Low/mid driver dimensions 8 "
- Woofer size: 8"
- Woofer magnet: Ferrite
- Woofer brand: Custom-made
- Woofer voice coil: 2 "
- Cabinet construction: Bass Reflex
- Cabinet material: ABS plastic
- Subwoofer width: 12 inch
- Subwoofer height: 16 inch
- Subwoofer depth: 15.55 inch
- Subwoofer weight: 19.62 lb
- Mid/Hi System:
- Midrange size: 4 x 3 "
- Midrange magnet: Neodymium
- Midrange brand: Custom-made
- Midrange voice coil: 1 "
- Mid/Hi system impedance: 4 Ohm(s)
- Loudspeaker inputs: Speaker input connections Custom-made multipin
- Mid/Hi system cabinet material: ABS plastic
- Amplifier module (integrated in subwoofer): Class D
- Amplifier output system (RMS): 200 W
- Amplifier output system (peak): 800 W
- Protection circuits: DSP-based multiband limiter, over-current, short circuit, thermal overload
- Cooling: Convection
- Operating Temperature: 0 - 50 C
- Controls: BT level, BT pairing, Line level, Main level, Mic level, Mono/stereo mode, MP3 / Hi-Z level, On / Off, Sub level
- Indicators: Limit, On, Protect (protection circuit engaged), Signal
- Operating voltage: Switching power supply, 100 V AC - 240 V AC, 50 - 60 Hz, 200 V AC - 240 V AC, 50 - 60 Hz (Automatic conversion)
- Power consumption: 300 W

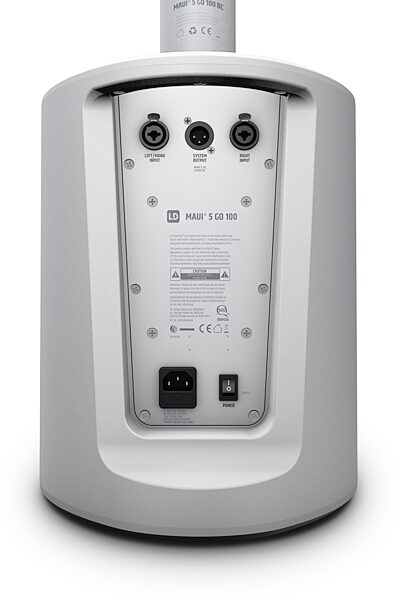

- Line inputs: 2 x stereo
- Line input connectors: 6.3 mm jack, XLR
- Mic inputs: 1, 6.3 mm jack, XLR
- MP3 inputs: 1
- MP3 input connectors: 3.5 mm jack
- Hi-Z inputs: 1
- Hi-Z input connectors: 6.3 mm jack
- Loudspeaker outputs: 1
- Speaker output connections: Custom-made multipin
- DSP characteristics: Bit depth
- AD/DA converter: 24 / 24 bit
Dimensions and Weight in Packaging
Shipping Weight: 37.25 lbs
Shipping Dimensions: 27 x 23 x 16 in
Manufacturer Part Number (MPN): LDS-MAUI5GO100
Shipping Weight: 39.25 lbs
Shipping Dimensions: 28 x 23 x 16 in
Manufacturer Part Number (MPN): LDS-MAUI5GO100W
