Korg XVP-20 Stereo Volume and Expression Pedal

open zoom image for Korg XVP-20 Stereo Volume and Expression Pedal, Open Box (Like New), Gear

open zoom image for Korg XVP-20 Stereo Volume and Expression Pedal, Open Box (Like New), Torque

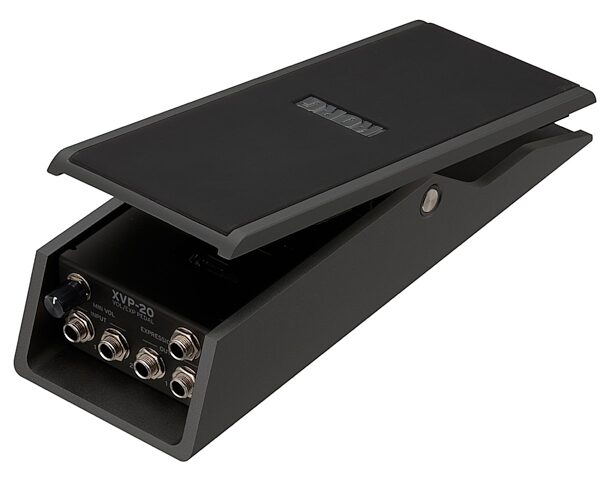

Korg XVP-20 Stereo Volume and Expression Pedal, Open Box (Like New), Main

Korg XVP-20 Stereo Volume and Expression Pedal, Open Box (Like New), Connector

Korg XVP-20 Stereo Volume and Expression Pedal, Open Box (Like New), Gear

Korg XVP-20 Stereo Volume and Expression Pedal, Open Box (Like New), Torque

zZounds Gear Experts Say...

Smooth operation and sturdy metal construction make the Korg XVP-20 stereo volume and expression pedal a great choice when you need reliable performance.

Overview

Since its launch in 1994, the XVP-10 expression/volume pedal has become a long-selling success, and now it's available in an updated rendition. With its tough aluminum body and stylish design, it delivers stability in a compact form. Intricate features have also been added, including the use of rubber to allow enhanced grip, and improved gears that provide smoother operation. A new black anodized finish on the exterior emanates a sense of high quality.

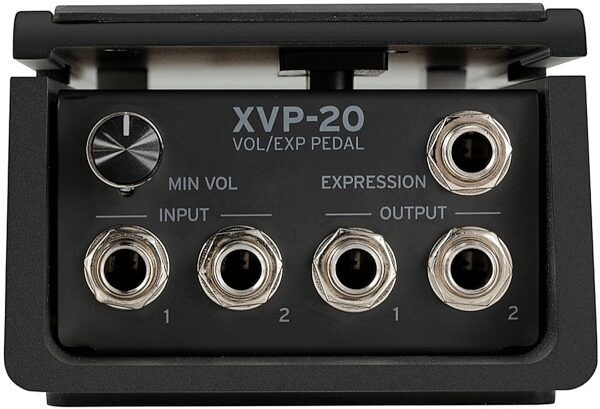

Two Sets of Input/Output and One Expression

The XVP-20 gives you all the functionality you want from an expression/volume pedal. It provides two sets of input/output as well as one expression jack. While the output and expression jacks are available on the previous model, the XVP-20 delivers even better operability.

Compact and Sturdy Aluminum Body

The augmented compact body design improves portability, and the sturdy aluminum body ensures a sense of stability underfoot. The black anodized exterior finish is an ideal match for KORG's flagship KRONOS workstation.

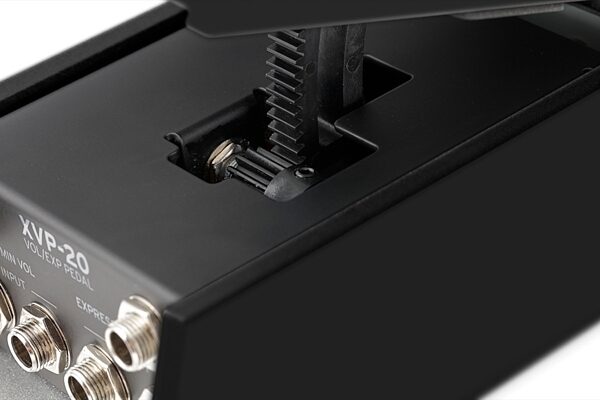

Pedal Mechanism with Enhanced Grip Strength and Smoothness

Rubber is used on the top surface of the footboard and on the bottom of the body, providing better grip strength and improved stability. The pedal uses a durable gear mechanism for trouble-free operation. Additionally, the gears now have more teeth, delivering an extremely smooth operation.

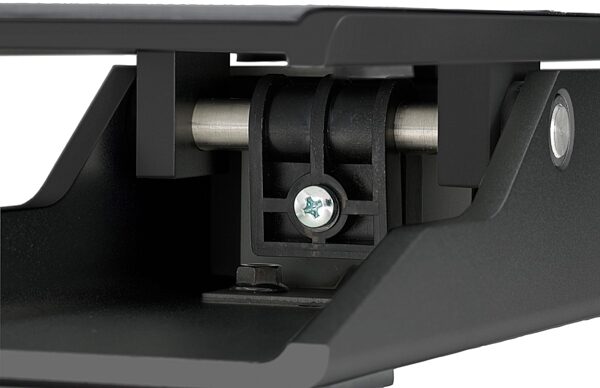

Adjustable Minimum Volume and Torque

The minimum volume knob lets you adjust the volume range that can… read more be controlled by the pedal. The knob has been moved from its previous location under the footboard to the back of the body, making it easier to control. A torque adjustment screw is also provided, allowing easy adjusting to the operating torque (weight) of the footboard to suit your preference.

Features:

- Equipped with two sets of input/output and one expression jack.
- Compact and sturdy aluminum body with a black anodized finish that exudes quality.
- Pedal mechanism features smooth operation and excellent grip.
- Minimum volume and torque can be adjusted to suit your playing style.

Specs

- Input impedance: 50K-100K ohms
- Input Jacks: INPUT 1, 2 (monaural phone jack)
- Output Jacks: OUTPUT 1, 2 (monaural phone jack), EXPRESSION PEDAL (stereo phone jack)
- Control: pedal, minimum volume, torque adjustment screw
- Dimensions: (W x D x H) 3.54 x 10.55 x 2.44" (90 x 268 x 62 mm)
- Weights: 1.3 kg

Dimensions and Weight in Packaging

Base Item

Shipping Weight: 3.5 lbs
Shipping Dimensions: 14 x 5 x 3 in
Manufacturer Part Number (MPN): XVP20

Open Box (Like New)

Shipping Weight: 3.5 lbs
Shipping Dimensions: 14 x 5 x 3 in
Manufacturer Part Number (MPN): XVP20

Documents and Manuals

For support or warranty questions, please contact the manufacturer:
Phone: 631-390-6800
Web: https://www.korgusa.com/support

Reviews

(1 ratings)

Submitted December 21, 2025 by a customer from yahoo.com

"Fantastic volume pedal, particularly for large feet!"

Overall:

(see rating details)

Verified Customer zZounds has verified that this reviewer made a purchase from us.

I'm a men's size 13/14 and find my Xotic volume pedal awkward to use. It doesn't matter how well the pedal works in general if my foot is too large to operate it as smoothly and/or as comfortable as I would prefer. This Korg pedal sounds just as good to me but is infinitely more comfortable and is easier for me to operate smoothly. I really appreciate the ability to adjust the torque/resistance. You can literally dial in how smooth you want it to feel. You can also dial in the minimum volume. It's a very heavy duty pedal, emphasis on heavy. I think this is great because it's not going to move around no matter how vigorous I am with it. I haven't bothered using the stereo or expression functions yet but couldn't be happier with it.
