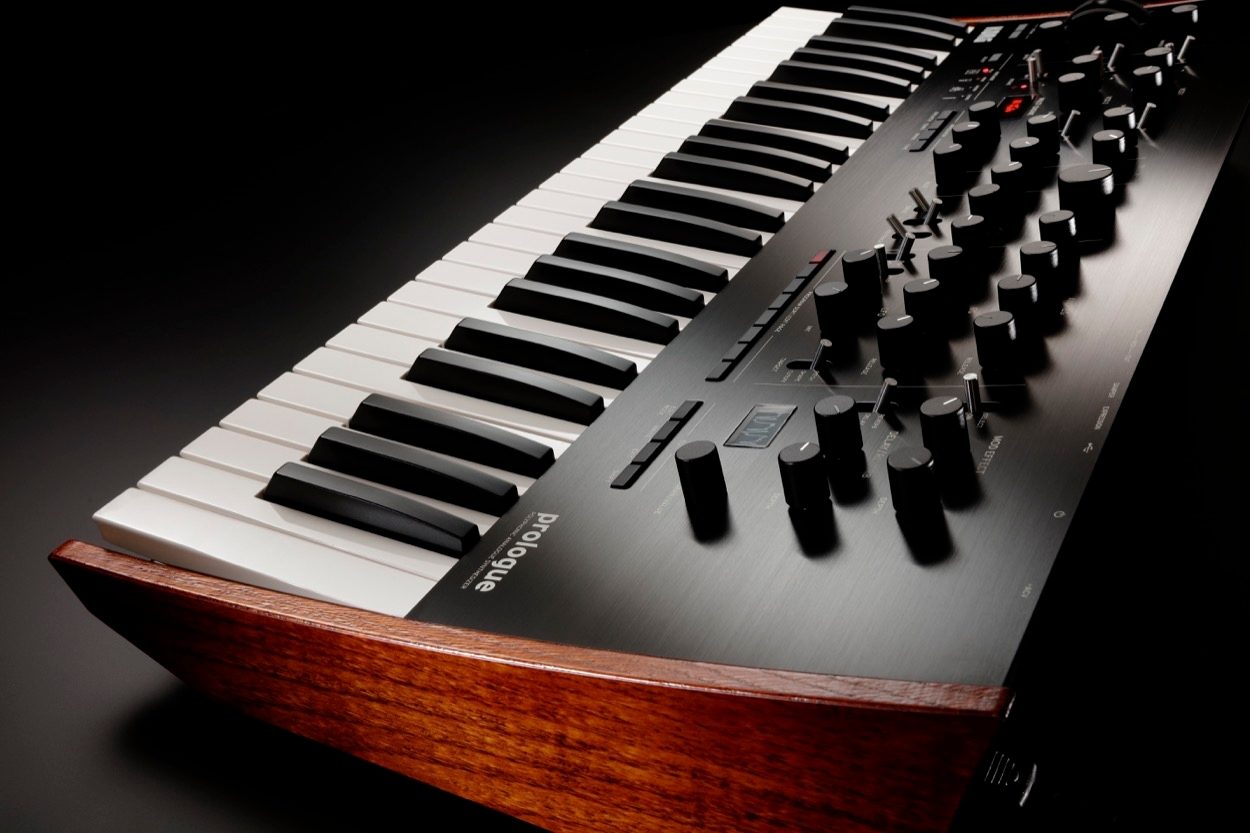

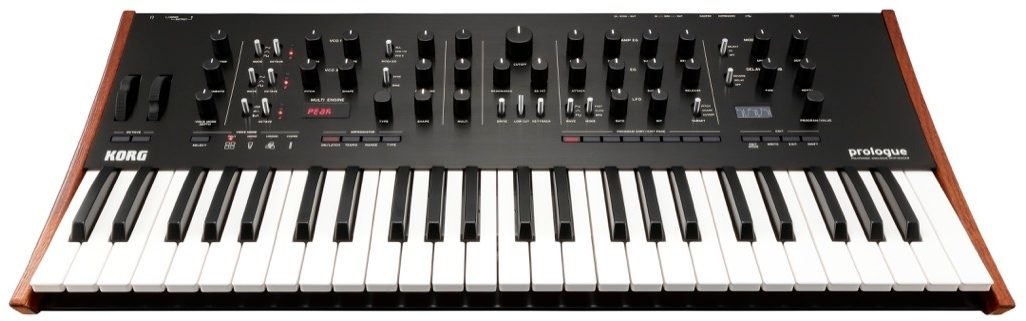

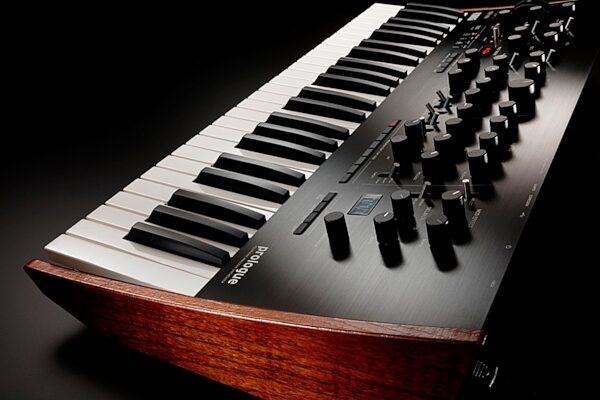

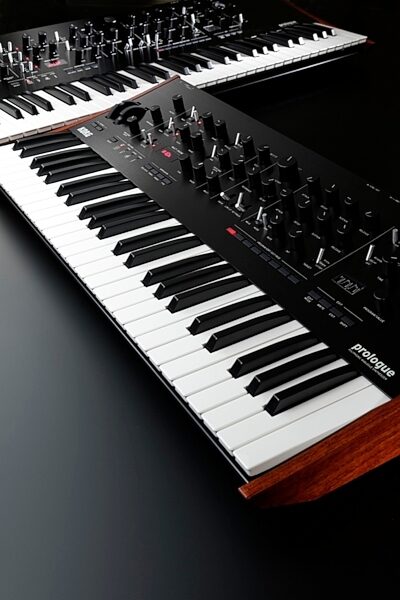

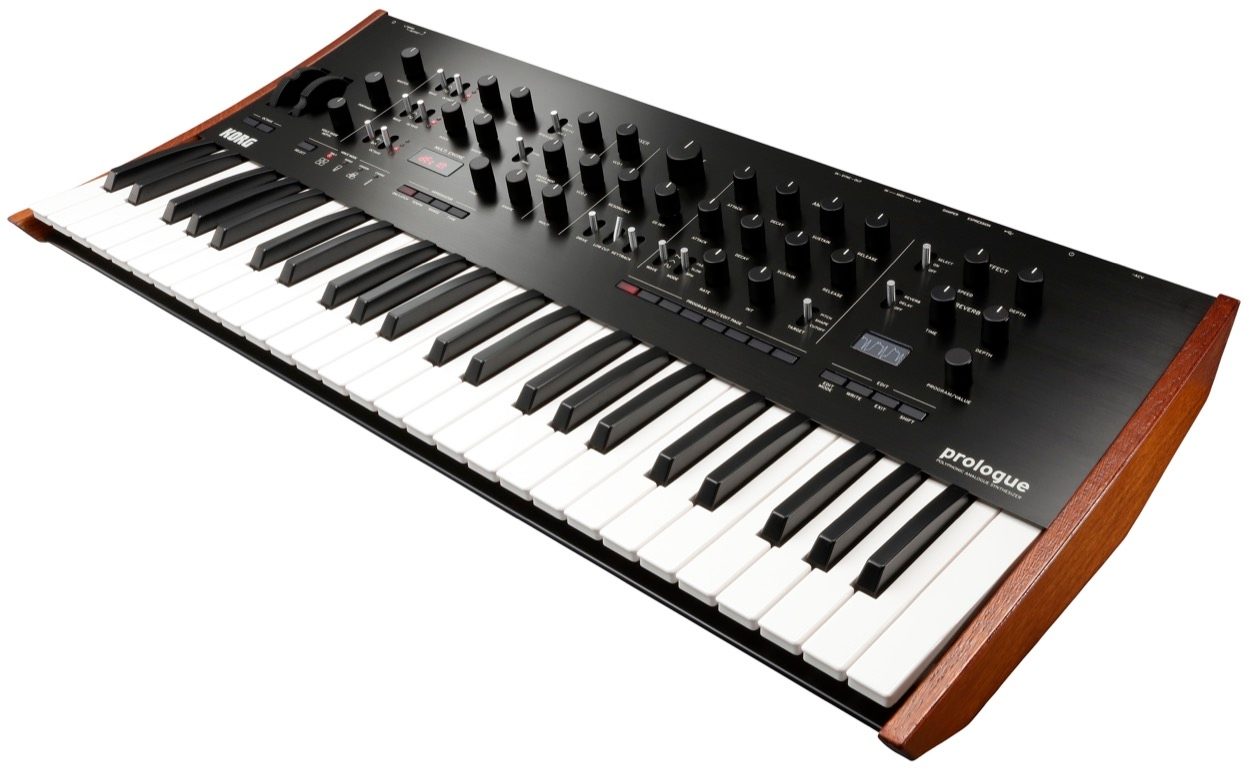

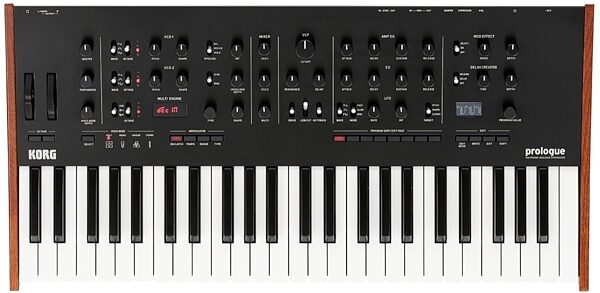

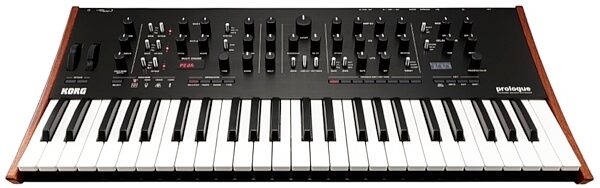

Korg Prologue 8-Voice Analog Synthesizer, 49-Key

- Keys: 49 keys (Natural touch keyboard with velocity)
- Sound Generation: Analogue sound generator + Multi digital sound generator (Noise, VPM, User)
- Maximum Polyphony: 8 voices
- Programs: Over 500 voices (more than 200 preloaded, 300 user programs). Each program provides a program sort function that includes voice mode and timbre settings, and allows up to 8x4 banks of live set programs to be registered.
- Voice Mode: : 4 (POLY, MONO, UNISON, CHORD). The VOICE MODE DEPTH setting allows different parameters to be varied for each mode.
- Timbres: : Max two timbre (Main timbre, Sub timbre). Layer, crossfade, and split settings are possible
- Arpeggiator: : 6 types (Manual, Rise, Fall, Rise Fall, Random, Poly Random). Tempo and note range can be changed
- Program Sort: : 8 (PROG NUM, CATEGORY, ALPHABETICAL, LIKE, FREQUENT, ENVELOPE, RANDOM, LIVE SET)

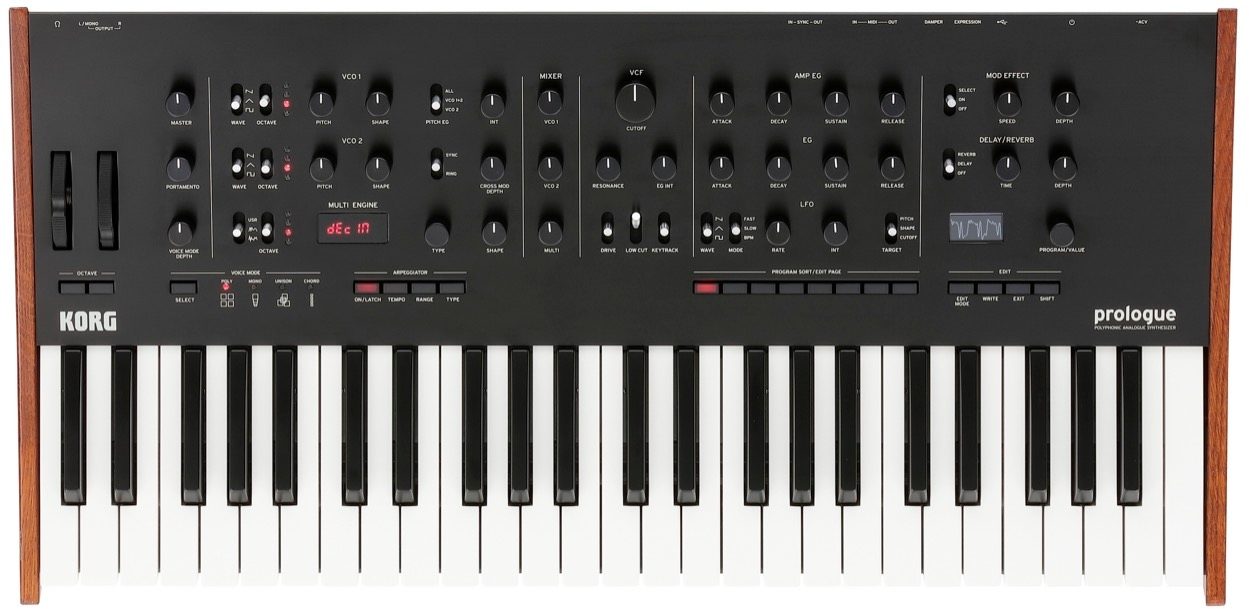

- Main Synth Parameters:
- VCO1: Wave (Saw, Triangle, Square), Octave, Pitch, Shape
- VCO2: Wave (Saw, Triangle, Square), Octave, Pitch, Shape
- Modulation: Pitch EG (All, VCO1+2, VCO2), Pitch EG Int, Sync, Ring, Cross Mod Depth
- Multi Engine: Noise/VPM/User, Octave, Type, Shape
- Multi Engine Types
- Noise Generator: 4 Types
- VPM Oscillator: 16 Types
- User Oscillator: 16 Slots
- Mixer: Vco1, Vco2, Multi
- VCF: Cutoff, Resonance, EG Int, Drive, Low Cut, Keytrack
- Amp EG: Attack, Decay, Sustain, Release
- EG: Attack, Decay, Sustain, Release
- LFO: Wave (Saw, Triangle, Square), Mod (Fast, Slow, Bpm), Rate, Int, Target (Pitch, Shape, Cutoff)
- Main Effect Parameters:
- Mod Effects: Off/On/Select (Chorus, Ensemble, Phaser, Flanger, User), Speed, Depth
- Chorus: 8 Types
- Ensemble: 3 Types
- Phaser: 8 Tyepes
- Flanger: 8 Types
- User: 16 Types
- Delay/Reverb: Off/Delay/Reverb, Time, Depth
- Delay/Reverb Types:
- Delay: 8 Types
- Reverb: 8 Types
- Controls:
- Wheels: Modulation Wheel That Can Modify Different Parameters for Each Program, Pitch Wheel
- Knobs: Portamento Knob
- Display:
- Main: Real-Time OLED Oscilloscope Provides Visual Feedback of Parameter Changes
- Multi Engine Section: 7 Segments X 6 Digit Led Display

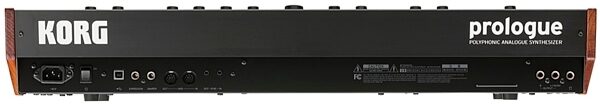

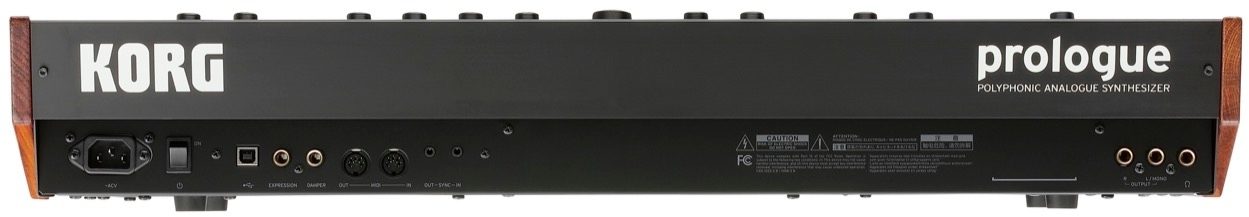

- Audio Connections:
- Head Phone Jack (Stereo Phone Jack)
- Output L/Mono, R Jacks (Monaural Phone Jack Unbalanced)
- Sync Connections:
- Sync In Jack (3.5 Mm [1/8"] Mini Jack, Maximum Input Level 20 V)
- Sync Out Jack (3.5 Mm [1/8"] Mini Jack, Output Level 5 V)
- Midi Connections:
- Midi In Jack
- Midi Out Jack
- USB Connections:
- USB B Jack
- Control Connections:
- Expression Jack
- Damper Jack (Half Damper Is Not Supported)
- Power:
- Power Supply: Ac Power Supply Terminal
- Power Consumption: 23 W
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 21.5 lbs
Shipping Dimensions: 34 x 19 x 9 in
Manufacturer Part Number (MPN): PROLOGUE8

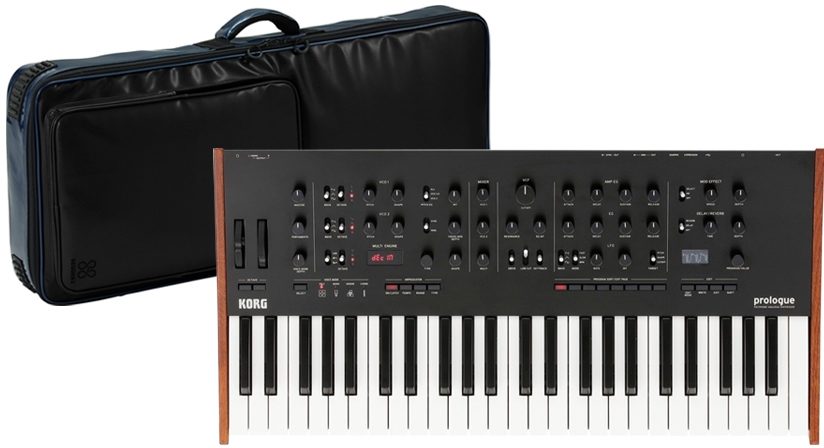

with Sequenz Bag
Shipping Weight: 27.5 lbs
