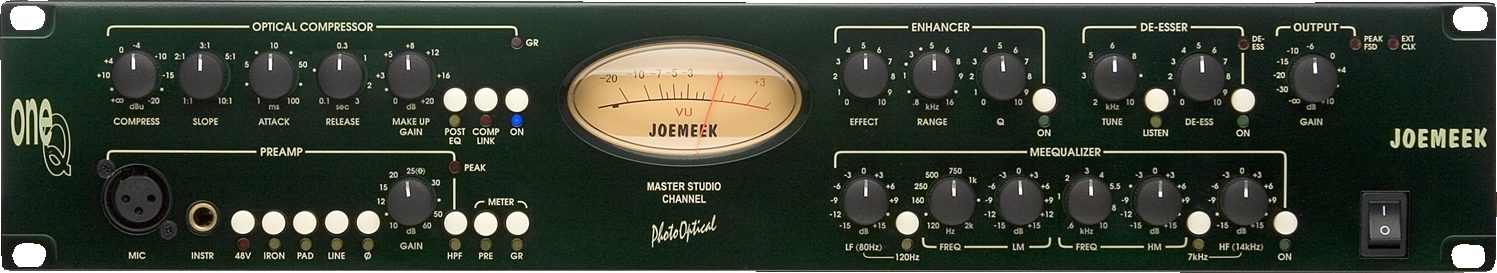

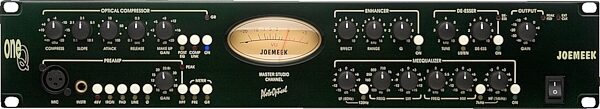

Joemeek OneQ Studio Channel Strip

No longer available at zZounds
Designed with an unconventional compression system, this channel strip is intended to produce a more realistic and livelier sound than the average strip.
The Joemeek compressor is the first device commercially available to have been designed purely as an effects compressor. Its purpose is to change the way the ear perceives the sound; its action changes the clarity, balance and even rhythmic feel of music.

Dynamics

The human ear has a fantastic dynamic range; it hears and can interpret sounds from as low as a pin dropping, up to being next to a pneumatic drill. In fact, there are mechanisms in hearing which act as 'leveling amplifiers' and allow us to be able to hear and interpret this extreme range.

When very loud music is heard, there are two main mechanisms that allow us to make sense of the sounds. These are real biological compressors; the first one is 'software' affecting the way the brain interprets signals from the inner ear, the second is hardware' in the way the electrochemical impulses are passed from the inner ear.

First the 'software compressor' in the brain softens the effect of the loud sounds. This effect is fast acting and not long lasting. It acts over the whole frequency range and its effect is to soften the very loud peaks of noise or sound, if the sound is removed or stopped suddenly, then your 'ears' (actually your brain) recovers in just a couple of seconds to full sensitivity. Because we all live with the effect all our lives, it is rarely noticed. The effect takes time to act (the attack time) and has a relatively slow recovery time; one that can easily be mimicked electronically.

Mimic

The read more Joemeek compressor mimics this effect and instead of the listener's ear and brain doing the compression, the Joemeek pulls down the sound at precisely the right moment and amount to fool the ear into thinking that the sound is louder than it actually is.

But doesn't any compressor do that? Actually no. Although there are many compressors on the market that can be set to the correct time constants to mimic the effect, the actual gain reduction is never done properly. The problem is that the human ear is not an engineering device, it's non-linear in all respects.

The psychoacoustic compression effect is like turning down the volume for an instant; but once there, the relative volumes of sound are NOT affected further.

Not Perfect; Just Right

Good Engineering Practice says that a compressor should work logarithmically; for a certain increase of volume, the output volume should rise proportionally less: That is, for a 2:1 compressor, an increase of volume of 10dB at the input should produce only 5dB increase at the output. a continuous process where the more you put in, the more it's pushed down.

The Joemeek compressor just doesn't work that way. As volume increases at the input, a point is reached where the compressor starts to work and the gain through the amplifier is reduced. If the input level keeps rising, gradually the gain reduction becomes less effective and the amplifier goes back to being a linear amplifier except with the volume turned down. And this is precisely how the human ear behaves! So the 'ear' is fooled into thinking that the JM compressed sound is louder than it really is; but without the strange psychoacoustic effect of 'deadness' that all other compressors suffer from.

Compression Curves and Slopes

It's not a true ratio, it's more a 'compression amount' control. At position 1 it just allows a little bit of gain reduction, at position 4 it's almost a limiter! It's unscientific but with a ratio control where the actual mathematical ratio varies with volume level and even musical content, we were stuck with 'slope'!

Rock Concerts

The second form of compression in the human ear is mostly mechanical. It involves certain parts of the inner ear being suppressed so that they do not respond to the large vibrations caused by loud noise. The effect is much slower to take effect and can take days to recover. This is the familiar 'deadening' effect that we all get in extreme cases when going to a rock concert. One of its effects is to change the way that we perceive different frequency ranges. Basically, the louder the sound, the more we hear of the HF and LF parts because our sensitivity to the mid ranges is reduced.

The Joemeek compressor, because of its bending of the loudness contours has already fooled the ear into thinking that the sound is louder than it really is; the bonus is that the mid ranges seem to jump forward and the clarity improves because the mechanical changes that the brain thinks have taken place in the inner ear, have not happened. With conventional compressors the 'fooling' effect is not so complete and the ear perceives something that is not quite right. Consequently, this additional clarity is missing and the whole effect is one of muddy deadness. And this is common in all other compressors, particularly the newer digital dynamics tools packages; they just don't work properly!

Time

Of course the compression curves tell only part of the story. There are also subtleties of the time constants of attack and release which have enormous effect on the musicality of the sound. The attack time produces audio 'punch' that again is a psychoacoustic effect, different attack times mimicking different levels of human biological compression.

Release time is even more important to maintaining illusion; the Joemeek compressor uses a compound release circuit that reacts quickly to short bursts of volume, and less quickly to sustained volume, this helps to maintain the transparency of the sound. The values and ranges of these timings were chosen by experiment using wide ranges of program material.

Because of these intentional effects produced by the compressor, it makes a perfect tool for general enhancement of overall mixes to 'brighten', 'tighten', 'clarify' and catch the attention of the listener, a function that is never recommended for conventional VCA compressors.

Some historic compressors from the 1950s were used creatively by Joe Meek and other notable engineers of the past. They achieved some of these effects and the compressor models have become venerated for their 'sound'; the JOEMEEK compressor achieves more, and does it by design.

A Brief Explanation About Warmth

Anyone who has tried to record a human voice has found the dynamics of real world speech and music are impossible to handle with a 'linear' recorder. Even if the signals do not overload, the final result is a recording that seems to be thin, quiet and too wide in dynamic range. Early analog tape recorders had a built-in answer to the problem. By slightly overloading the record channel, it produced (predominantly) a 2nd order harmonic distortion and some volume compression. This made recordings sound 'warm' and reduced the problems of dynamics.

Unfortunately, modern digital recorders don't react that way. They produce an accurate reflection of the input with all its built in problems. Most engineers know about these problems and correct them with the use of equalizers (to change the psychoacoustic distance from the microphone), limiters (to reduce dynamic range at the louder end) and enhancers (to sparkle it up). Whether you are recording with analog or digital formats, you will find it is extremely difficult and time consuming to get a true 'vintage' warm and cozy sound.

Joe Meek, in common with all engineers, experimented with the limited facilities of the time (1960 - 1965) and came up with a way of enhancing the 'tape bend' effect with compression. The compressor he used was primitive at best, but coupled with the compression distortion provided by the valve 'tube' tape machines he had, the result was voice and music sounds that were unique and Joe Meek sold records by the millions. While significant improvements were made in the way Joe's early compressors worked, Joemeek Compressors are now a vital component to today's engineers, and are used in top studios all over the world. The consensus from these famous studios, producers and engineers is that the sound of Joemeek Compressors is right, and really does recreate the warmth and power of the much sought after 'Vintage' equipment without the side effects and the cost.
read less
- Input impedances: Mic: 1.2kohm; Line: 20kohm
- Pre-amp overall gain: 10dB to 60dB (variable)
- Common mode rejection: 70dB
- Equivalent input noise: -128.5dBu (unweighted)
- Distortion: 0.001% (below Compressor threshold)
- Frequency response: 15Hz to 70kHz (-3dB)
- Maximum input before clipping: Mic: +21dBu; Line: +45dBu
- Headroom before clipping: +21dBu
- Compressor threshold: 0 dBu to -20dBu (variable)
- Compressor ratio: 1:1 to 10:1 (variable)
- Compressor attack time: 1 msec to 100 msec (adaptive)
- Compressor release time: 0.1 sec to 3 sec (adaptive)
- Nominal output levels: +4dBu/-10dBv
- Output impedance: 100ohm
- Output Level switch: 12dB attenuation
- Noise Floor: -85dBu (typical, with ~40dB mic gain)
- VU Meter: Analogue movement
- Power supply: 115V / 230V ac mains, 50/60Hz
- Power consumption: 30W
- Mechanical: 482W x 88H x 220D (overall)
- Weight: 3 kilos
- High Pass Filter: 12dB per octave cut below 80Hz
- EQ Boost & Cut: +/-15dB (zero phase-shift bell response)
- LF Frequency: 80Hz/120Hz switchable
- LMF Frequency: 200Hz to 2kHz variable
- HMF Frequency: 1kHz to 6kHz variable
- HF Frequency: 7kHz/14kHz (selectable)
- EQ "Q" 0.9 (1.6 octaves

Digital Output Specifications
- Sampling: 24 Bit
- Sampling Rate: 44.1kHz, 48kHz, 88.2kHz or 96kHz selectable
- Output Formats: XLR AES/EBU, coaxial S/PDIF digital out
- External Word Clock input: 75ohm, 1.25V - TTL level, 44.1kHz to 96kHz (auto synchronizing)
Joemeek Warranty ´╗┐Joemeek products are warrantied for a period of three years.
For support or warranty questions, please contact the manufacturer:
Phone: 877-563-6335
(20 ratings)
Submitted December 5, 2005 by a customer from djbakedpotato.com
JoeMeek OneQ Pre Customer Review
This review has been selected by our experts as particularly helpful.
600 is very steep, a good alternative is the ART Pro channel which I also own, it retails for far less and has a channelpath that includes a compresser, limiter, and de-esser. Each dynamic effect can be used seperatly as an insert too. What you pay for here is a very unique way to color your sound. I have used the oneq most recently for an R&B project with many vocal layers, its great to process everything before it gets to the computer so I have nice fat takes, that require no dyanamic processing. Also, this thing just kicks ass for recording bass directly, I use a countryman DI, with XLR input to the Oneq allong with the Iron switch and enhancer to get a nice ammount of distortion that, may I say, sounds a little TUBE>

Sound
Whats great about this Preamp is that it can both sound very clean and direct but it can also be colored very nicely for recording bass and gritty vocals. If calbrated correctly and with confidence you most likely will not have to apply equalization or compression after the recording. The digital output allows the Joemeek to be be the wordclock master for my studio, which audbily increased the quality of sound.

Features
I like the meequalizer the best, it is so touchy and boosting freequencies usually enhaces the sound vs. other "passive equalizers" The compressor is non-traditional as well in that the compression ratio seems to be variable dependant on how hard the threshold is being hit. I read more like the adjustable attack and release functions there. The de-esser is good, but cannot be used excessively becuse more-often it tends to hamper the sound with very harsh sibalance reduction even at the lowest setting. I'm not sure about what exactly the enhancer does, at first I thought it was a sort-of harmonizer, but it seems to be more of an additive eq that is triggered dynamically. Its great for adding fuzz to bass. One thing that is not clarified to well in the manual is the additional input for the digital A/D convererters. On the back there is a quarter inch that feeds the other half of the stereo digital signal. I found this to be a great surprise in that I can now utilize both of my s/pidif input channels. In this as well as other ways the oneq is setup to be linked with a second for stereo processing.

Quality
I was first suprised by how light this unit is, how many tubes are in there anyway. The Vu meter is delcate and rattles in the housing.

Manufacturer Support
The manual is written poorly and flamboyently, not once is the function of the "Iron" button discuseed. In my experience the with "iron enganged" the amp has more gain, and larger range of distortion, that can be applied sutbtly and with extreme.

Musical Background:
Live engineer, aspiring producer, electronic artist with 7 years exp.

Musical Style:
Trip-Hop, R&B, Funk, Downtepo
read less
8 of 9 people (89%) people found this review helpful. Did you?
Thanks for your opinion!
