JMAZ Professional Centipede B8 Light

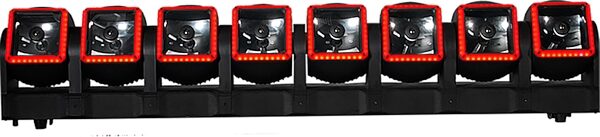

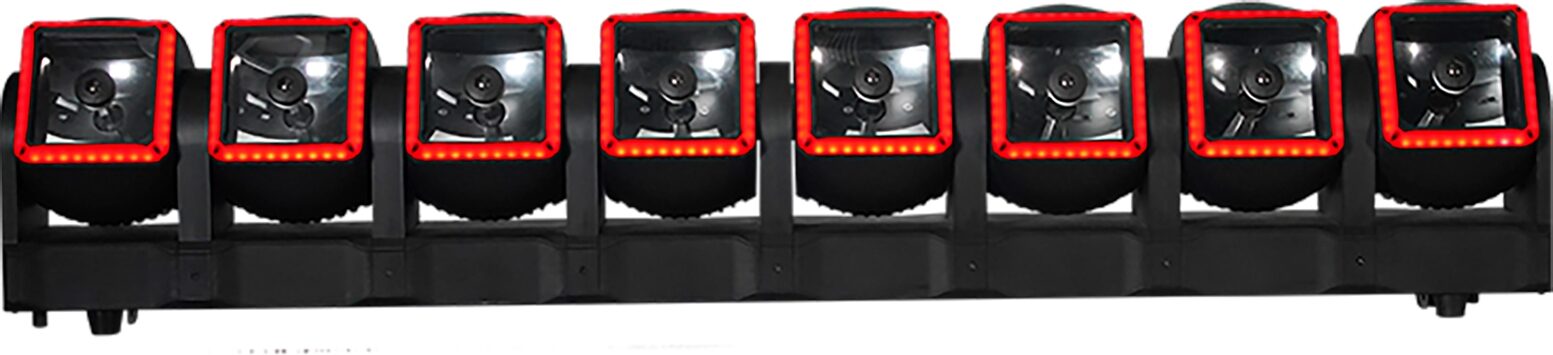

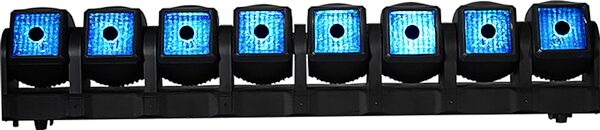

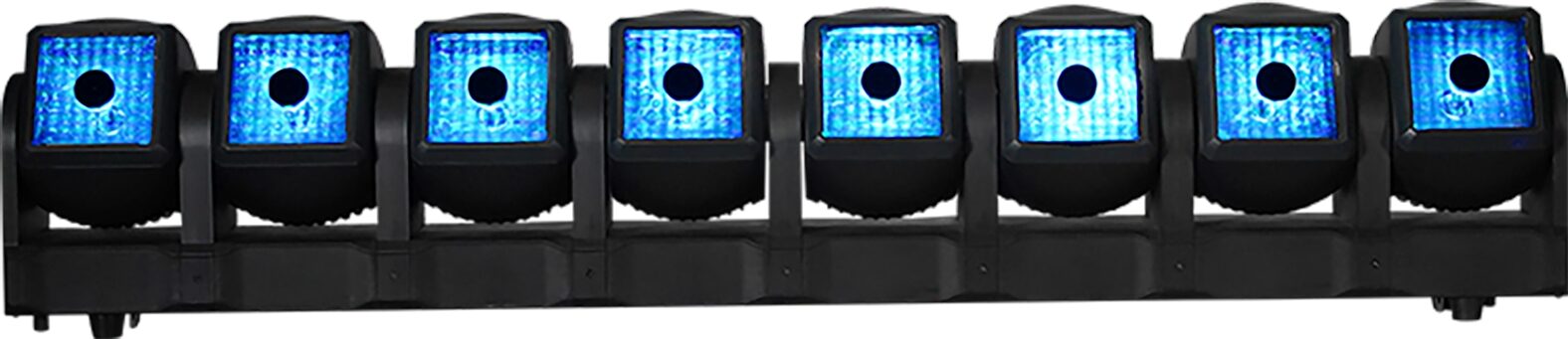

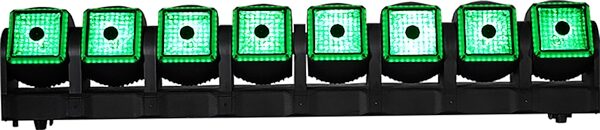

JMAZ Professional Centipede B8 Light, New, Action Position Back

zZounds Gear Experts Say...

The B8 = two JMAZ Centipede B4 fixtures in one! With tight 60W LED beams and SMD rings on 360-degree-tilt heads, this "wave bar" creates captivating effects.

Overview

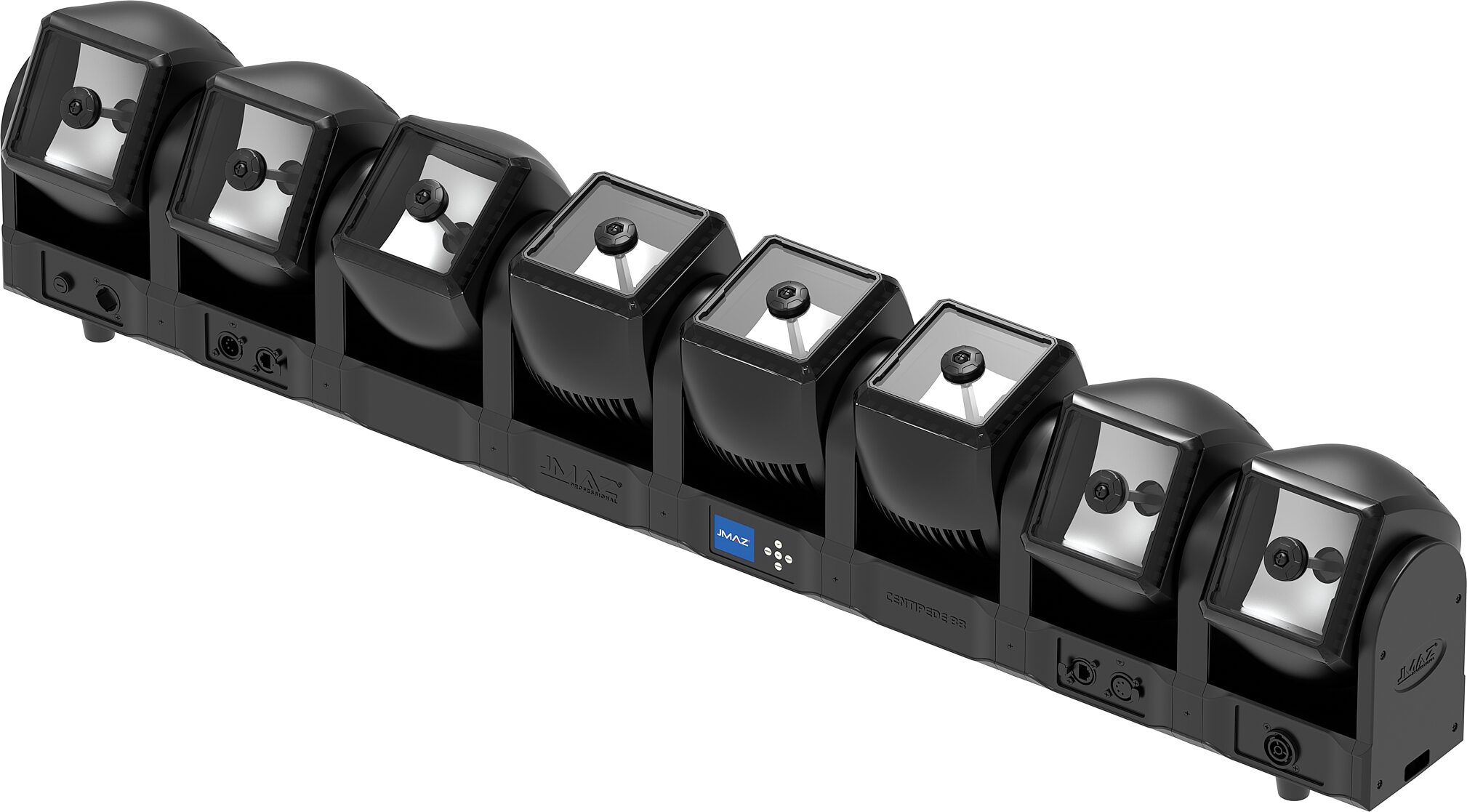

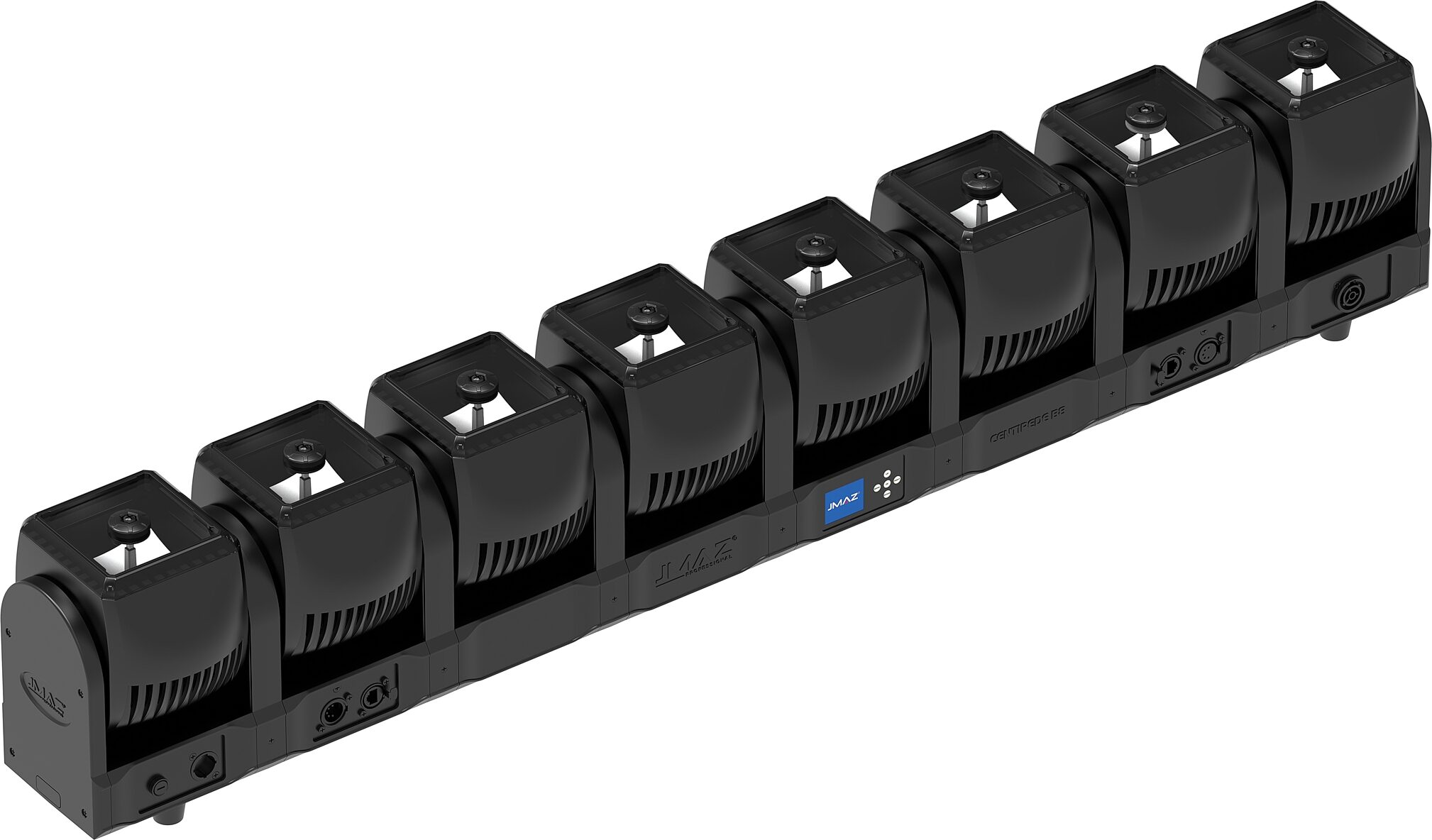

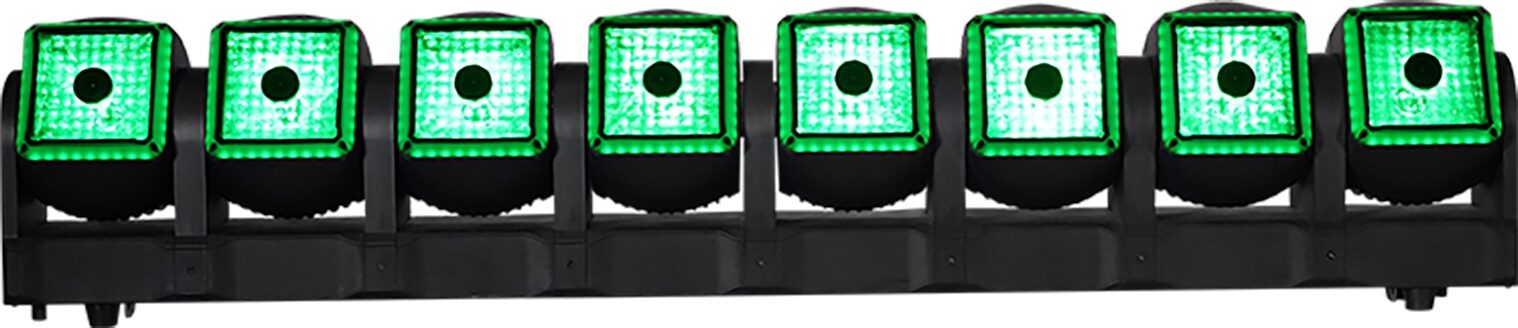

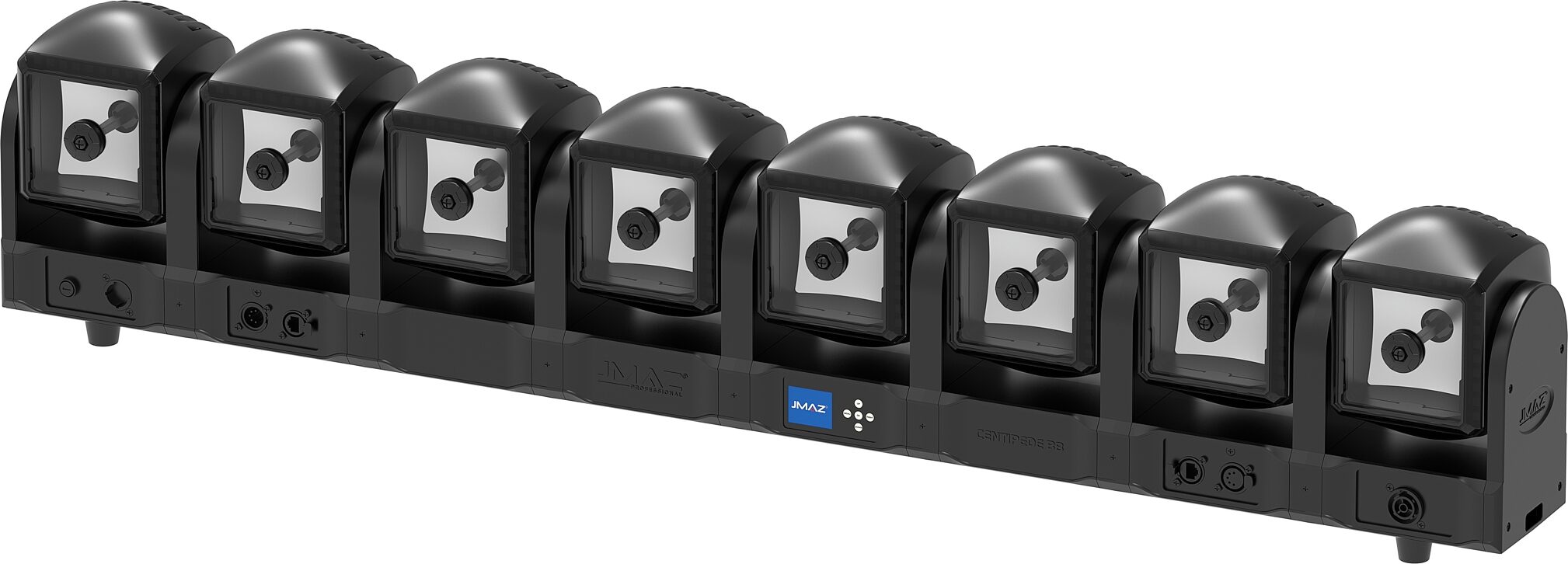

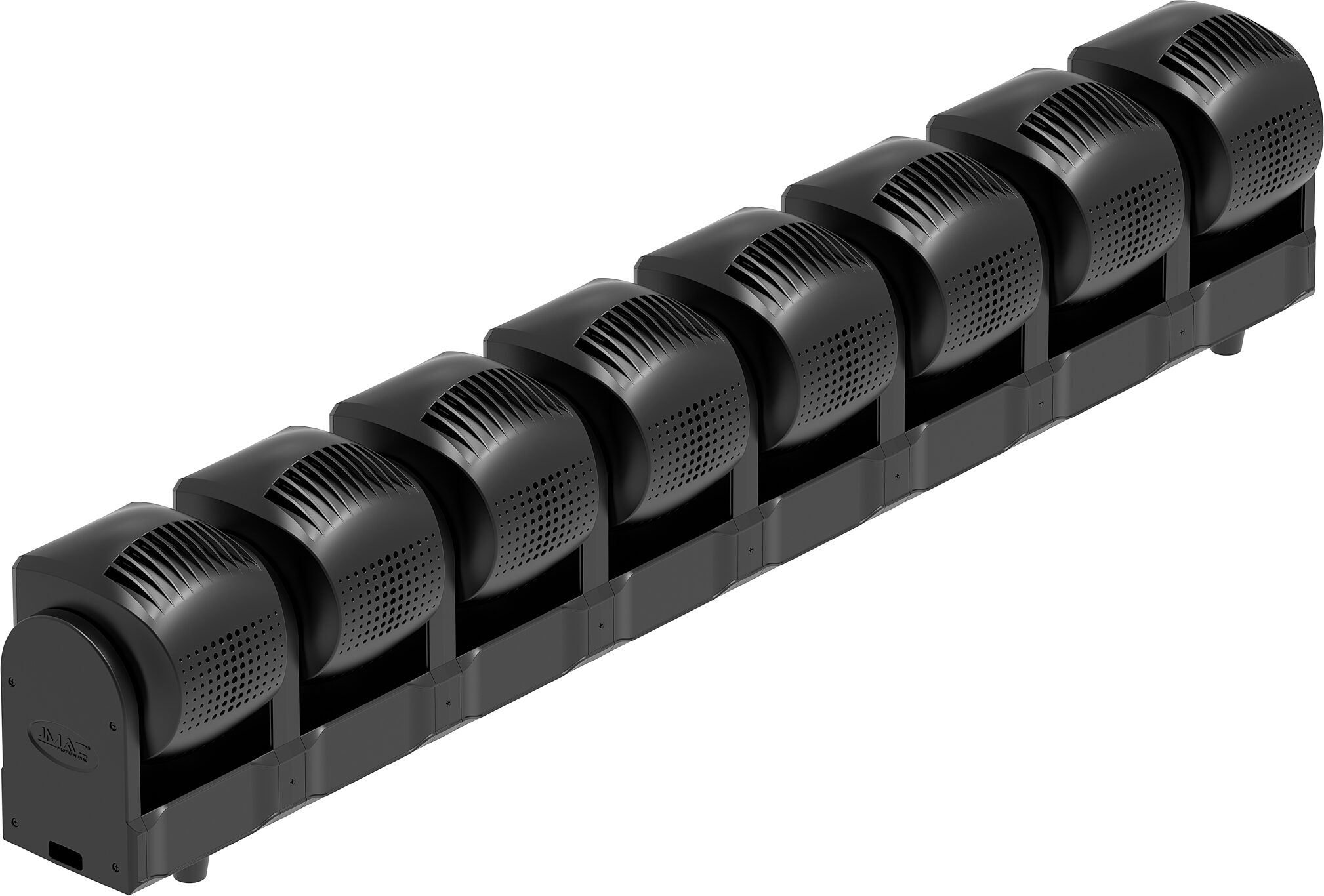

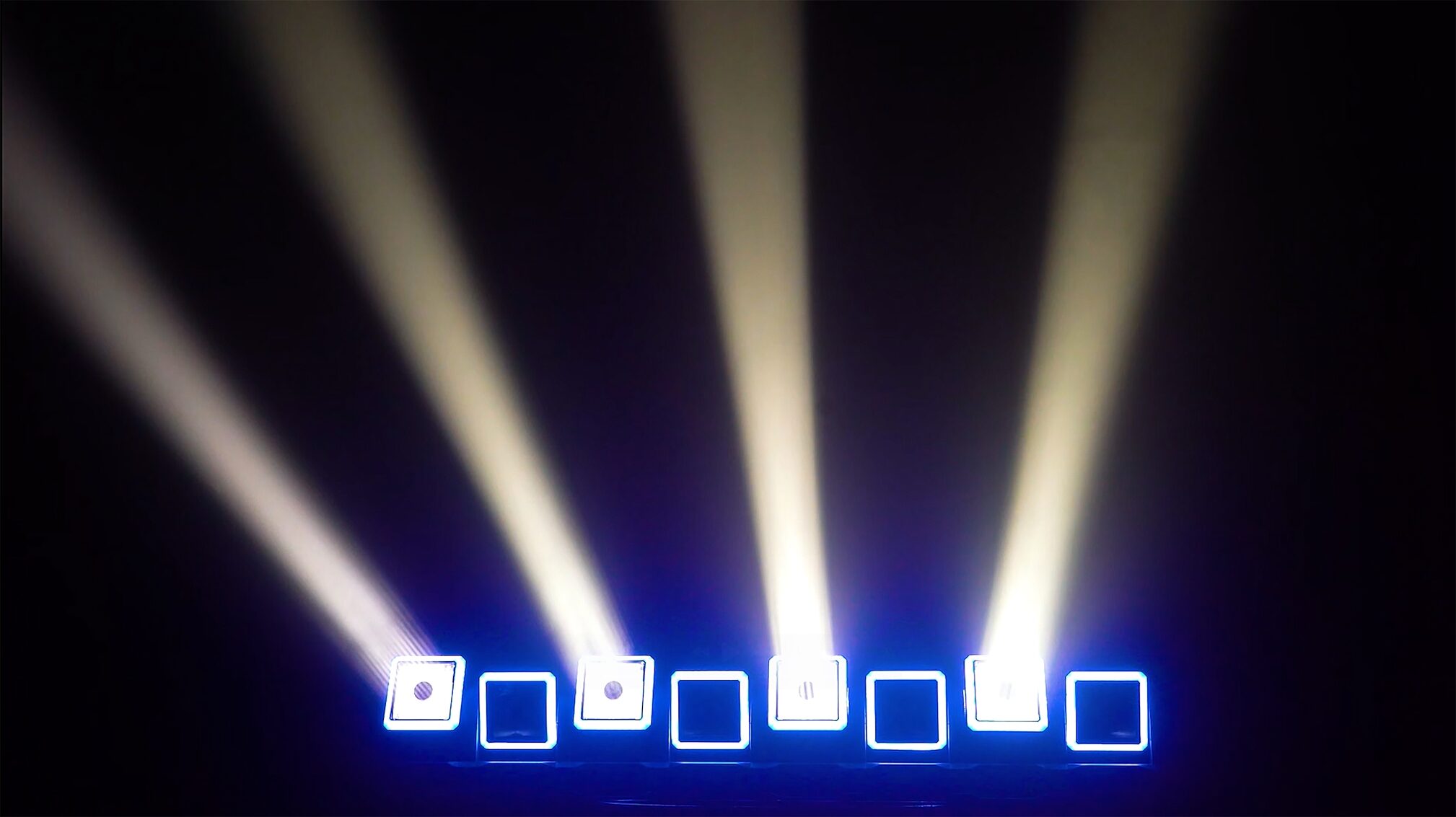

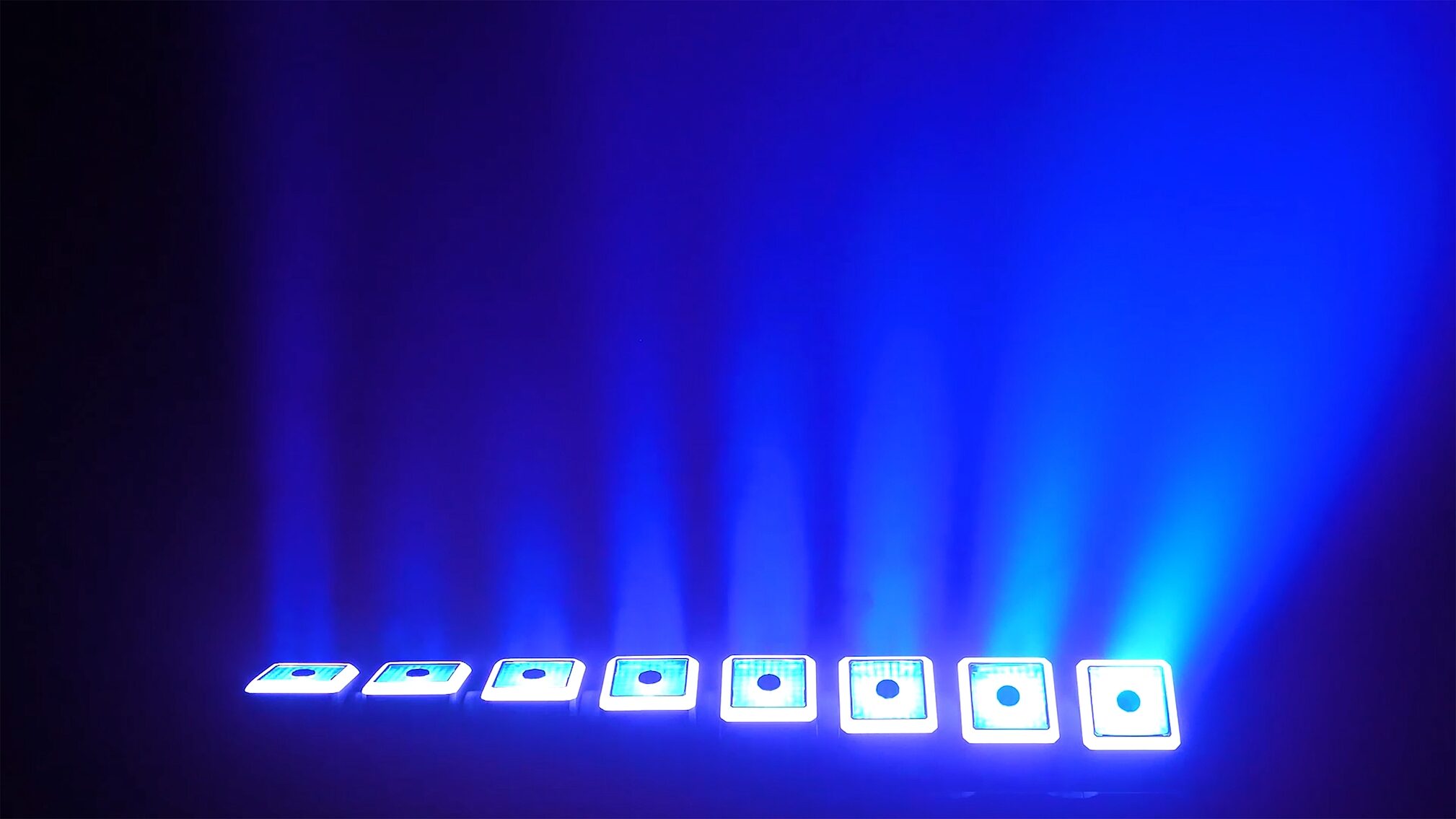

The JMAZ Professional Centipede B8 is an advanced moving head bar featuring eight powerful 60W RGBW LEDs and 240 RGB SMD LEDs for captivating multi-beam and ambient ring effects. Each head offers 360* infinite tilt and full pixel control, giving lighting designers the flexibility to create complex, high-impact visual sequences. With built-in virtual color presets and movement macros -- plus foreground and background color separation -- the Centipede B8 enables rich, layered effects without complex programming.

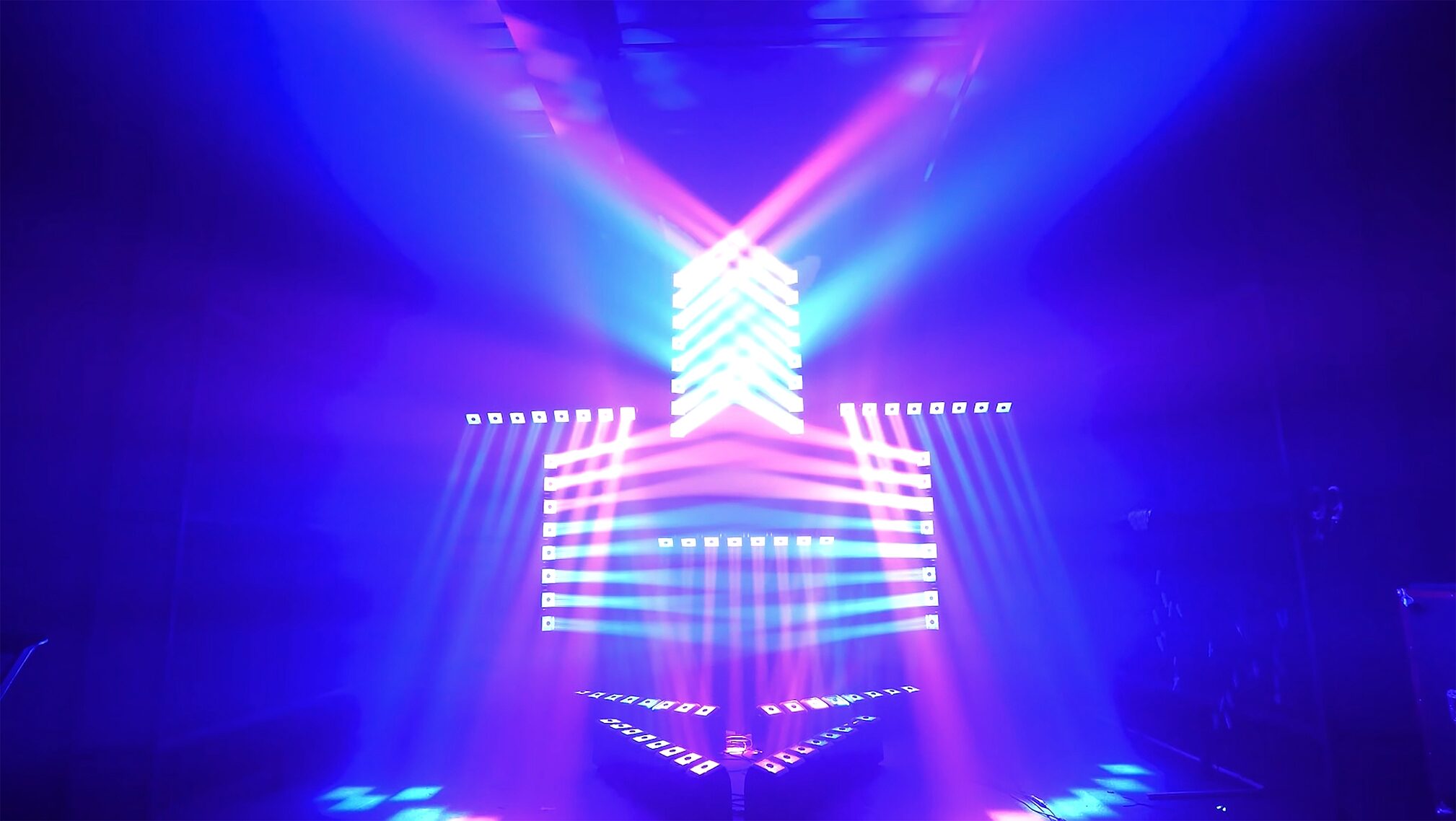

Check out JMAZ Professional's video to see the Centipede lighting series in action:

Its narrow 3.5° beam angle ensures intense, focused output, while 16-bit RGBW color mixing and a CTO range of 2500K to 8000K allow for precise color control across any environment. Operate in four DMX personality modes (24/58/90/130 channels) and integrate effortlessly with major protocols including 5-pin DMX512, Art-Net, RDM, sACN, and Kling-Net. Designed for professional use, it features TRUE1 IN/OUT power connections and includes essential accessories: a TRUE1 power cable, 5-pin DMX cable, 2 omega brackets, 2 safety cables, and a manual. CE, cETL, FCC, and RoHS certified for global compliance.

Features:

- 480W (8 x 60W) RGBW LED

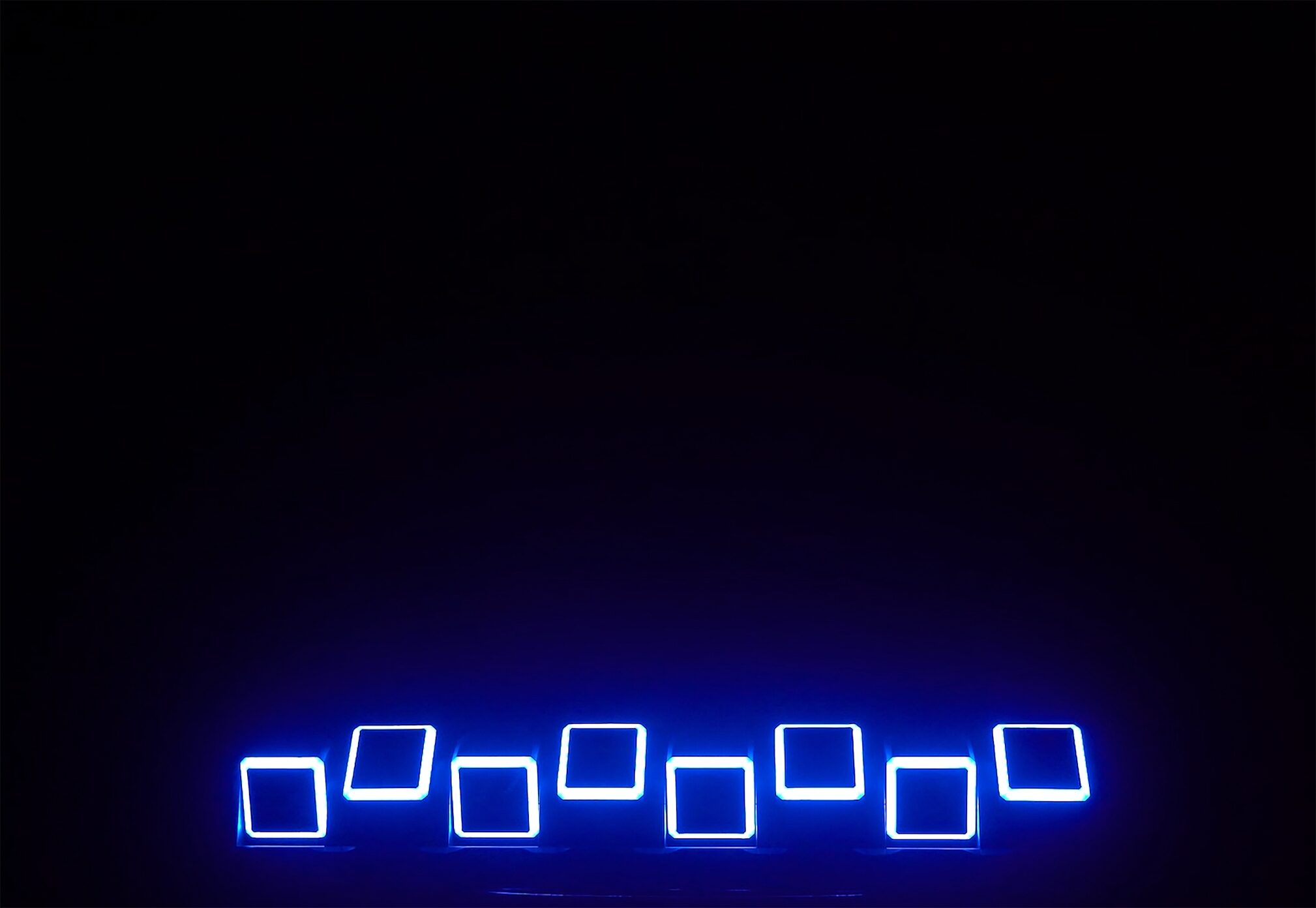

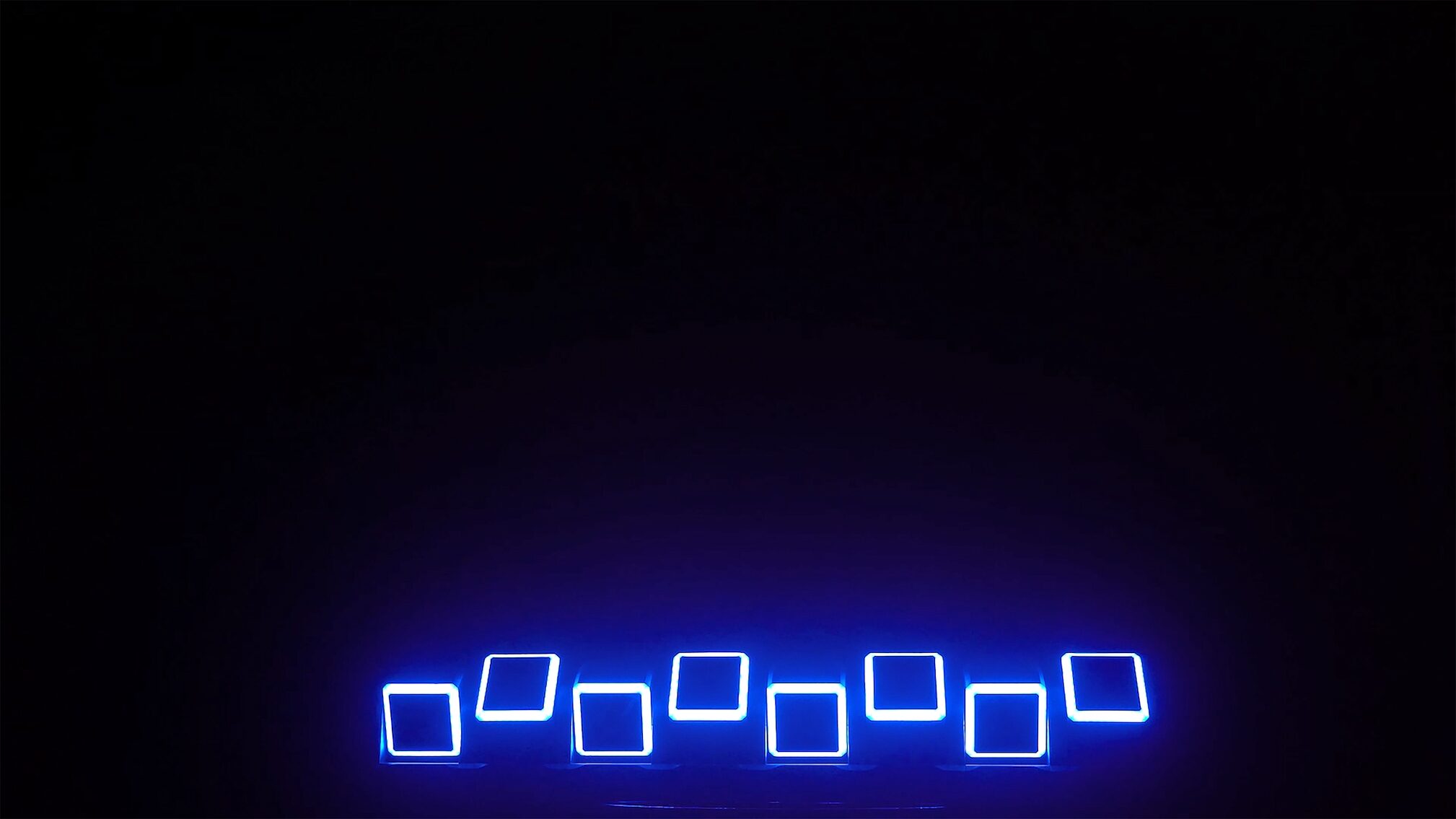

- Ring Effect: 48W ( 240 x 0.2W) RGB SMD LEDs
- Individual Head 360° Infinite Tilt Control
- Individual Head Pixel Control
- Individual Dynamic Ring Color And Effect Macro
- Built-In Virtual Colors And Movement Macros w/ Foreground and Background… read more Color Control

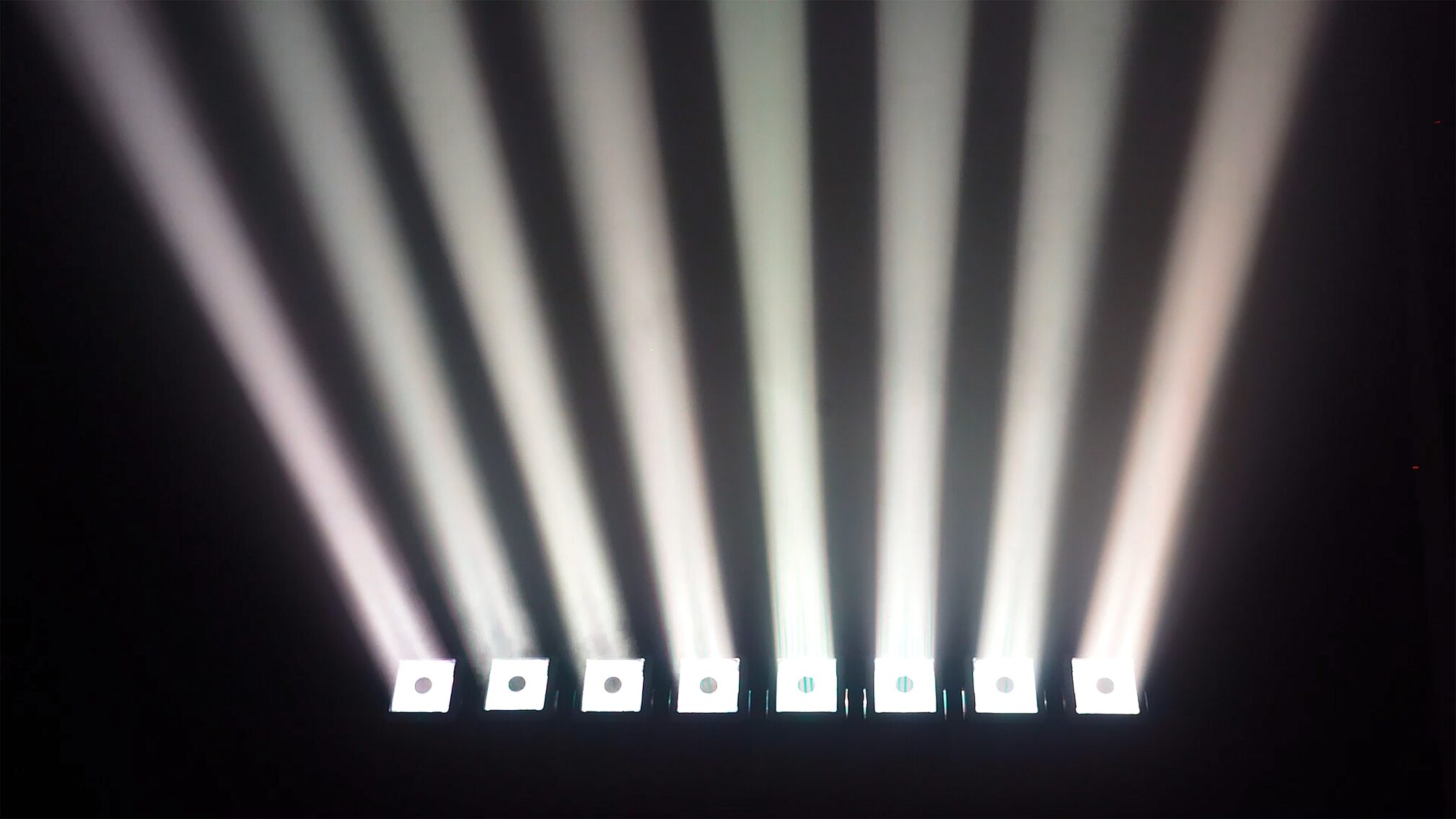

- Beam Angle: 3.5°
- 16 bit RGBW Color Mixing, CTC 2500K - 8000K
- Personalities: 4 Modes 24/58/90/130
- Protocol: 5-Pin DMX512, Art-Net, RDM, sACN, Kling-Net
- Power Connection: TRUE1 In/Out
- CE, cETL, FCC, Rohs Certified
- Includes: TRUE1 Power Cable, 5-Pin DMX Cable, 2 Omega Bracket, 2 Safety Cable, Manual
- 3 Year Warranty

WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Specs

UPC: 618528598680
Light Source: 480W (8 x 60W) RGBW LED
Ring Effect: 48W ( 240 x 0.2W) RGB SMD LEDs
LED Life: 50,000 Hours
Color System:
- 16 bit RGBW Color Mixing, CTC 2500K - 8000K
- Linear 16bit Color Temperature
- Individual Head Pixel Control
- Individual Dynamic Ring Color And Effect Macro
Optics: Beam Angle:3.5*
Dynamic Effect:
- Selectable preset home position Macros by DMX function channel for fast and easy programming
- Selectable fast and precise movement speed by DMX function channel
- Scan position memory with automatic tilt position correction
- Linear Dimmer: 0 - 100% Electronic Dimming
- Sharp Beam Effect
- Dynamic Ring Effect with built-in Macros with variable speed
Movement:
- 2 Tilt modes
- 360-degree continuous movement
- 240-degree ( 8 bit and 16 bit)
Shutter/ Strobe:
- High speed electronic shutter and strobe
- 0-25Hz shutter/ strobe effect with variable speed
- Preset pulse strobe effect with variable speed
- Random strobe effect with variable speed
Control:
- Protocol: 5-Pin DMX512, Art-Net, RDM, sACN, Kling-Net
- Personalities: 4 Modes 24/58/90/130
Body:
- Die-cast Aluminum and Steel structure with high impact flame retardant PA6 GF 30 (Polyamide 6) with 30% glass fiber
- Exterior finish: Black
Cooling: Fan
Power Connection: True1 (UL listed)
Power In/Out: True1
Protocol Connectors: 5-Pin DMX512 In/Out, Art-Net RJ45
Cable Length: Power 5 feet (1.5 meter); DMX 5 feet (1.5 meter)
IP Rating: 20
Input Voltage: 100 - 240V AC, 50/60Hz (Auto ranging with active PFC)
Power Consumption: 640W
Power Linking for connecting fixture in daisy-chain:
- Up to 3 units @110V with a 20A circuit
- Up to 6 units @208V with a 20A circuit
- Up to 6 units @230V with a 20A circuit
Fuse: F12A, 250V
Certification / Qualifications:
- CE, cETL, FCC, Rohs
- Operating Temperature: 40 * C ( 104 *F)
- Minimum Temperature: - 10 * C ( 14 * F)
- Maximum Temperature: 60 * C ( 140 * F)
Box Content:
- 1 x TRUE1 Power cable
- 1 x 5 pin DMX Cable
- 1 x User Manual
- 2 x Omega Brackets
- 2 x Safety Cable
Dimensions: 47.3" x 9.3" x 6.6"
Weight: 42.1 lbs.
Warranty: 3 Years
