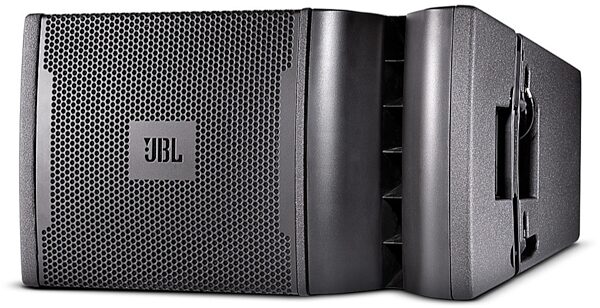

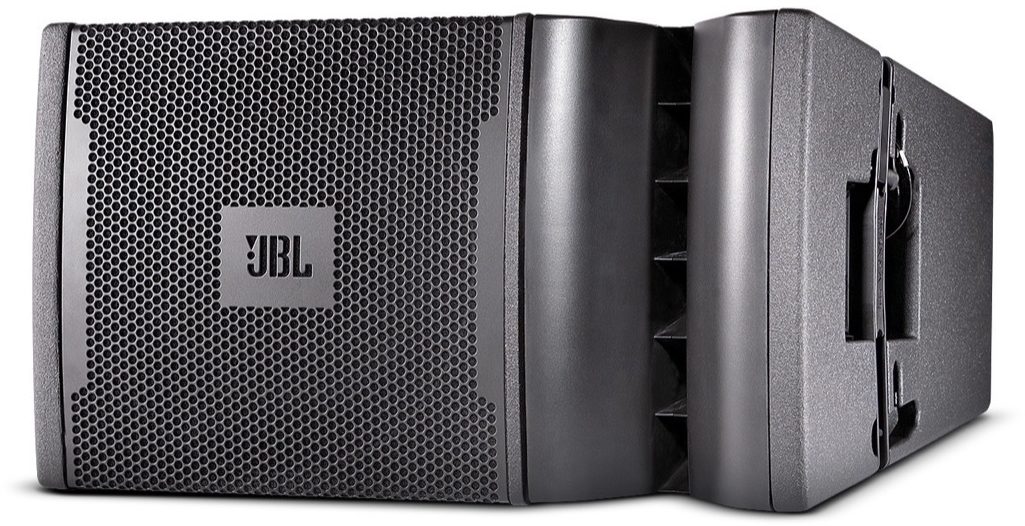

JBL VRX932LAP 2-Way Powered Line Array Loudspeaker (875 Watts, 1x12, 3x1.5 in.)

- Power Rating: 1750 Watts Peak 875 Watts Continuous
- Frequency Range: 57 Hz - 20 kHz (-10 dB)
- Dimensions (H x W x D): 349 mm x 597 mm x 444 mm (13.75 in x 23.5 in x 17.5 in)
- Frequency Response: 75 Hz - 20 Hz (+/-3db)
- Maximum Peak Output: 136 dB SPL at 1m
- Coverage Pattern: 100 x 15 nominal
- DPC-2 Output as (Continuous IED shaped pink noise into rated load impedance): LF: 750 Watts, HF: 125 Watts
- DPC-2 Output Sectoin: LF: Dual-Bridged Technology(TM), Class D
- Autio Input Connector: XLR with loop through
- LF Driver: 1 x JBL 2262FF 305 mm (12 in) neodymium magnet
- HF Driver: 3 x JBL 2408J, 38 mm (1.5 in)
- User Controls: Input Attenuator (0-16 dB)
- Signal Processings: DSP based, resident in Input Module
- AC Power Operating Range: 90-132 VAC or 216-264 VAC, 50/60 Hz
- AC Input Connector: Neutrik PowerCon (NAC 3MPA)
- AC Loop Through Connector: Neutrik PowerCon (NAC 3MPB)
- AC Current Requirements: 6A per system at 120V, 3A per system at 240V
- Enclosure: 25/15 mm, 11-ply birch plywood
- Suspension / Mounting: Optional VRX-AF line array frame kit, 10mm forged eyebolts or internal dual angle 36mm pole mount cup for pole or tripod mounting
- Finish: Black DuraFlex(TM) finish
- Grille: Powder coated, black, 16-gauge perforated steel with acoustically transparent foam
- Net Weight: 24 kg (52 lb)
- Optional Accessories: VRX-AF: Suspension array frame
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 54.25 lbs
Shipping Dimensions: 26 x 19 x 18 in
Manufacturer Part Number (MPN): VRX932LAP
If you have additional warranty questions, please contact the manufacturer at 800-336-4525
(3 ratings)
Submitted June 4, 2017 by Daniel S in Wilmington, NC
"Clean, clear and powerful sound"
Verified Customer zZounds has verified that this reviewer made a purchase from us.
We just put these in at a church as part of a large installation, along with a sub. Amazing sound! Excellent coverage. They aren't cheap, and you can tell the quality is there. if you can afford them, highly recommended.
Musical Background:
Been playing for 25 years, Guitar. Sound tech and AV installer.
Musical Style:
Rock, old country, bluegrass, a little of this and a little of that. wubba dub dub..
11 of 12 people (92%) people found this review helpful. Did you?
