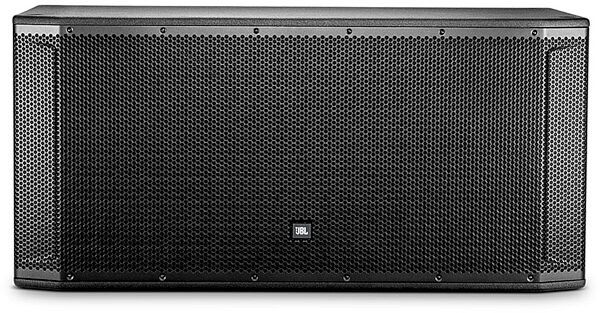

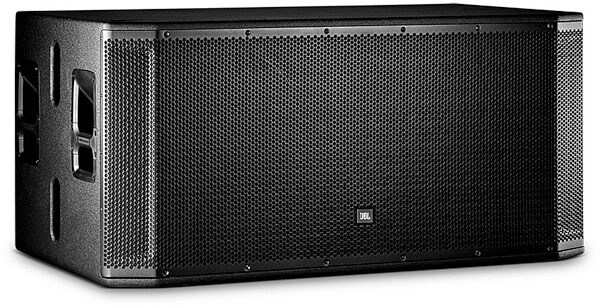

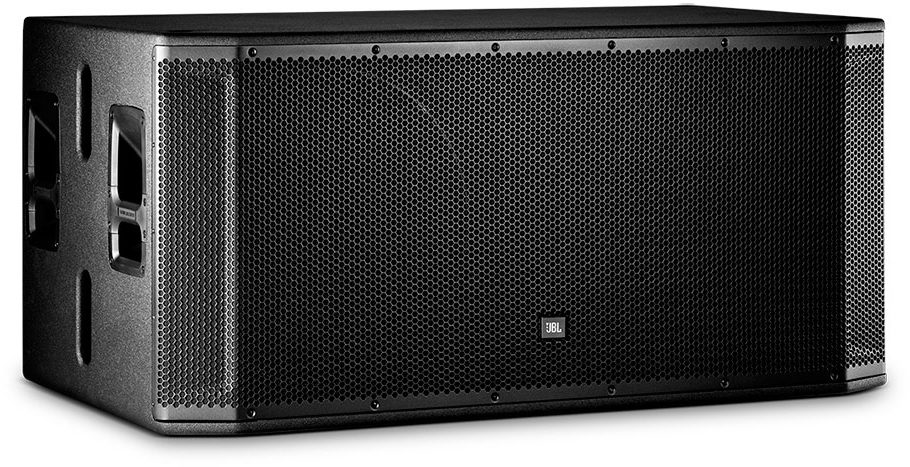

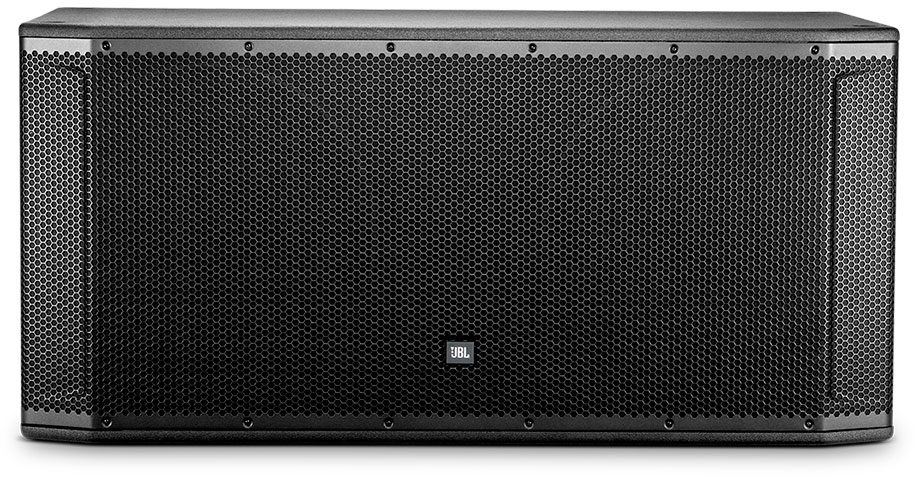

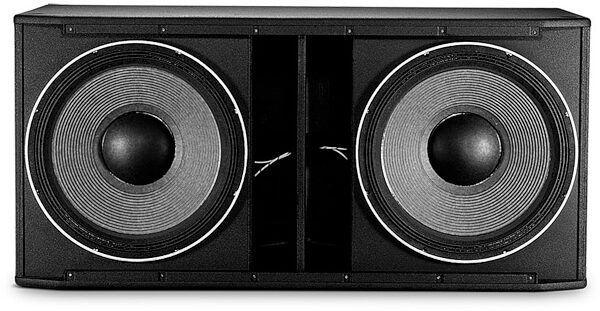

JBL SRX828SP Powered Subwoofer Speaker
zZounds Gear Experts Say...

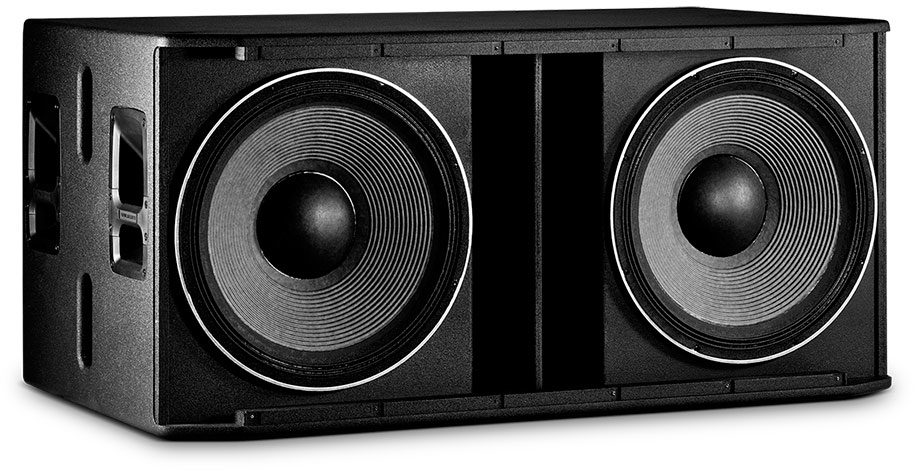

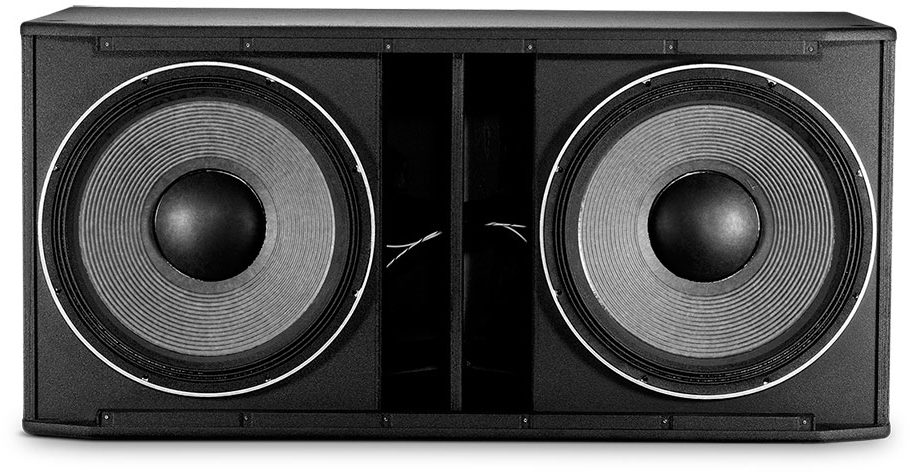

When you really need to bring the bass, the JBL SRX828SP pumps 2,000 watts of boom through dual 18" woofers -- along with tone shaping through on-board DSP.
Overview
The SRX828SP represents the next generation of premium powered loudspeaker technology from JBL Professional. Featuring 3 inch voice coils, 2000 Watts of Crown Amplification, rugged enclosures with JBL's patented DuraFlex coating, and a full suite of onboard user configurable DSP, the SRX828SP is a perfect all in one solution wherever high performance, comprehensive control, and pristine sound are required.
With M10 suspension points and indexed feet, the SRX828SP can be configured for a variety of applications, including being stacked in a cardioid configuration for large shows on stage.
For incredible extended low frequency response, the SRX835P uses an 18-inch woofer with JBL's patented Differential Drive Technology for reduced weight while maximizing power amp efficiency. Its 3" voice coils and dual ferrite drivers deliver exceptionally low distortion and extended low frequency response.

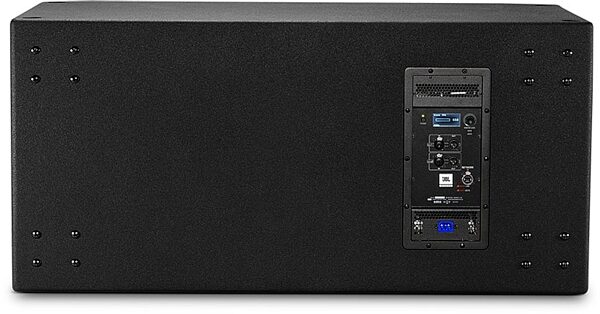

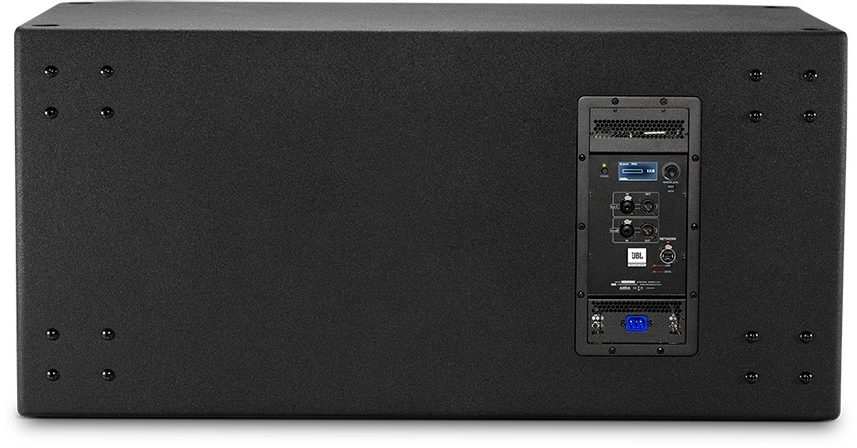

- LCD Screen and glow in the dark ink on back panel
- M10 Suspension Points
- Purposeful Design: Rugged, Intuitive to Use, Easy to Transport
- 2000 Watts of Crown Amplification
- JBL Premium Transducers with 3-inch voice coils
- Full Suite of User-Configurable DSP including 20 PEQS and 96kHz FIR filters
- Network Contol via HiQNet, Audio Architect, and standalone apps for iOS, Android, Mac, and PC
With M10 suspension points and indexed feet, the SRX828SP can be configured for a variety of applications, including being stacked in a cardioid configuration for large shows on stage.
For incredible extended low frequency response, the SRX835P uses an 18-inch woofer with JBL's patented Differential Drive Technology for reduced weight while maximizing power amp efficiency. Its 3" voice coils and dual ferrite drivers deliver exceptionally low distortion and extended low frequency response.
Features:
- JBL Engineered Application Presets- LCD Screen and glow in the dark ink on back panel
- M10 Suspension Points
- Purposeful Design: Rugged, Intuitive to Use, Easy to Transport
- 2000 Watts of Crown Amplification
- JBL Premium Transducers with 3-inch voice coils
- Full Suite of User-Configurable DSP including 20 PEQS and 96kHz FIR filters
- Network Contol via HiQNet, Audio Architect, and standalone apps for iOS, Android, Mac, and PC
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
Specs
Note: This subwoofer does NOT have any pole mount sockets.
- System Type: Self powered dual 18", subwoofer system
- Maximum SPL Output: 141 dB
- Frequency Range (-10dB): 29 - 150 Hz
- Frequency Response (- 3dB): 35 - 120 Hz
Amplification:
- System Power Rating: 2000W Peak (1000W x 2), 1500W continuous (750W x 2)
- Input Impedance: 40k balanced, 20k unbalanced
- Line Input Gain: 21 dB
- Consumer Input Gain: 33 dB
Max Input Level:
- Line: 20dBu
- Consumer: 8dBu
- Connectors: Neutrik 1/4 - XLR input; Neutrik XLR Output
- LED Indicators: Power LED (Green), Network Link (Green), Network Data (Yellow)
- Cooling: On-Demand variable speed fan
- AC Power Input: 100V - 240V 50/60Hz
- AC Power Consumption (120V): 2.2A (1/8th Power), 5.6A (1/3rd Power)
Speaker Specification:
- LF Driver: (2x) 2279F
- MF Driver: -
- HF Driver: -
- Coverage Pattern: -
- Crossover Frequency: 80hz
Enclosure:
- Material: 18mm plywood
- Monitor Angle: -
- Suspension/Mounting:
- Handles: 8
- Finish: Obsidian Duraflex(TM) finish
- Grille: Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
- Dimensions (L x W x H): 26.79" x 47.42" x 22.57" (681mm x 1205mm x 574mm)
- Weight: 145 lbs (65.9 kg)
- Shipping Weight: 165 lbs (75 kg)
- System Type: Self powered dual 18", subwoofer system
- Maximum SPL Output: 141 dB
- Frequency Range (-10dB): 29 - 150 Hz
- Frequency Response (- 3dB): 35 - 120 Hz
Amplification:
- System Power Rating: 2000W Peak (1000W x 2), 1500W continuous (750W x 2)
- Input Impedance: 40k balanced, 20k unbalanced
- Line Input Gain: 21 dB
- Consumer Input Gain: 33 dB
Max Input Level:
- Line: 20dBu
- Consumer: 8dBu
- Connectors: Neutrik 1/4 - XLR input; Neutrik XLR Output
- LED Indicators: Power LED (Green), Network Link (Green), Network Data (Yellow)
- Cooling: On-Demand variable speed fan
- AC Power Input: 100V - 240V 50/60Hz
- AC Power Consumption (120V): 2.2A (1/8th Power), 5.6A (1/3rd Power)
Speaker Specification:
- LF Driver: (2x) 2279F
- MF Driver: -
- HF Driver: -
- Coverage Pattern: -
- Crossover Frequency: 80hz
Enclosure:
- Material: 18mm plywood
- Monitor Angle: -
- Suspension/Mounting:
- Handles: 8
- Finish: Obsidian Duraflex(TM) finish
- Grille: Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
- Dimensions (L x W x H): 26.79" x 47.42" x 22.57" (681mm x 1205mm x 574mm)
- Weight: 145 lbs (65.9 kg)
- Shipping Weight: 165 lbs (75 kg)
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 176 lbs
- Shipping Dimensions: 52 x 32 x 25 in
- Manufacturer Part Number (MPN): SRX828SP
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 800-336-4525
Web: https://jblpro.com/en/support for pro audio, https://support.jbl.com for consumer/home audio
Phone: 800-336-4525
Web: https://jblpro.com/en/support for pro audio, https://support.jbl.com for consumer/home audio
Reviews
Reviewers gave this product an overall rating of 5 out of 5 stars.
(5 ratings)
Submitted November 14, 2015 by Juan L in Sacramento, CA
"In your chest!"
Verified Purchaser
zZounds has verified that this reviewer purchased this specific product from us.
Don't pay attention to the previous review. I had 4 EV ETX18SP subwoofers that destroy the QSC KW181s and sold those for the JBL. The EV were great but JBL did not hold back on these, I've been a fan of the SRX728S since they came out and so have many sound professionals. These new SRX do not disappoint! I currently have 4 of the SRX828SP and all I can say is WOW! The subs are massive but so is the sound, 141db each.
Musical Background:
DJ, Live Sound
Musical Style:
Everything from hip hop to country
68 of 74 people (92%) people found this review helpful. Did you?
