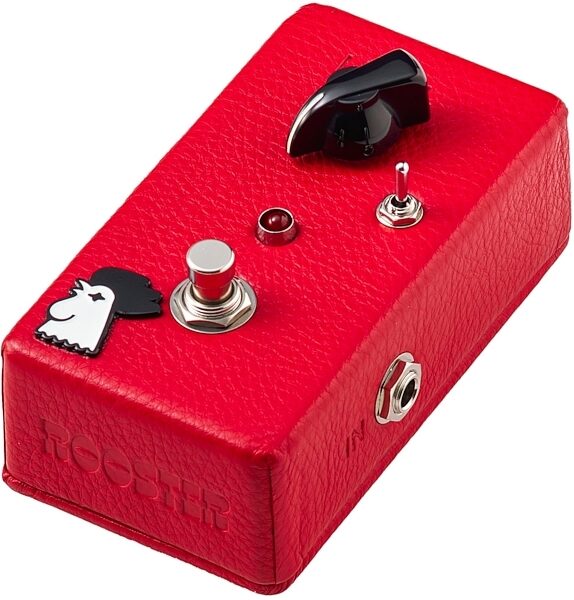

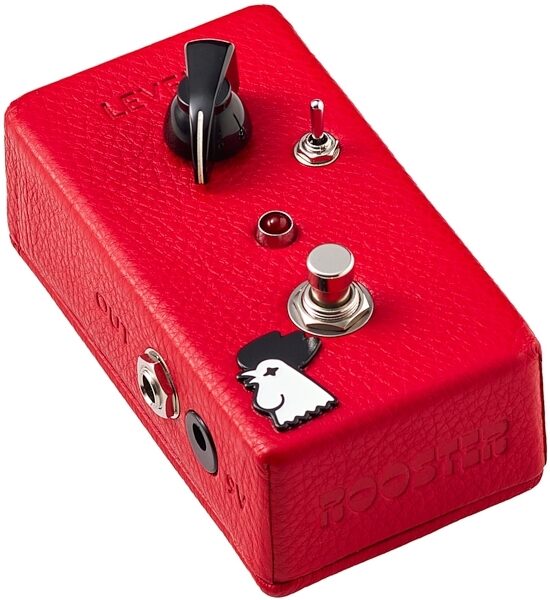

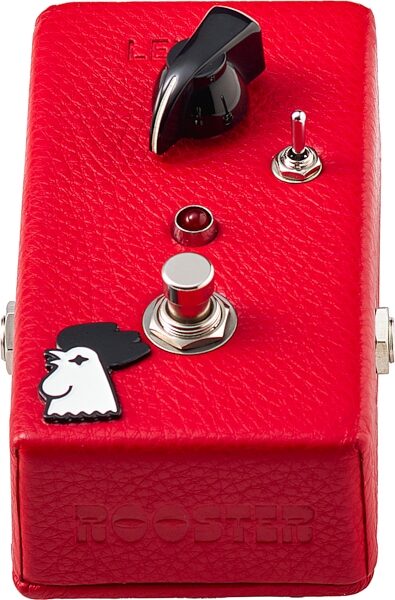

JAM Pedals Rooster Limited Germanium Treble Boost Pedal

Based on the venerable Rangemaster treble booster, the Rooster adds a three-way toggle for treble, mid or bass boost focus and a stylish leather enclosure.
Vintage-style Treble Booster -- one of the secret ingredients that helped shape legendary sounds by Eric Clapton in John Mayall's Bluesbreakers, Rory Gallagher, Brian May and Tony Iommi. Built from the greatest parts available, carbon comp resistors and tropical fish capacitors, for pure vintage sound!

The most crucial ingredient when it comes to a vintage- style treble booster is transistor choice. In JAM's experience there's nothing quite like the CV7003, military-spec OC44 germanium transistors.

As stock of Rooster-compatible CV7003s is gradually depleting, JAM Pedals is re-introduce it, celebrating its uniqueness and scarcity with point-to-point wiring housed in a luxurious leather enclosure.

Playing with the guitar volume, can unlock many textures, ranging from clean crunchy tones, to fat boosted overdrive!

Also featuring a 3-way toggle-switch for treble, mid or bass boost focus.



- Level controls the Rooster's output
- 3-way toggle-switch selects between three EQ options: Bass (Top position), Treble (Center position), Mid (Bottom position)
- True Bypass
- Works with 9V battery or 9V DC adaptor (tip-negative)
If you have your pedal mounted on a pedal board and keep it plugged in at all times, use the small DC plug provided on the power jack, when not playing to prevent battery drainage.

Caution: this circuit uses positive ground. Therefore you cannot connect this pedal to any type of chained power supply linked with other common DC-powered pedals, unless the power supply unit features separate isolated DC outputs.

Power consumption: 4 mA
Dimensions (jacks, pots etc. included): 7.5 x 12 x 5.6 cm / 2.9 x 4.7 x 2.2 inches
Weight: 300g / 0.66 lbs.
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 1.25 lbs
Shipping Dimensions: 6 x 4 x 4 in
Manufacturer Part Number (MPN): JAM ROOSTERLTD
For support or warranty questions, please contact the manufacturer:
Phone: +30 210 6455849
Web: https://www.jampedals.com/
