IK Multimedia iRig USB Audio Interface

This compact interface is the easy, affordable way to capture your guitar to your Mac, PC, or iPad via USB-C. AmpliTube and TONEX amp modeling apps included!

Overview

iRig USB combines all the award-winning features of iRig 2 in a USB-C enclosure for superior sound. Connect the iRig USB seamlessly to Mac, PC or iPad with 24 bit 48kHz audio quality, or use your Apple Camera Connection Kit to connect to legacy Lightning devices (requires Apple's Lightning to USB 3 Camera Adapter).

iRig USB, iRig HD X, AXE I/O ONE...Which iRig Do I Need?:

Features:

- Compact audio interface for guitar or bass
- Works with iPad, Mac, PC and iPhone 15
- 1/8" headphones out for silent practice
- 1/4" Amp out connects to your amp or pedalboard
- Works with your favorite learning, practice and recording apps
- Packed with AmpliTube & TONEX amp modeling apps
- Powered by your device, no batteries required

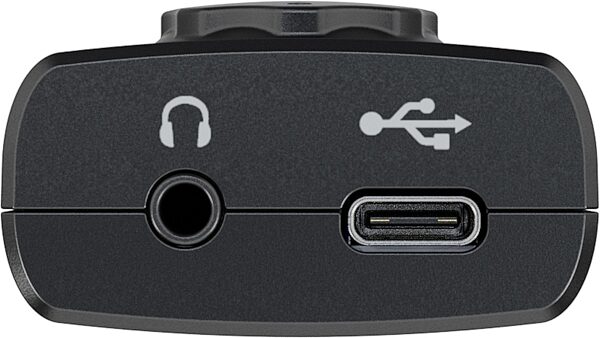

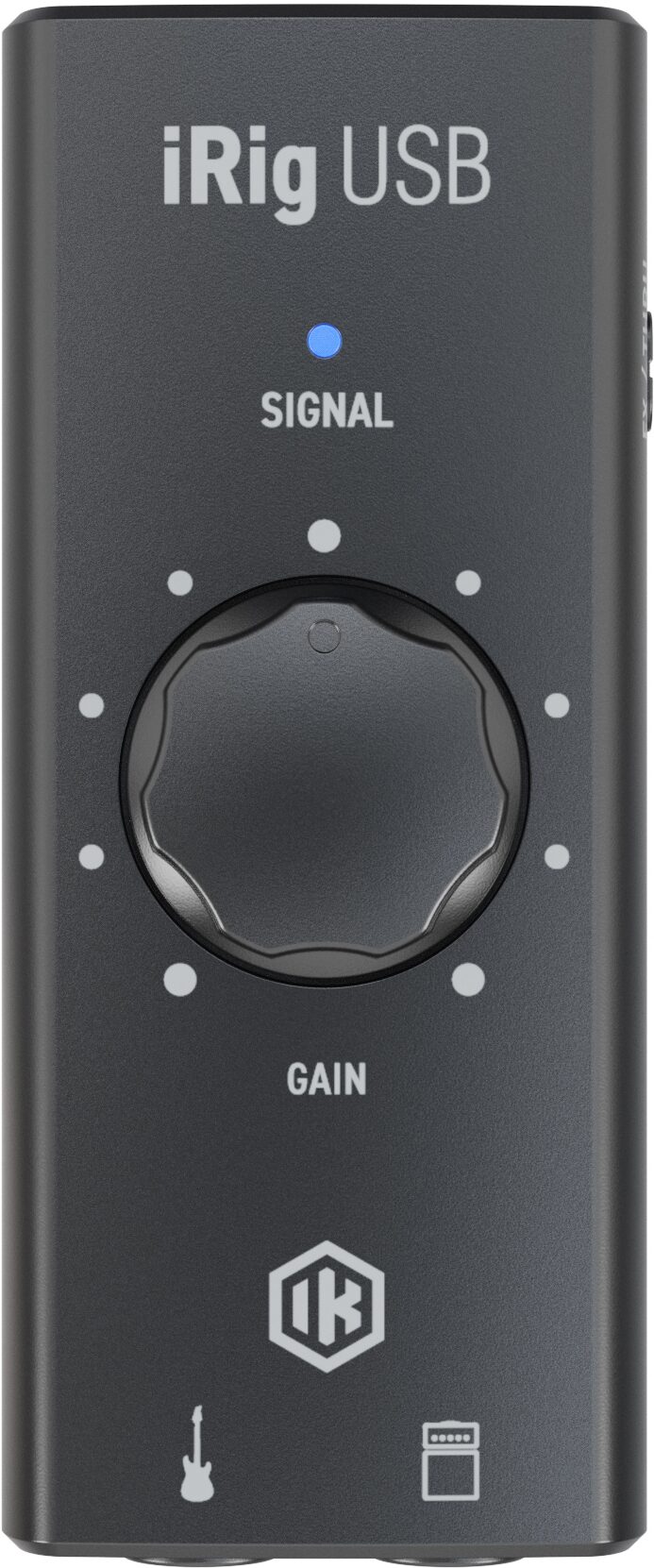

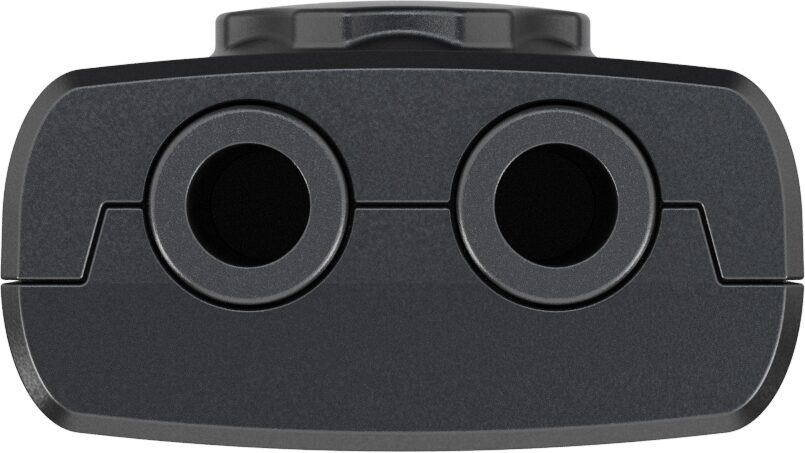

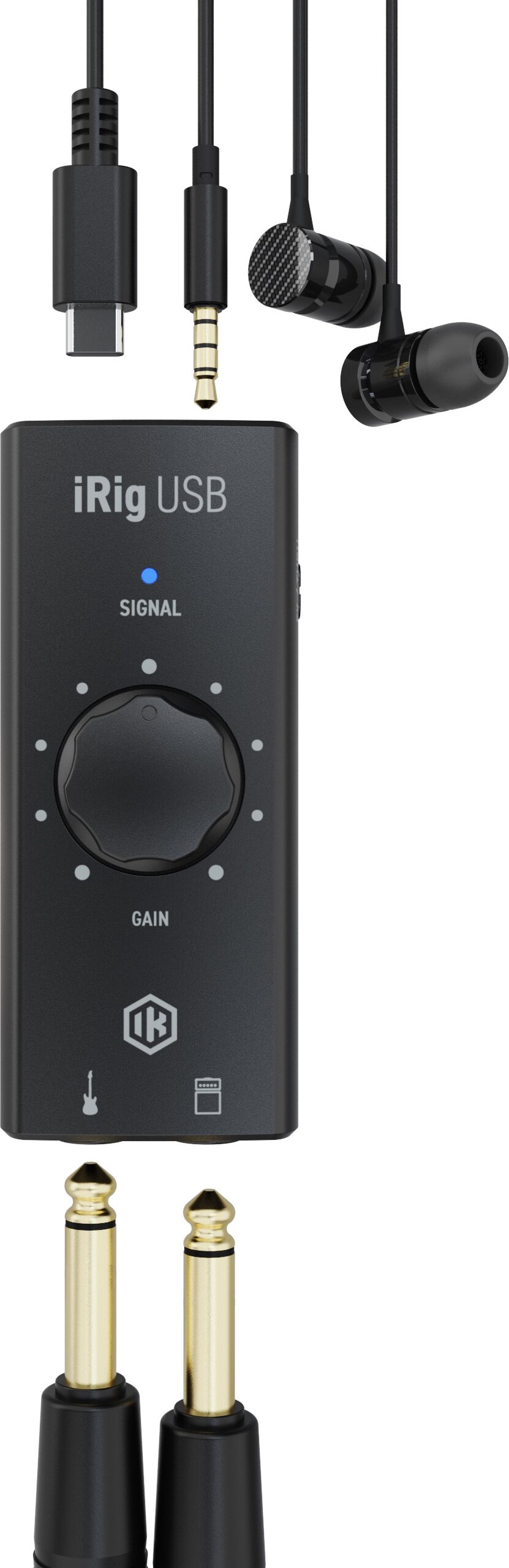

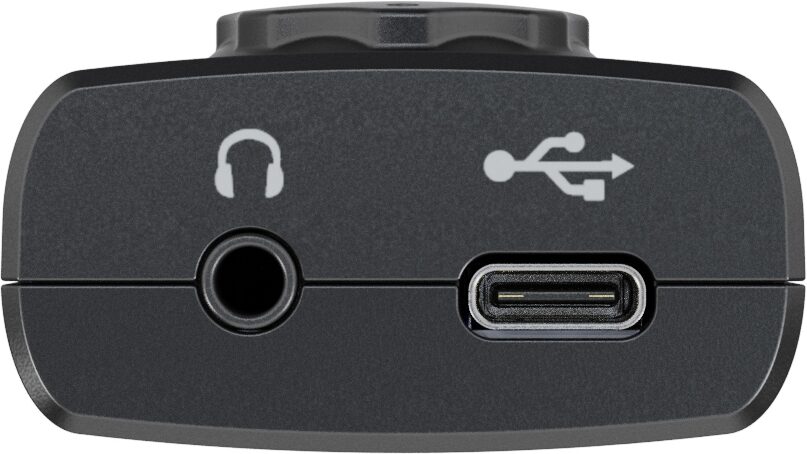

iRig USB offers a 1/4-inch instrument input with dedicated gain control, a 1/4-inch Amp output with dual mode operation, and a 1/8-inch headphone output. Connect your guitar or bass, plug the USB-C cable to your device and connect your headphones. You can adjust the level of the input signal with the knob to find the perfect level for your recording.

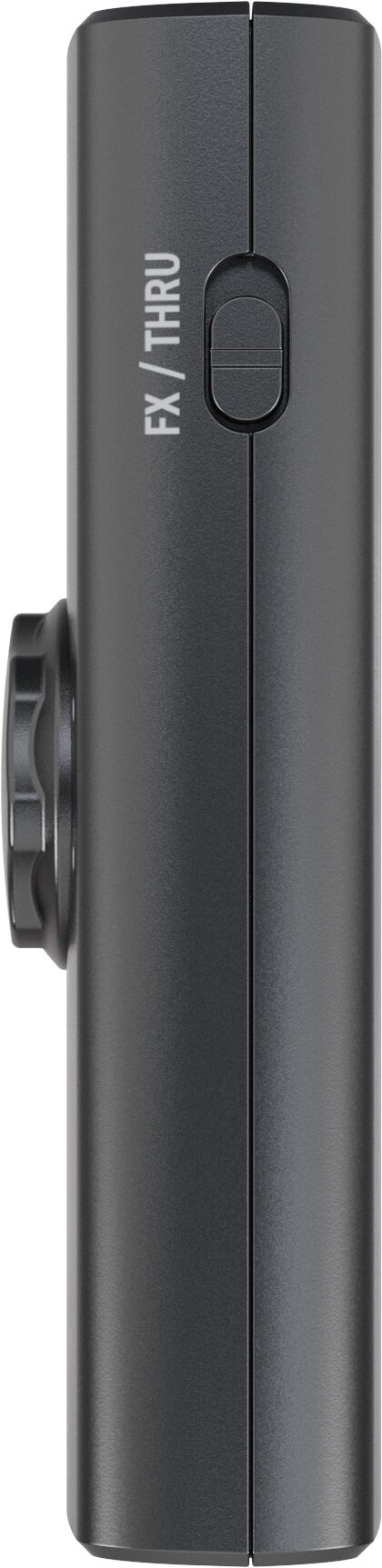

The Amp out can work in two modes: set it to FX to carry the processed signal coming out from your device, to use AmpliTube, TONEX and other tone processing apps plugged into your amp. Or, use THRU mirror the input signal to the amp out to use tuners and other passive apps.

Best of all, iRig USB comes packed with apps from IK: AmpliTube SE and TONEX SE for Mac/PC, as well as AmpliTube for iPad and TONEX for… read more iPad. iRig USB offers everything you need to play, practice and record on any device with limitless, ultra-realistic tones -- and also works with all your favorite other apps for neverending inspiration.

Specs

-AD and DA resolution: 24-bit
-Sampling rate: 44.1 kHz and 48 kHz
-Host connection: USB Type-C socket
-Input impedance: 500 khms
-Maximum input level: +13.5 dBu
-Frequency response: From 20 Hz to 20 kHz within 0.5 dB (48 kHz sample rate)
-Dynamic range: 90 dB(A)
-Amp Output Configuration: Unbalanced
-Amp Output impedance: 3.3 khms
-Amp Output Frequency response: From 10 Hz to 20 kHz within 1 dB (48 kHz sample rate)
-Amp Output Dynamic range: 97 dB(A)
-Headphone Output impedance: 22 hms
-Headphone Output Maximum output level: approx 6mW into 50 Ohms load
-Headphone Output Frequency response: From 10 Hz to 20kHz within 1 dB (48 kHz sample rate)
-Headphone Output Dynamic range: 94 dB(A)
-Cable: USB-C to USB-C cable (60 cm/23.62")
-Dimensions: 3.9" x 1.65" x 0.98" (99 mm x 42 mm x 25 mm)
-Weight: 54 g (1.9 oz.)

Dimensions and Weight in Packaging
Base Item: Shipping Weight: 1 lbs; Shipping Dimensions: 6 x 6 x 2 in; Manufacturer Part Number (MPN): IP-IRIG-USB-IN
